AR32.25-P-1017TW Remove/Install the Suspension Strut



AR32.25-P-1017TW Remove/Install the Suspension Strut
- with CODE (489) Airmatic (semi-active air suspension)

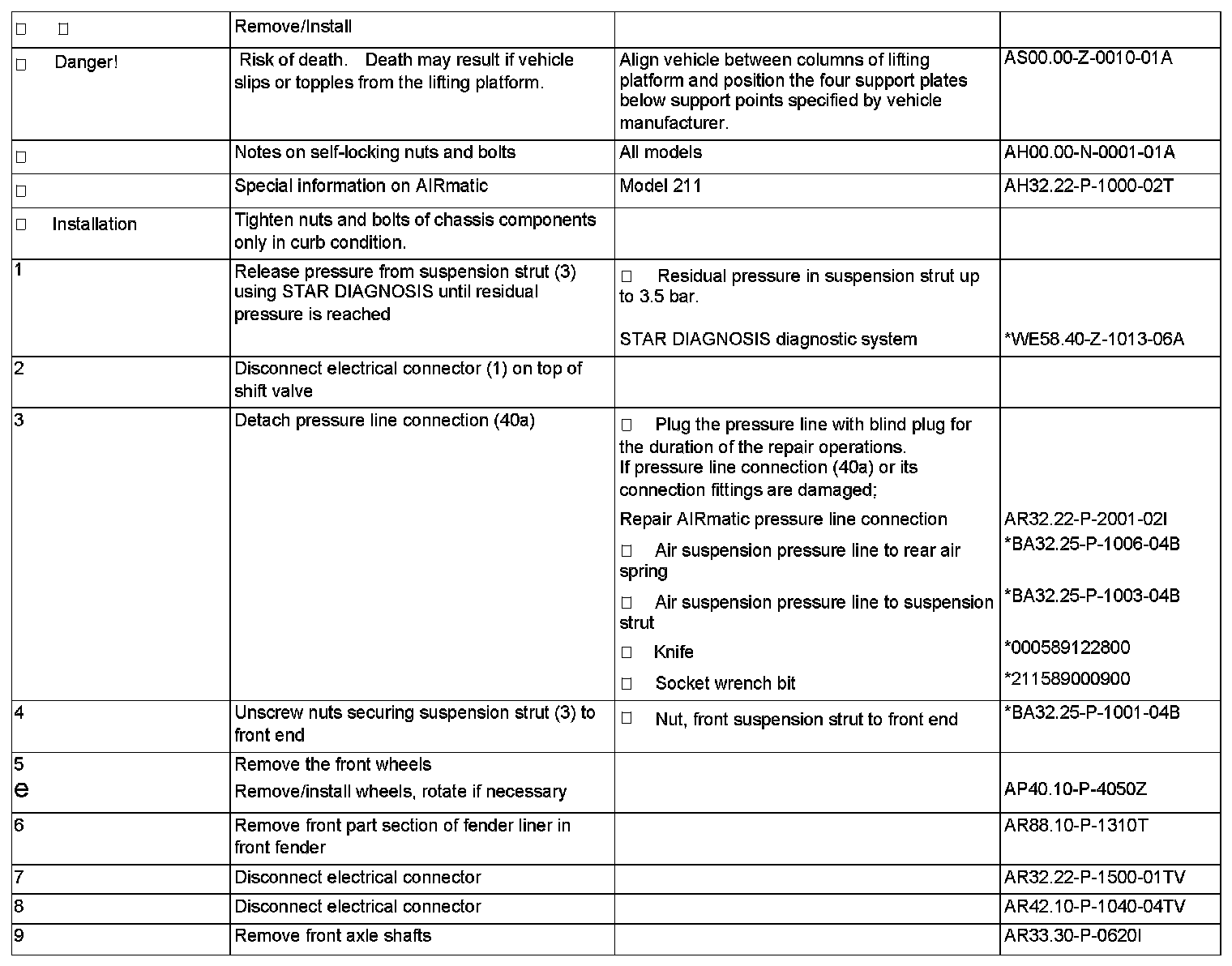

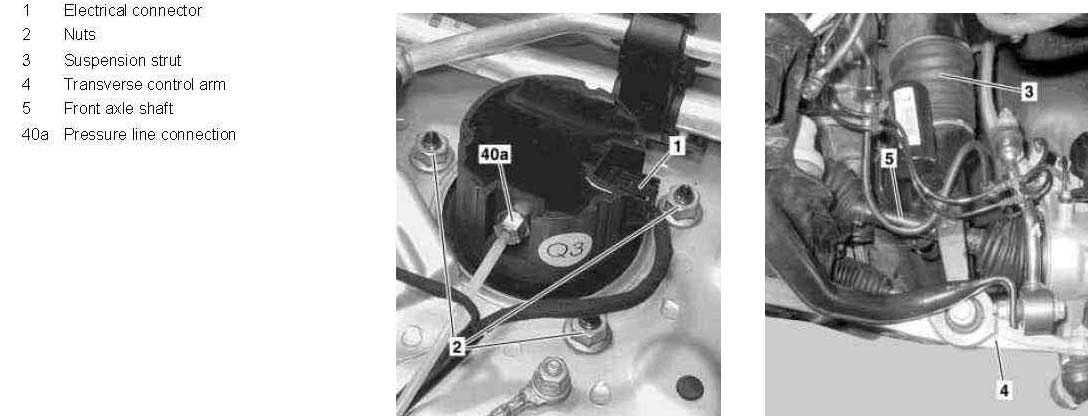

Steps 1-9:

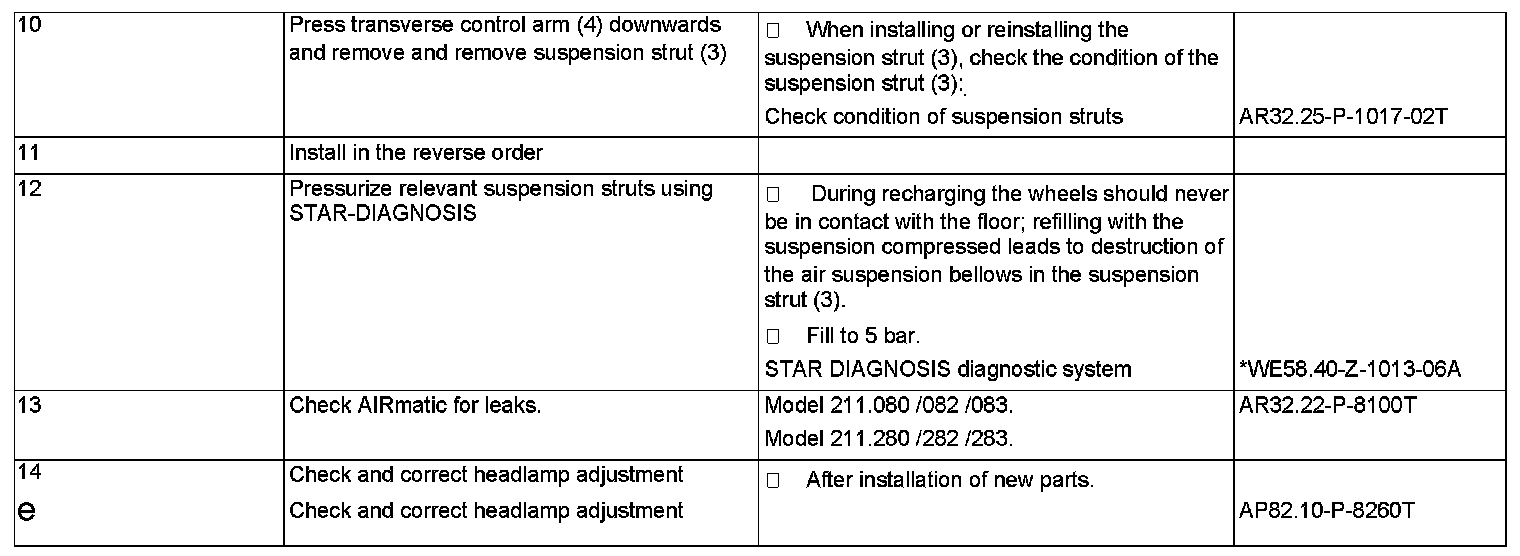

Steps 10-14:
