AR32.25-P-1017T Remove/Install the Suspension Strut



AR32.25-P-1017T Remove/Install the Suspension Strut
- except CODE (489) Airmatic (semi-active air suspension)

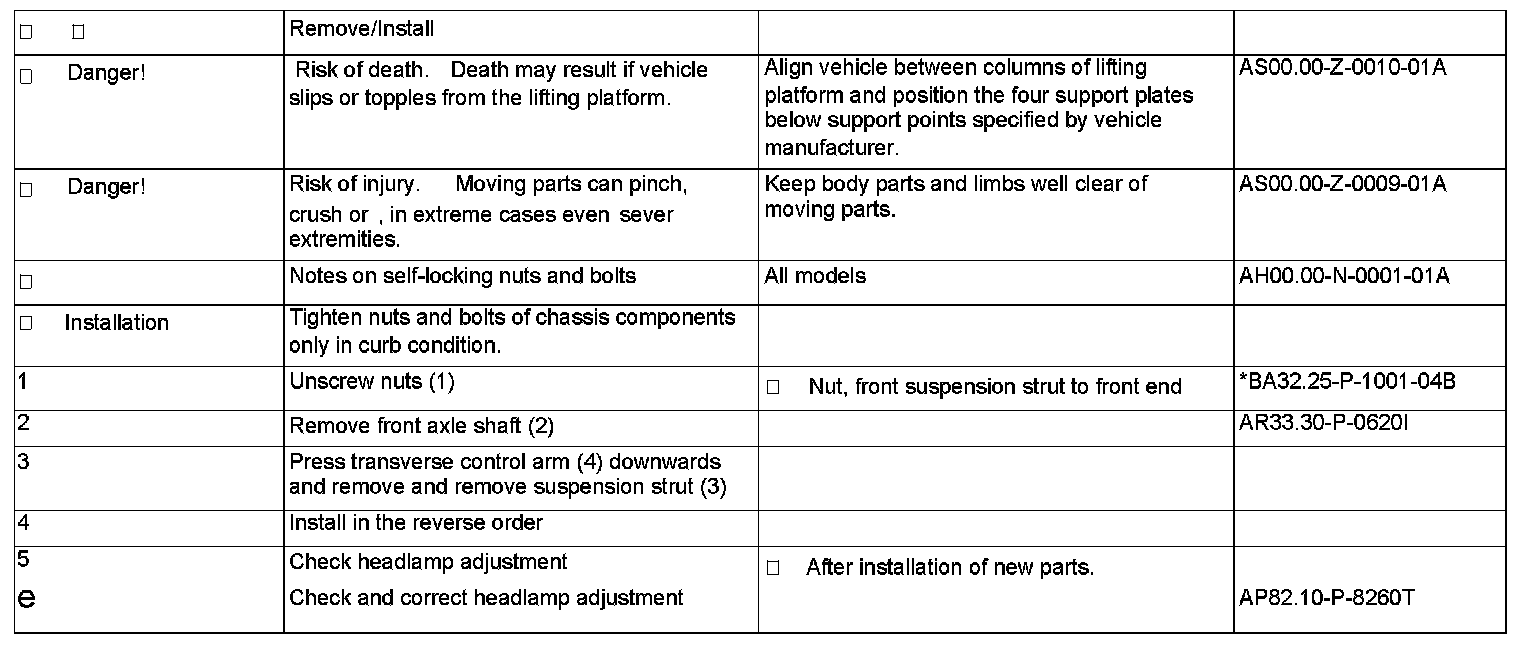

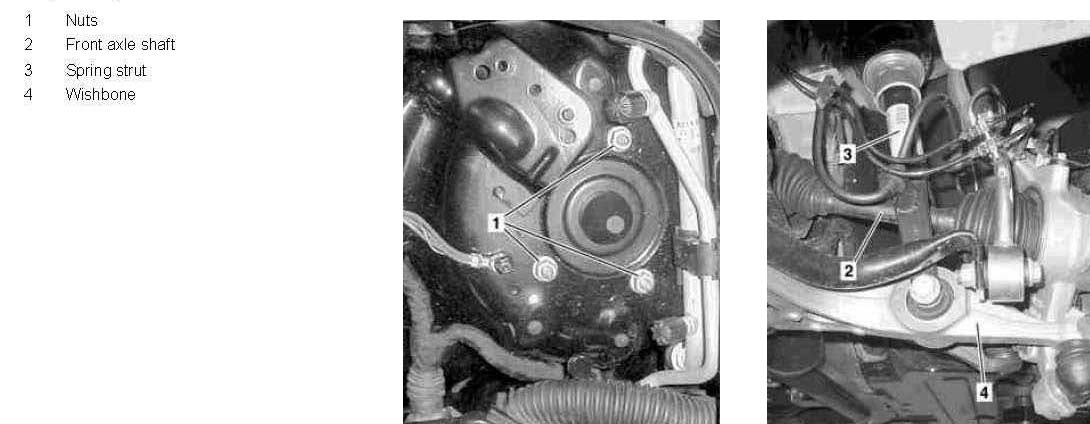

Steps 1-5:
