Stabilizer Link: Service and Repair

AR32.20-P-0300-02VM Detach/install link rod at torsion bar

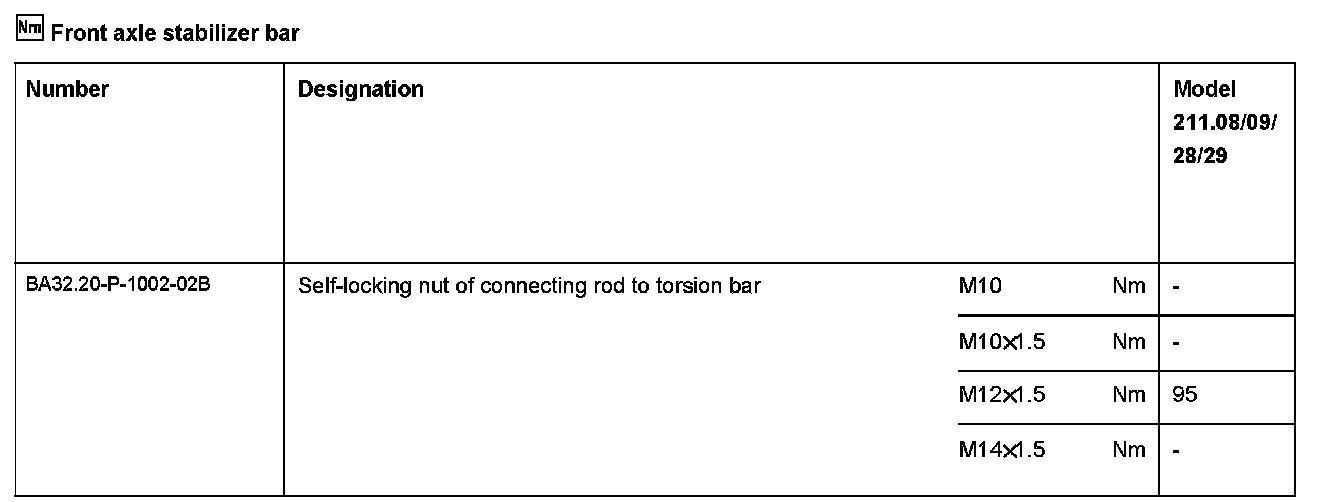

Front Axle Stabilizer Bar:

Removal

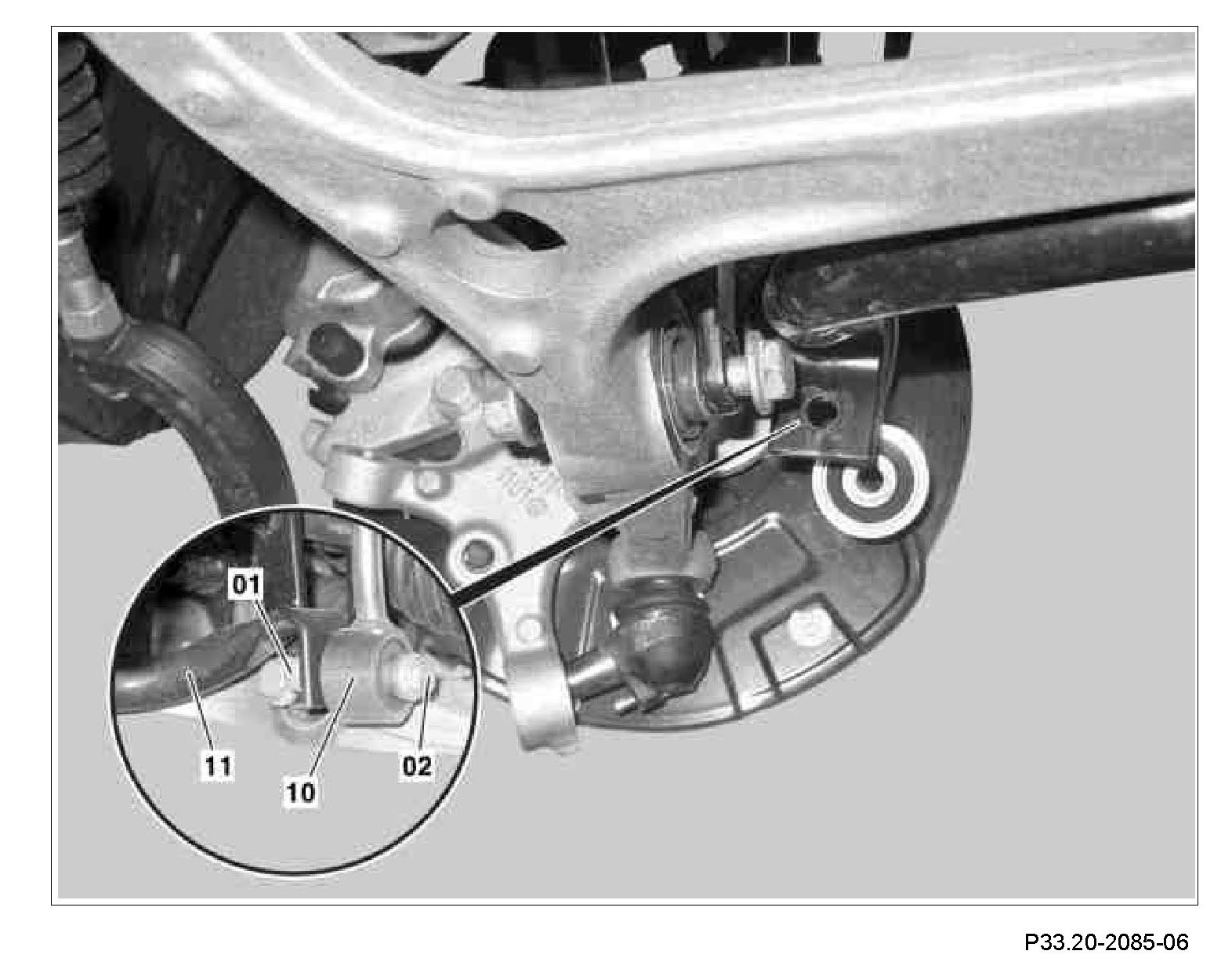

Component Identification:

1 Unscrew self-locking nut (01) and bolt (02) of link rod (10) at stabilizer bar (11).

Checking
2 Check rubber mount of link rod (10) for damage and replace link rod (10) if necessary.

Install
3 Screw on self-locking nut (01) and bolt (02) of link rod (10) on stabilizer bar (11).

Replace self-locking nut (01). Only tighten self-locking nut (01) when vehicle is ready to drive, turn steering if necessary.
