Remove/Install Radius Rod, except Code 489 Airmatic

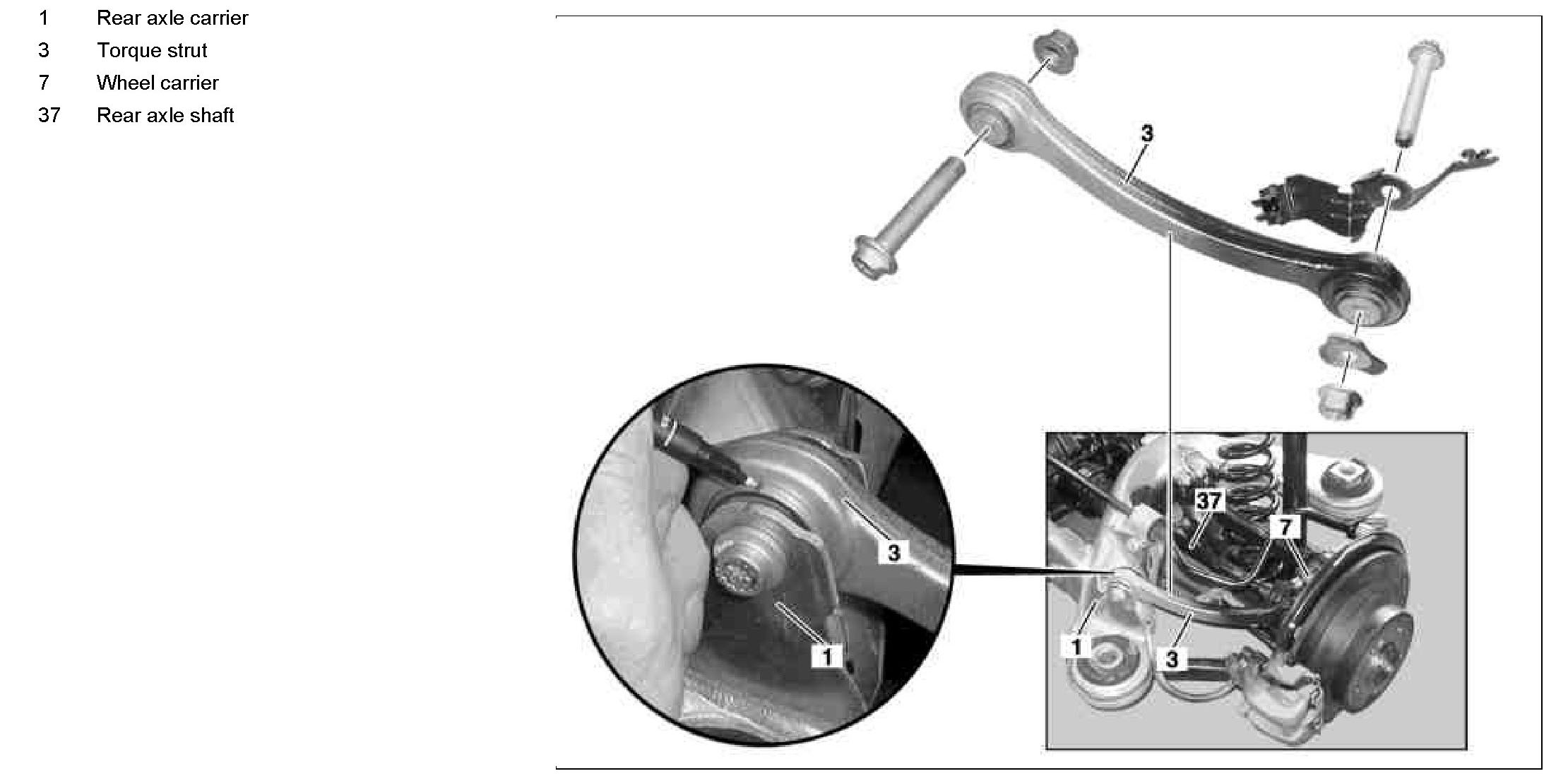

Component Identification:

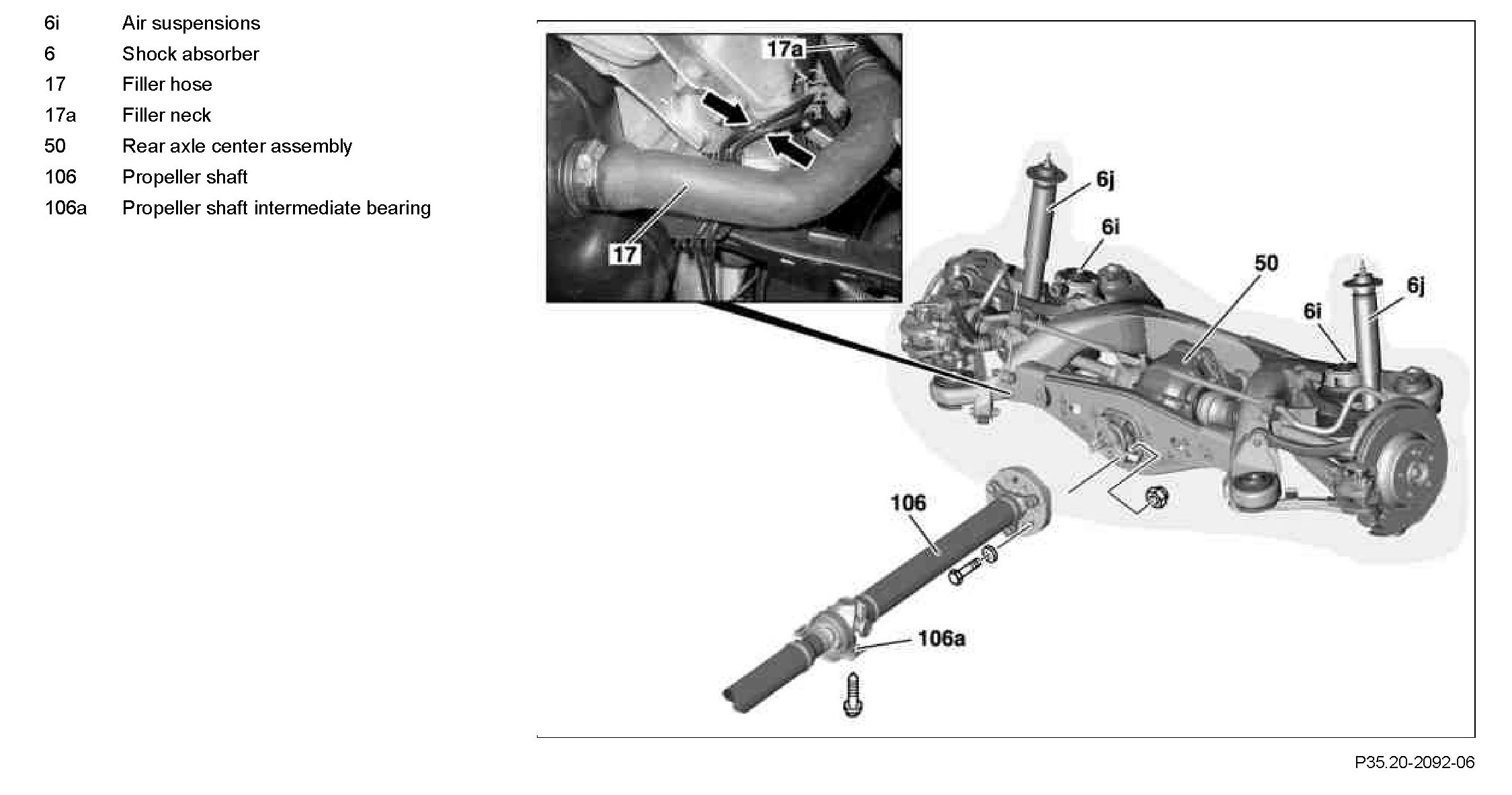

Component Identification:

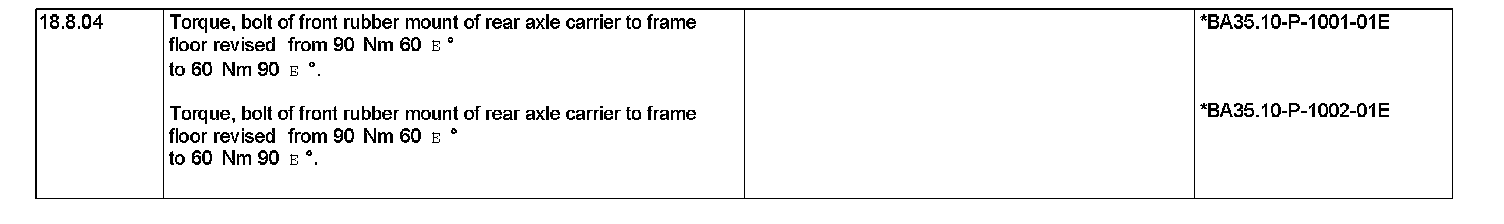

Modification Notes:

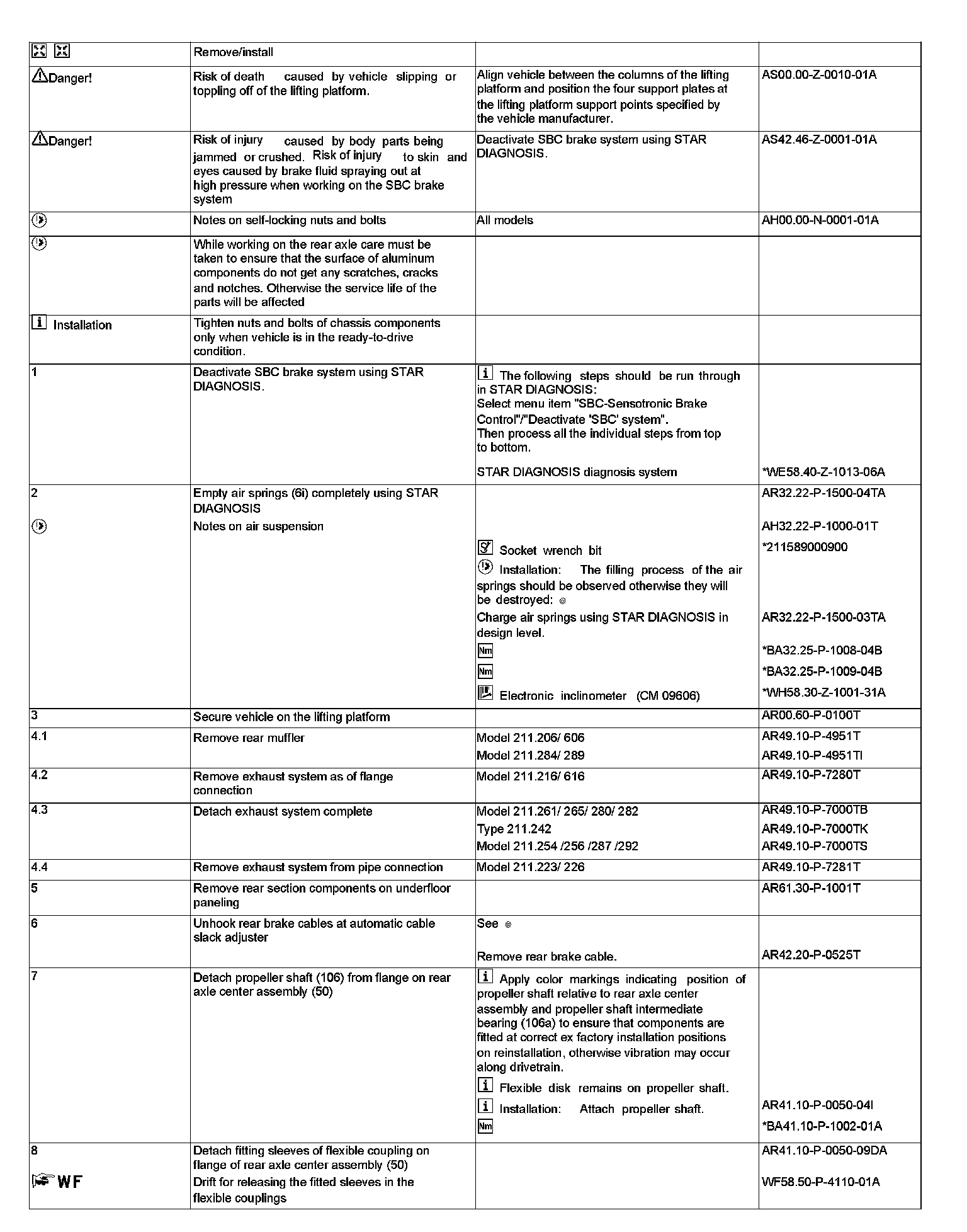

Steps 1 - 8:

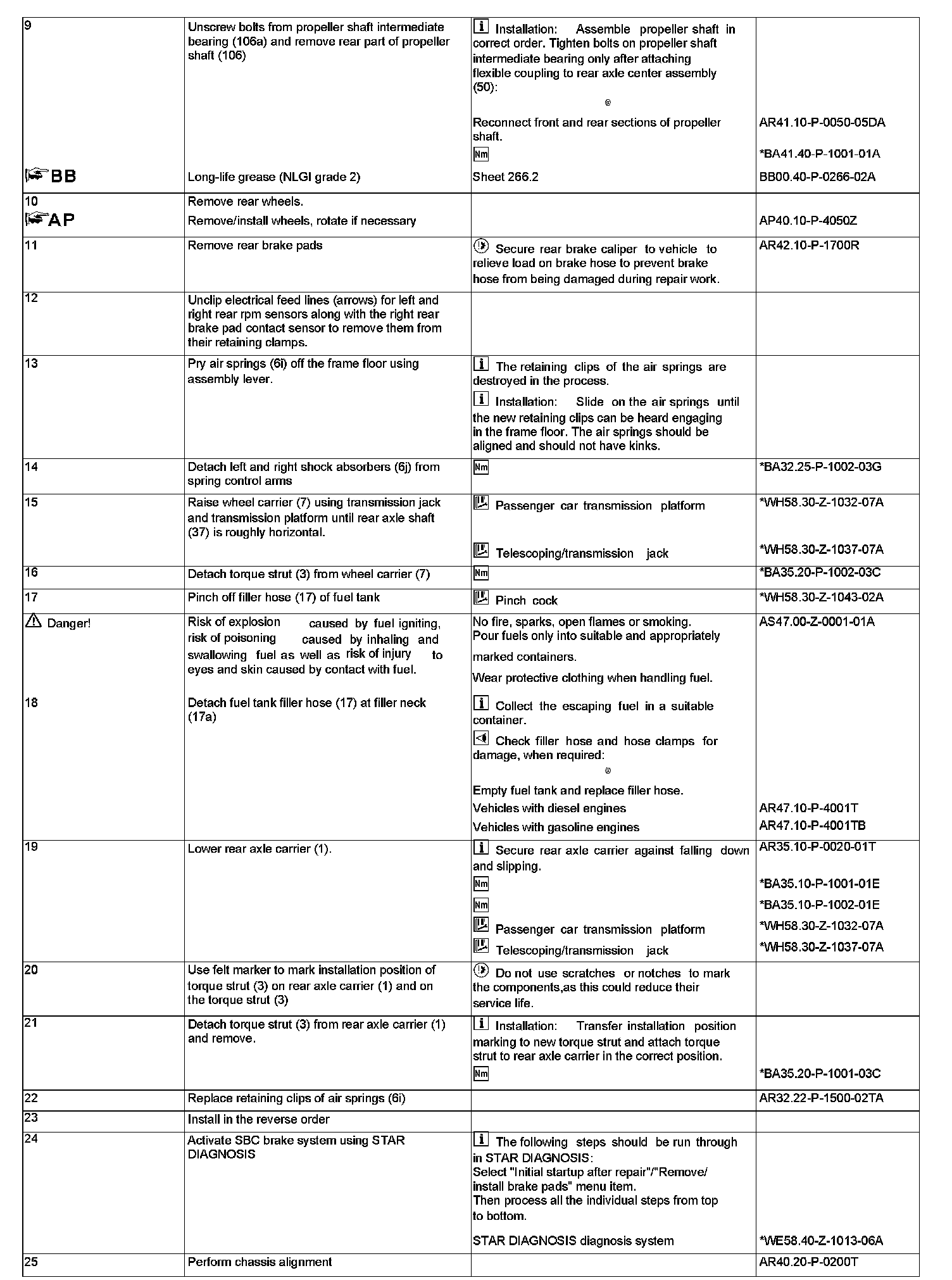

Steps 9 - 25:

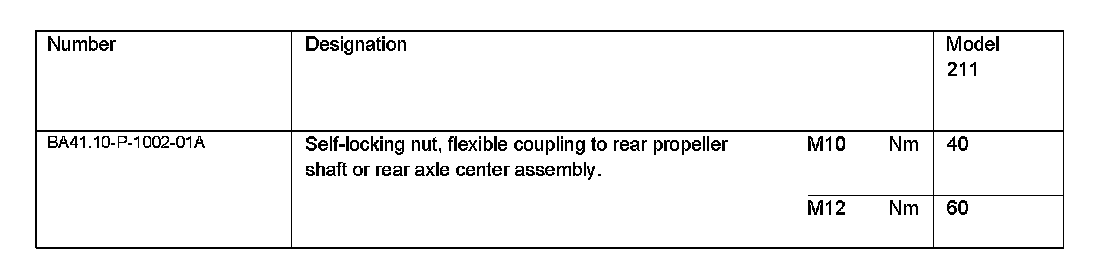

Driveshaft:

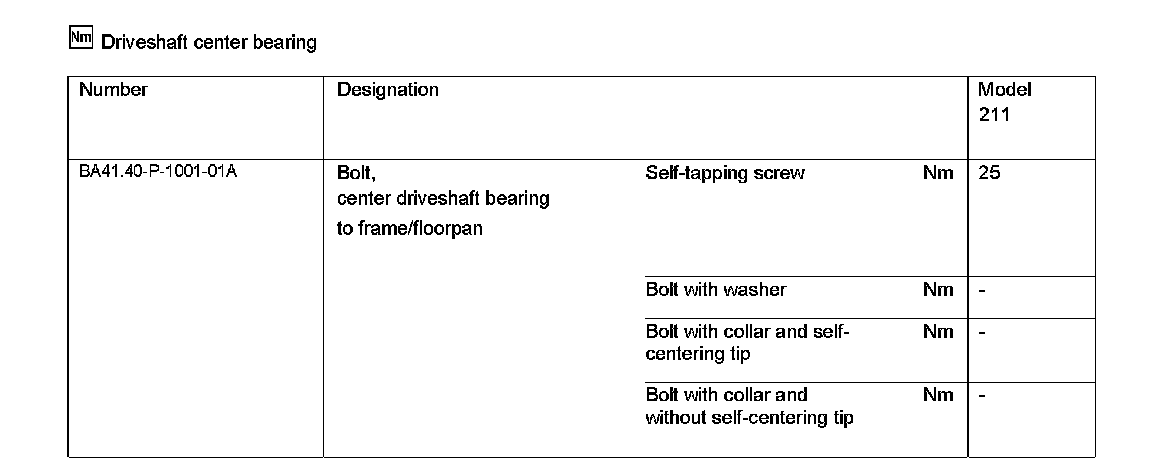

Driveshaft Center Bearing:

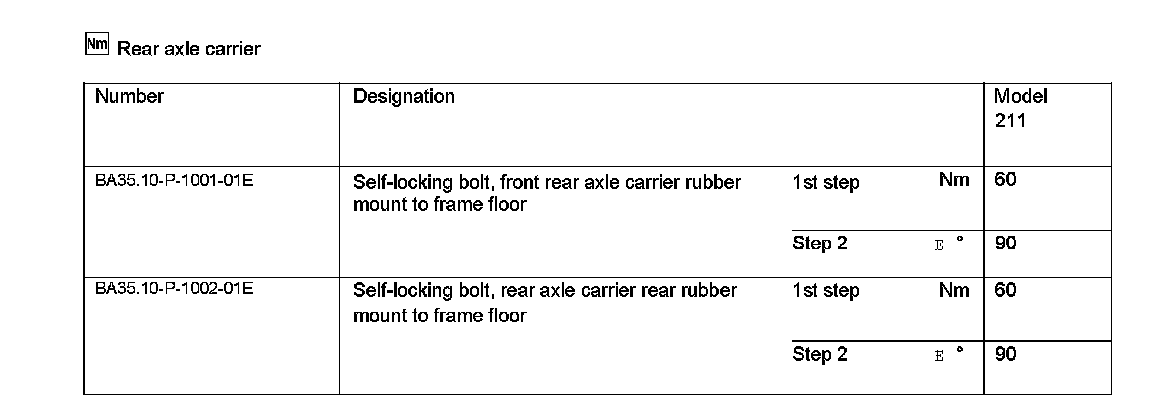

Rear Axle Carrier:

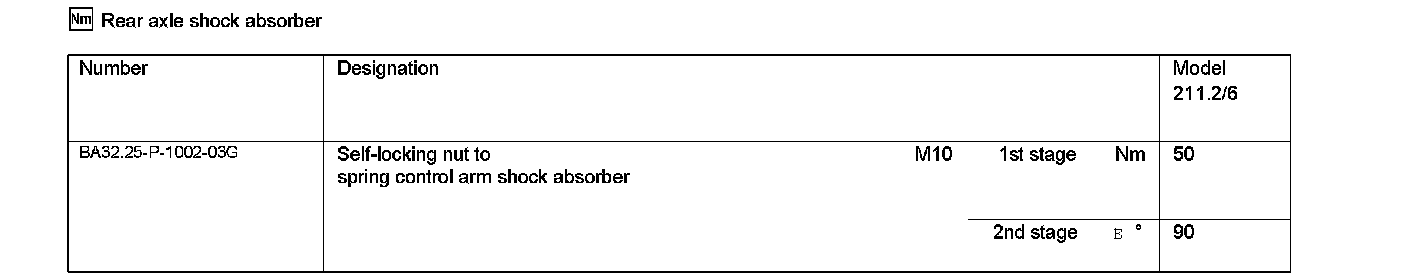

Rear Axle Shock Absorber:

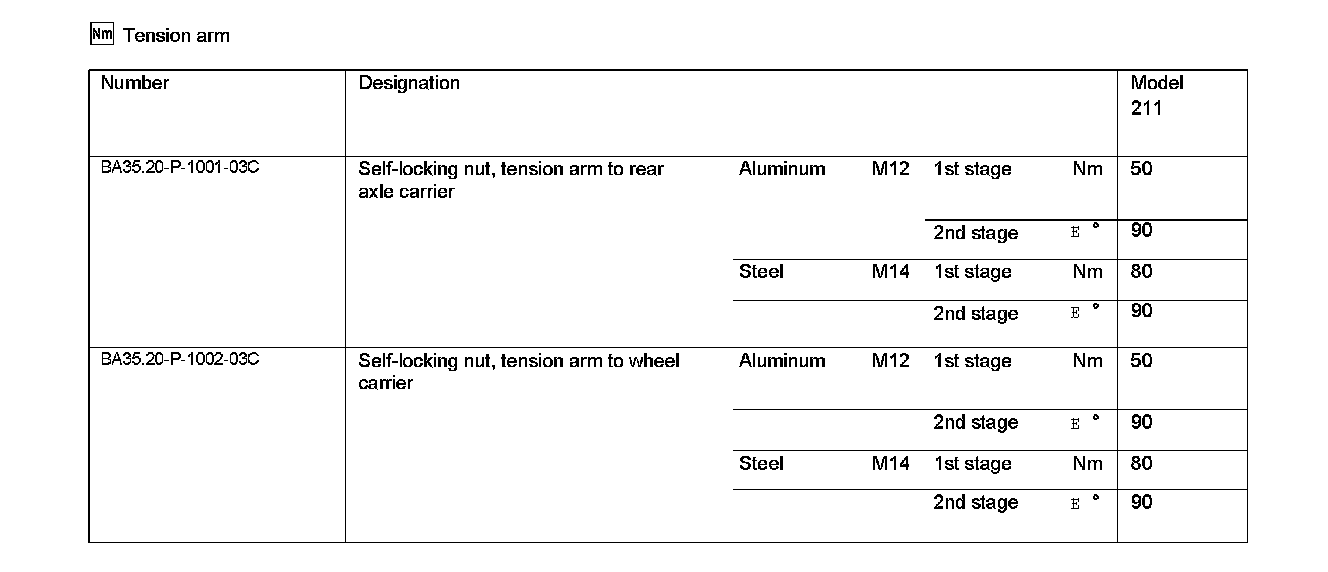

Tension Arm:

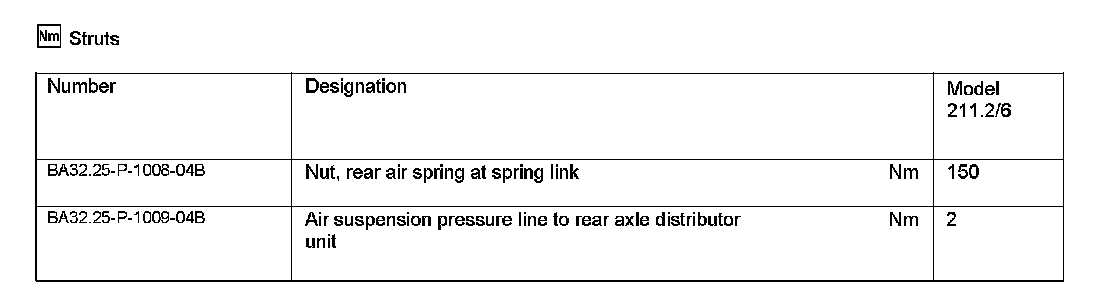

Struts:

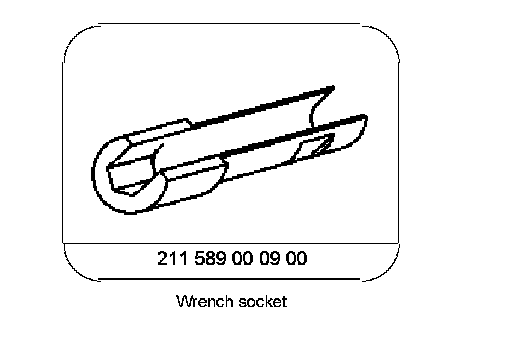

Special Tools:

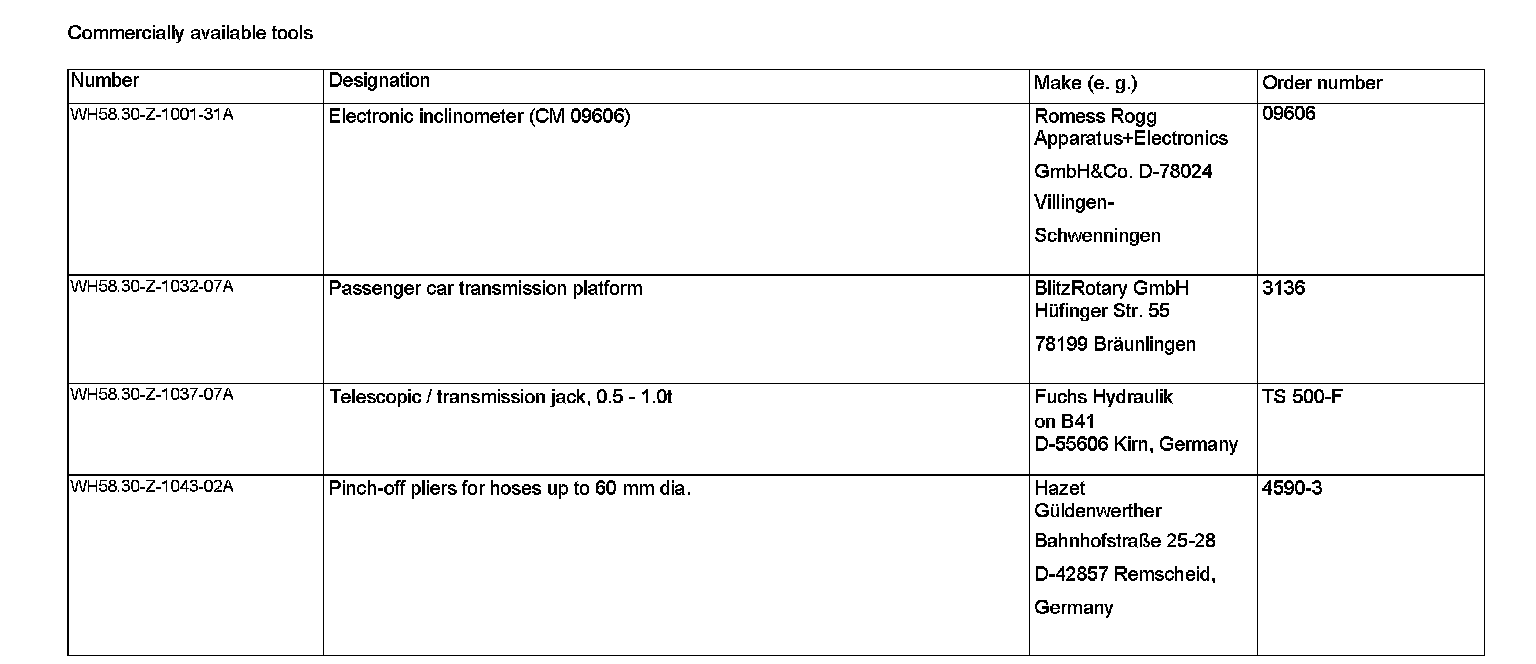

Commercially Available Tools:

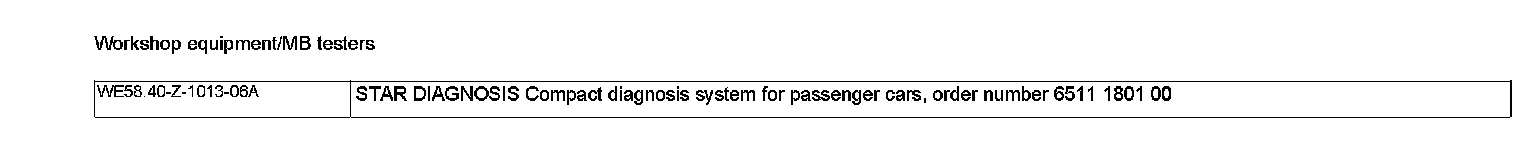

Workshop Equipment/MB Testers:
