Removal and Replacement

AR33.20-P-0440IW Replace Supporting Joint






DANGER:
- Lethal injuries are possible if vehicle slips off of lifting platform
- Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.

CAUTION: See notes on self-locking nuts and bolts.

1 Remove front road wheel

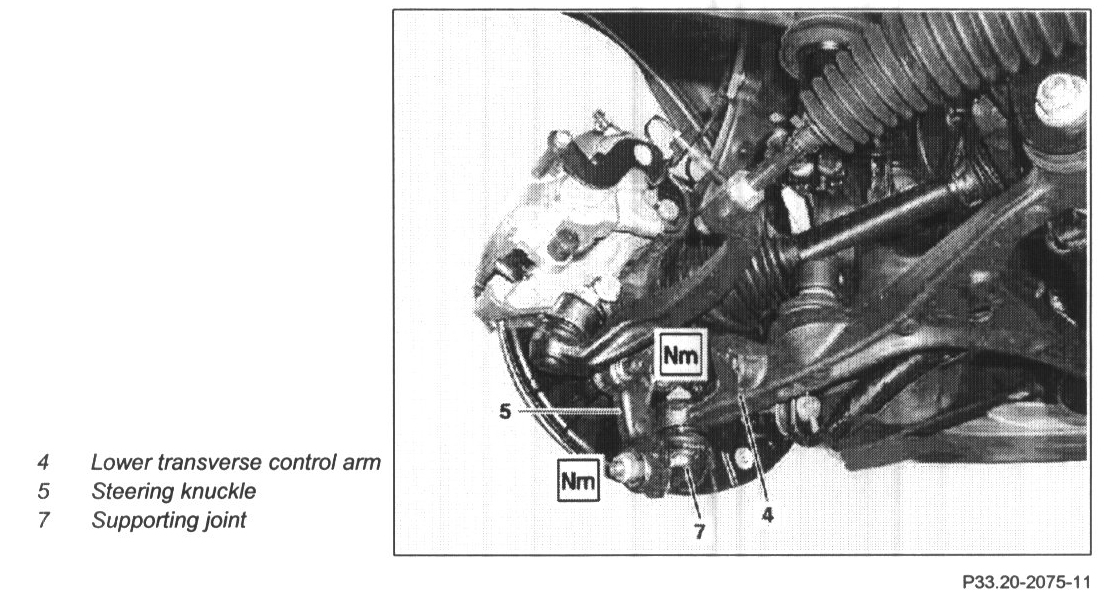

2 Press supporting joint (7) out of steering knuckle (5)
3 Press supporting joint (7) out of lower wishbone (4)
- If necessary.
