AR46.40-P-0201PW Remove/Install Inner Tie Rod With Axial Joint

Remove/install Inner Tie Rod With Axial Joint

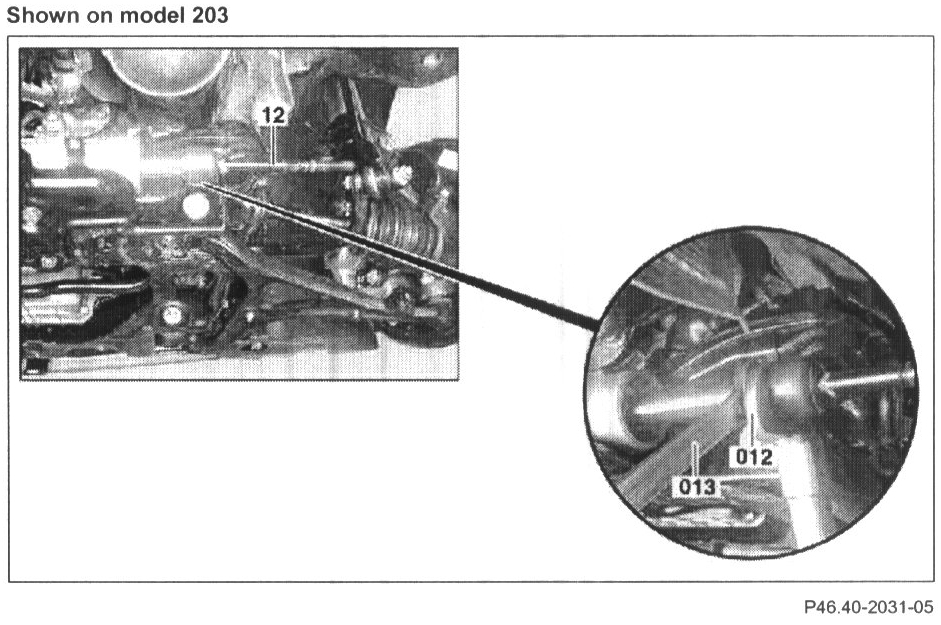

Shown On Model 203:

1 Remove track rod
2 Remove rubber boot
3 Counterhold rack with open-end wrench (013)
4 Remove track rod with ball joint (12)

CAUTION: Do not use force (hammer blows, excessive leverage).

5 Install in the reverse order
