AR54.10-P-0010T Remove/Install Cargo Area Socket

Remove/Install Cargo Area Socket







1 Disconnect ground cable of battery

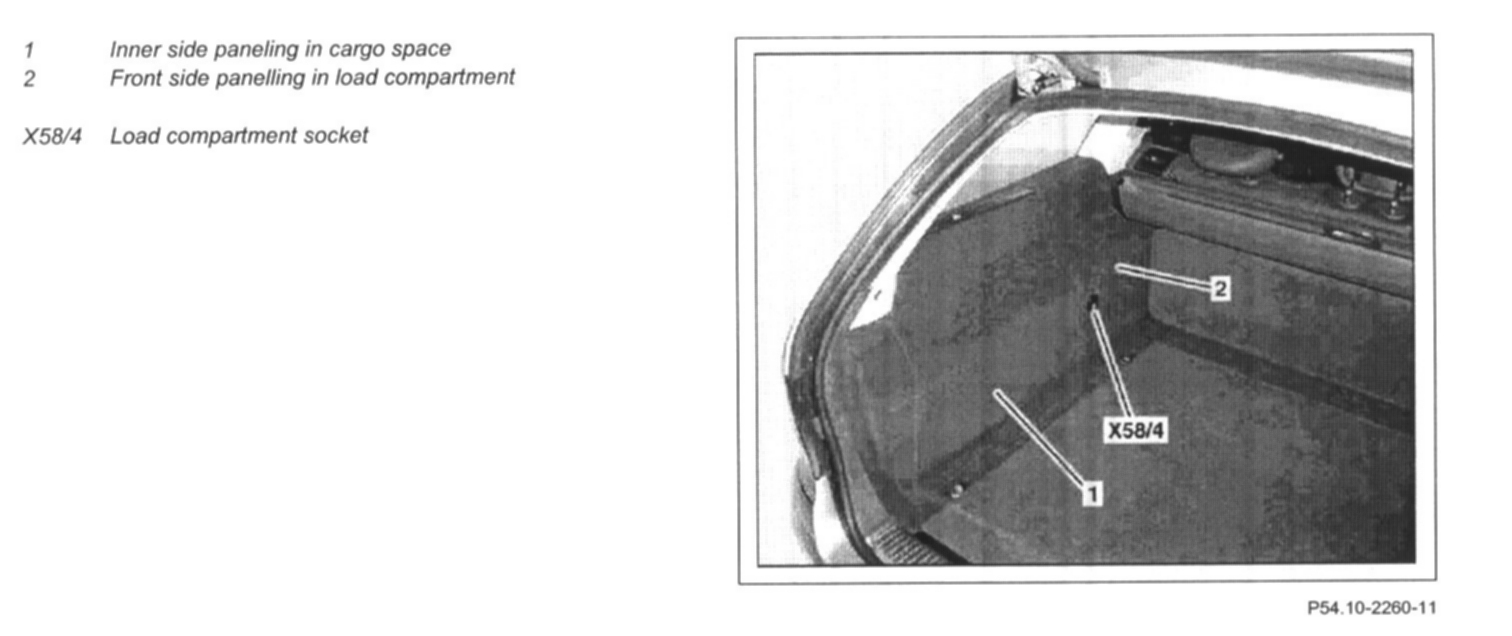

2 Remove inner side paneling in cargo space (1)
3 Disconnect electrical connector from load compartment socket (X58/4)
4 Unclip load compartment socket (X58/4) from behind front side panelling in load compartment (2) and remove
5 Install in the reverse order
