AR40.20-P-0325VM Checking Toe-Out on Turns
AR40.20-P-0325VM Checking Toe-Out on Turns

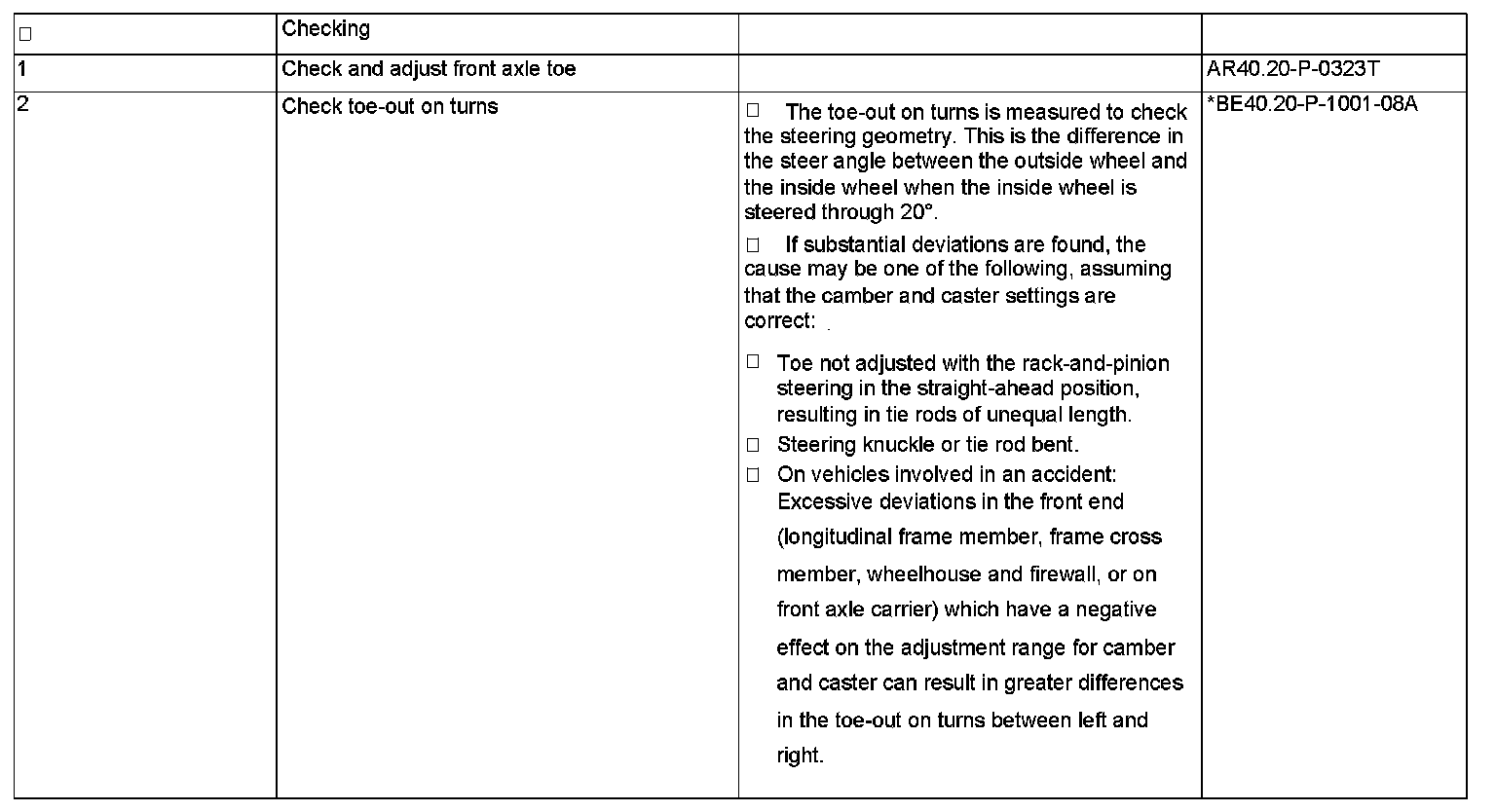

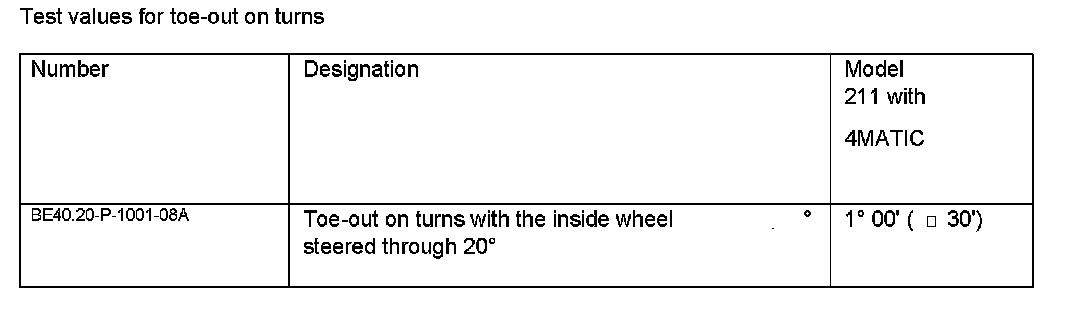

AR40.20-P-0325VM Checking toe-out on turns
Steps 1-2:
