Vanity Lamp: Service and Repair

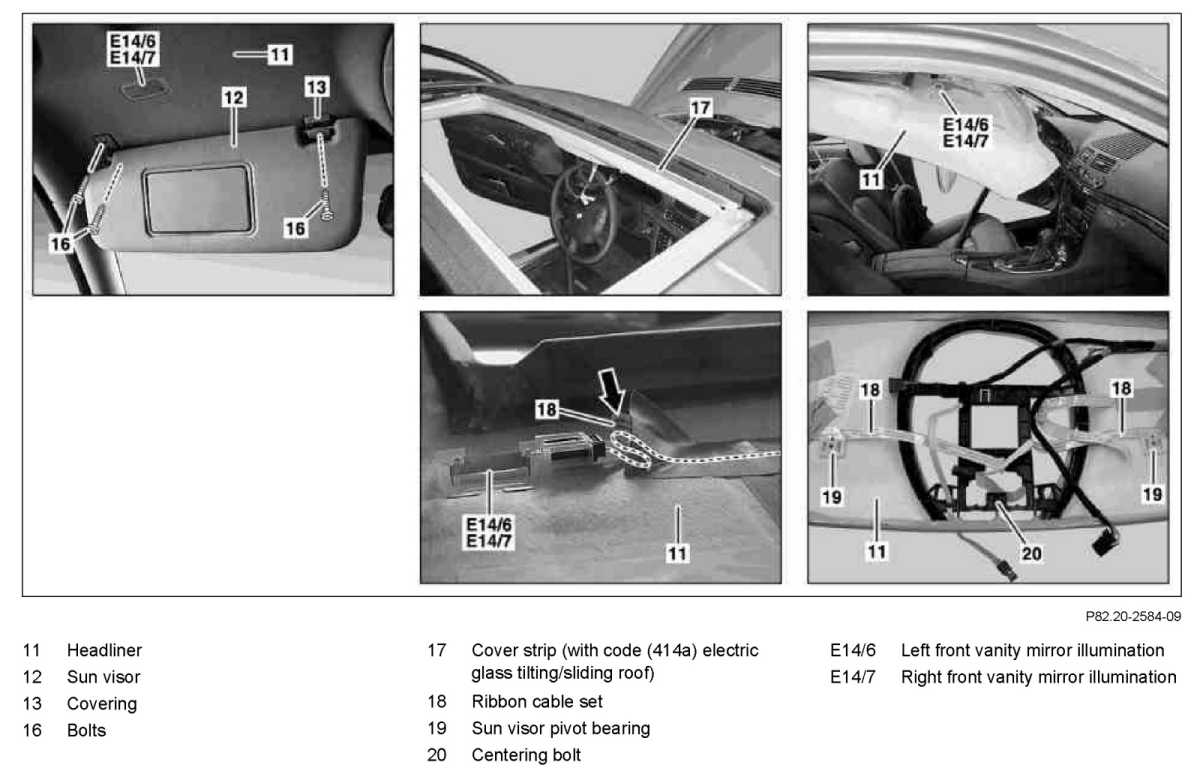

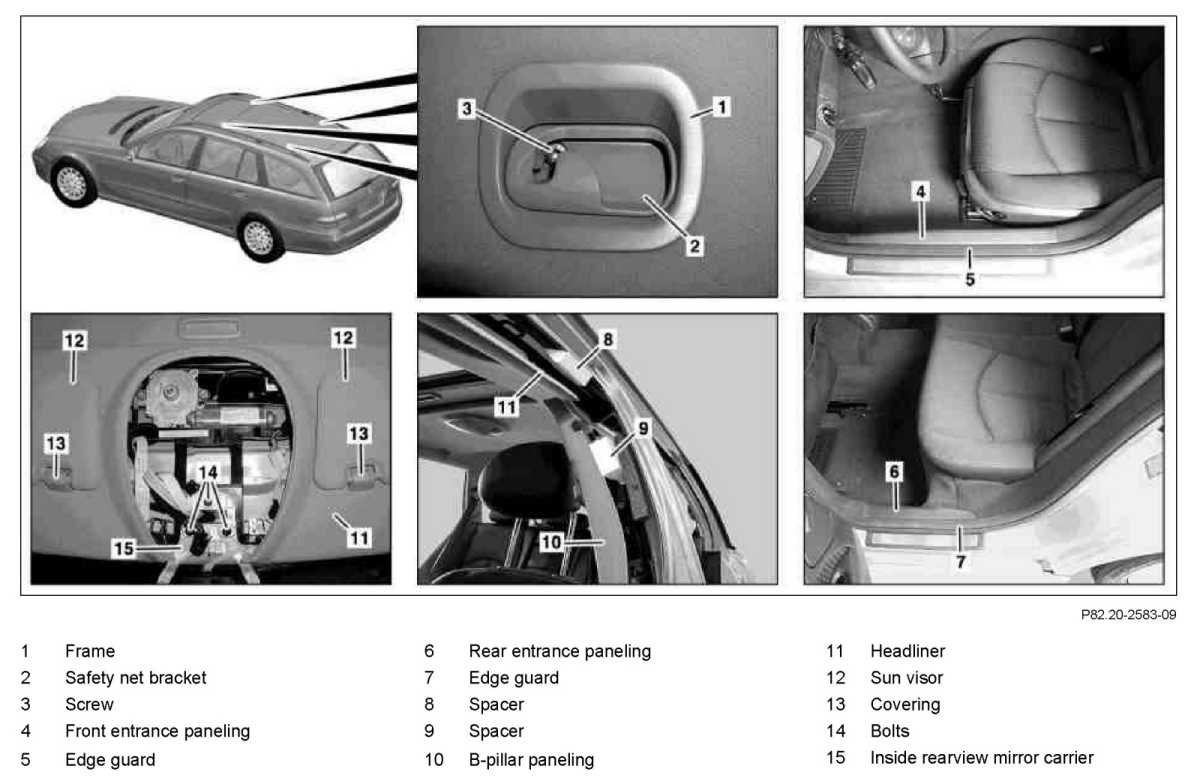

AR82.20-P-5582TA Remove/Install Lamp For Vanity Mirror
- with CODE (543) Sun visors with illuminated mirror

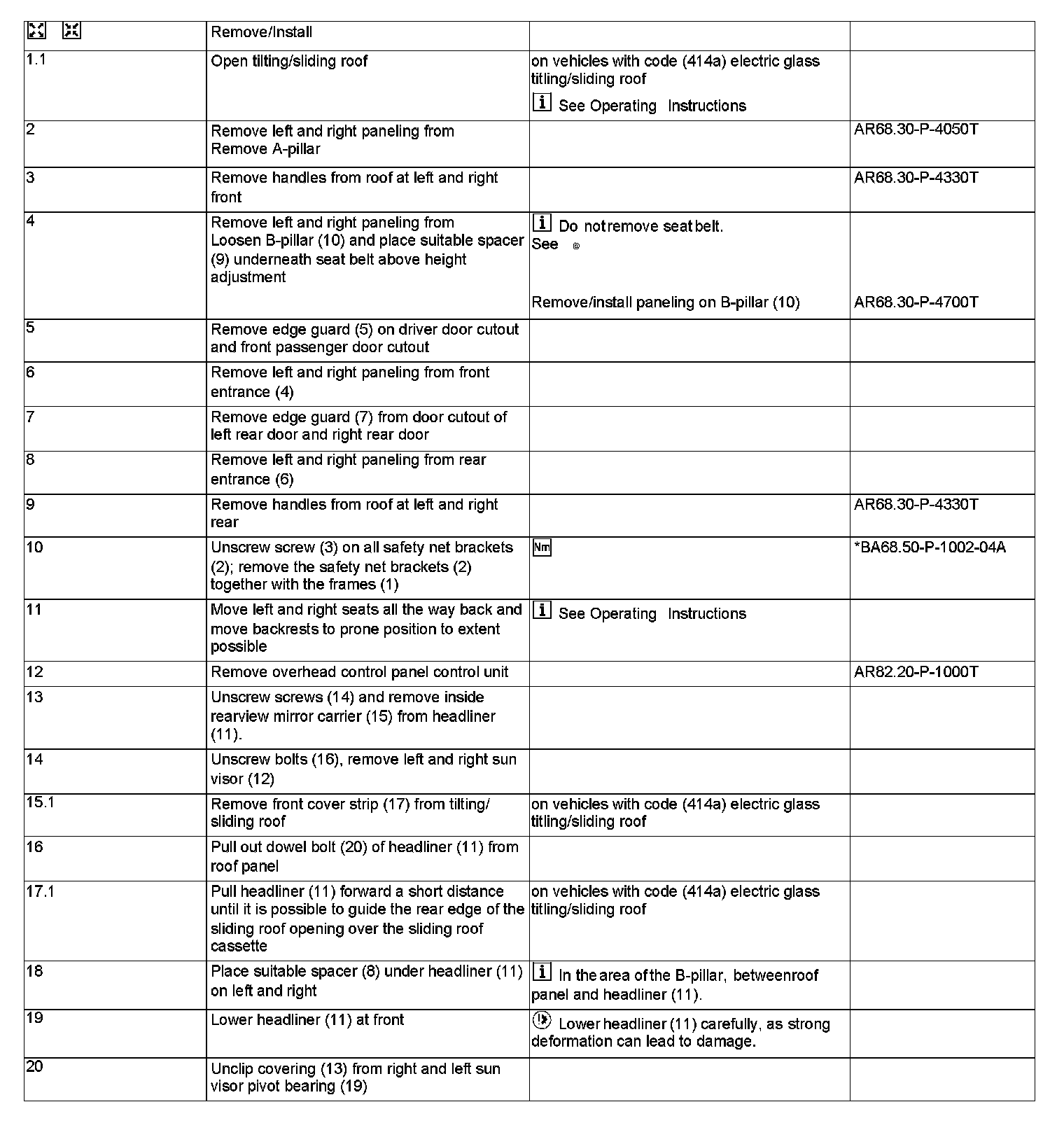

Part 1:

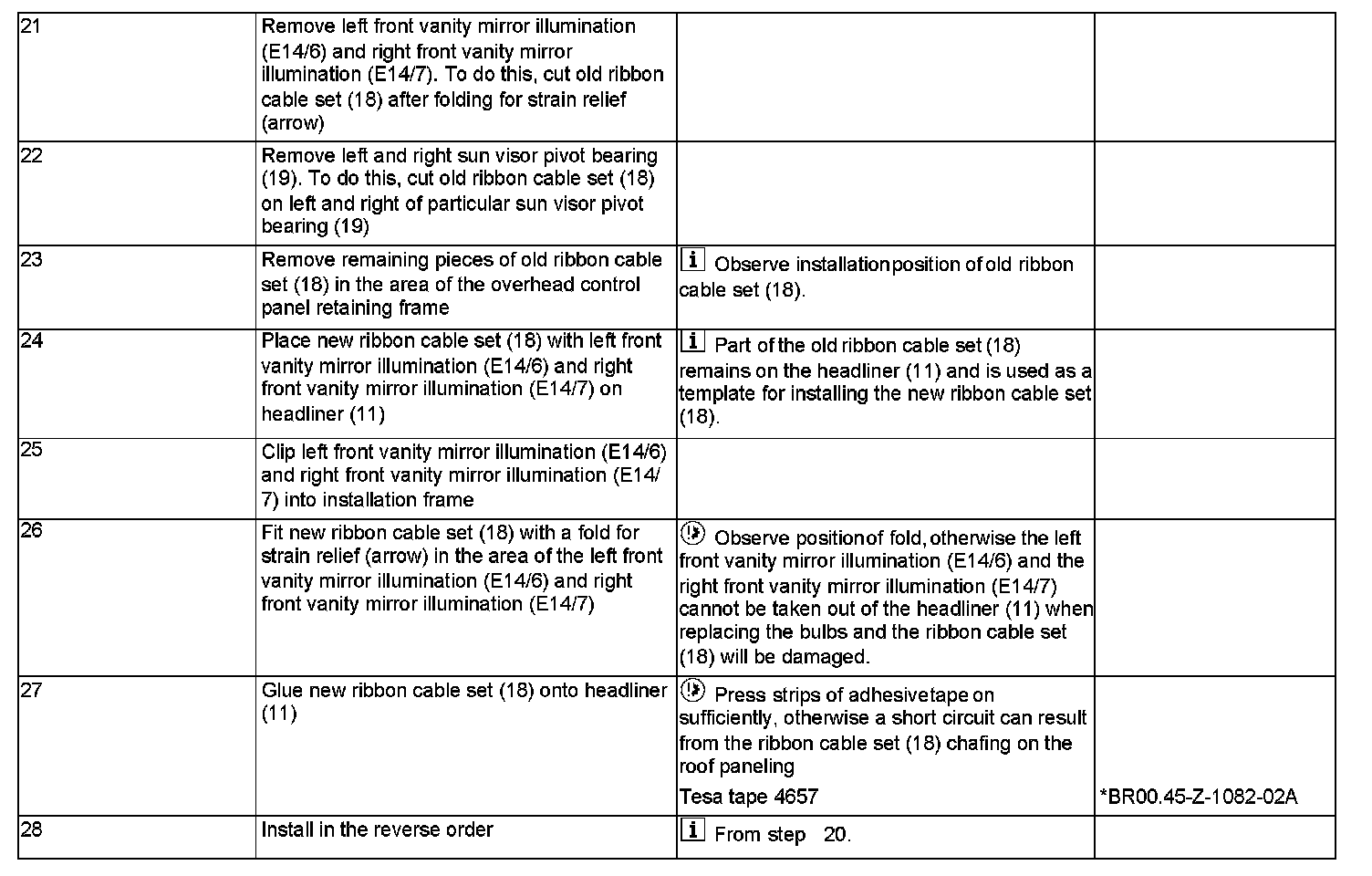

Part 2:

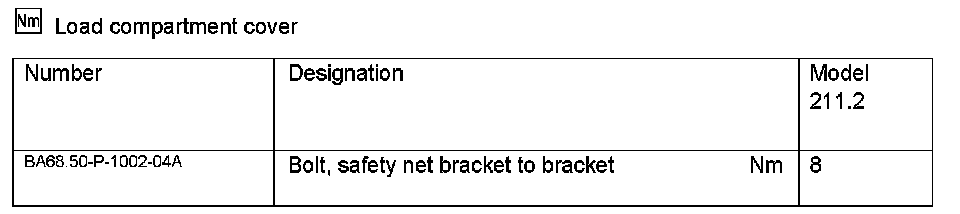

Load Compartment Cover:
