AR22.10-P-4350TW Remove/Install Left Engine Support



AR22.10-P-4350TW Remove/install left engine support

Component Identification:

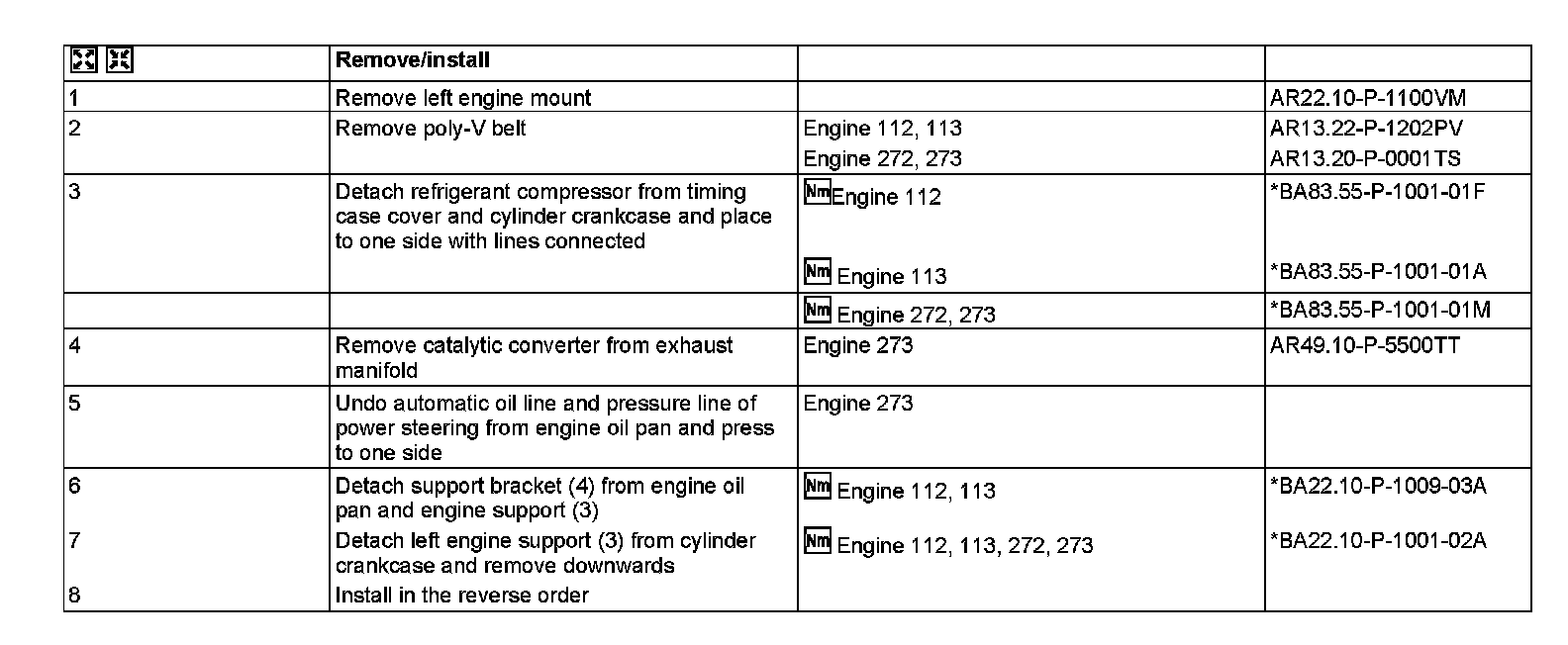

Steps 1-8:

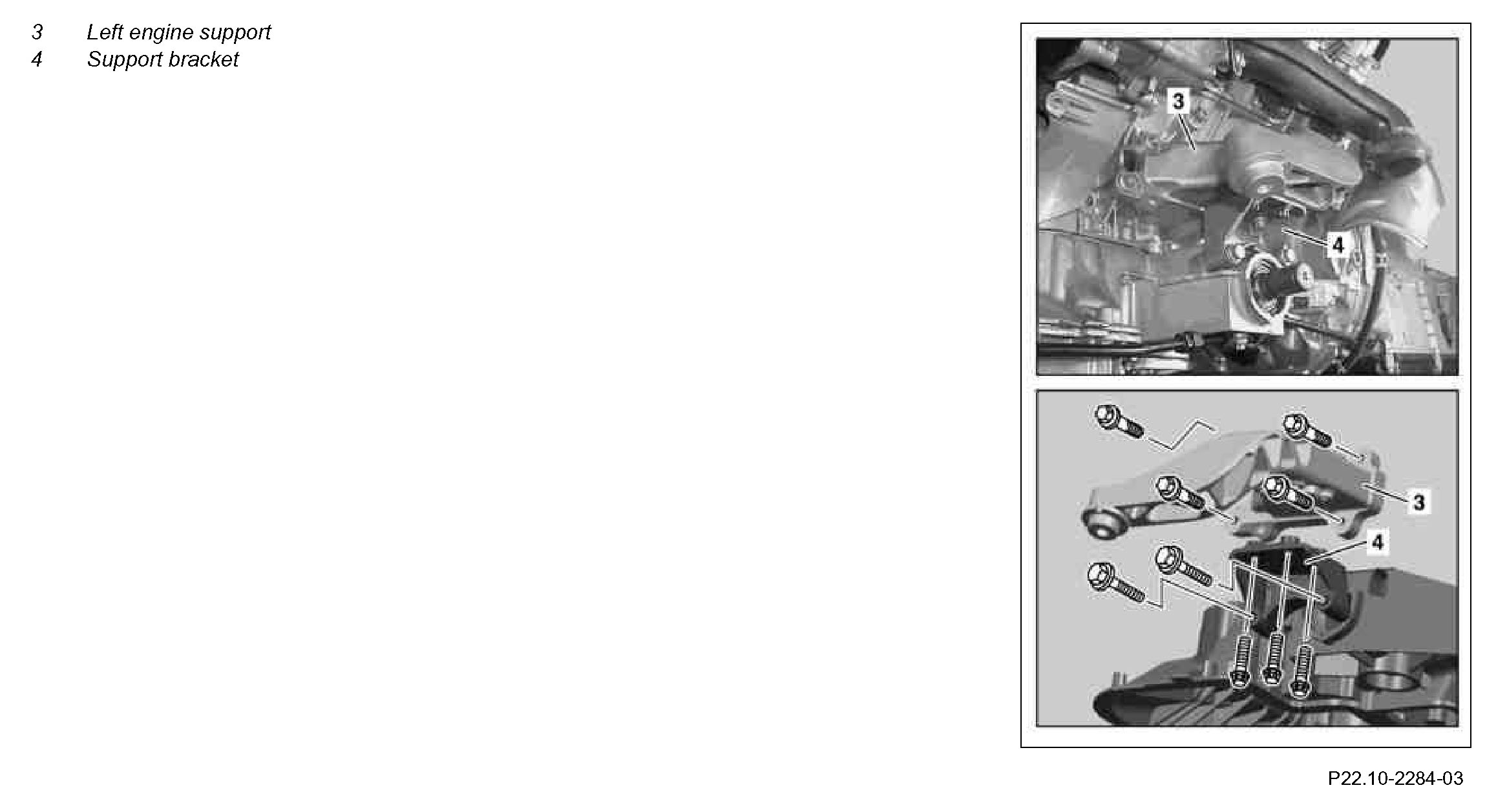

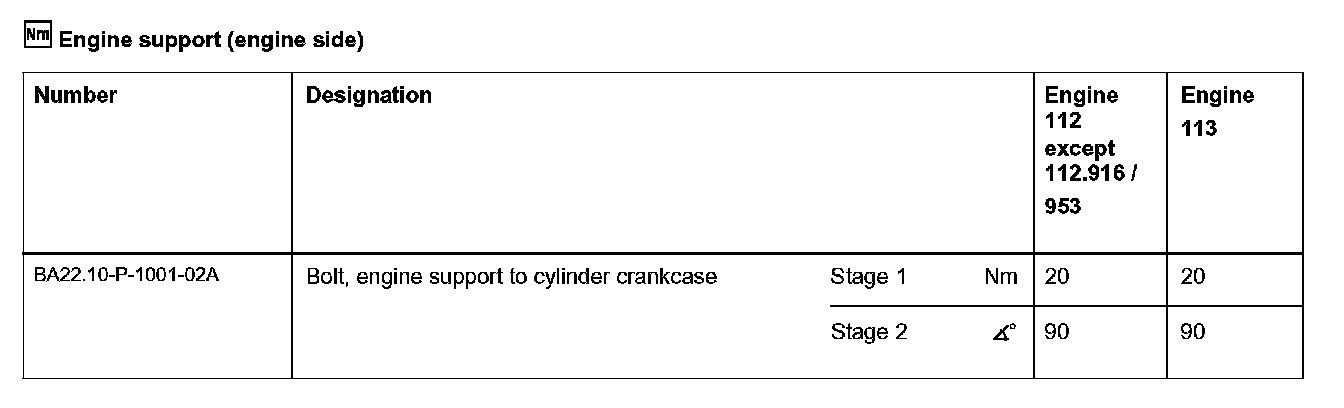

Engine support (engine side):

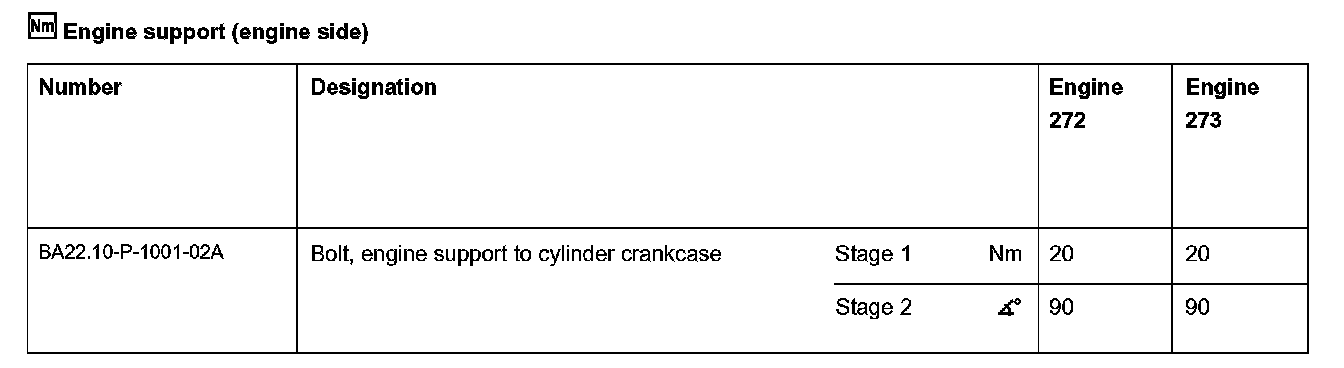

Engine support (engine side):

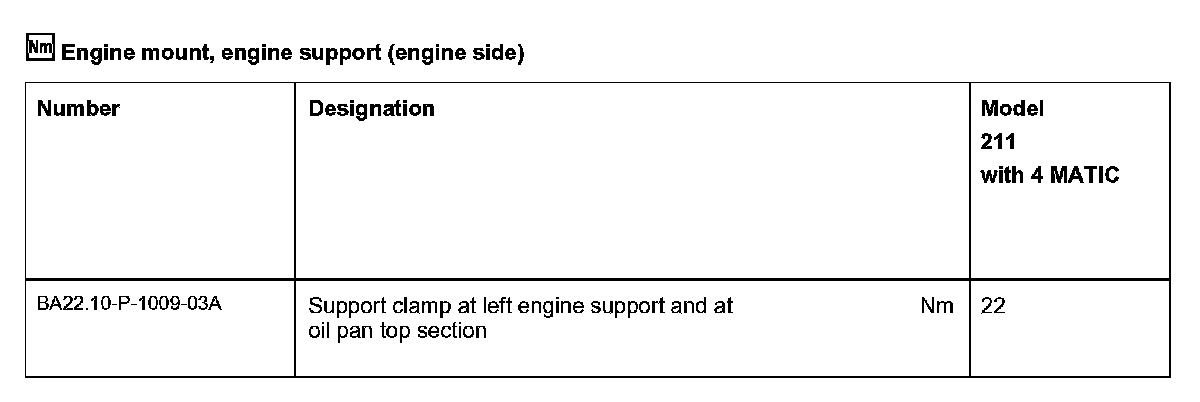

Engine mount, engine support (engine side):

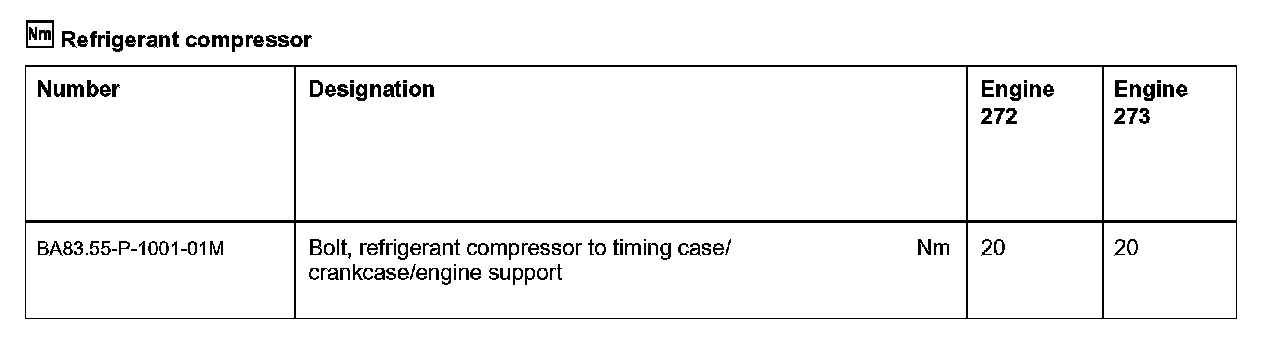

Refrigerant compressor:

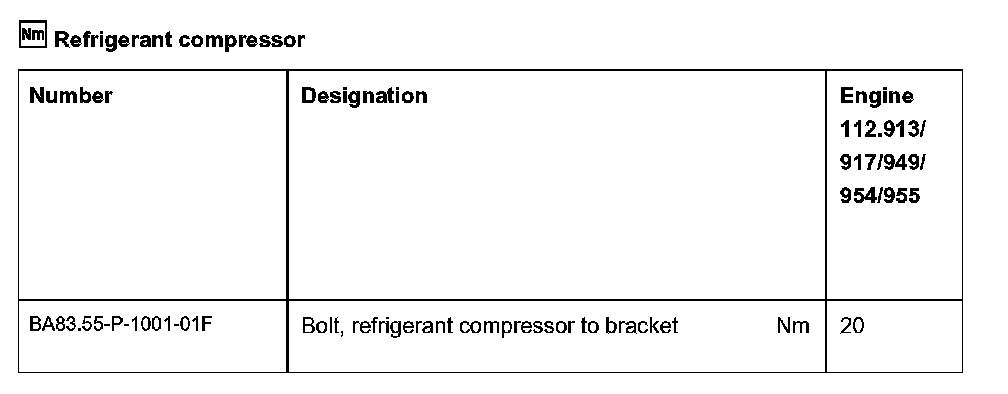

Refrigerant compressor:

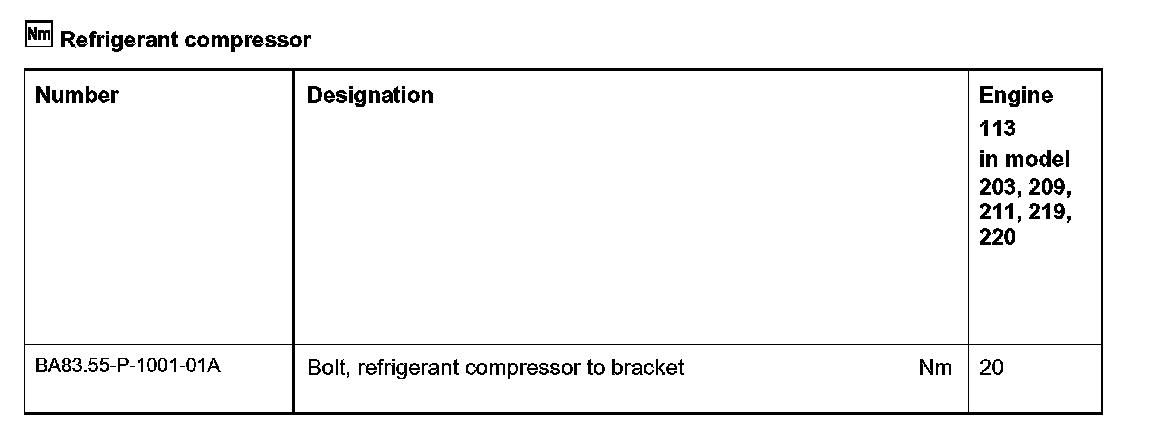

Refrigerant compressor:
