AR22.10-P-1100VM Remove/Install Engine Mount



AR22.10-P-1100VM Remove/install engine mount

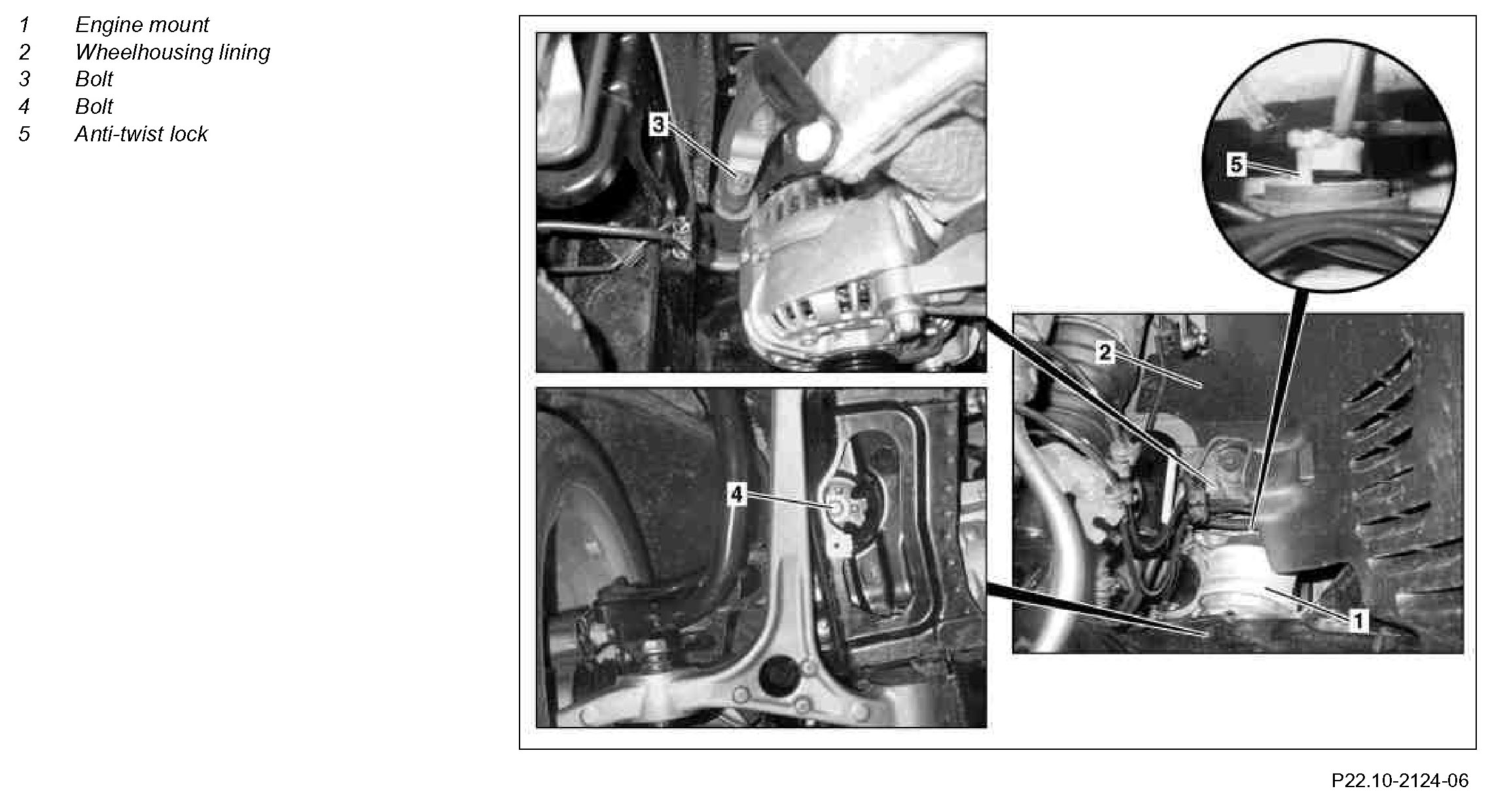

Component Identification:

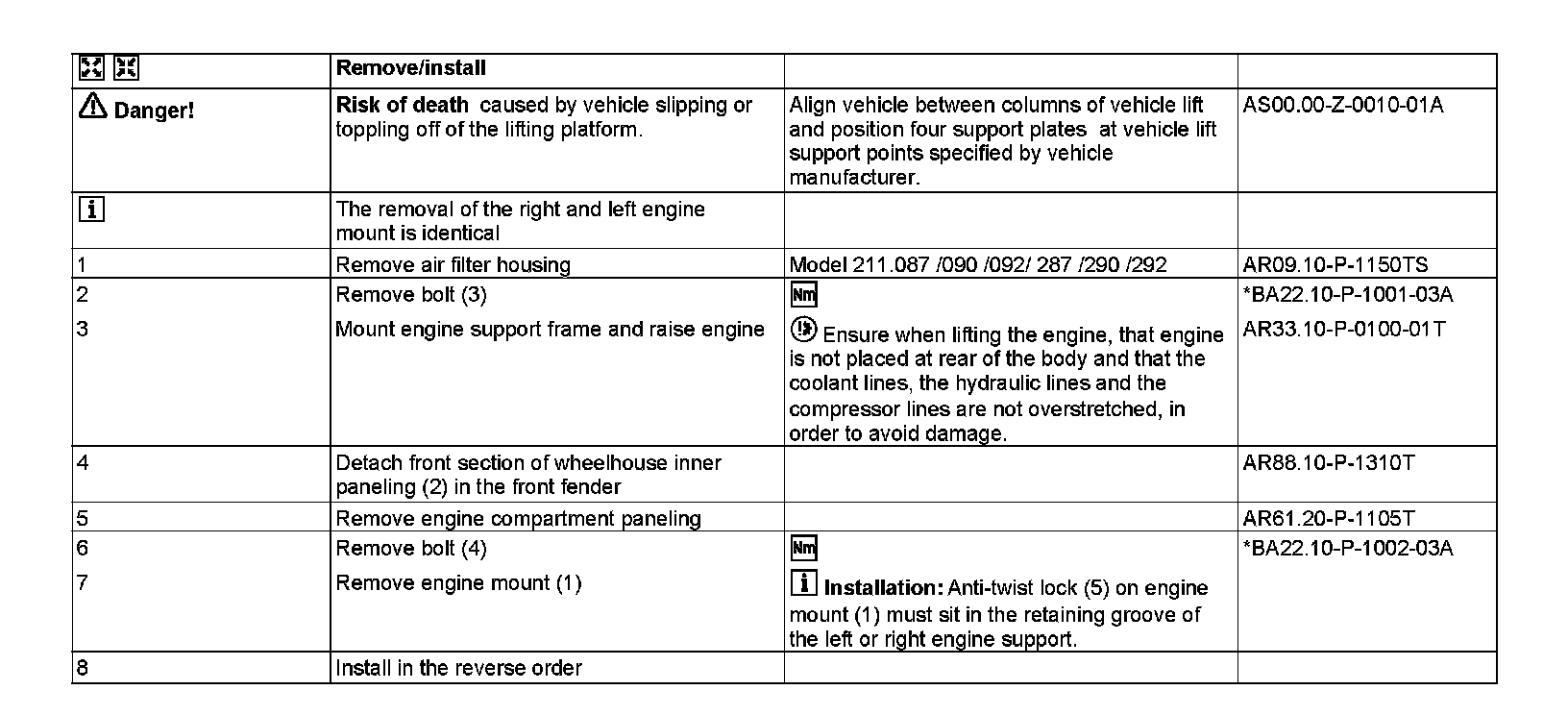

Steps 1-8:

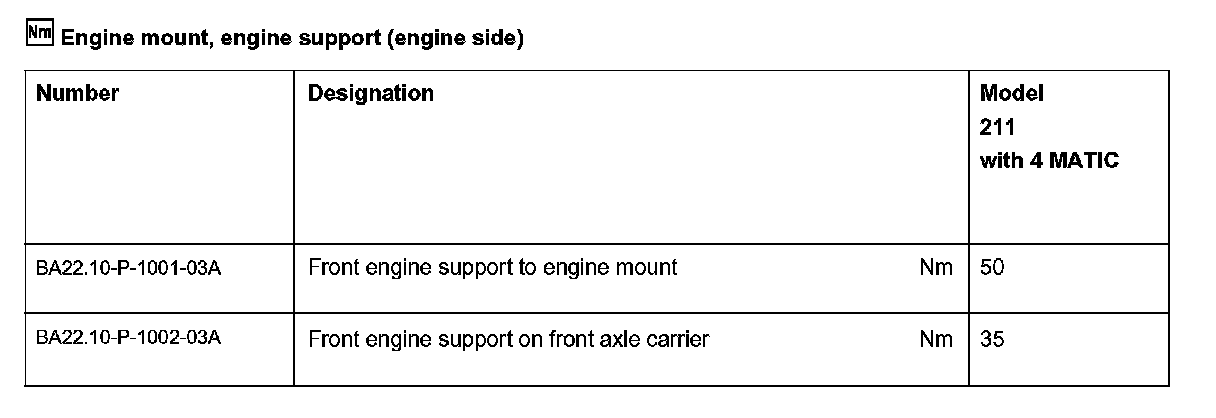

Engine mount, engine support (engine side):
