AR22.10-P-4340TW Remove/Install Right Engine Support



AR22.10-P-4340TW Remove, install right engine support

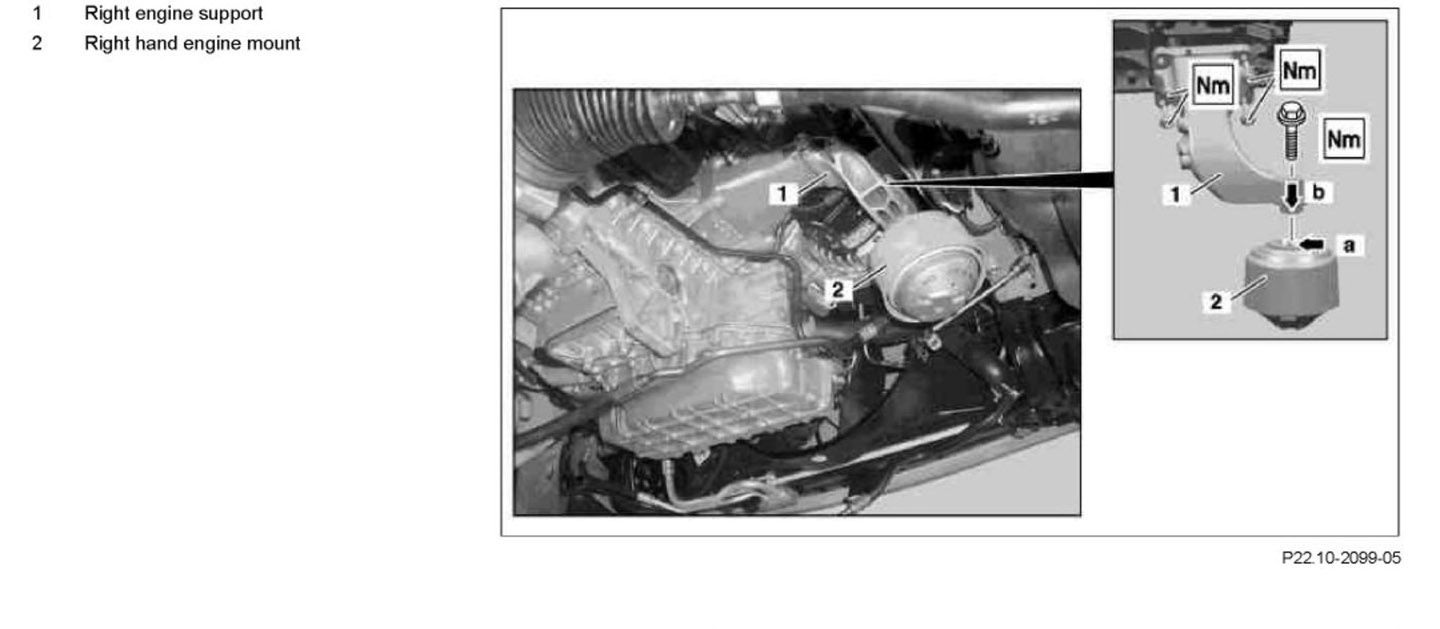

Component Identification:

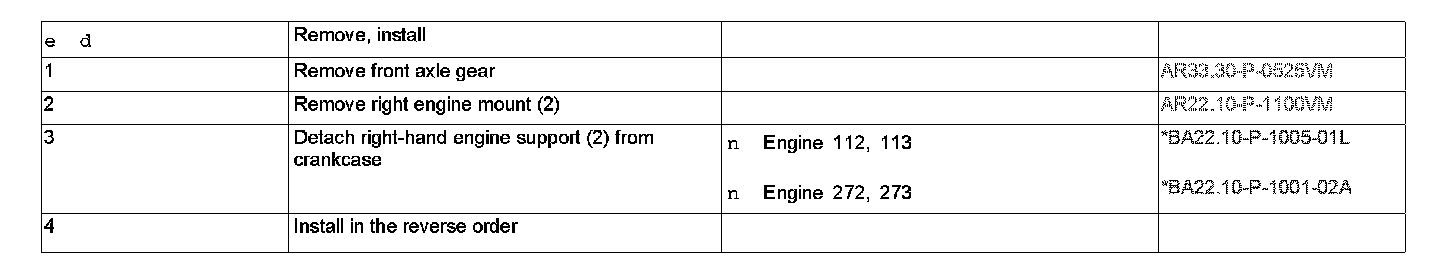

Steps 1 - 4:

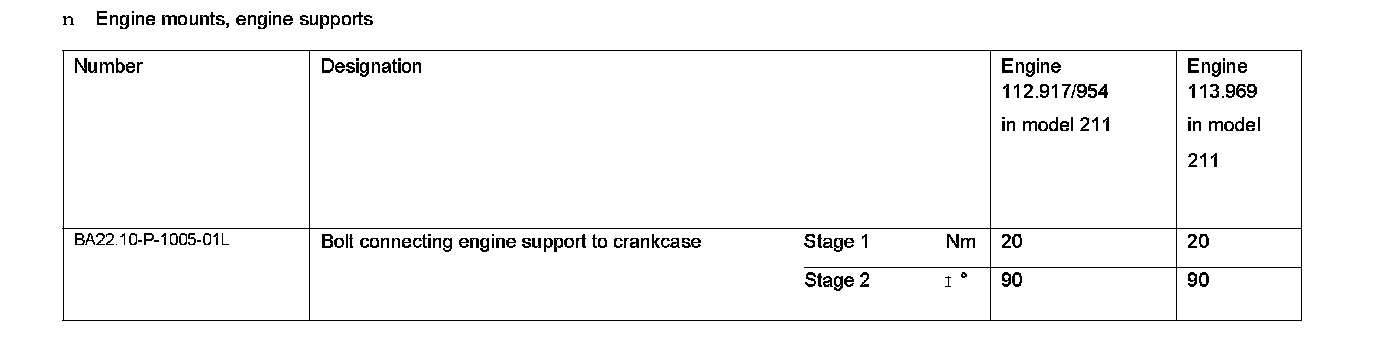

Engine Mounts, Engine Support:

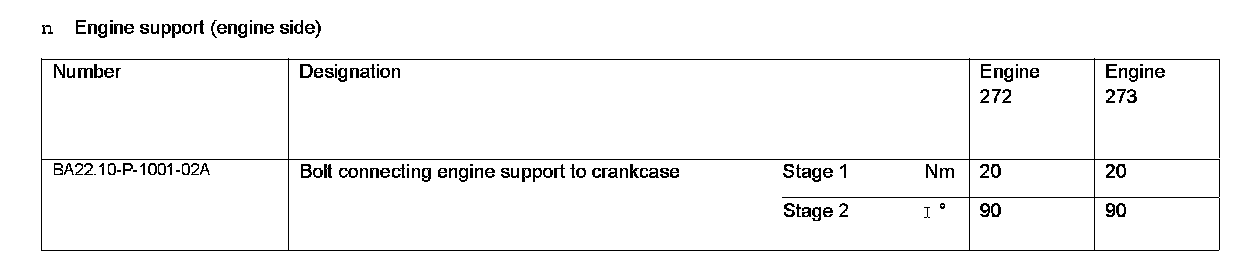

Engine Mounts, (Engine Side):
