FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2005
>>
E 500 4MATIC Wagon (211.283) V8-5.0L (113.969)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Head Rest
>>
Service and Repair
>>
Removal and Replacement
>>

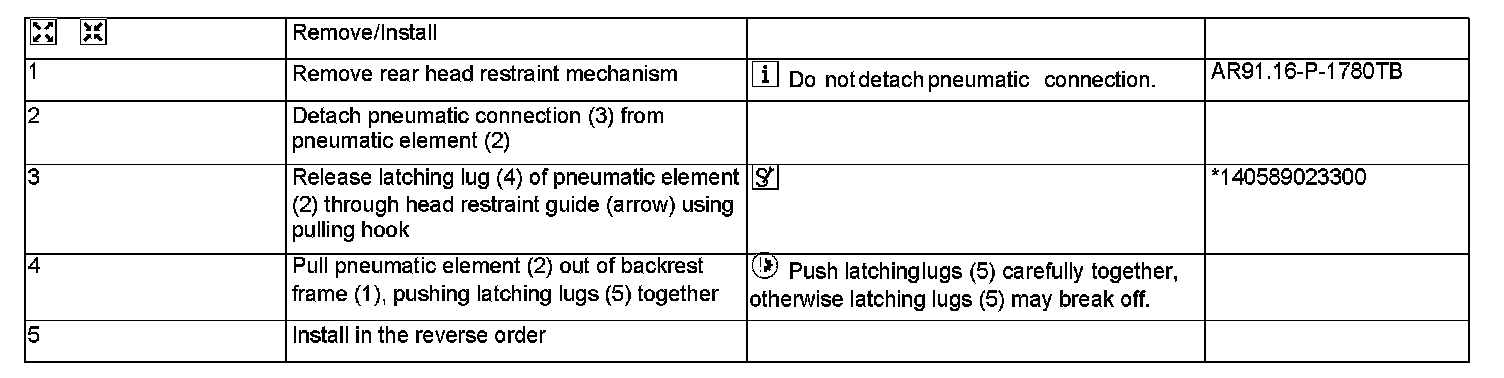

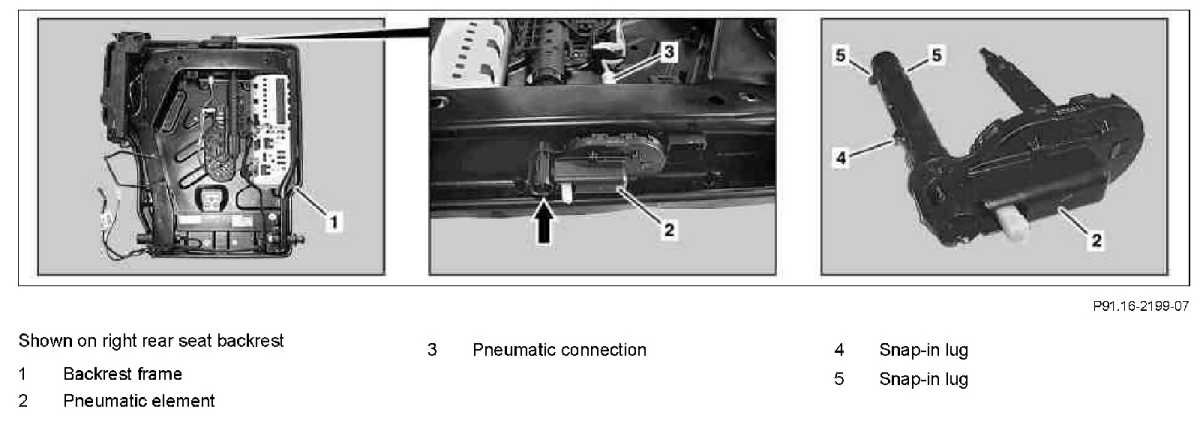

AR91.16-P-1790T Remove/Install Rear Head Restraint Lowering Pneumatic Element
AR91.16-P-1790T Remove/Install Rear Head Restraint Lowering Pneumatic Element
AR91.16-P-1790T Remove/Install Rear Head Restraint Lowering Pneumatic Element
