AN68.50-P-0004TA Retrofit Stowage Box Behind the Rear Seat Backrest



AN68.50-P-0004TA Retrofit Stowage Box Behind The Rear Seat Backrest
- except CODE (943) Automatically extendable main loading floor
- except CODE (955a) Elegance
- except CODE (954a) Avantgarde

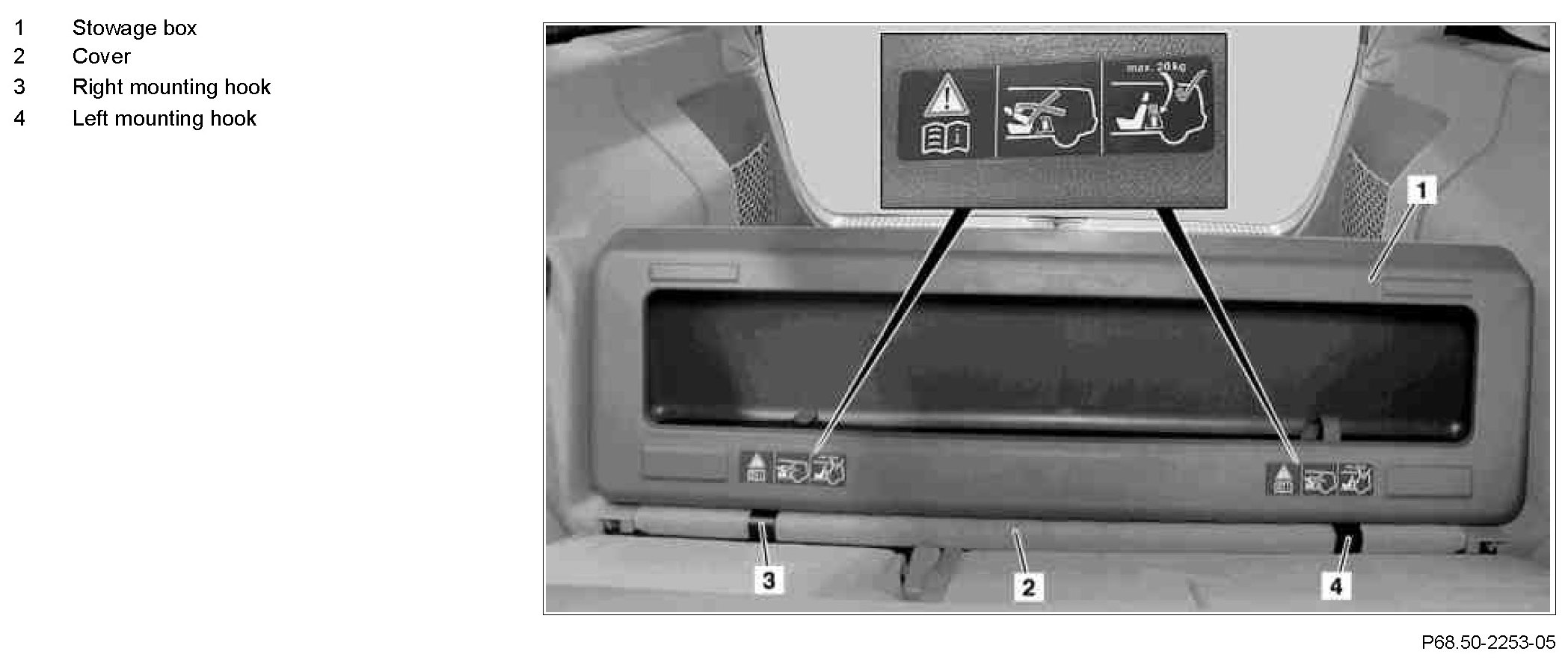

Component Identification:

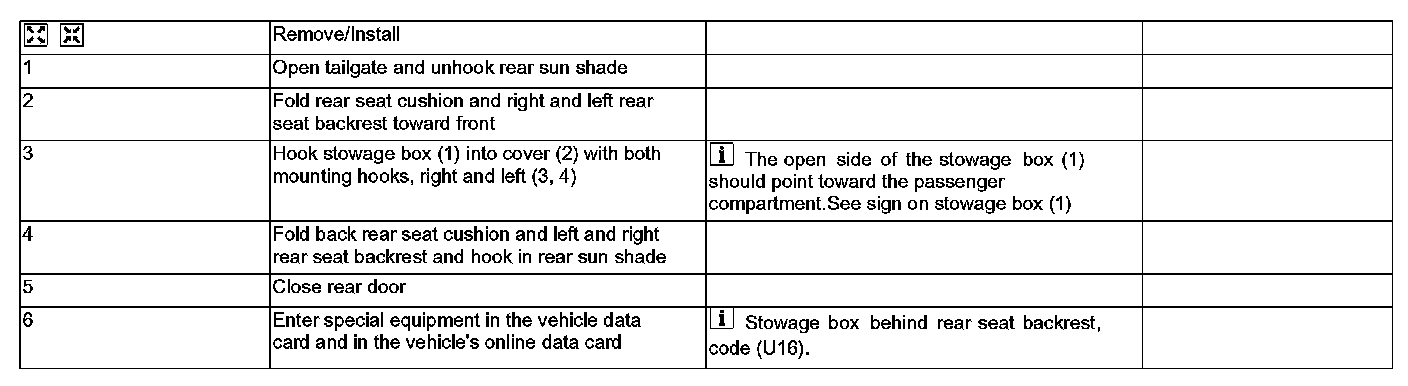

Steps 1 - 6:

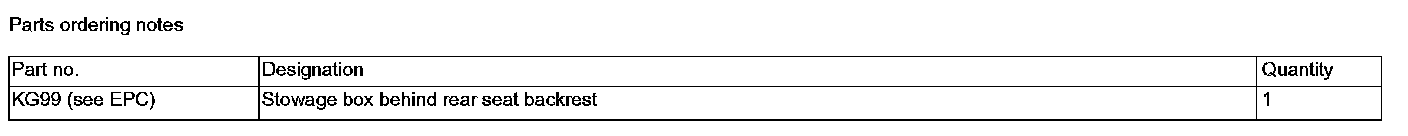

Parts Ordering Notes:
