AR68.30-P-4300TD Remove/Install Headliner
AR68.30-P-4300TD Remove/Install Headliner
AR68.30-P-4300TD Remove/Install
Headliner

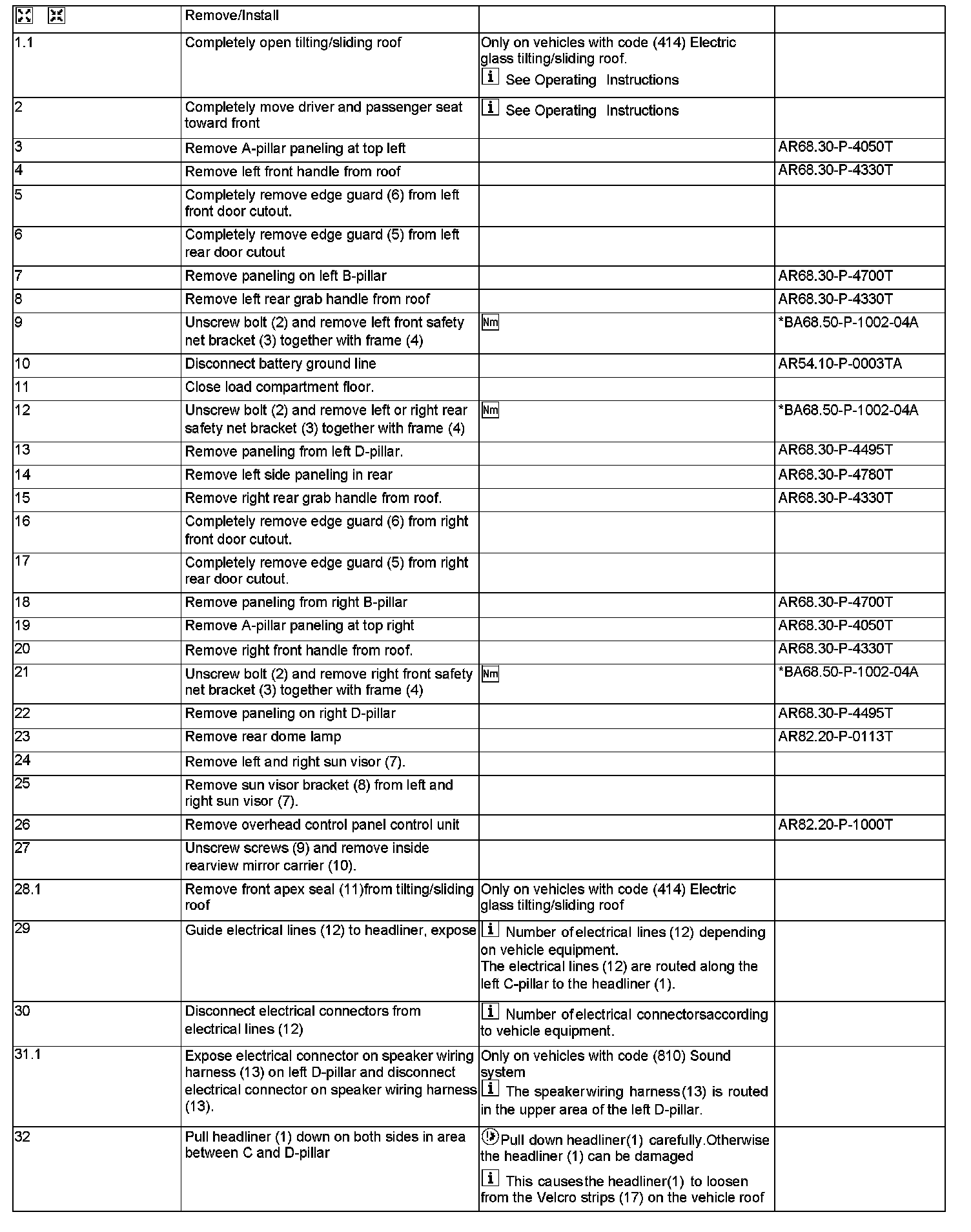

Part 1:

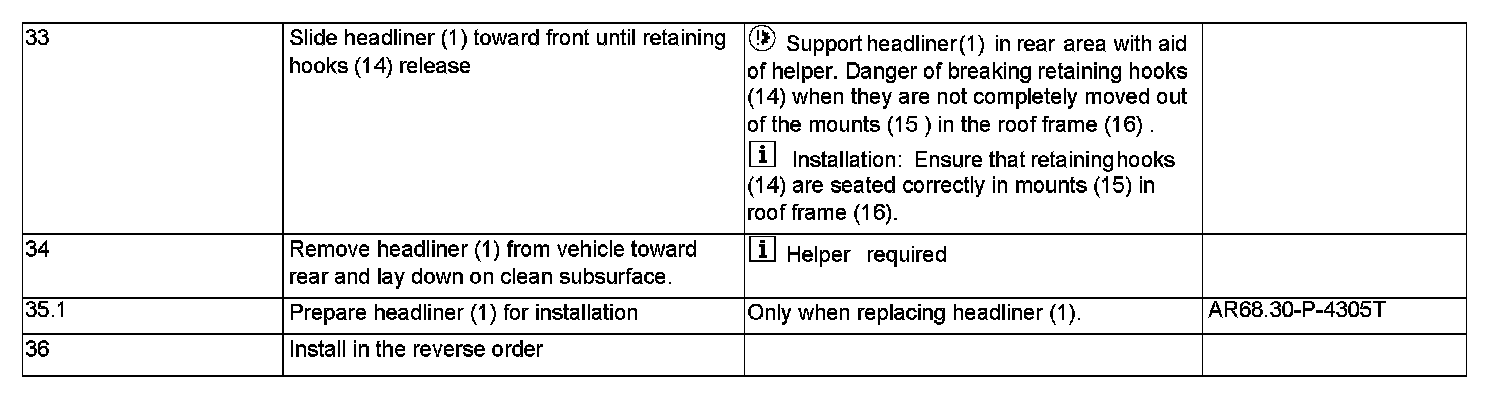

Part 2:
Load Compartment Cover:
