Trunk / Liftgate Shock / Support: Service and Repair

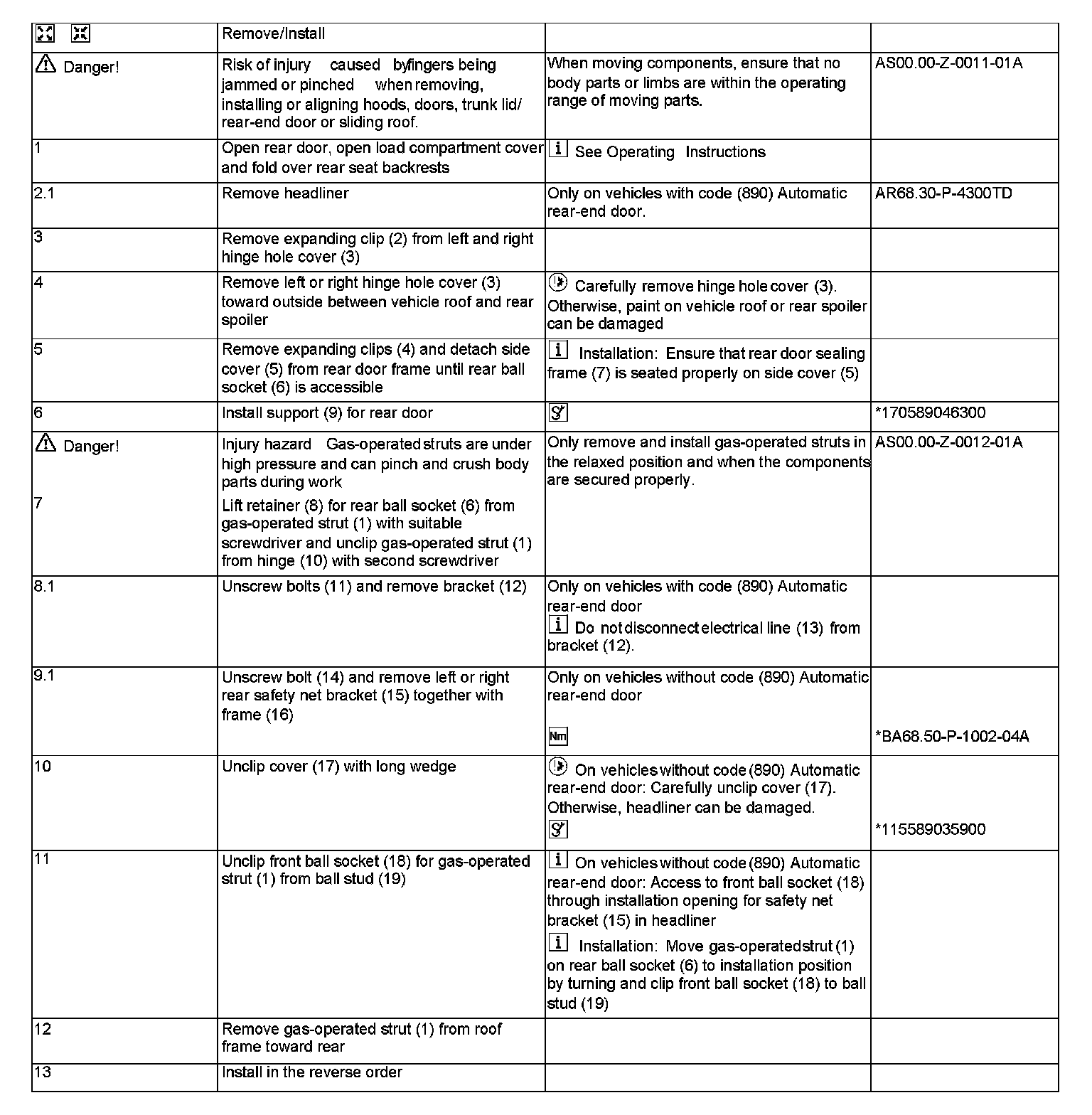

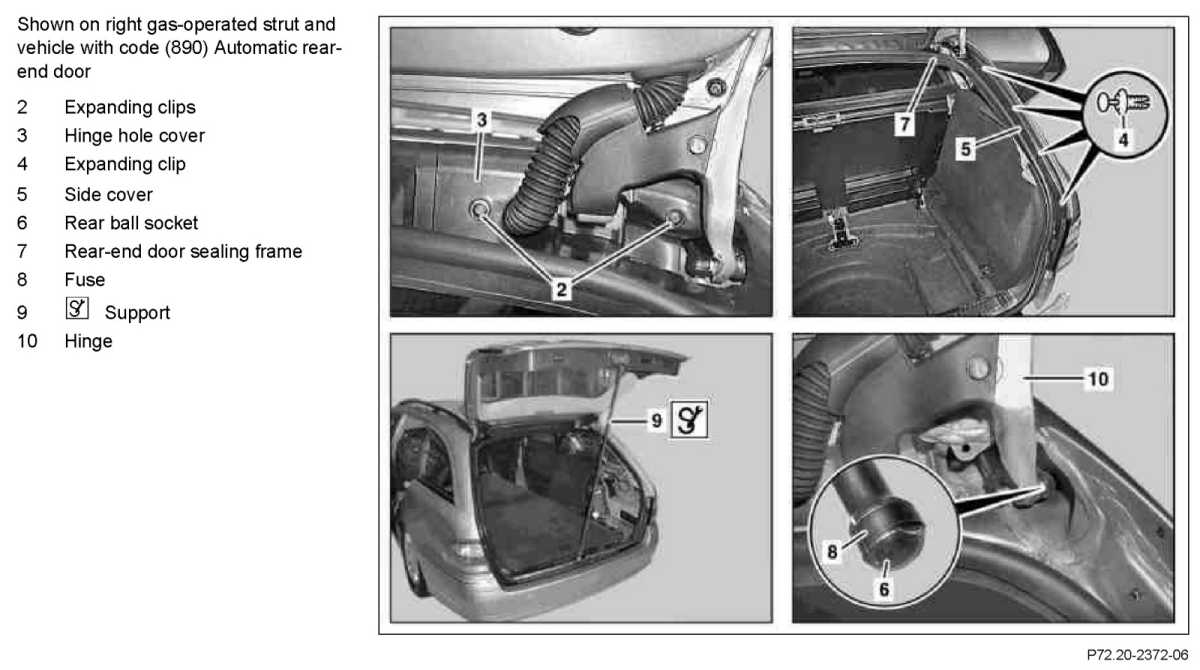

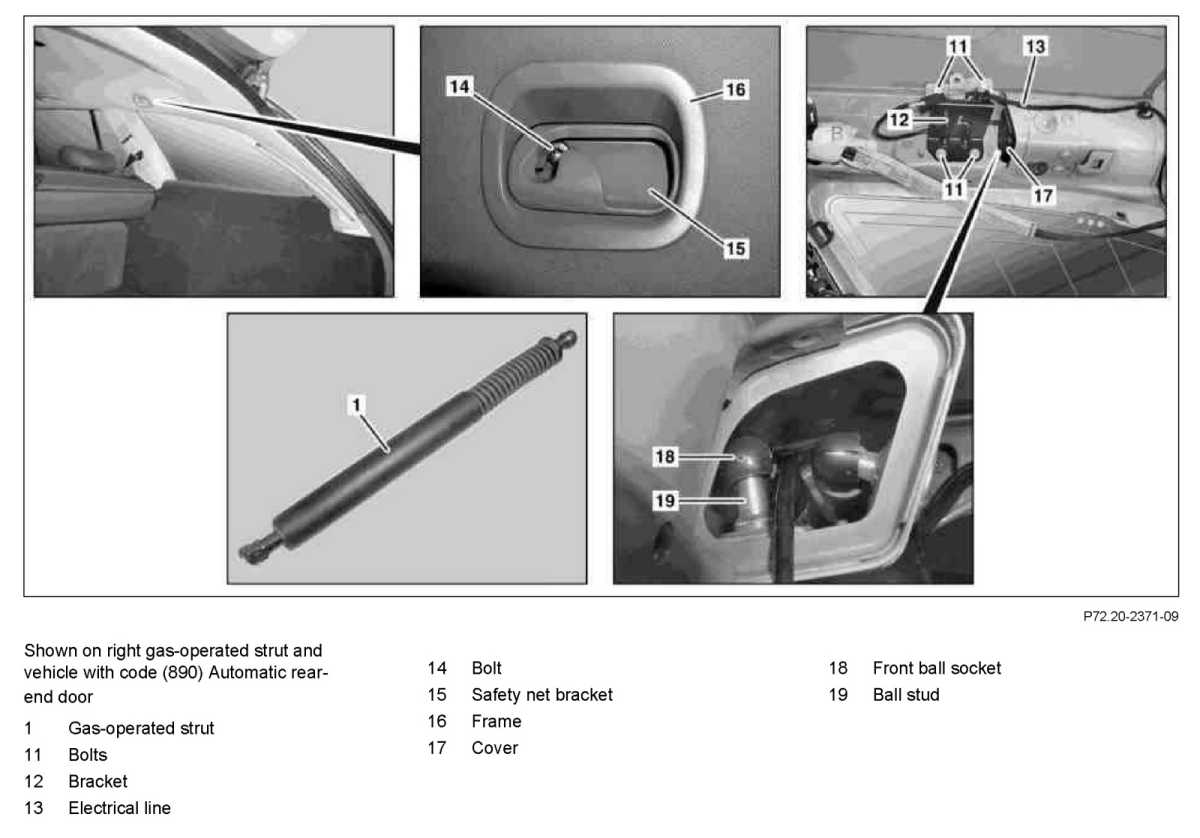

AR72.20-P-3600T Remove/Install Gas-Operated Strut on Rear-End Door

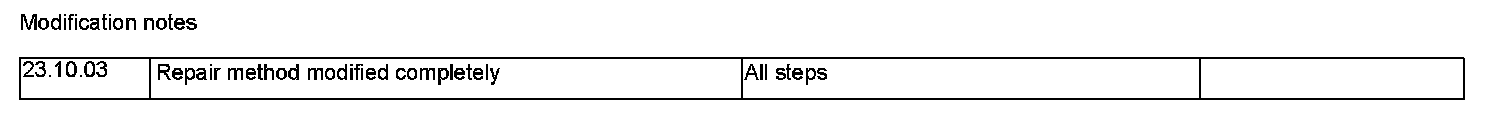

Modification Notes:

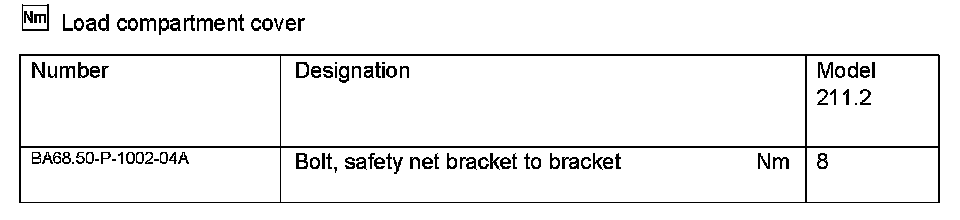

Load Compartment Cover:
