AN82.61-P-0001-07TD Retrofit Audio Gateway Control Unit

AN82.61-P-0001-07TD Retrofit Audio Gateway Control Unit
- with CODE (523) MB Audio 20 radio

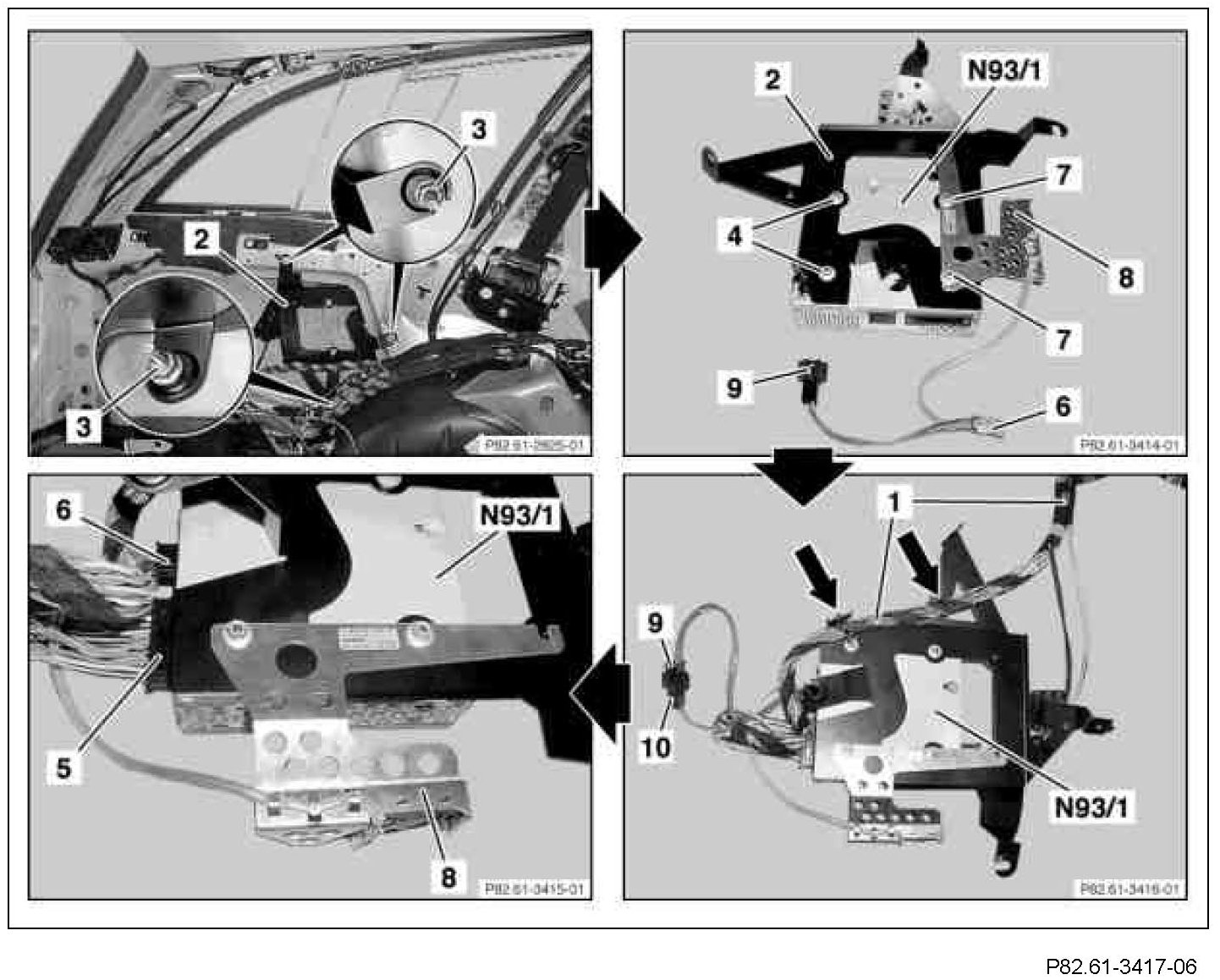

1 Unscrew nuts (3) and remove bracket (2) from side panel.
2 Fasten audio gateway control unit (N93/1) onto bracket (2) using two nuts (4).
3 Connect black 14-pin coupling (5) from auto pilot system wiring harness (1) to audio gateway control unit (N93/1).







4 Fasten auto pilot system wiring harness (1) onto bracket (2) as per picture using provided cable ties (arrows).

When routing, make sure that the auto pilot system wiring harness (1) does not chafe or make noise.

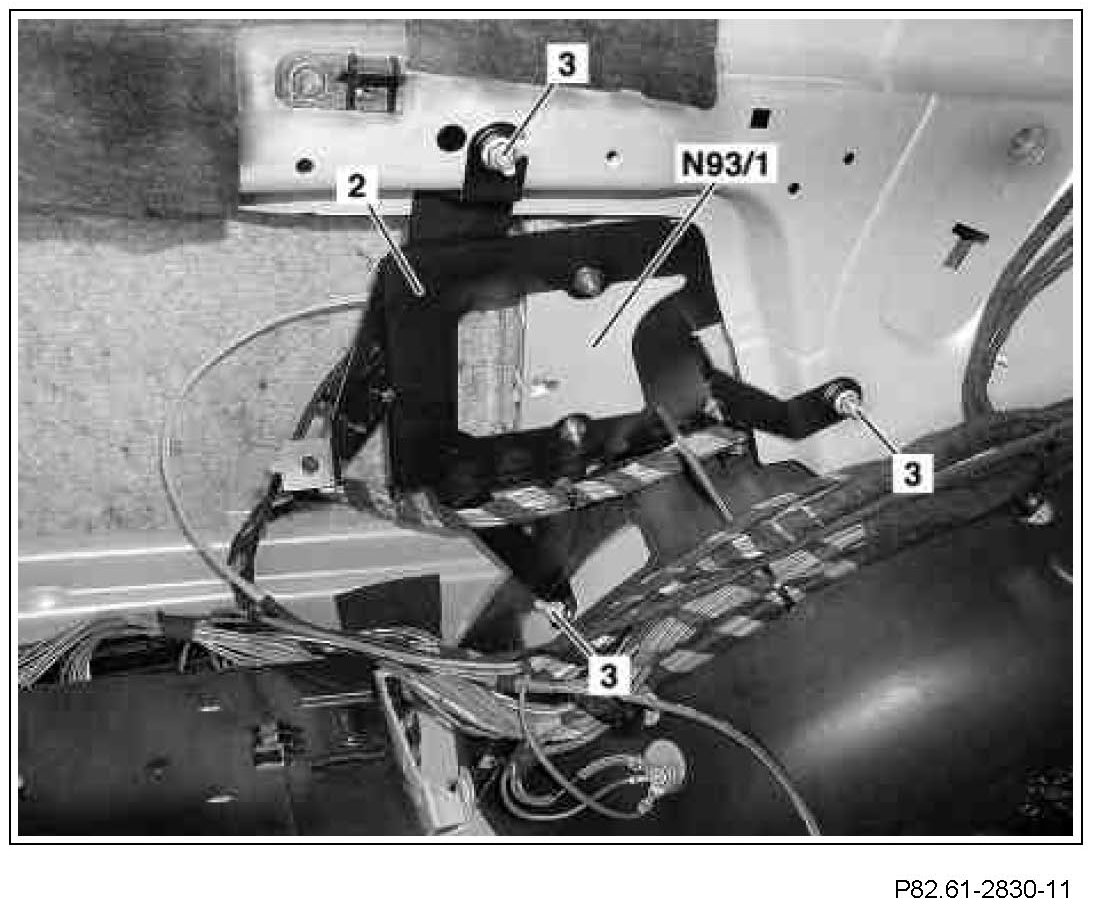

5 Attach bracket (2) with audio gateway control unit (N93/1) in left side piece using nuts (3).
