AN82.61-P-0001-07TA Retrofit Audio Gateway Control Unit

AN82.61-P-0001-07TA Retrofit Audio Gateway Control Unit
- with CODE (523) MB Audio 20 radio



Removing

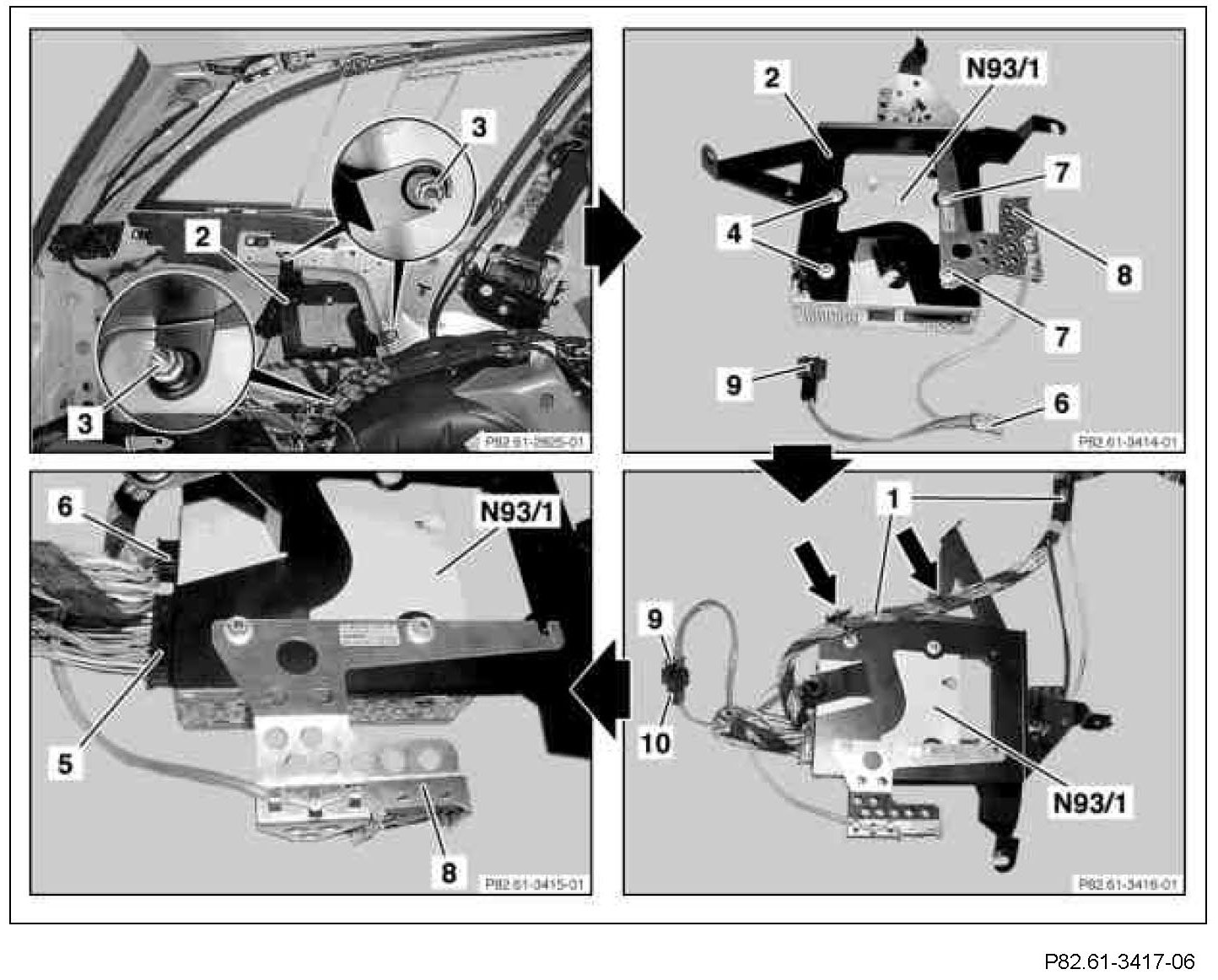

1 Unscrew nuts (3) and remove bracket (2) from side panel.

Install

2 Tightly bolt audio gateway control unit (N93/1) using nuts (4) at bracket (2).
3 Place fan (8) onto bracket (2) and fasten using two nuts (7).
4 Connect black 4-pin connector (6) from fan wiring harness (8) to audio gateway control unit (N93/1).







5 Connect black 4-pin connector (10) from auto pilot system wiring harness (1) to black 4-pin coupling (9) from fan wiring harness (8).
6 Connect black 14-pin coupling (5) from auto pilot system wiring harness (1) to audio gateway control unit (N93/1).
7 Attach auto pilot system wiring harness (1) using cable ties (arrows) onto bracket (2).
8 Fix in place excess length of wiring harness on fan (8) to auto pilot system wiring harness (1) using cable ties.

Make sure that both wiring harnesses are routed such that they do not chafe or make any noise.
The coupling for the Media Oriented System Transport (MOST) fiber optic cable is connected at a later stage.

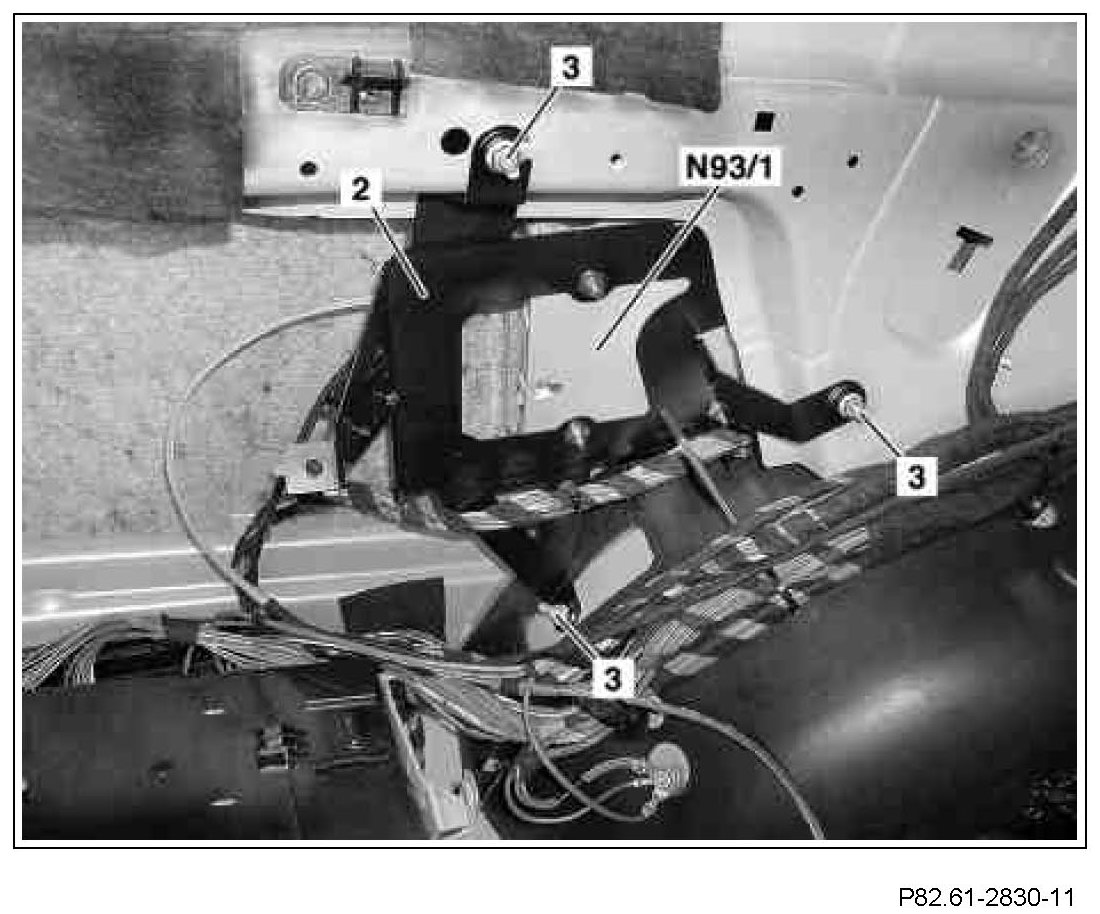

9 Tightly bolt bracket (2) with audio gateway control unit (N93/1) and nuts (3) at side panel.
