AZ82.60-P-0007TA Retrofit Digital TV Tuner



AZ82.60-P-0007TA Retrofit Digital TV Tuner
- with CODE (860) TV tuner

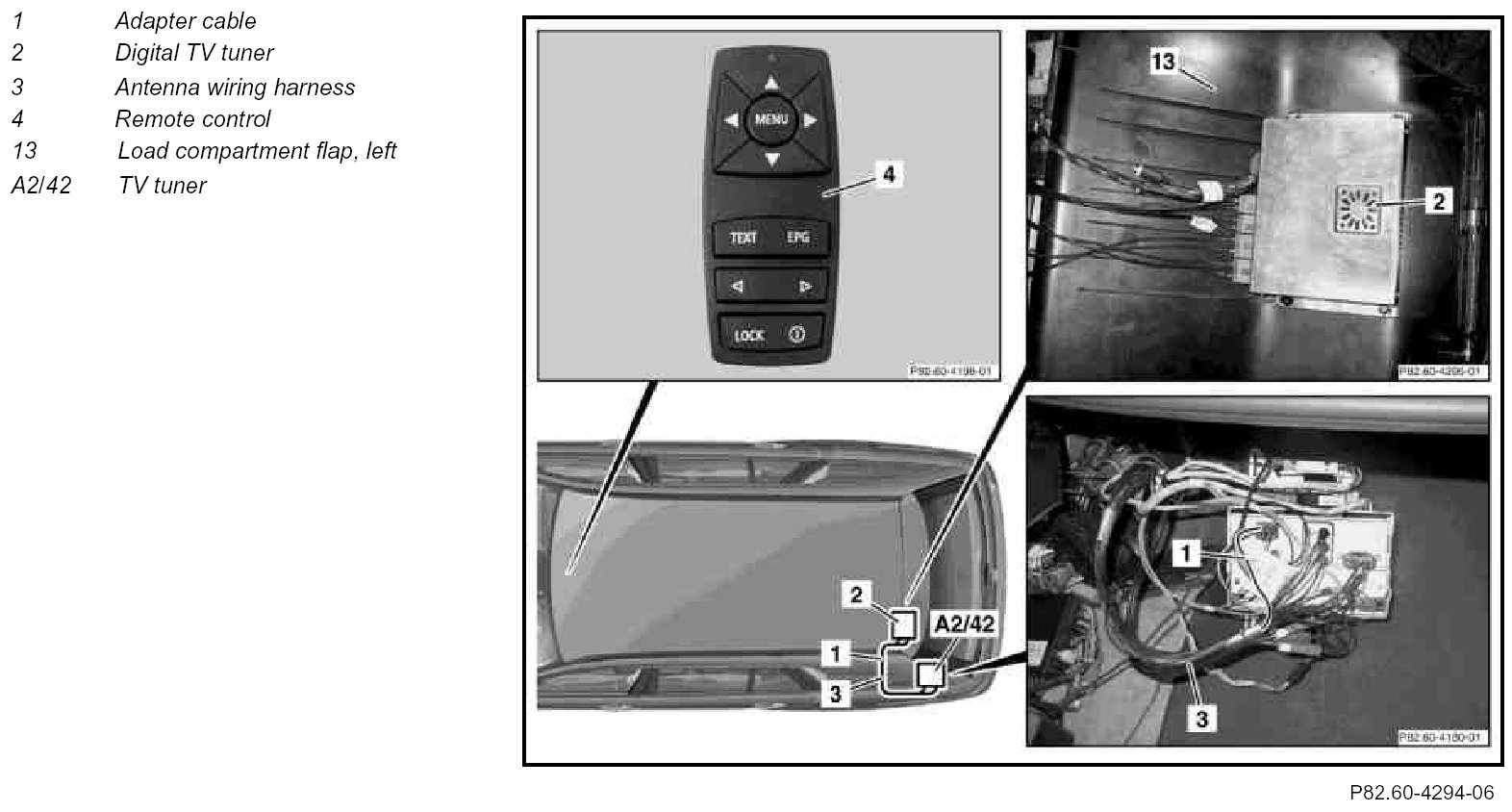

Component Identification:

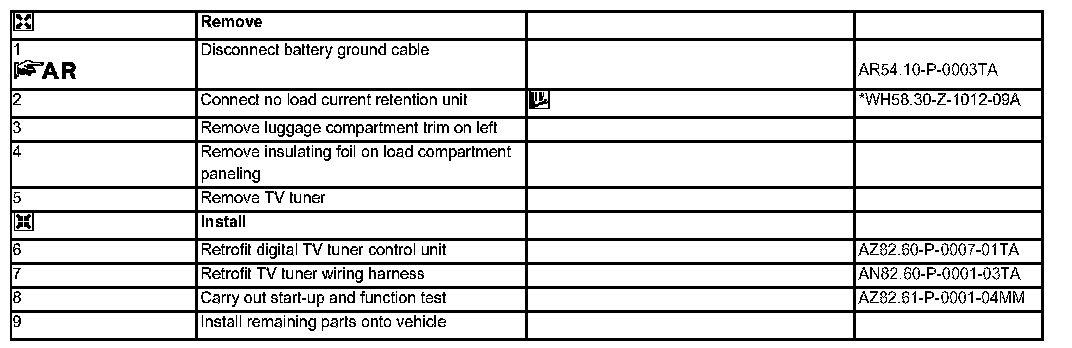

Steps 1 - 9:

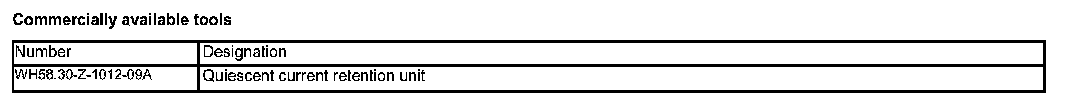

Commercially Available Tools:

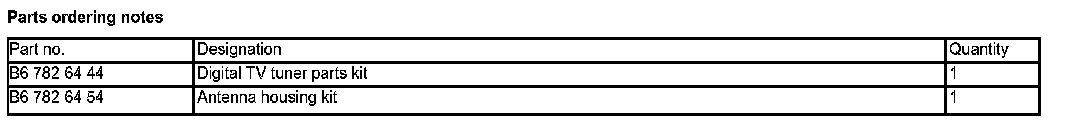

Parts Ordering Notes:
