AR82.70-P-0030TA Remove/Install Compensator Control Module

AR82.70-P-0030TA Remove/Install Compensator Control Module
- with CODE (380) Preinstallation for MB phone "Handy", complete
- with CODE (382) MB telephone "Handy" in armrest







1 Disconnect ground cable of battery
2 Remove front section of load compartment floor

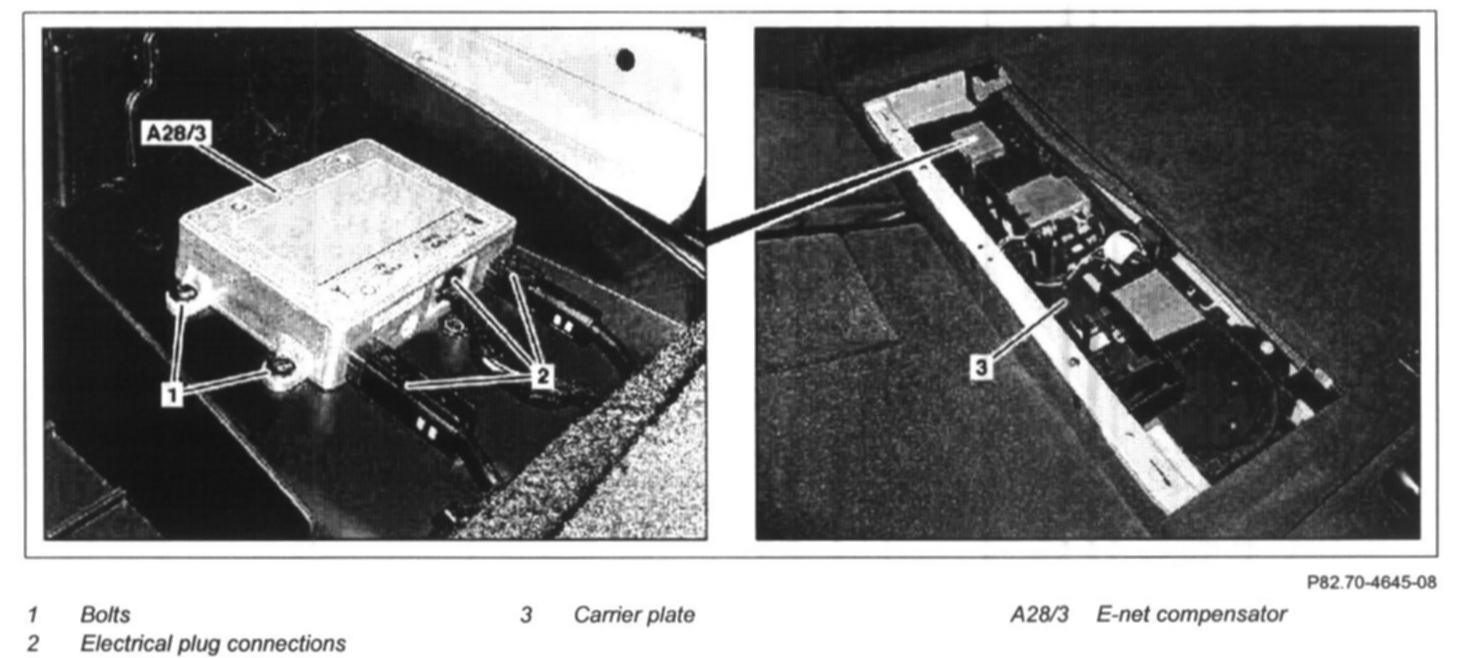

3 Remove bolts (1)
4 Separate electrical connectors (2)
5 Remove E-net compensator (A28/3) from carrier plate (3)
6 Install in the reverse order
