AN82.62-P-0001-04TC Retrofit Antenna Line

AN82.62-P-0001-04TC Retrofit Antenna Line
- with CODE (523) MB Audio 20 radio

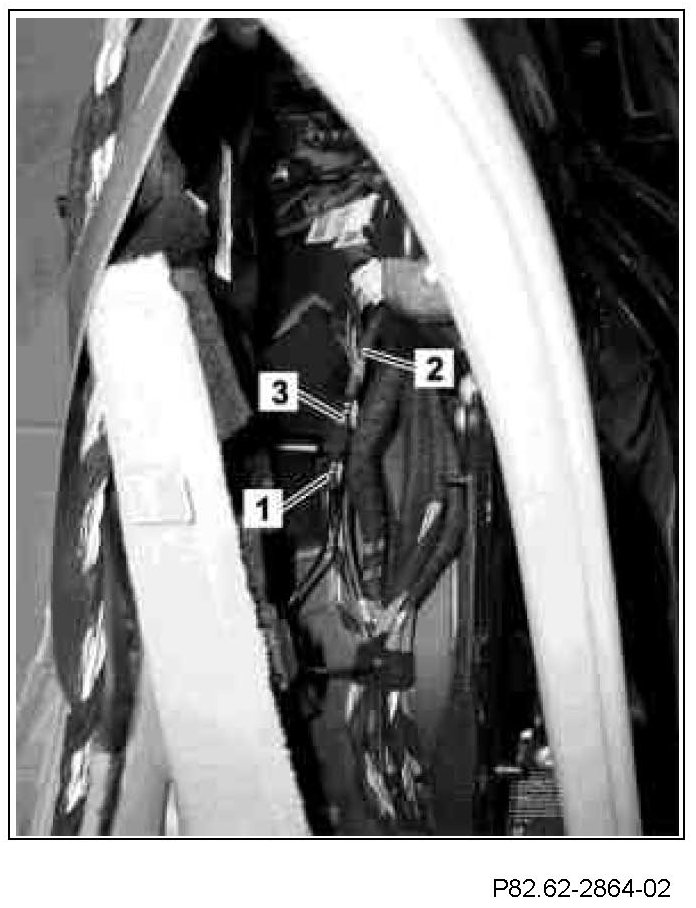

1 Disconnect standard antenna connector and insulate connector (1) (no longer required) of antenna line for Audio 20 CD radio using felt tape and strap down.

The separation point of the antenna line is located on the left wheel well, above the left rear entrance.

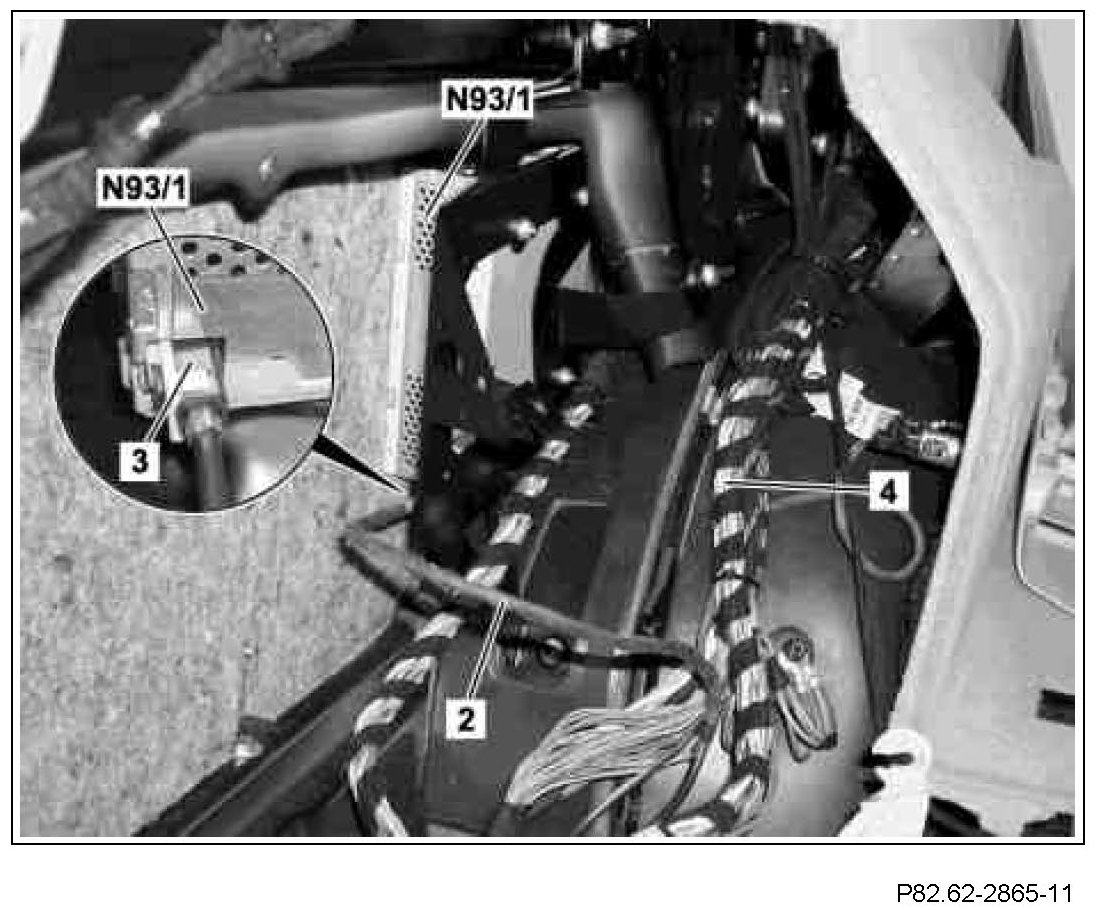

2 Detach on-board antenna line (2) from on-board wiring harnesses (4) and route to audio gateway control unit (N93/1).
3 Connect coupling (3) of on-board antenna line (2) to audio gateway control unit (N93/1) and fix on-board antenna line (2) in place.

The connection at the audio gateway control unit (N93/1) is coded.
