AR82.62-P-0011T Remove/Install Telephone Antenna

AR82.62-P-0011T Remove/Install Telephone Antenna
- with CODE (354) Telephone antenna (D and E nets)







1 Remove rear spoiler

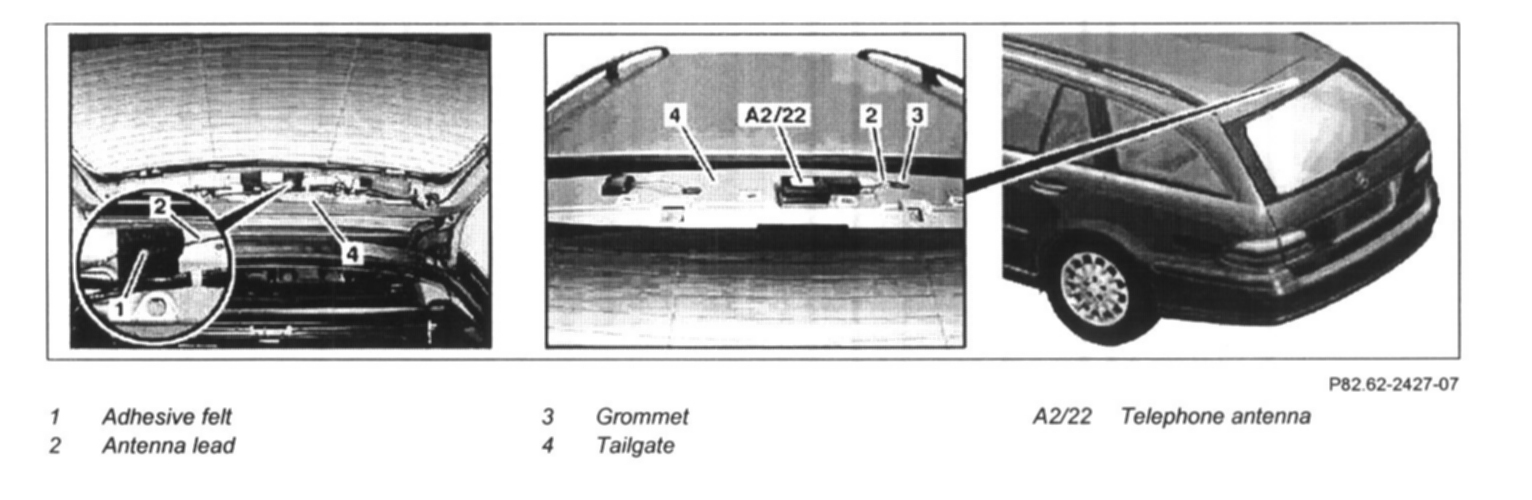

2 Remove adhesive felt (1) and disconnect antenna line electrical connector (2) underneath
3 Remove grommet (3) from rear-end door (4)

NOTE: Installation: Use sliding compound Lubricant

4 Lead antenna line (2) out through rear-end door (4)
5 Release telephone antenna (A2/22) from rear-end door (4) using mounting wedge and remove

NOTE: Always replace telephone antenna (A2/22)

See "Special Tools" given below.

NOTE: Installation: Clean and de-grease installation location on rear-end door (4)

6 Install in the reverse order

Special Tools

Mounting Wedge, P/N # 110 589 03 59 00:
