AN82.85-P-0003TG Retrofit Comand With APS Navigation System

AN82.85-P-0003TG Retrofit COMAND With APS Navigation System
- with CODE (523) MB Audio 20 radio
- except CODE (596) Heat-insulating glass
- except CODE (494) USA version
- except CODE (498) Japan version

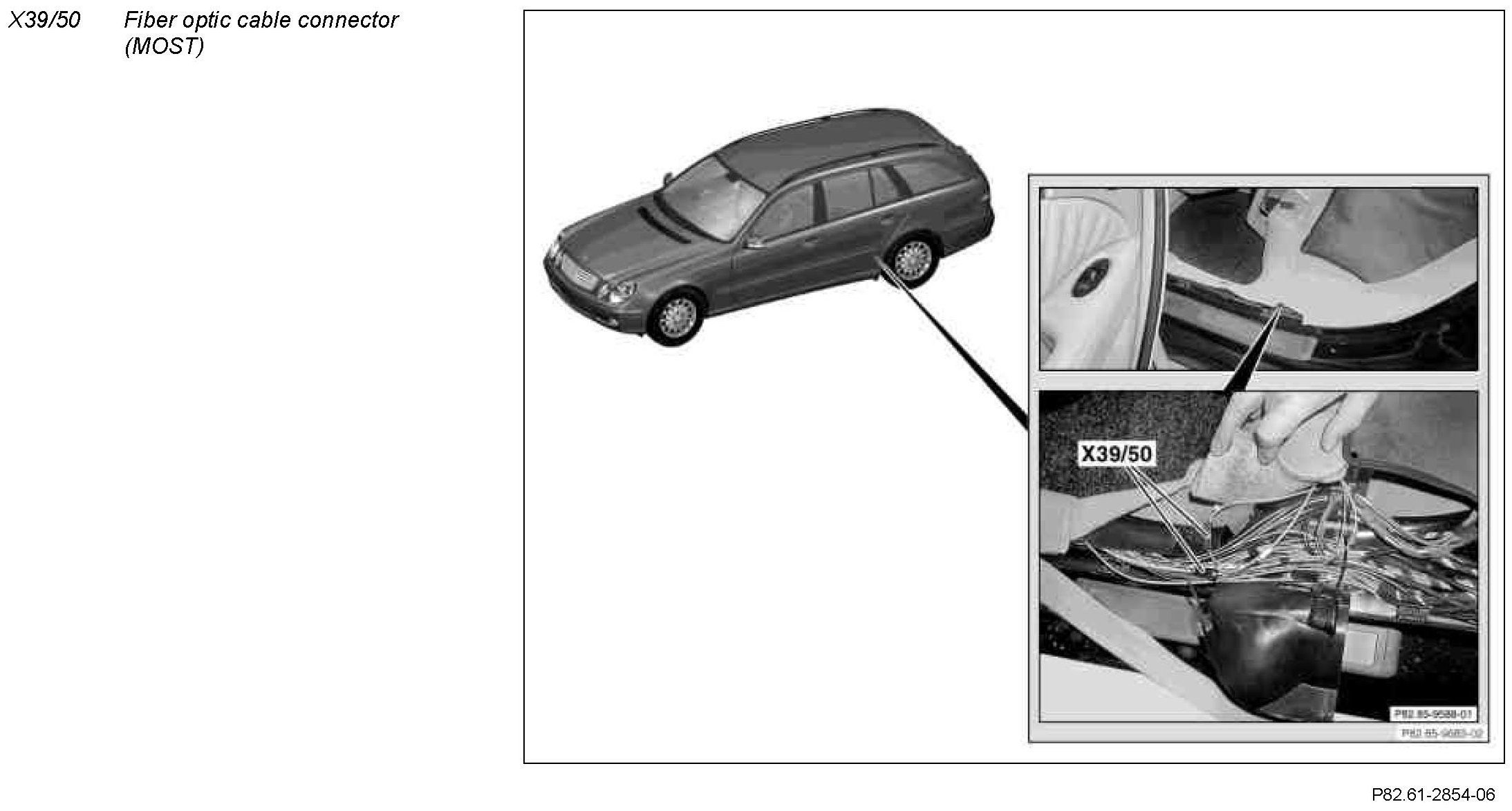

Component Identification:

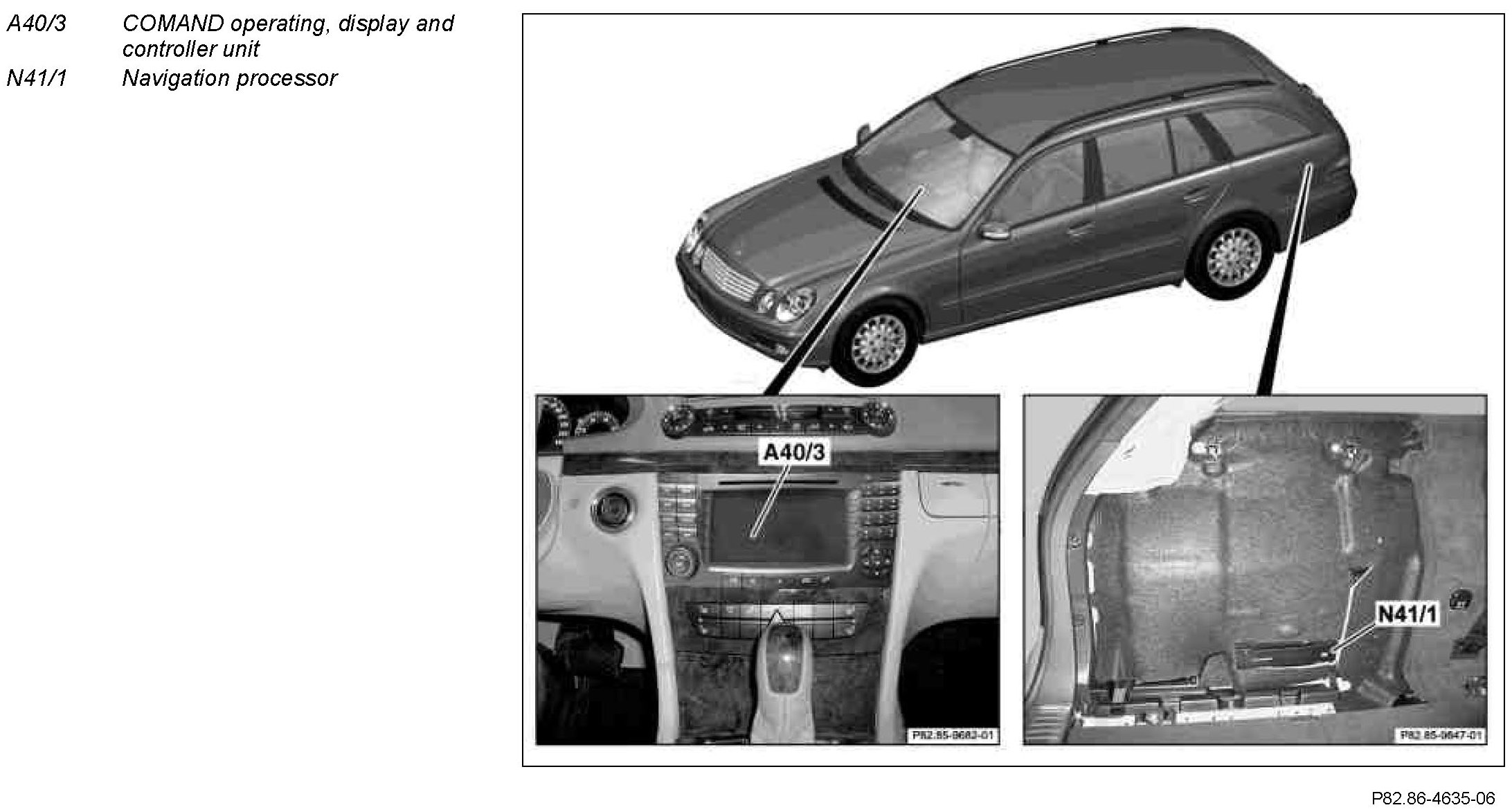

Component Identification:

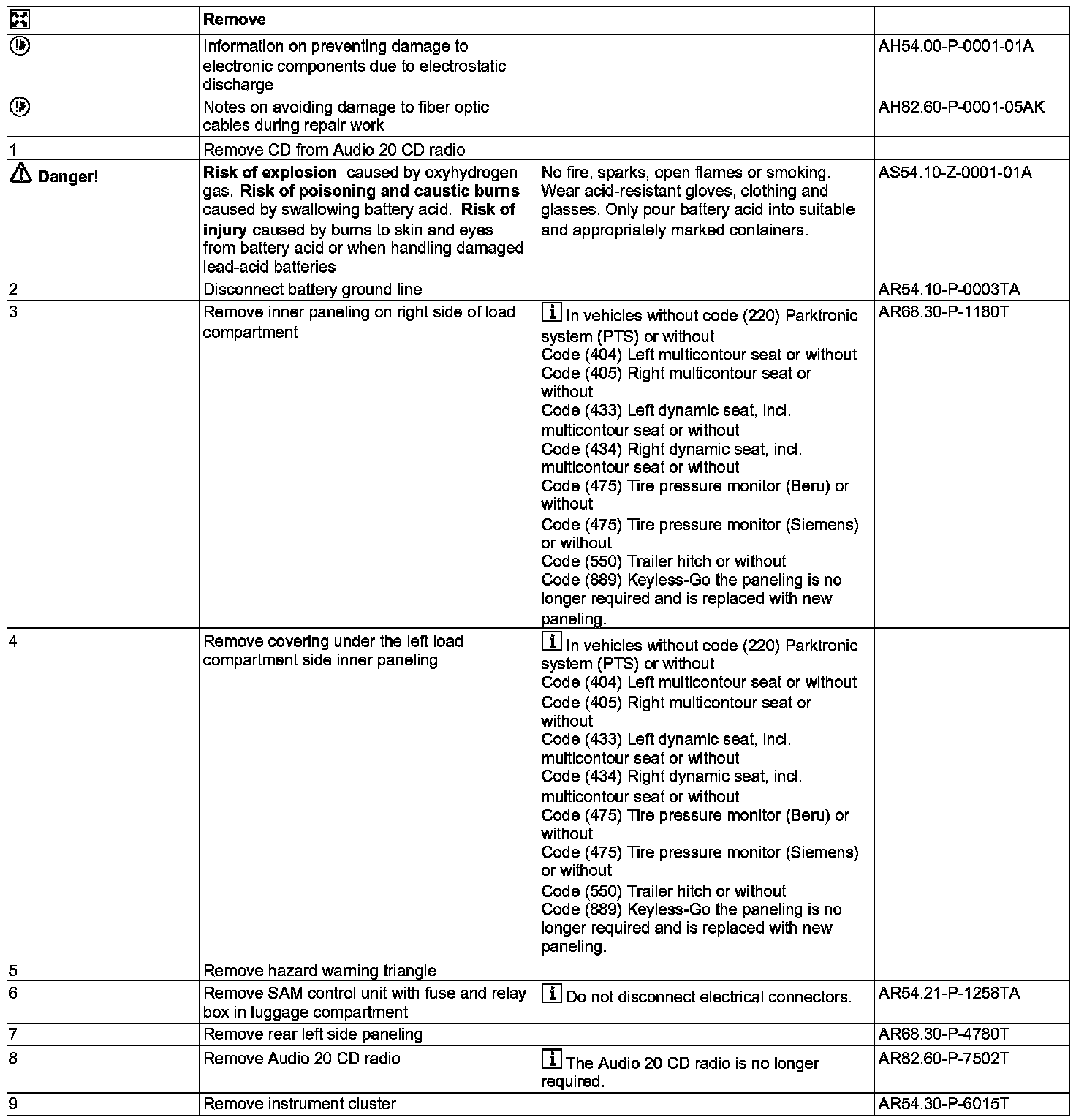

Steps 1 - 9:

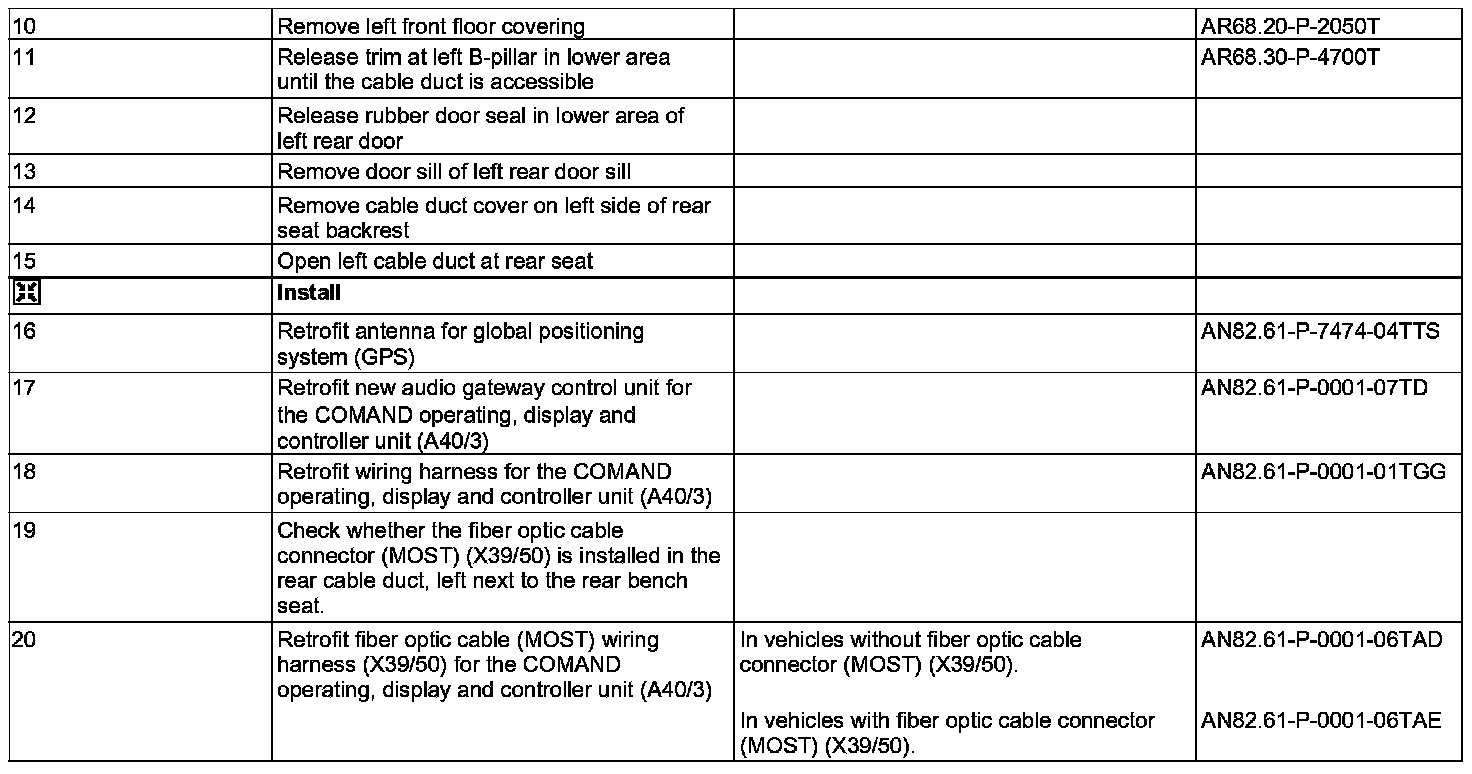

Steps 10 - 20:

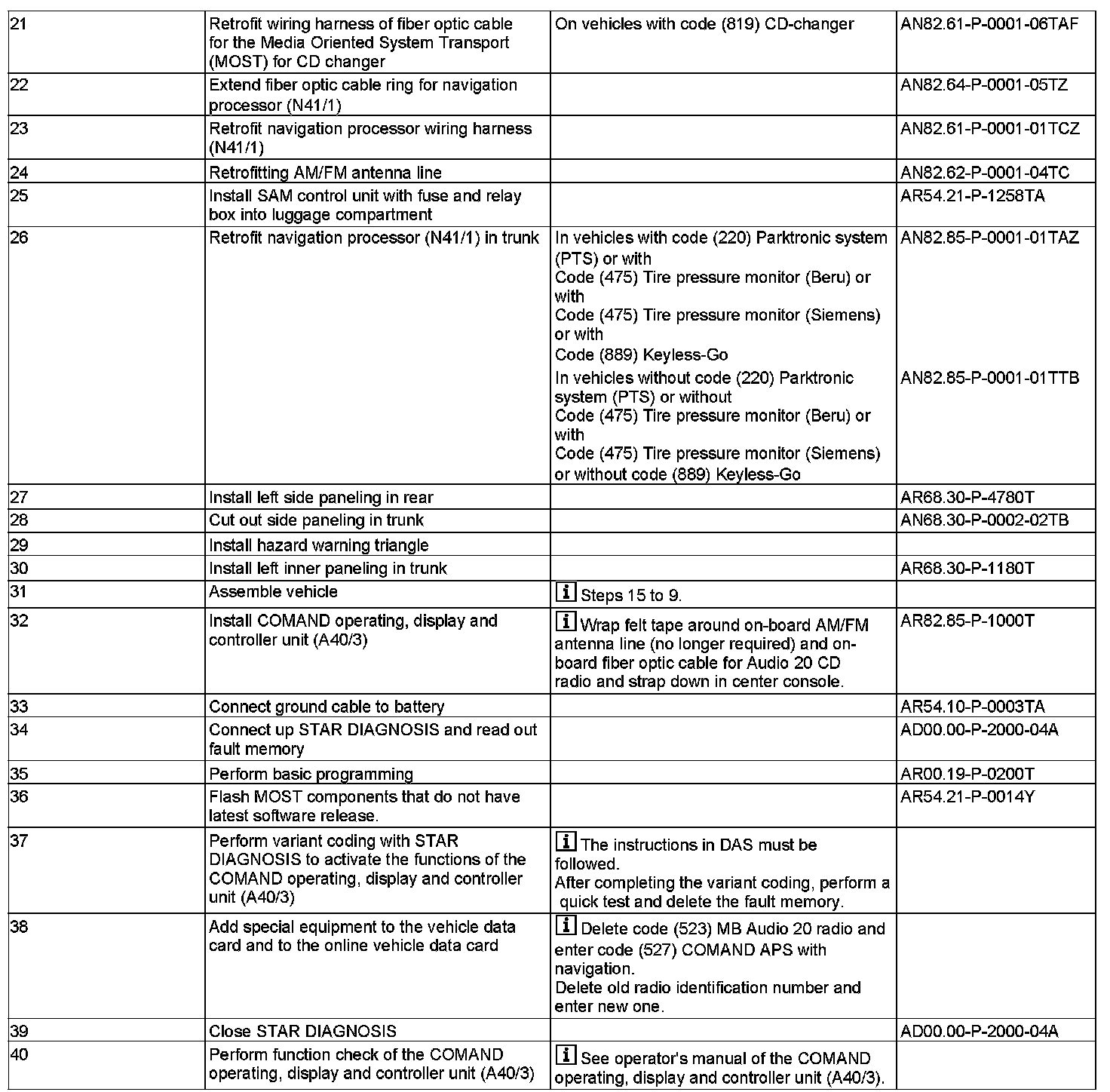

Steps 21 - 40:

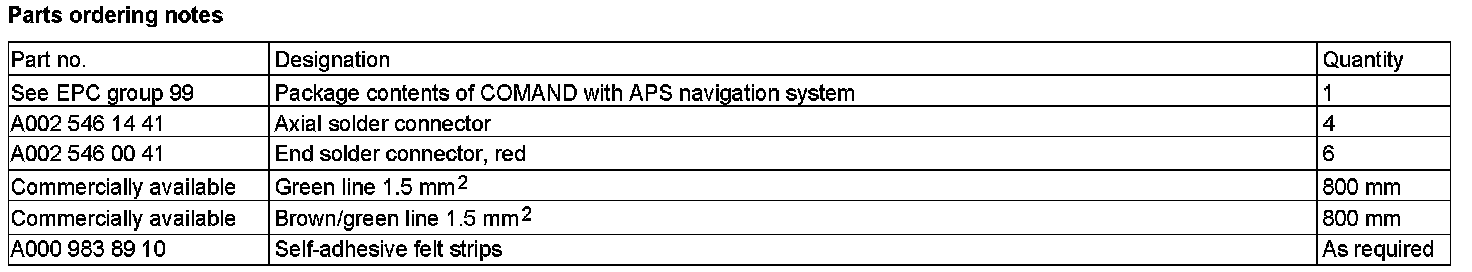

Parts Ordering Notes:
