AN82.85-P-0003TA Retrofit Comand With APS Navigation System

AN82.85-P-0003TA Retrofit COMAND With APS Navigation System
- with CODE (525) MB Audio 50 APS radio
- except CODE (494) USA version
- except CODE (498) Japan version

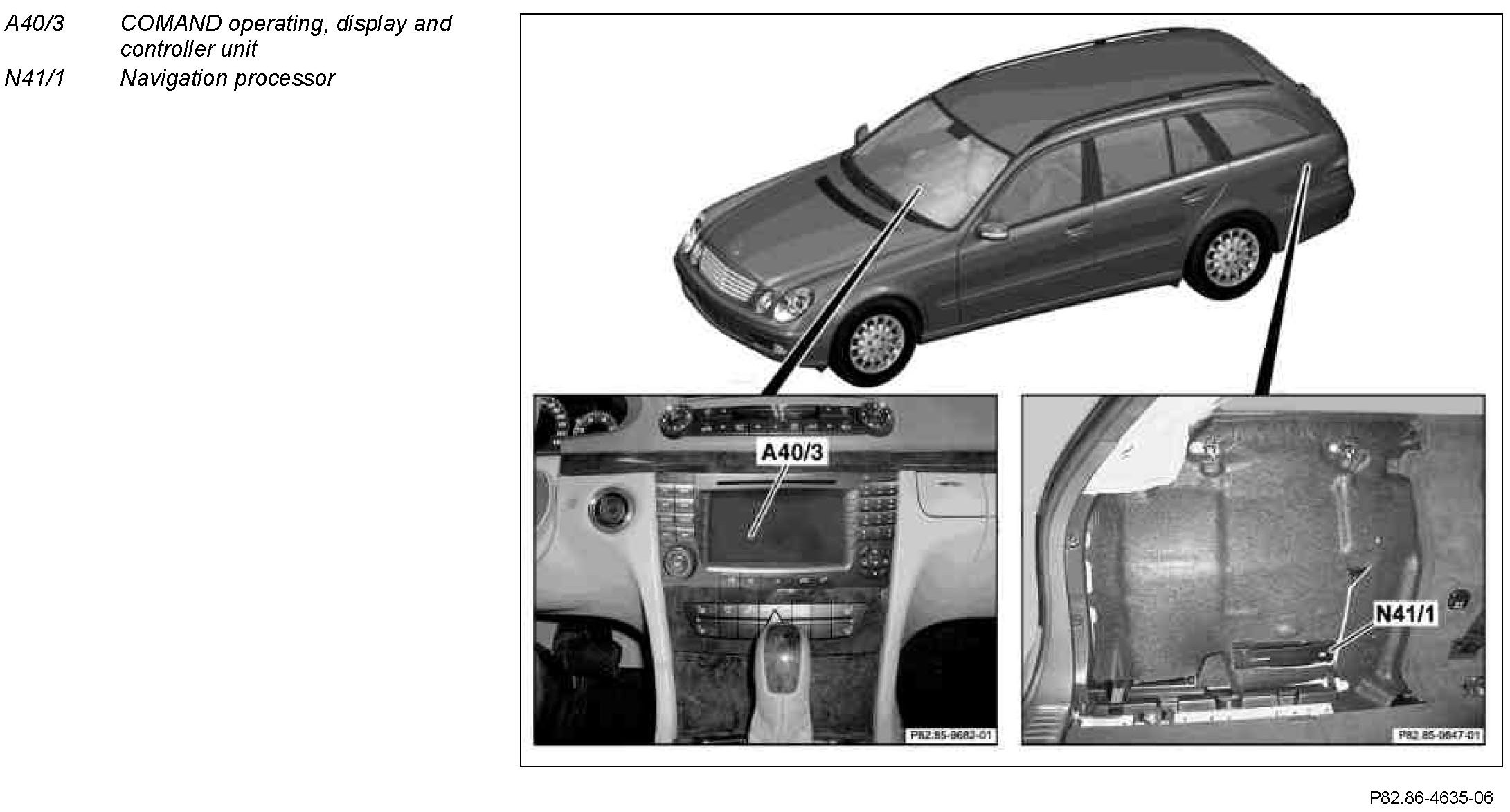

Component Identification:

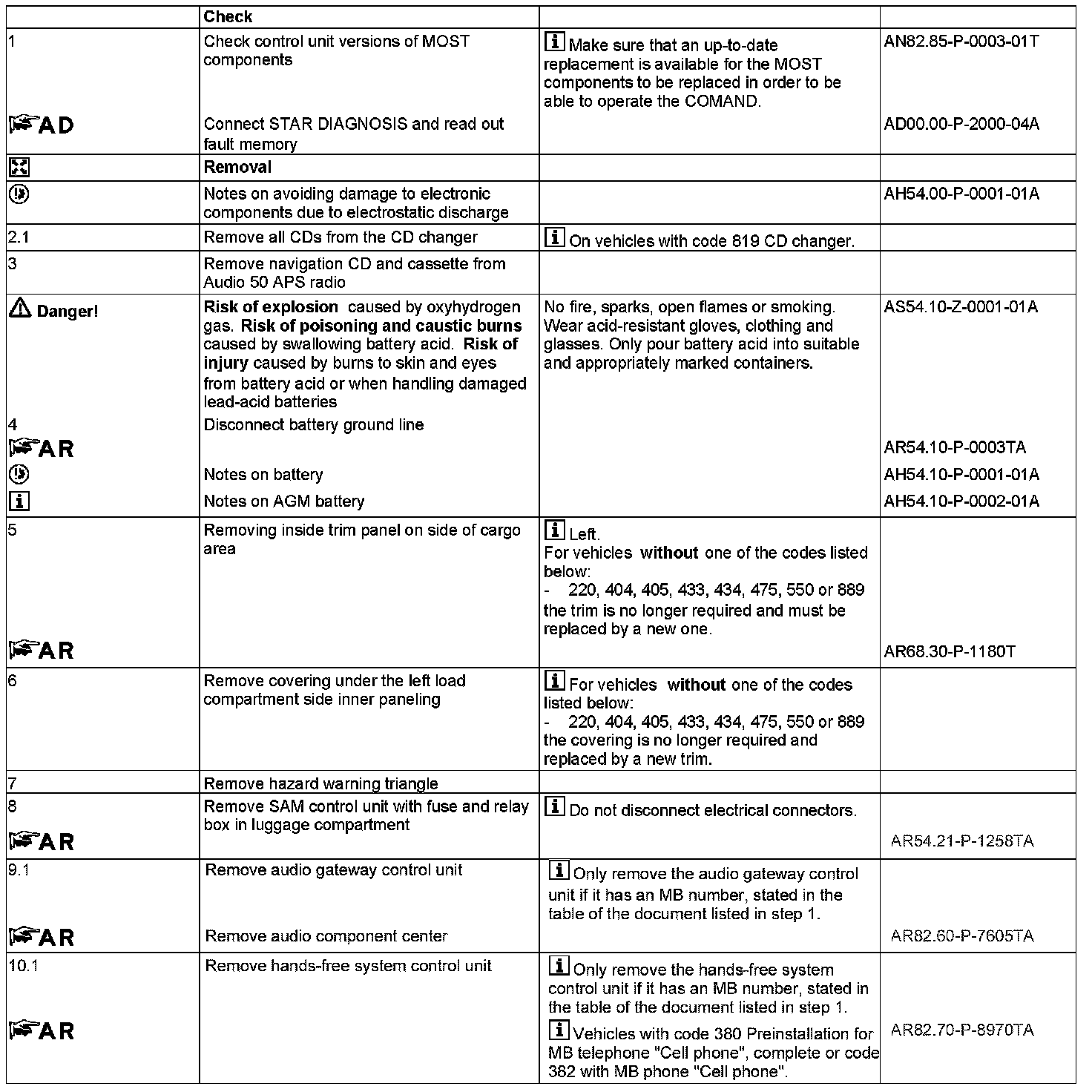

Steps 1 - 10.1:

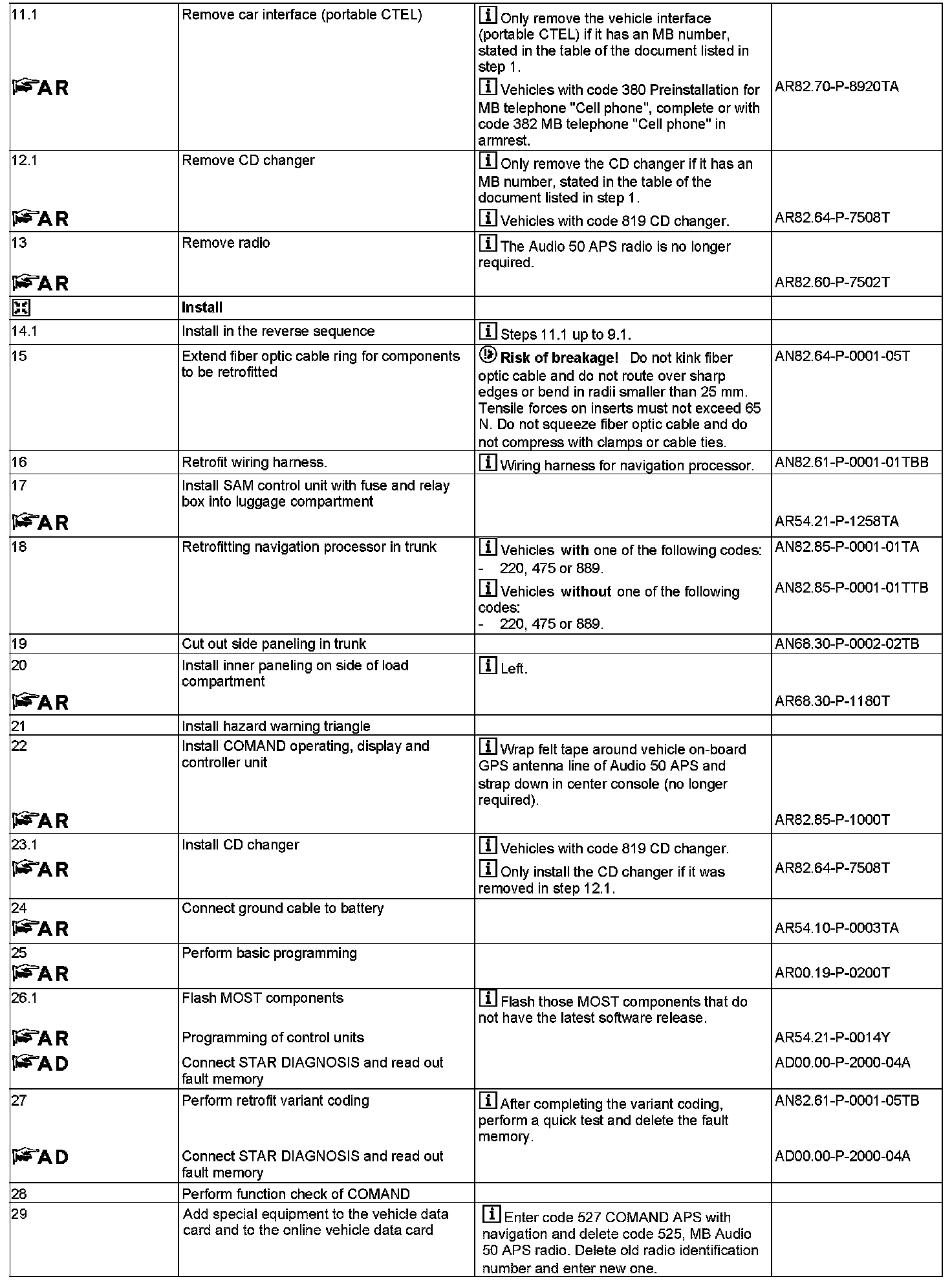

Steps 11.1 - 29:

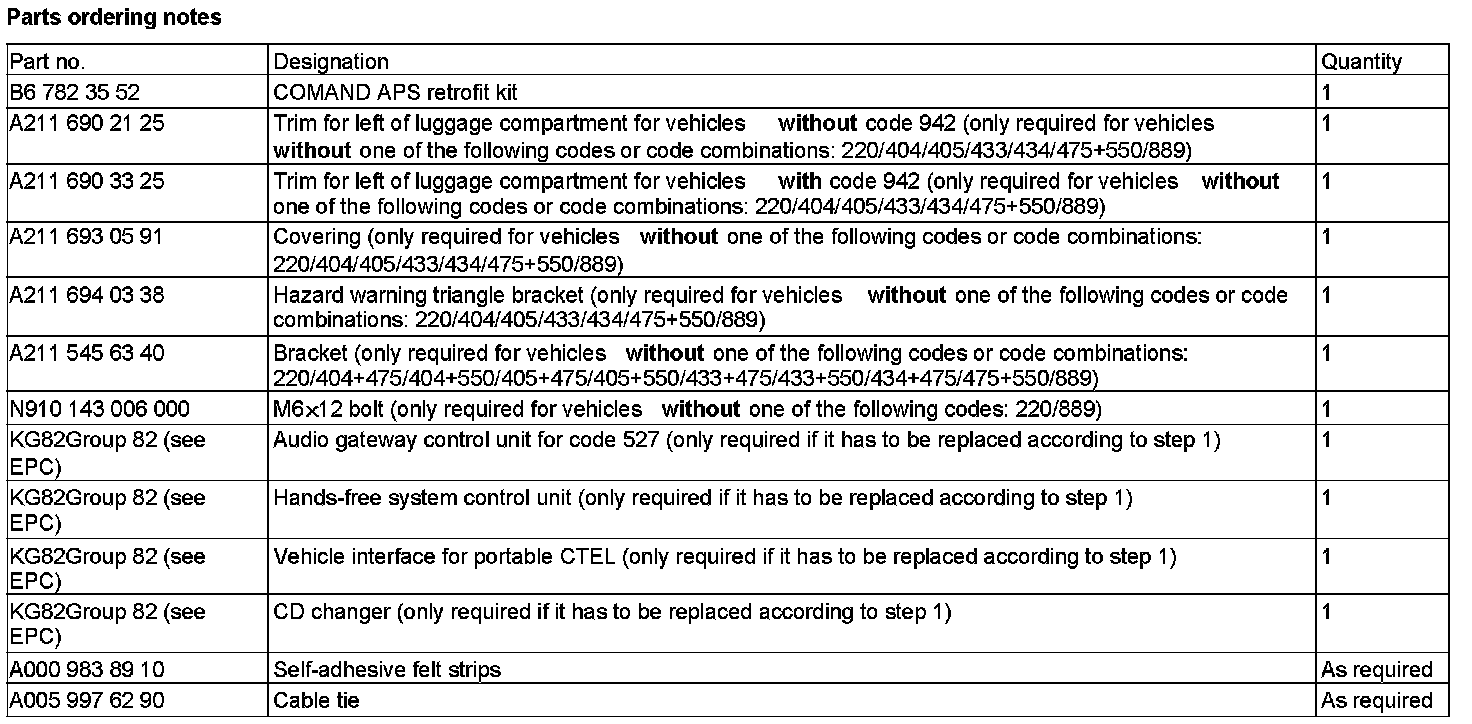

Parts Ordering Notes:
