Home >> Mercedes Benz >> 2005 >> E 500 (211.070) V8-5.0L (113.967) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Glass >> Front Door Window Glass >> Service and Repair >> AR72.10-P-1900TG Remove/Install Crank Window In Front Door

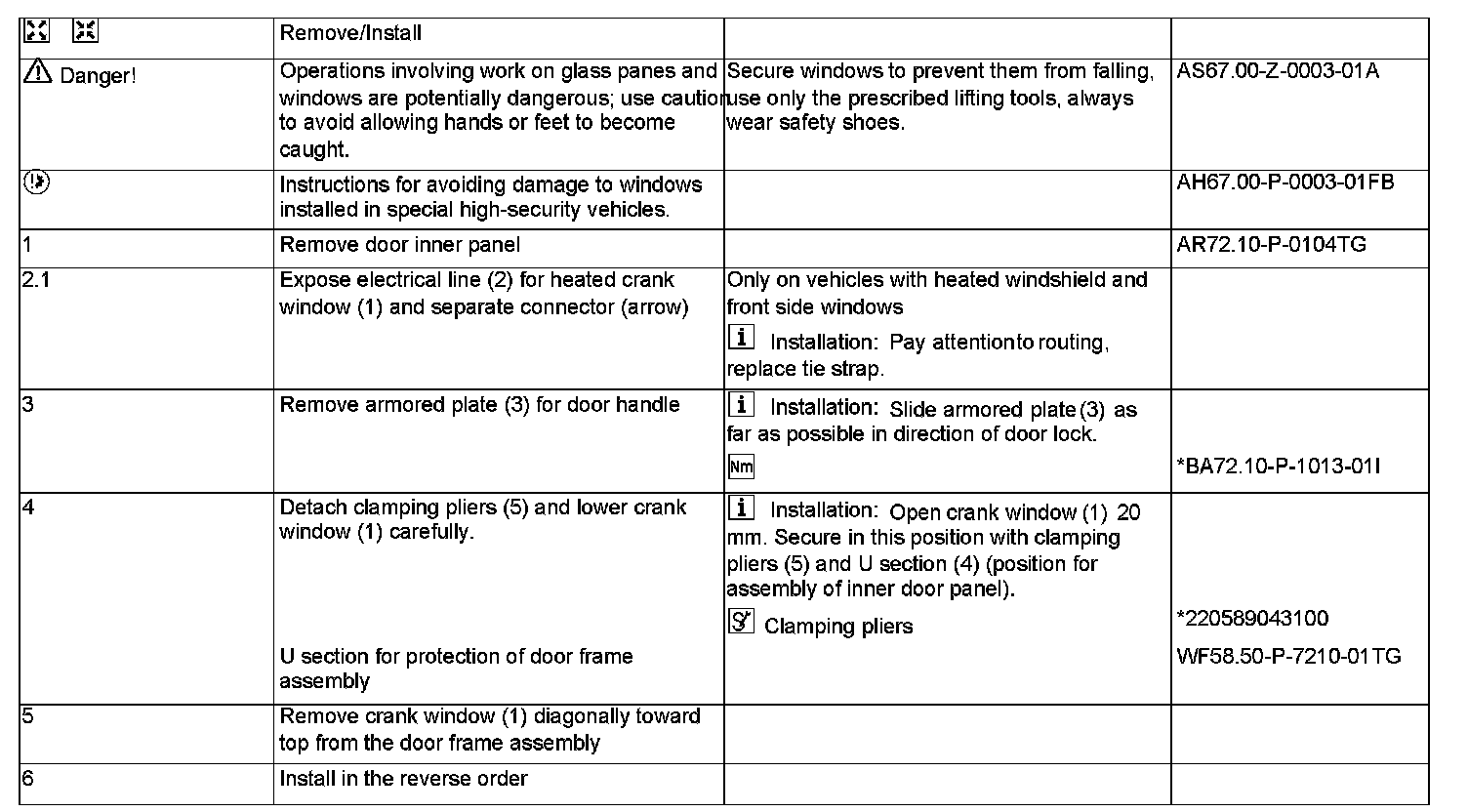

AR72.10-P-1900TG Remove/Install Crank Window In Front Door



AR72.10-P-1900TG Remove/Install Crank Window In Front Door
- With front power windows
- with CODE (Z04) Light armoring

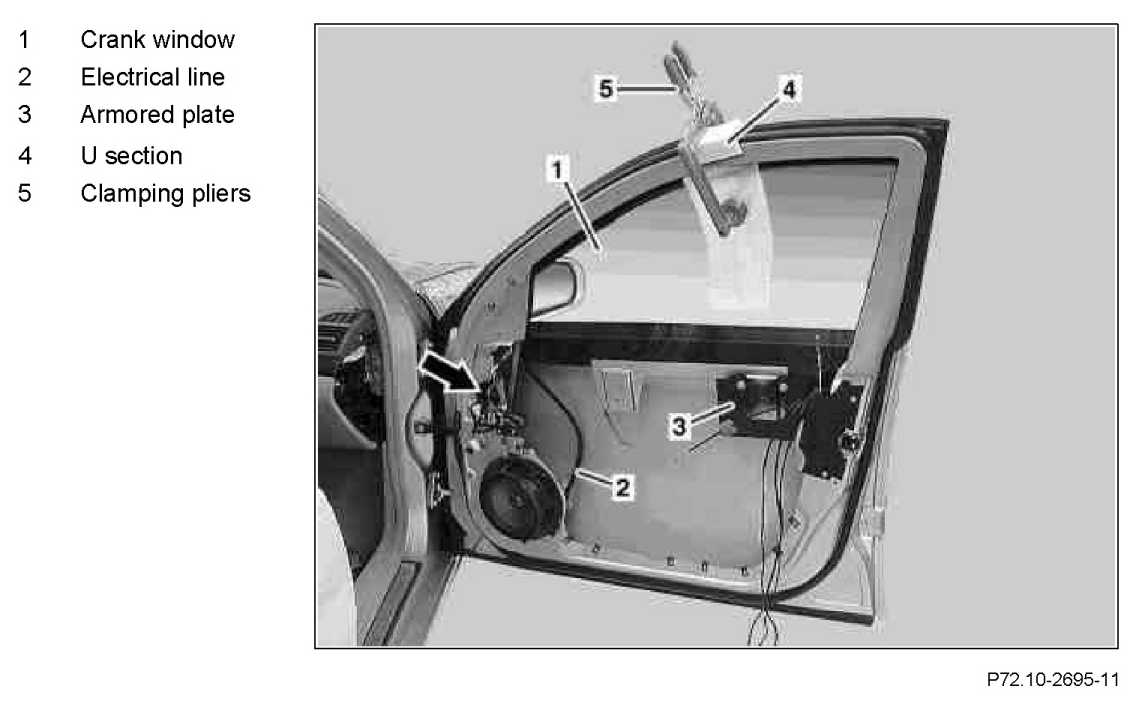

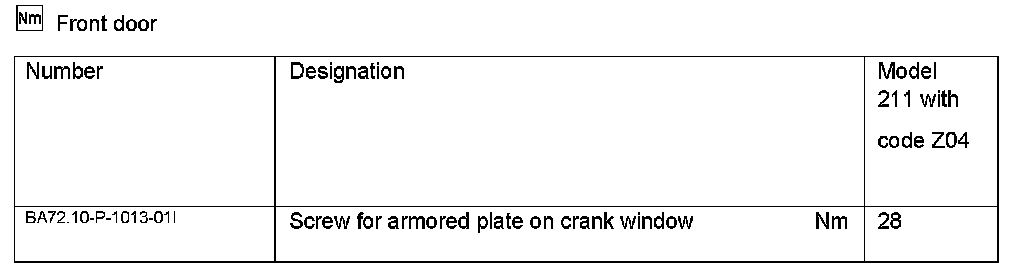

Front Door:
