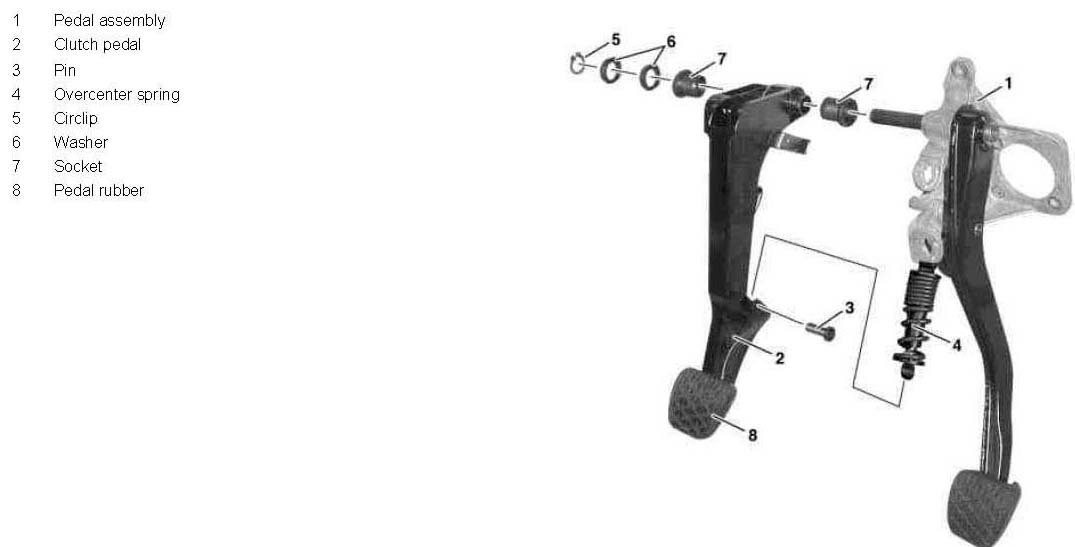

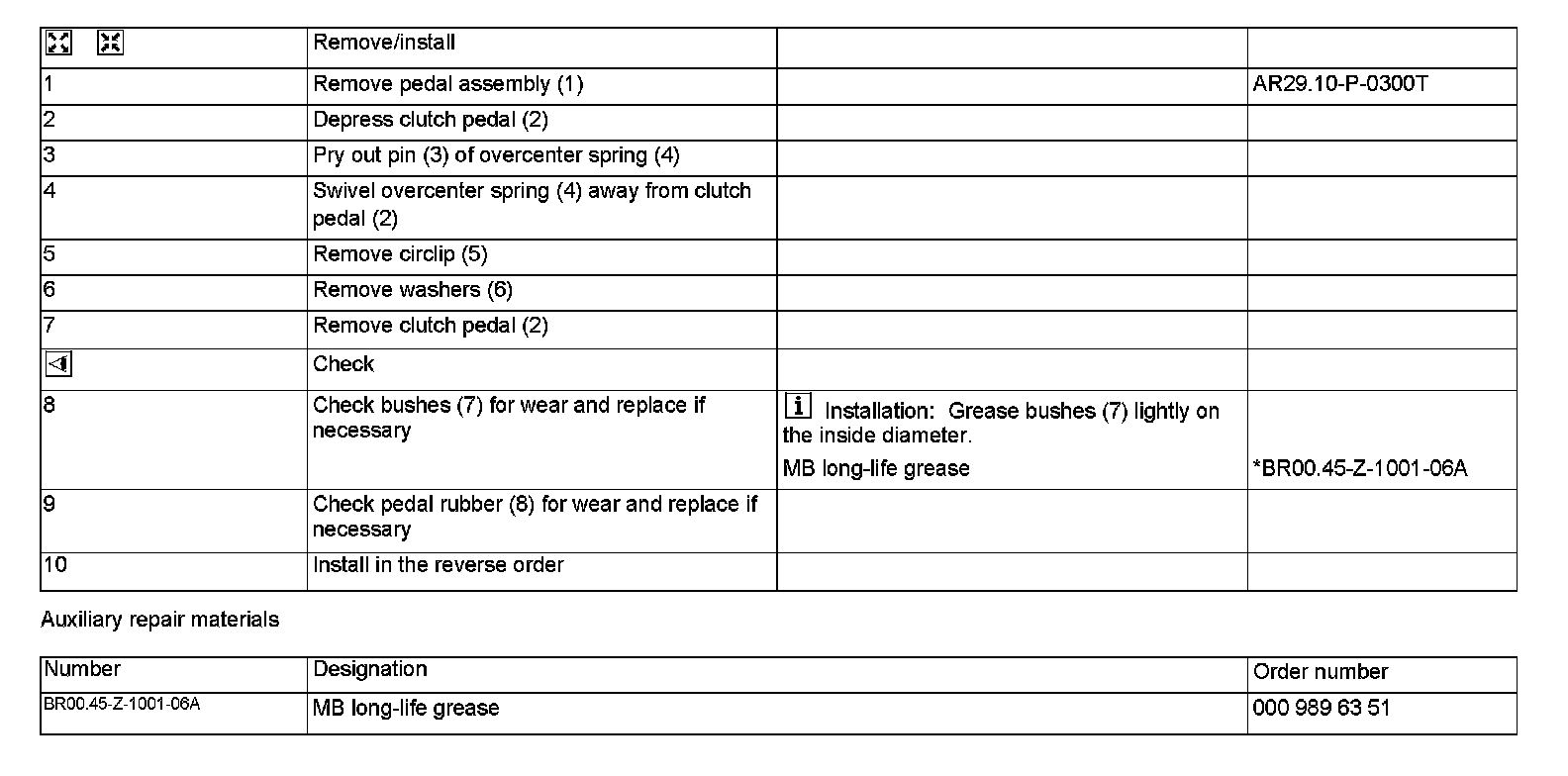

AR29.10-P-4598T Remove/Install Clutch Pedal
AR29.10-P-4598T Remove/Install Clutch Pedal
AR29.10-P-4598T Remove/Install Clutch Pedal
- except CODE (424) Sequentronic (SEQ) manual
