Home >> Mercedes Benz >> 2005 >> E 500 (211.070) V8-5.0L (113.967) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Seals and Gaskets >> Service and Repair >> AR27.30-P-4970TI Remove/Install Radial Shaft Sealing Ring On Front Transmission Cover

AR27.30-P-4970TI Remove/Install Radial Shaft Sealing Ring On Front Transmission Cover



AR27.30-P-4970TI Remove/install radial shaft sealing ring on front transmission cover
- Transmission 722.9

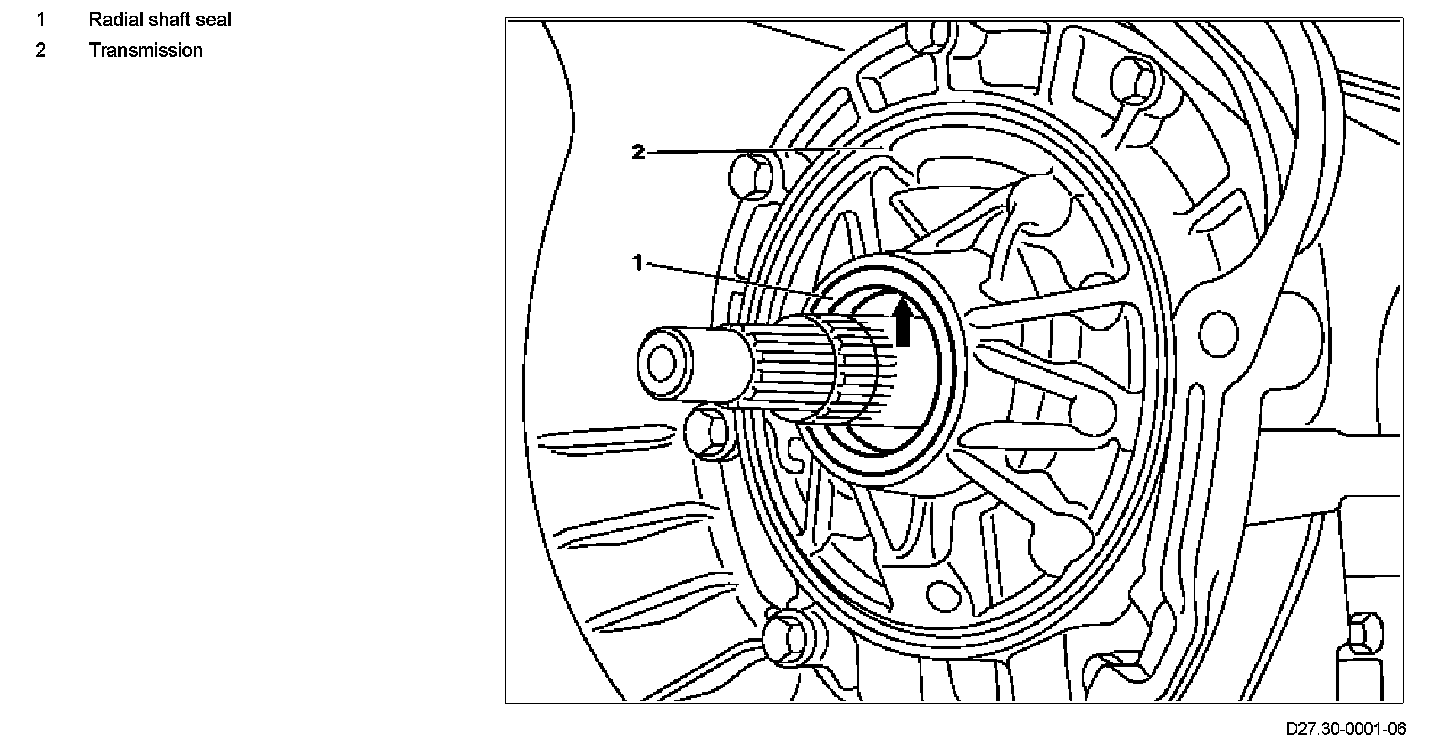

Component Identification:

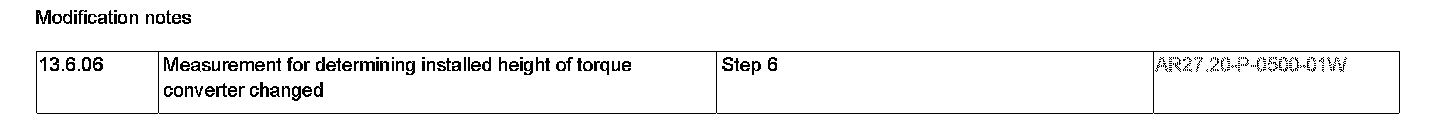

Modification notes:

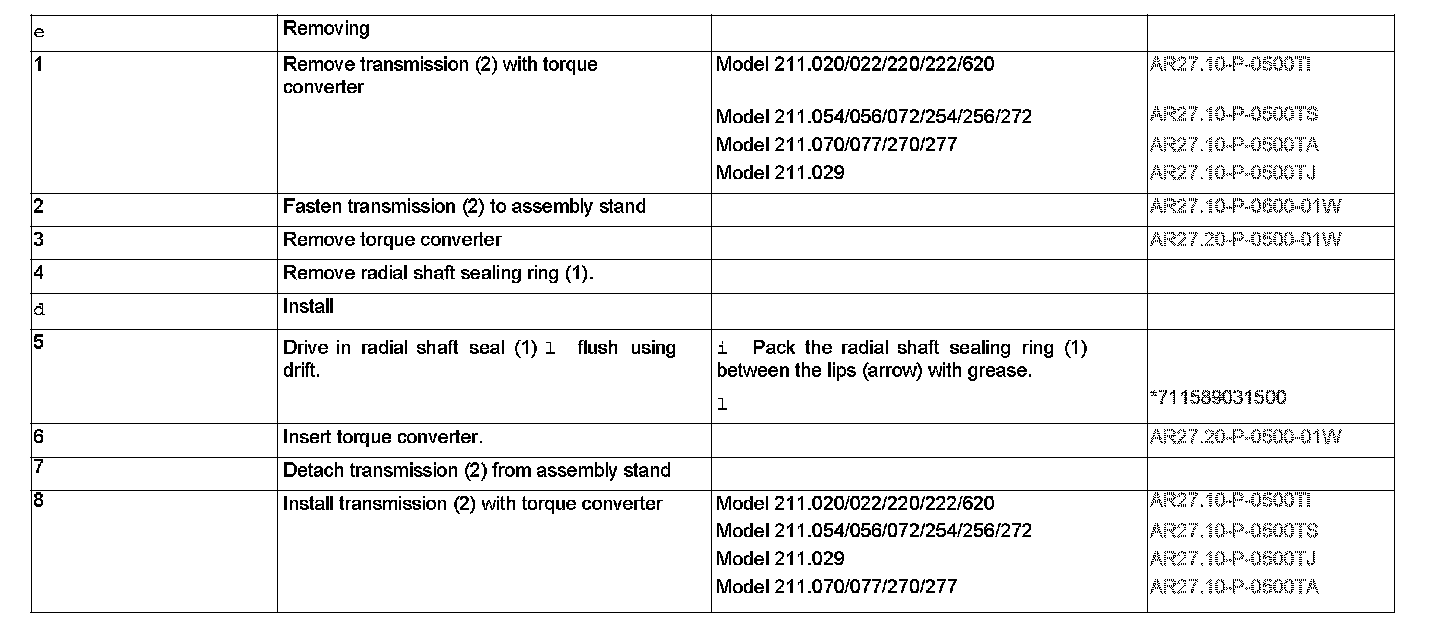

Steps 1-8:

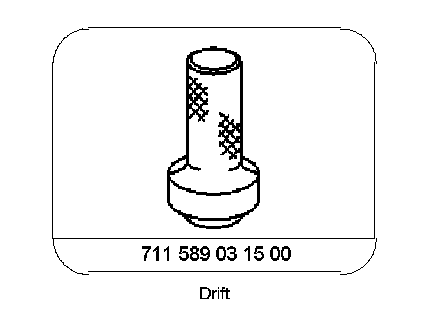

Special Tools:
