AR91.60-P-0720TA Remove/Install Seat Occupancy Recognition Sensor



AR91.60-P-0720TA Remove/Install Seat Occupancy Recognition Sensor
- Front passenger seat

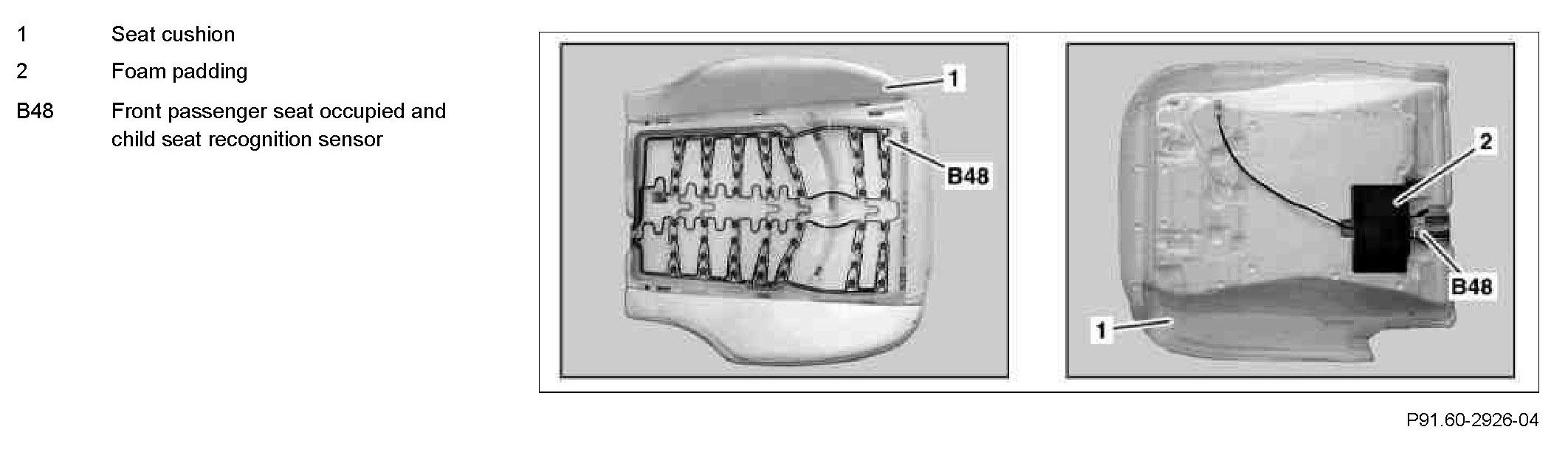

Component Identification:

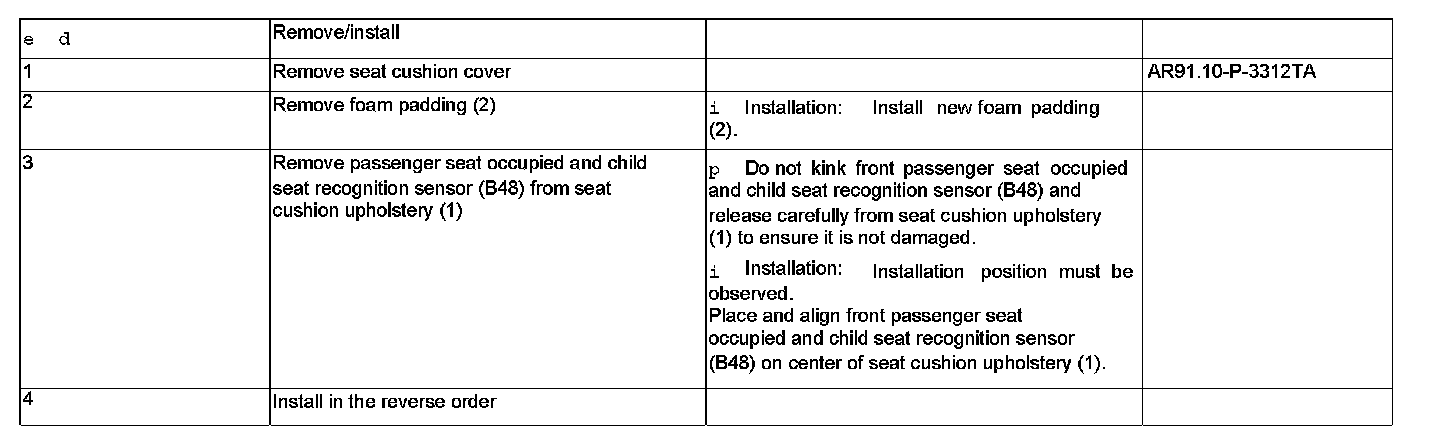

Step 1 - 4:
