Auxiliary Heater Element: Service and Repair

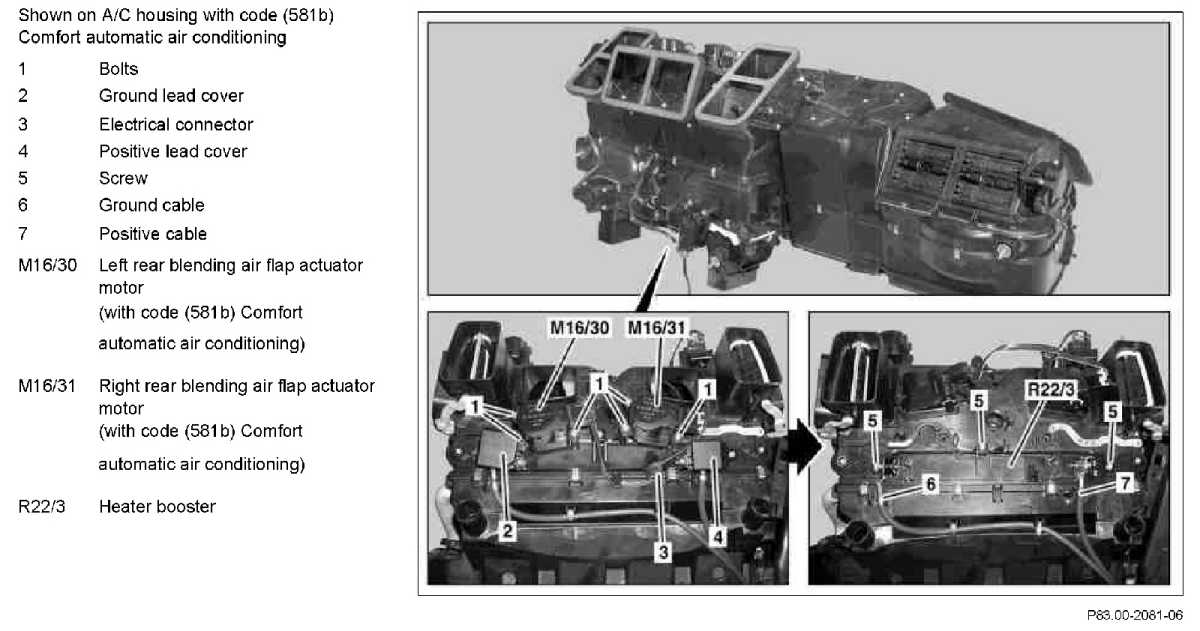

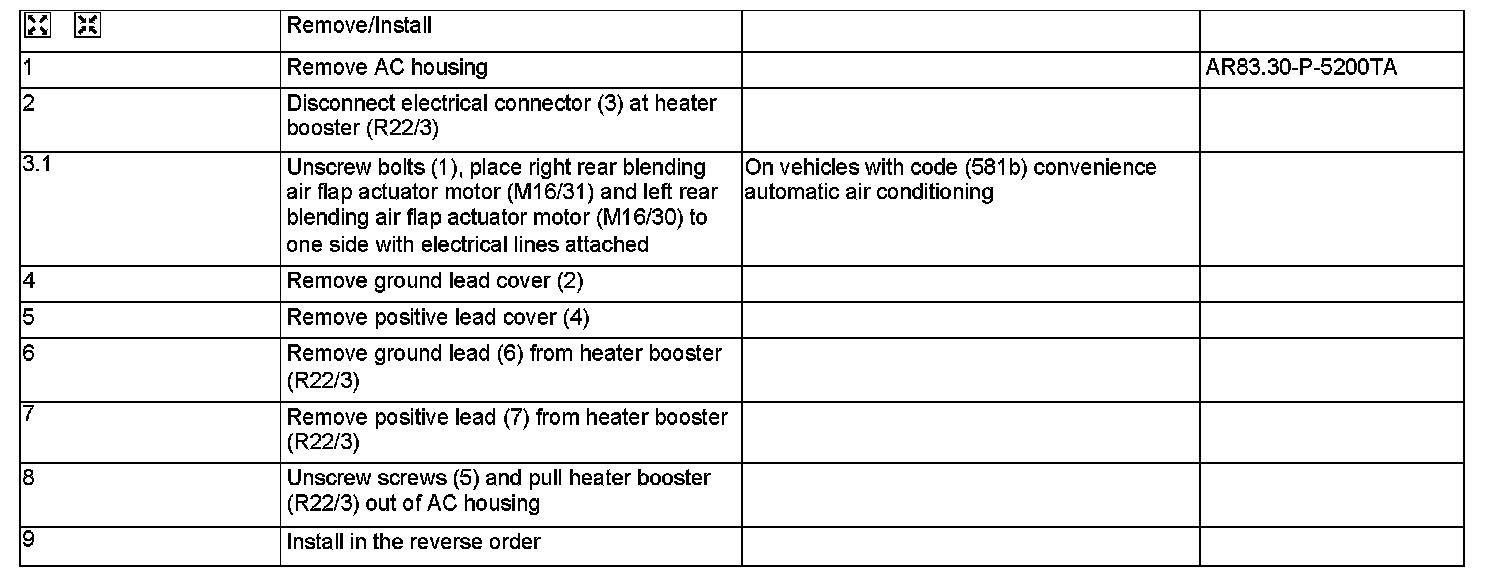

AR83.70-P-8000T Remove/Install PTC Heater Booster
- with heater booster
