Engine Oil: Adjustments

AR18.00-P-3035-01CC Check Oil Level











120 589 07 21 00
Measuring rod





1 Position vehicle with warm engine on an even surface.
2 Switch off engine and keep a waiting time of approx.
5 minutes.
3 Unplug plug (1) of oil dipstick guide tube (2).
4 Insert dipstick (3) into oil dipstick guide tube (2) until the tip appears in the engine oil pan.

Wait for at least 3 seconds.

The collar of the dipstick grip end sits close at the oil dipstick guide tube (2).

Do not kink the dipstick (3). According to the shape of the oil dipstick guide tube (2), the dipstick (3) must be pressed and guided.

Illustrated in model 203 with engine 112

5 Read off engine oil level at dipstick (3).

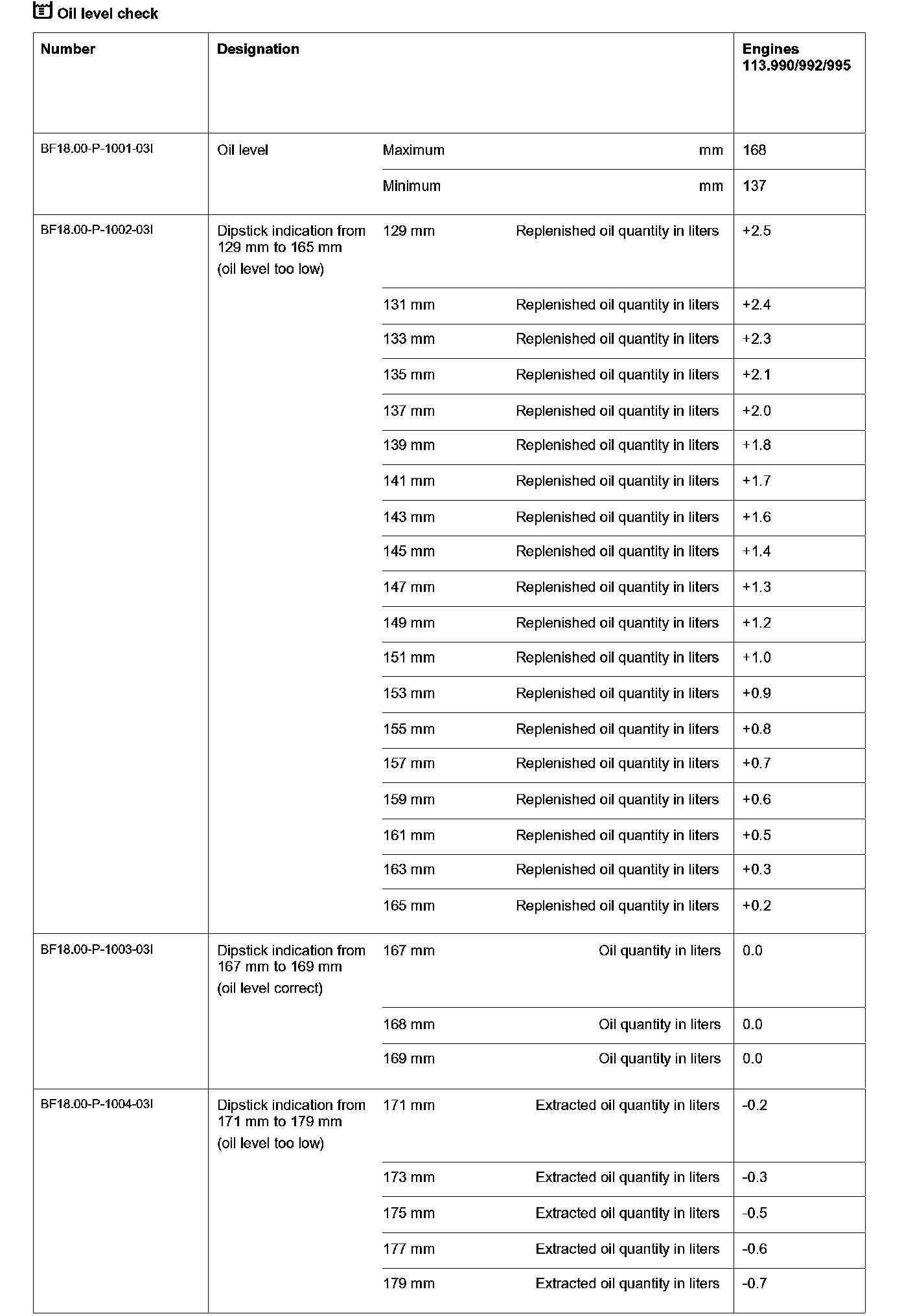

6 Determine replenished oil quantity using oil level table.
7 Adjust engine oil level correctly, if required.
8 Place plug (1) onto oil dipstick guide tube (2).
