AR05.30-P-3831-03VT Inspection and Machining Dimensions of Valve Seat Rings

AR05.30-P-3831-03VT Inspection and machining dimensions of valve seat rings

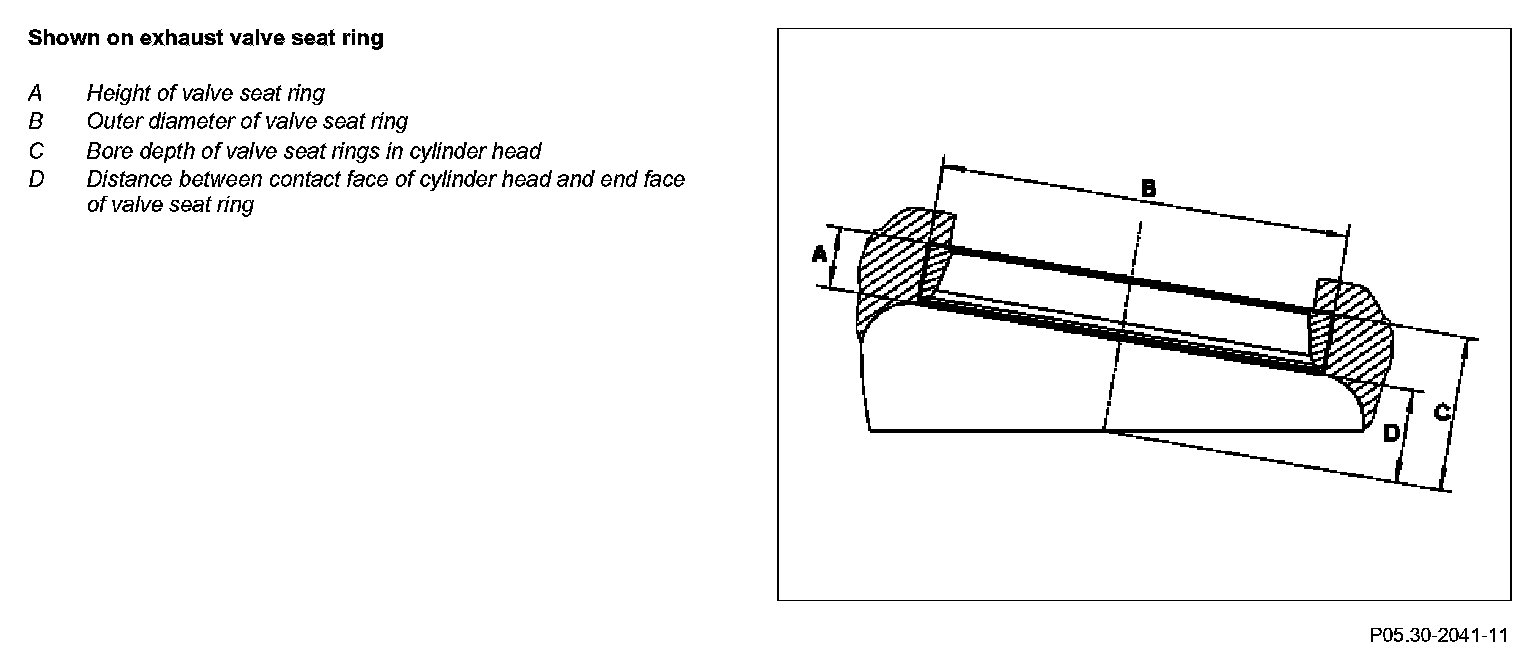

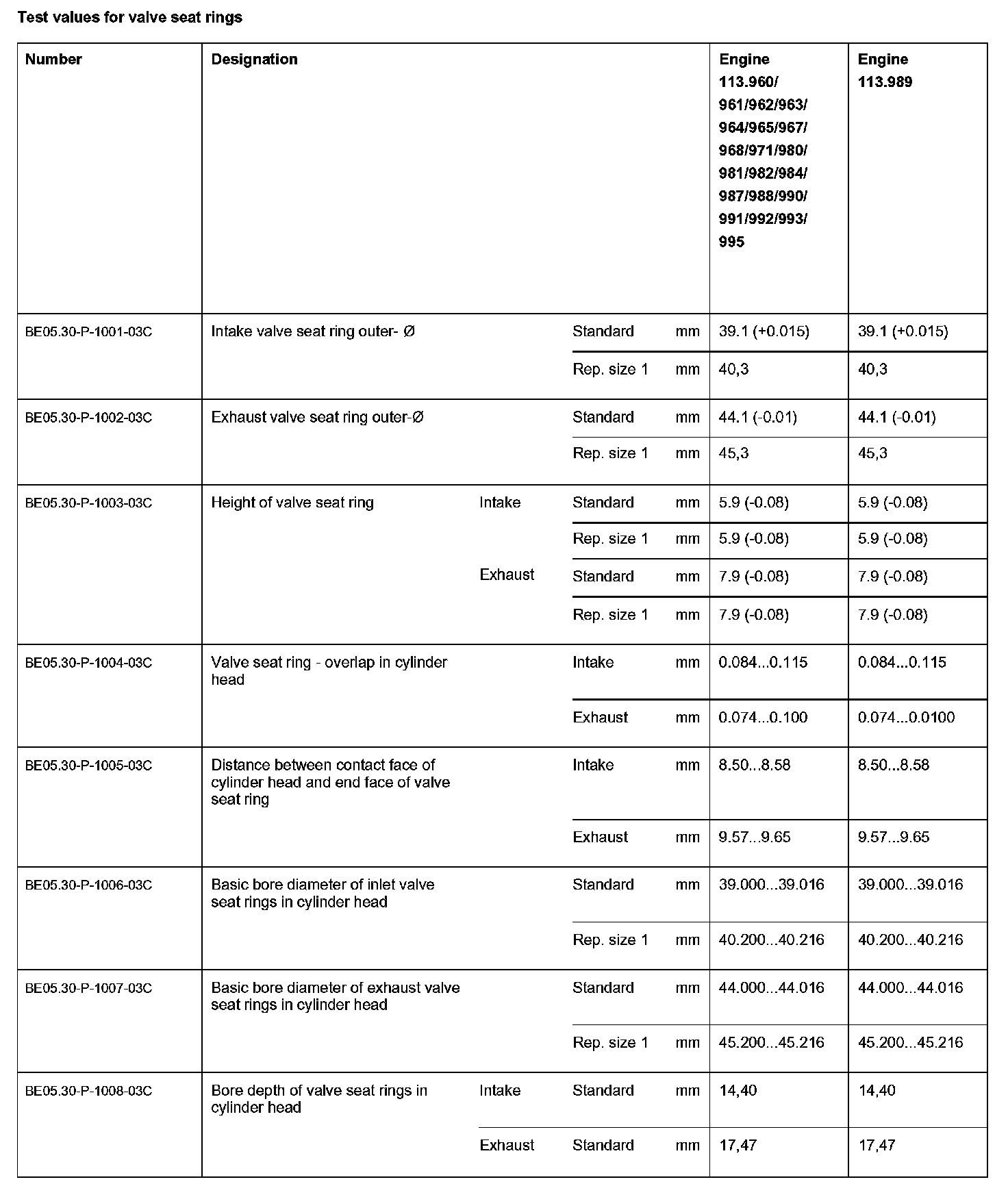

Test values for valve seat rings:

Component Identification:

Component Identification:

Component Identification:

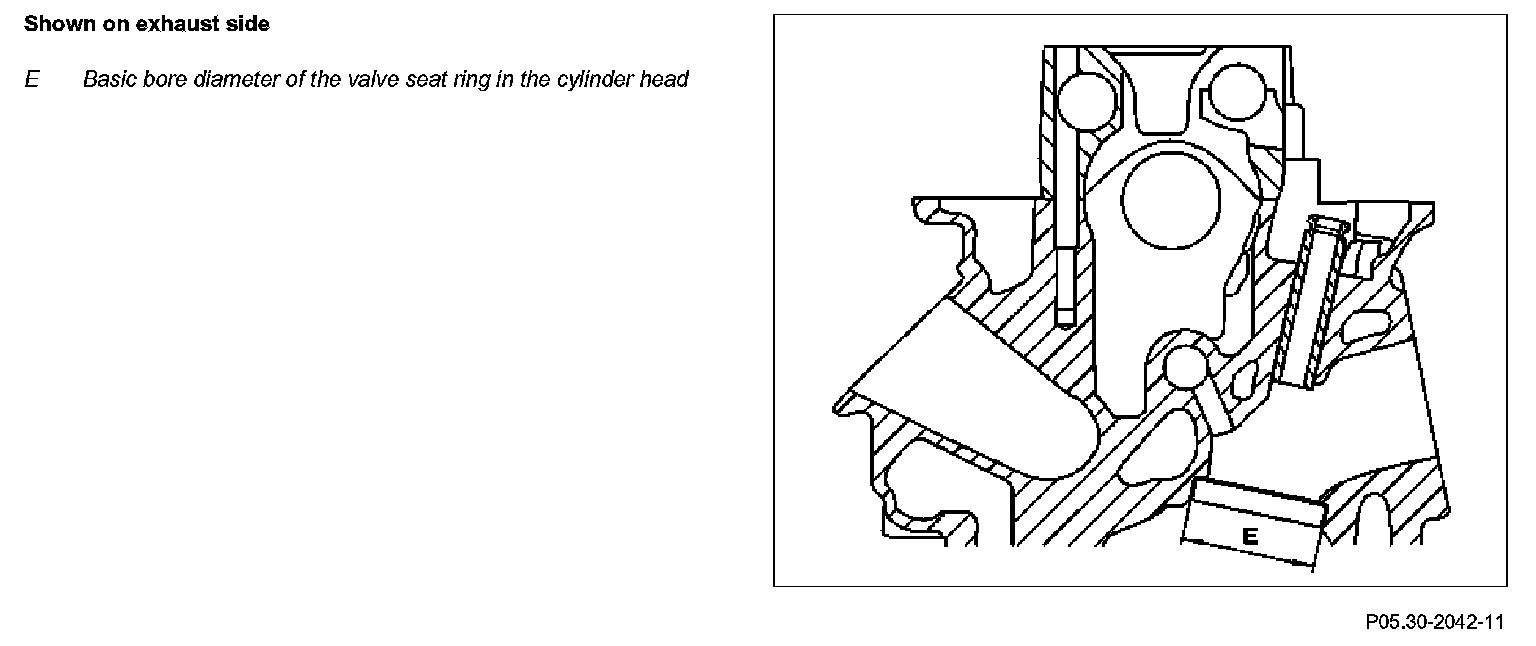

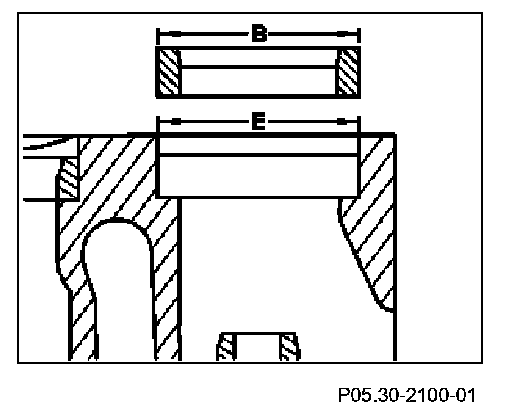

The overlap of the valve seat ring in the cylinder head is determined as follows: outside diameter of the valve seat ring (B) minus the basic bore diameter of the valve seat ring in the cylinder head (E).
