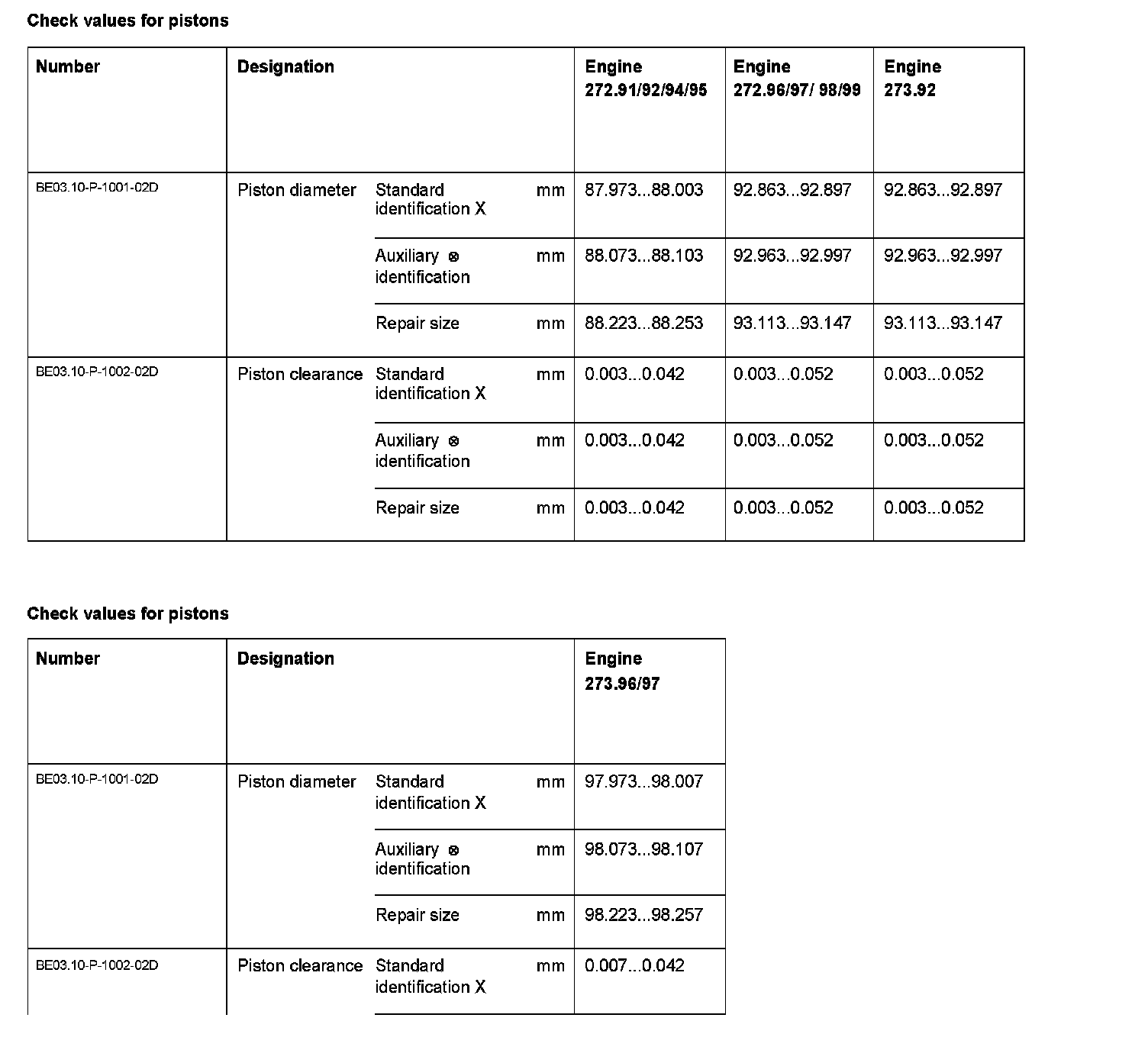

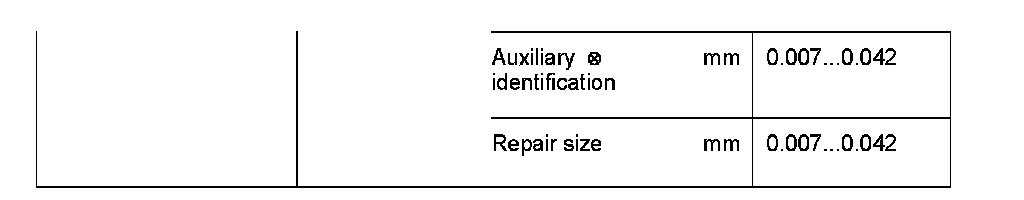

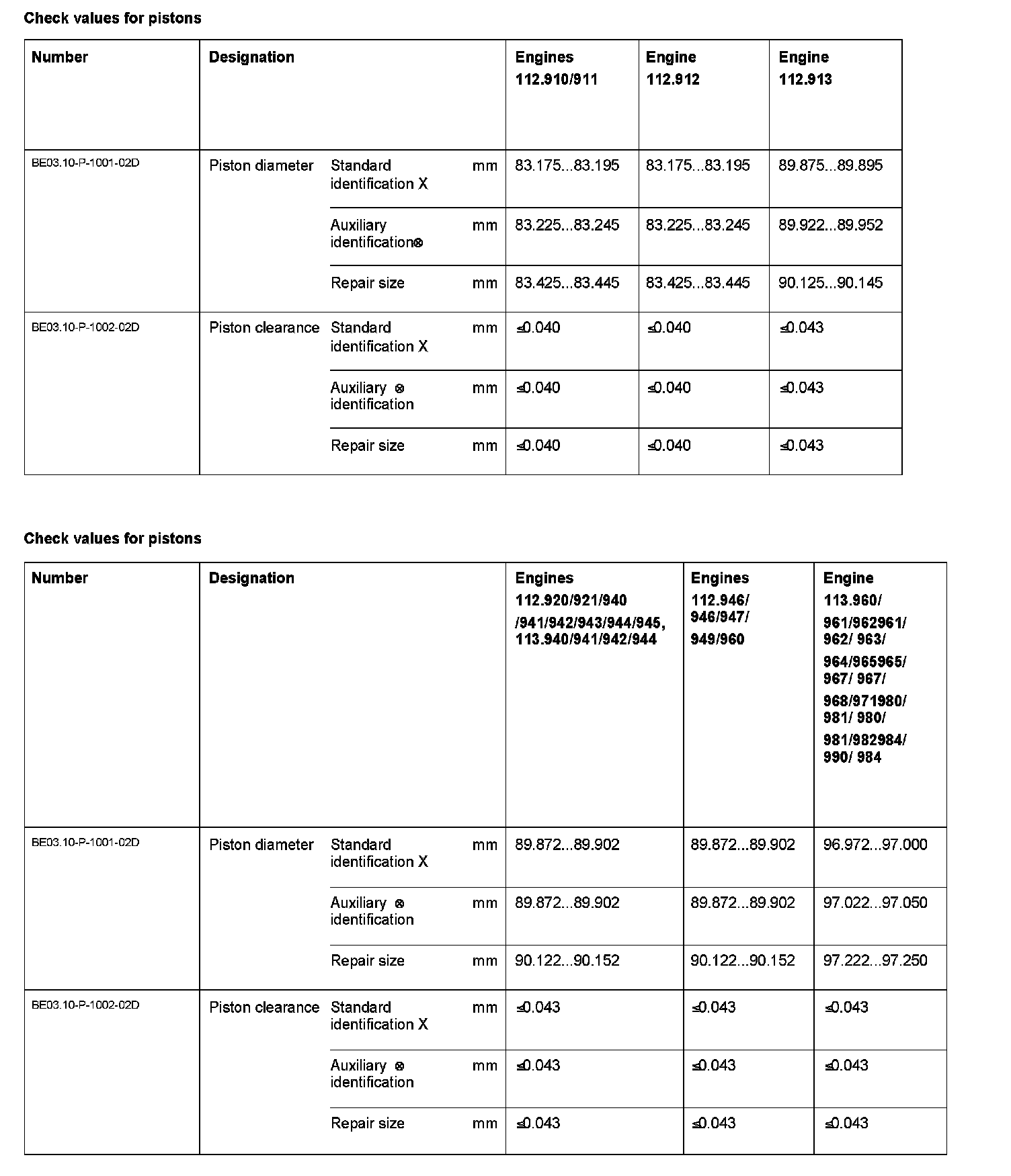

BE03.10-P-1000-02D Check Values For Pistons
BE03.10-P-1000-02D Check Values For Pistons
BE03.10-P-1000-02D Check Values For Pistons
ENGINES 112, 113, 155, 272, 273
