Splash Guard: Service and Repair



AR61.20-P-1105T Detach/Attach Lower Engine Compartment Paneling
- with gasoline engine

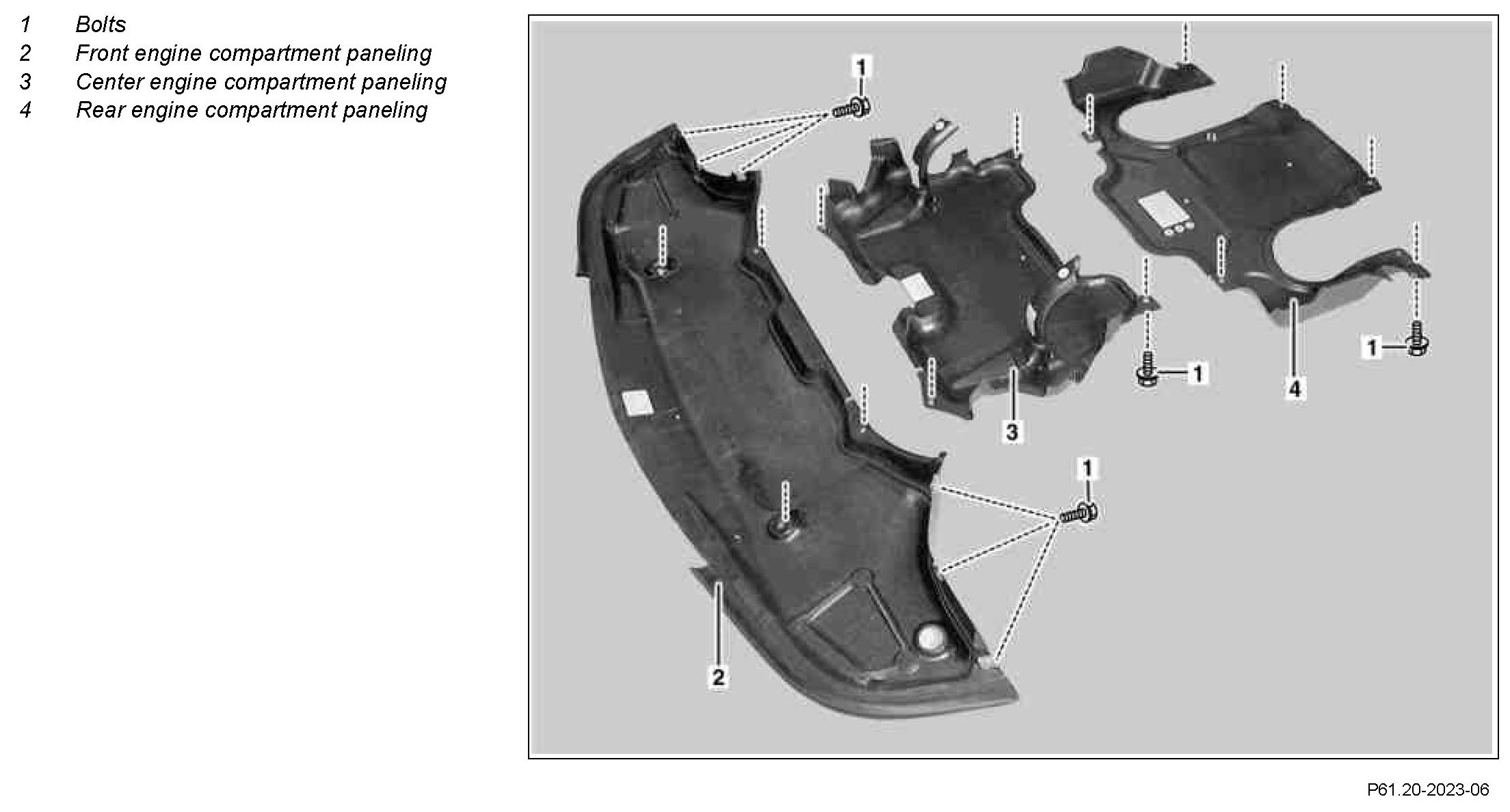

Component Identification:

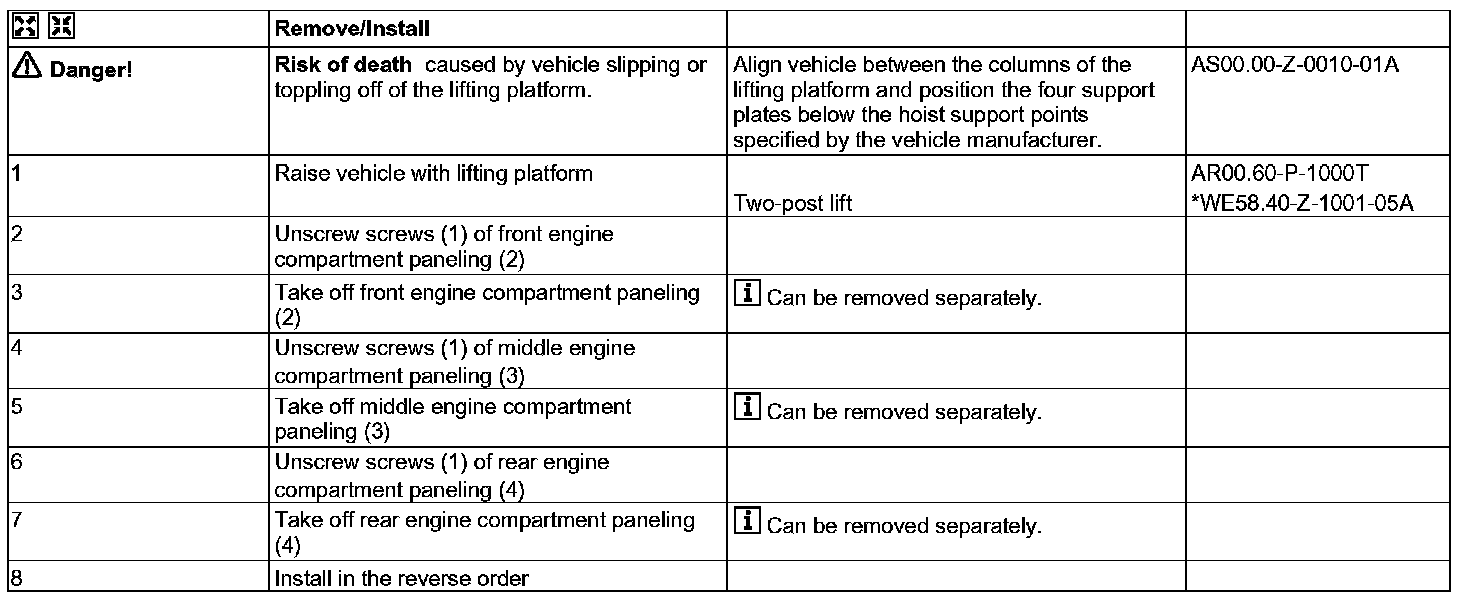

Steps 1 - 8:





Workshop Equipment:
