Home >> Mercedes Benz >> 2005 >> E 500 (211.070) V8-5.0L (113.967) >> Repair and Diagnosis >> Body and Frame >> Frame >> Subframe >> Front Subframe >> Service and Repair >> Removal and Replacement >> AR33.10-P-0101T Lower Front Axle

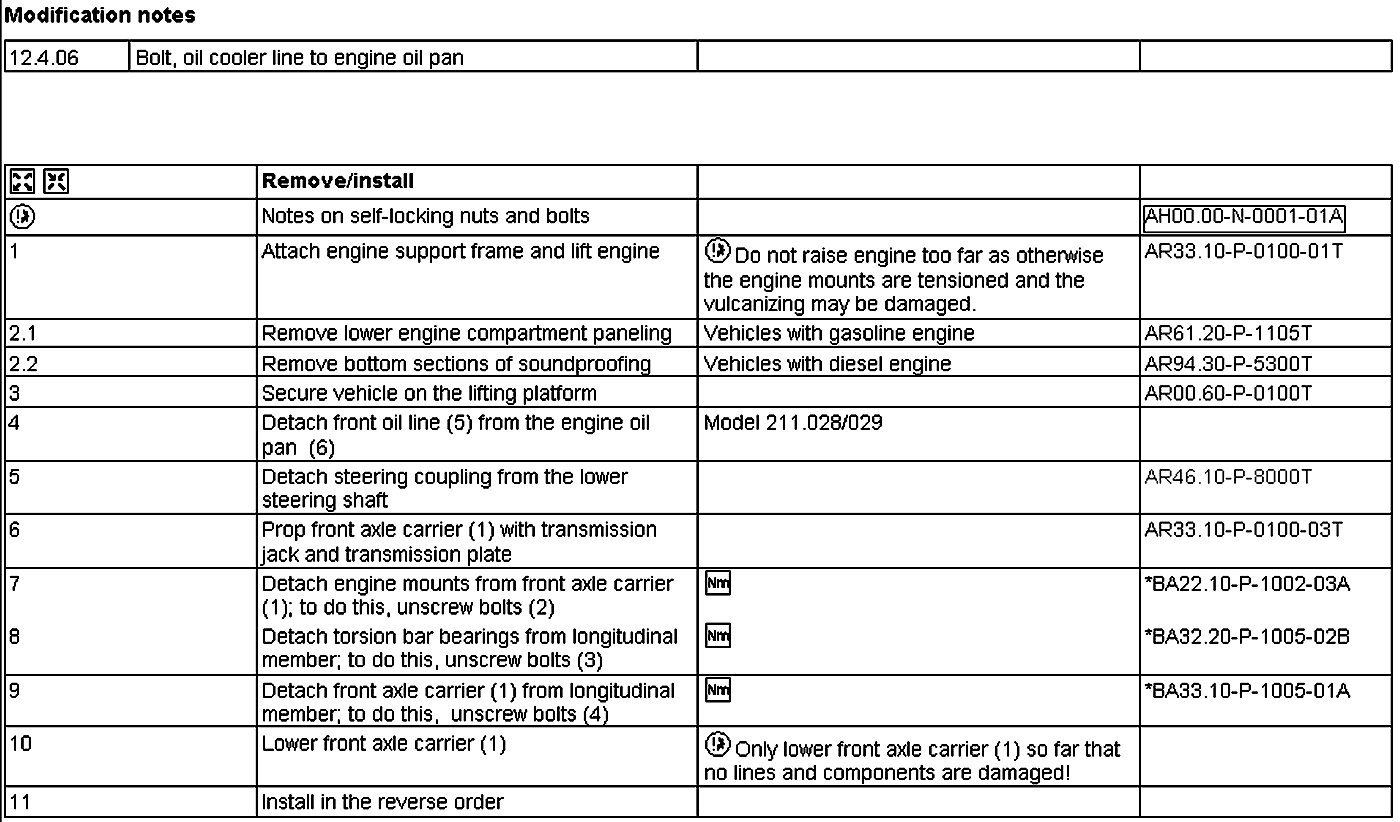

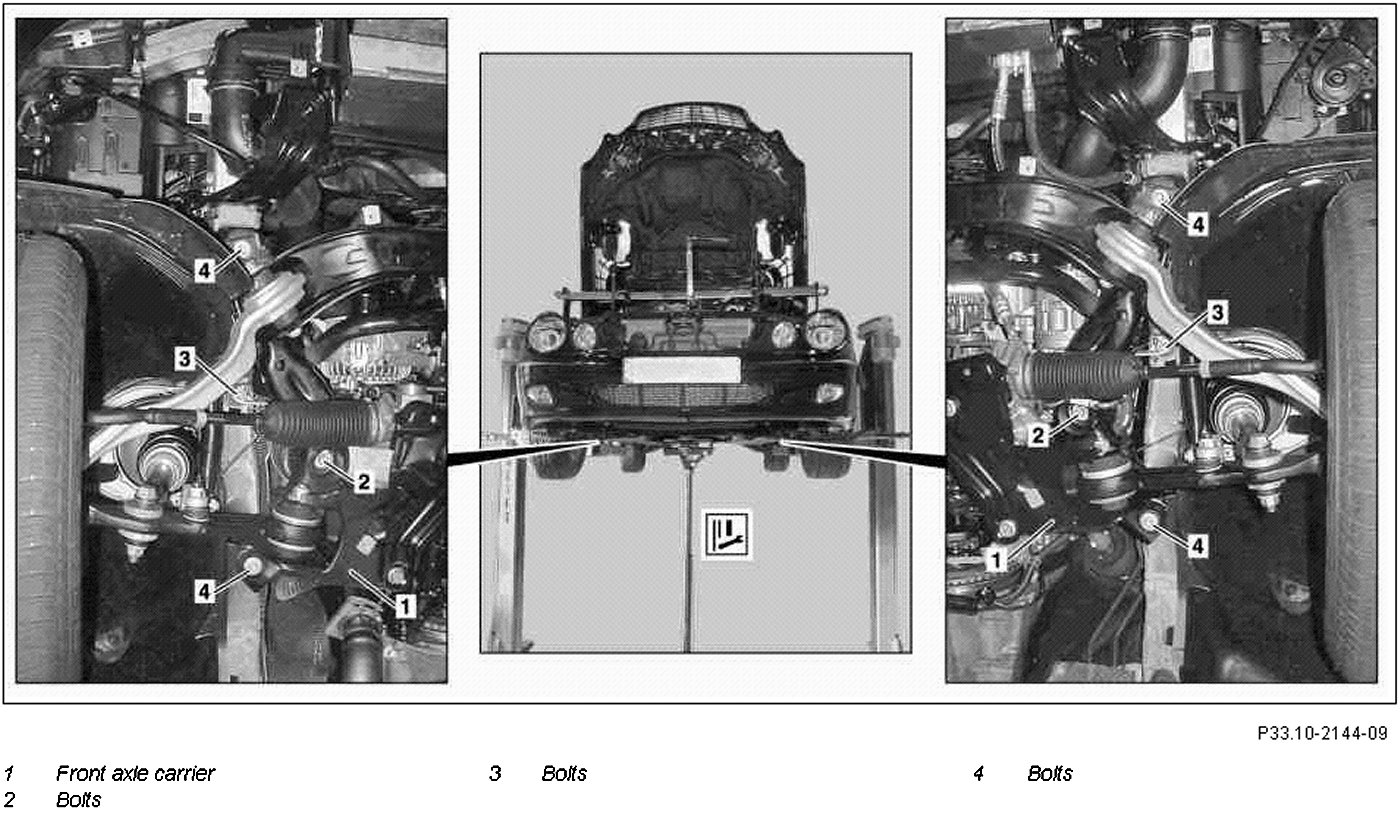

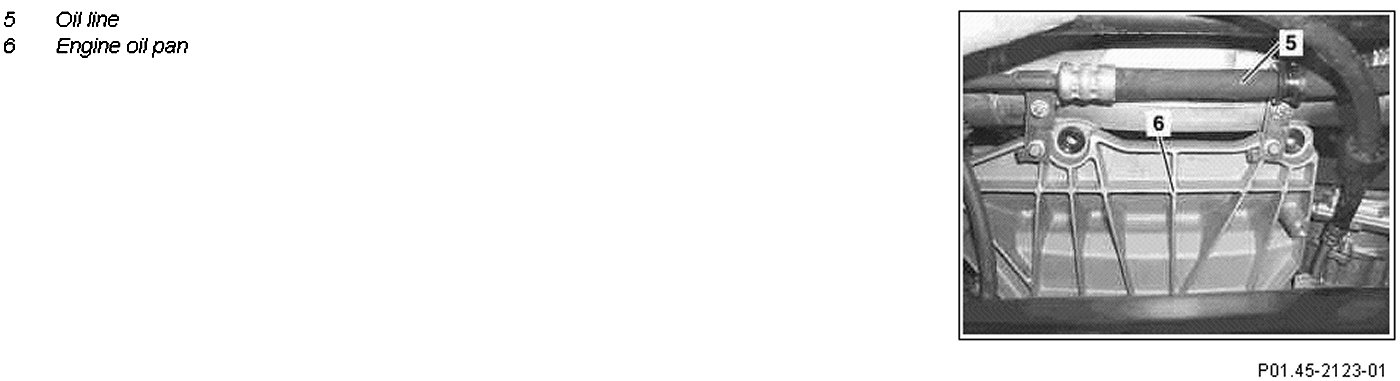

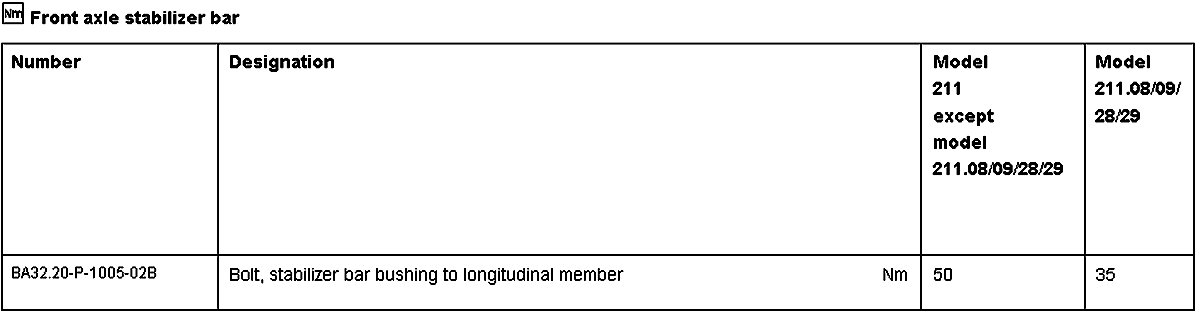

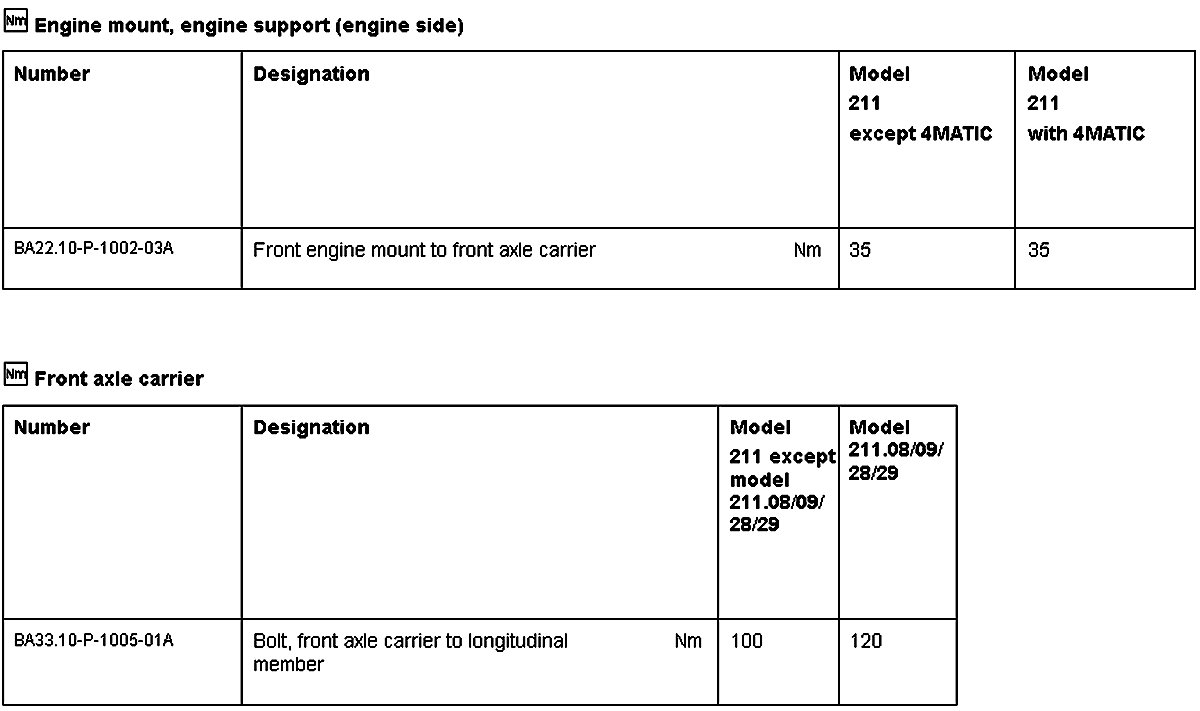

AR33.10-P-0101T Lower Front Axle

AR33.10-P-0101T Lower Front Axle
