Accessories - Trunk Lid Valet Lock Retrofitting
Date: April 2006Order No.: P-I-88.50/45
Supersedes:
Group: 88
SUBJECT:
MODEL 211.065/070/076/082/083
MODEL YEAR 2005-2006
TRUNK LID VALET LOCK RETROFIT
WARNING
Do not disconnect the negative battery cable. Extensive reprogramming requirements are otherwise necessary. Wiring harnesses are therefore electrically active.
Severe vehicle damage, personal injury, or death from electrical shock could result. Exercise extreme caution while executing these installation instructions. Keep the ignition and radio powered OFF through the final test.
Note:
Retrofitting the trunk lid valet lock is a customer pay matter. Do not submit a warranty claim for retrofitting the trunk lid valet lock.
NOTICE!
Incorrect installation of connectors can result in damaged, bent pins. Damaged, bent pins will result in component malfunction or failure. Inspect connectors before and after installation.
A. Preparing for the Installation
1. Read these installation instructions in their entirety before proceeding.
2. Unpack and compare the installation parts against the Parts Information list in Section E.
3. Open the trunk.
4. Remove the trunk lid paneling on the trunk lid interior.
^ See WIS document AR68.30-P-8150T, Remove/install trunk lid trim"
5. Remove the paneling on the trunk lid exterior.
^ See WIS document AR88.50-P-5080TA, Remove/install outer paneling on trunk lid"
6. Remove the trunk lid lock.
^ See WIS document AR88.50-P-5060T, Remove/install trunk lid handle with lock cylinder"
7. Remove the trunk interior paneling on the left side.
^ See WIS document AR68.30-P-4800T, Remove/install side paneling in trunk"
8. Remove the paneling from the left side hinge bracket for the trunk lid.
^ See WIS document AR88.50-P-5120T, Remove/install hinge lever for trunk lid"
B. Retrofitting the Valet Lock for the Trunk Lid

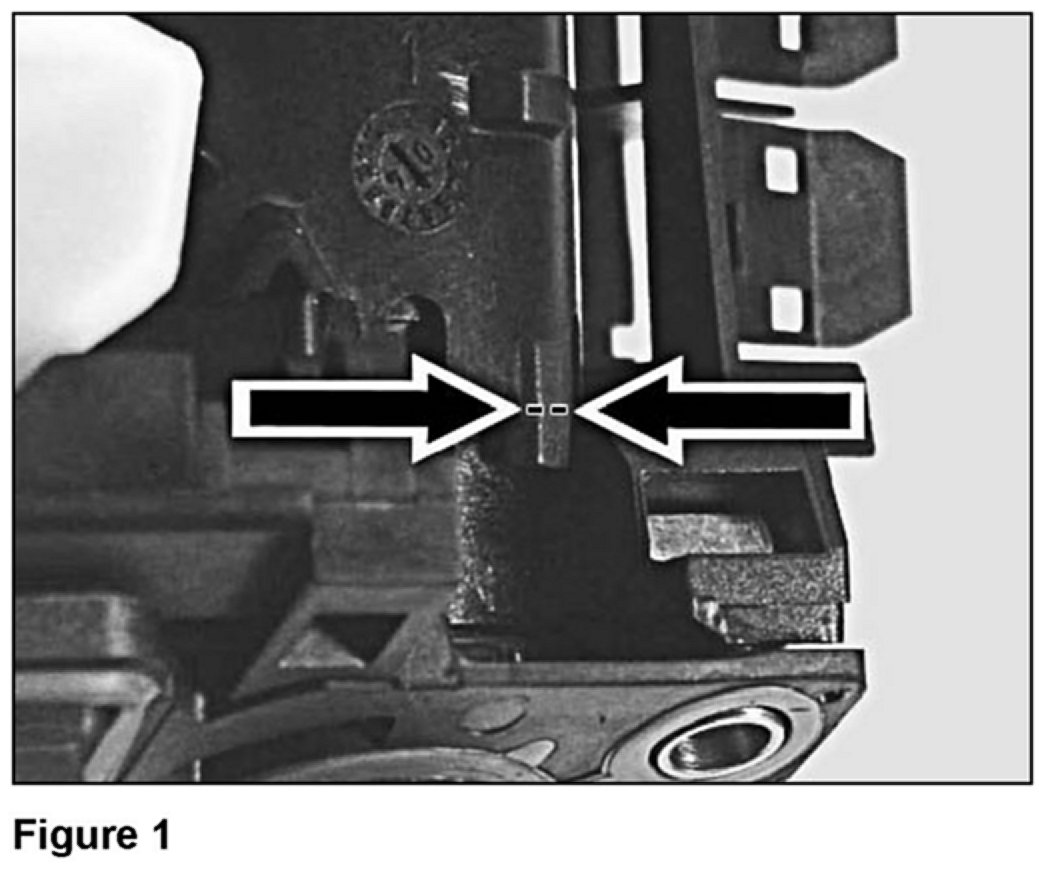

1. Remove the tab (A, Figure 1) from the housing above the trunk lid lock tumbler:
a. Score the tab several times along its base (Figure 1).
b. Use side cutters to finish cutting through and removing the tab from the housing.
NOTICE!
Excessive force will crack or break plastic.
Applying excessive force while removing the tab can crack or break the plastic housing.
Do not use excessive force when removing the tab from the housing.

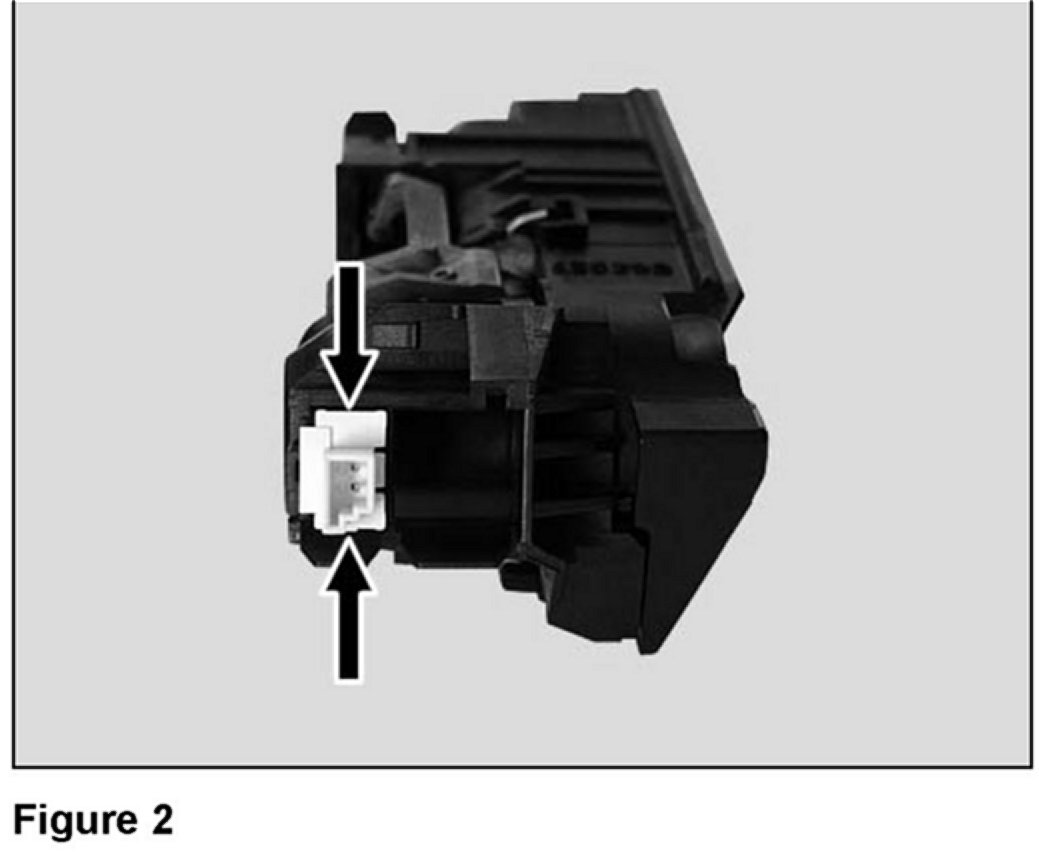

2. Insert the included microswitch (Figure 2) for the trunk lid lock into the cavity in the left side of the housing.
3. Cut off a 1,900 mm length of brown wire.
4. Strip off 1/4 inch insulation from the ends of the brown wire.

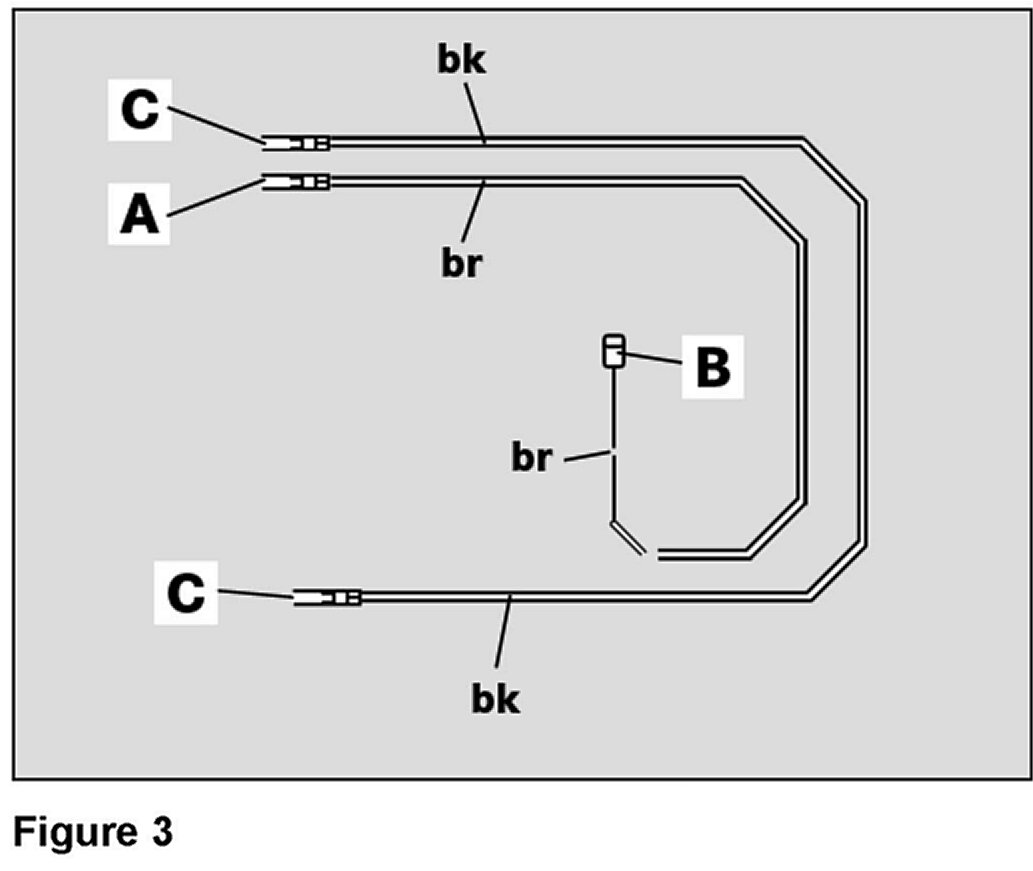

5. Crimp one of the three included pins (A, Figure 3) onto one of the stripped-off ends of the brown wire.
6. Crimp the ground connector (B, Figure 3) onto the other stripped-off end of the brown wire.
7. Cut off a 2,200 mm length of black wire.
8. Strip off 1/4 inch insulation from the ends of the black wire.
9. Crimp the remaining two included pins onto the stripped-off ends of the black wire (C, Figure 3).

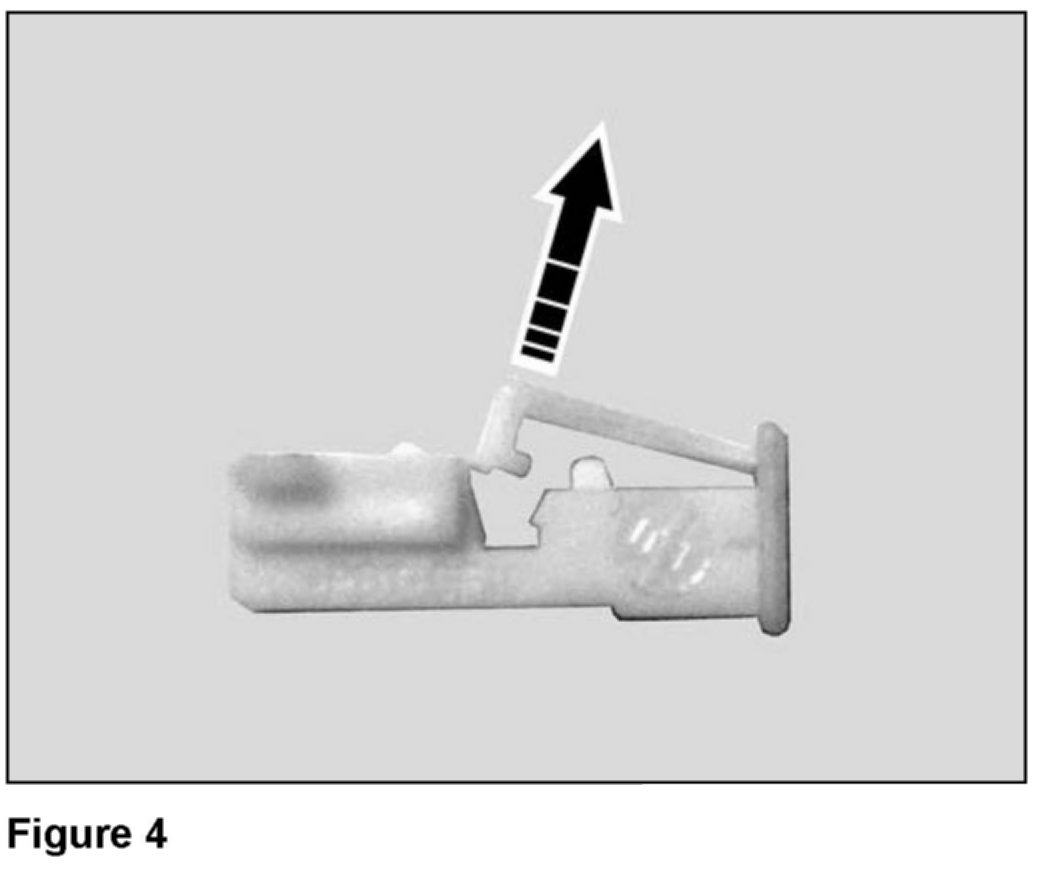

10. Unlock the crimp lock (Figure 4) of the included connector for the trunk lock microswitch.

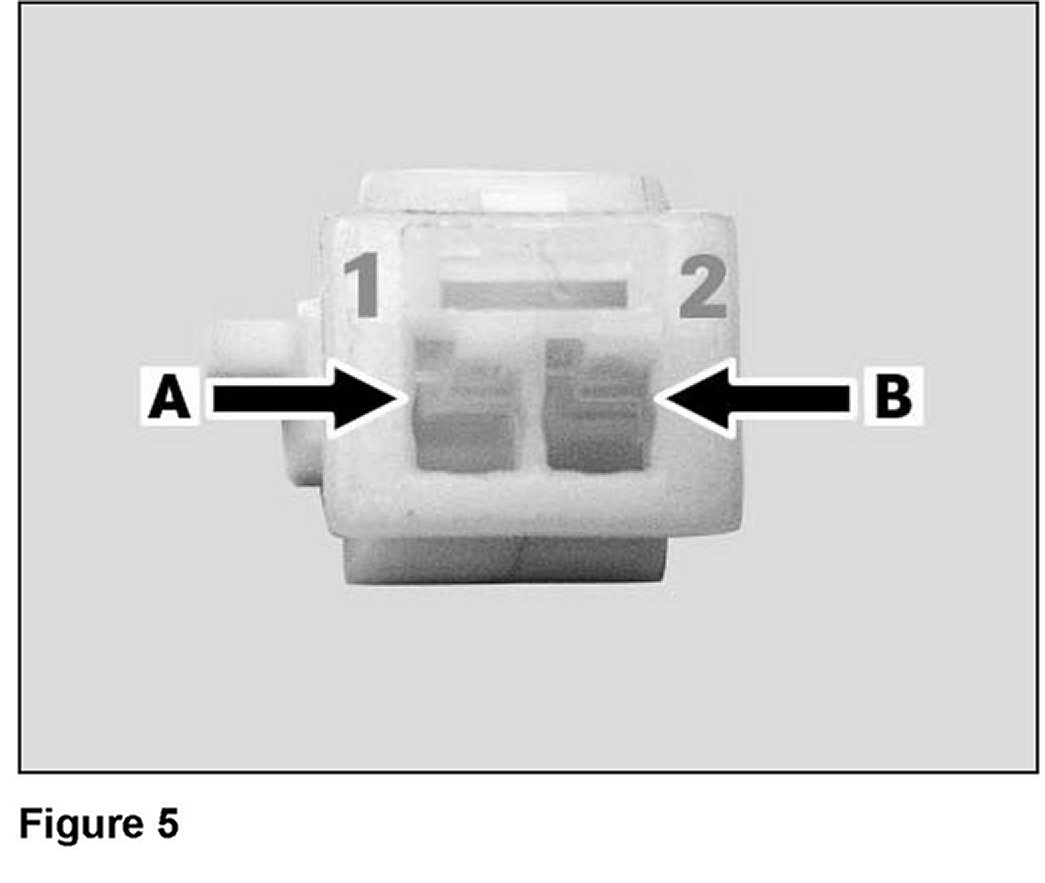

11. Insert the pin (A, Figure 3) of the brown wire into pin "1" (A, Figure 5) of the included connector for the trunk lock microswitch.
12. Insert a pin (C, Figure 3) of the black wire into pin "2" (B, Figure 5) of the included connector for the trunk lock microswitch.
13. Lock the connector crimp lock.

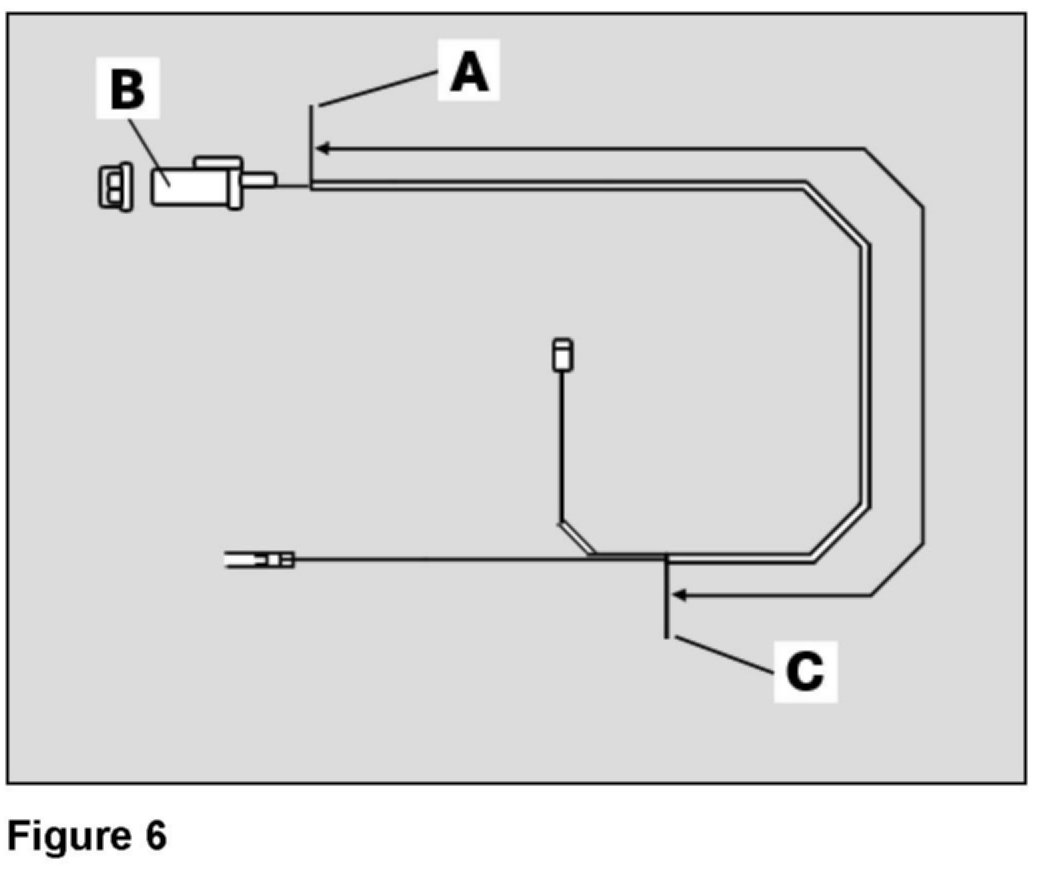

14. Wrap the brown wire and black wire together with the included electrical tape starting 30 mm (A, Figure 6) from the connector (B, Figure 6) for the trunk lid microswitch and back 1,600 mm (C, Figure 6).

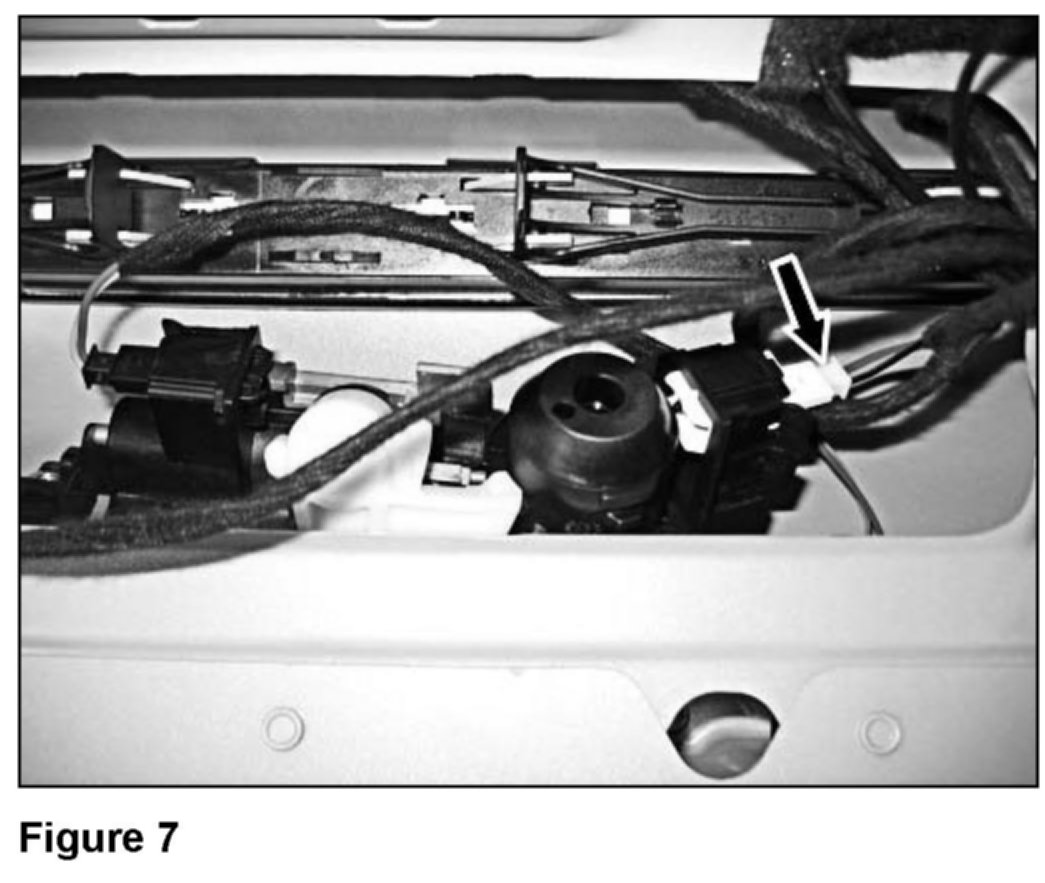

15. Connect the new wiring harness (B, Figure 6) to the microswitch (Figure 2) in the housing for the trunk lid lock (Figure 7).
16. Reinstall the trunk lid lock.
^ See WIS document AR88.50-P-5060T, Remove/install trunk lid handle with lock cylinder"

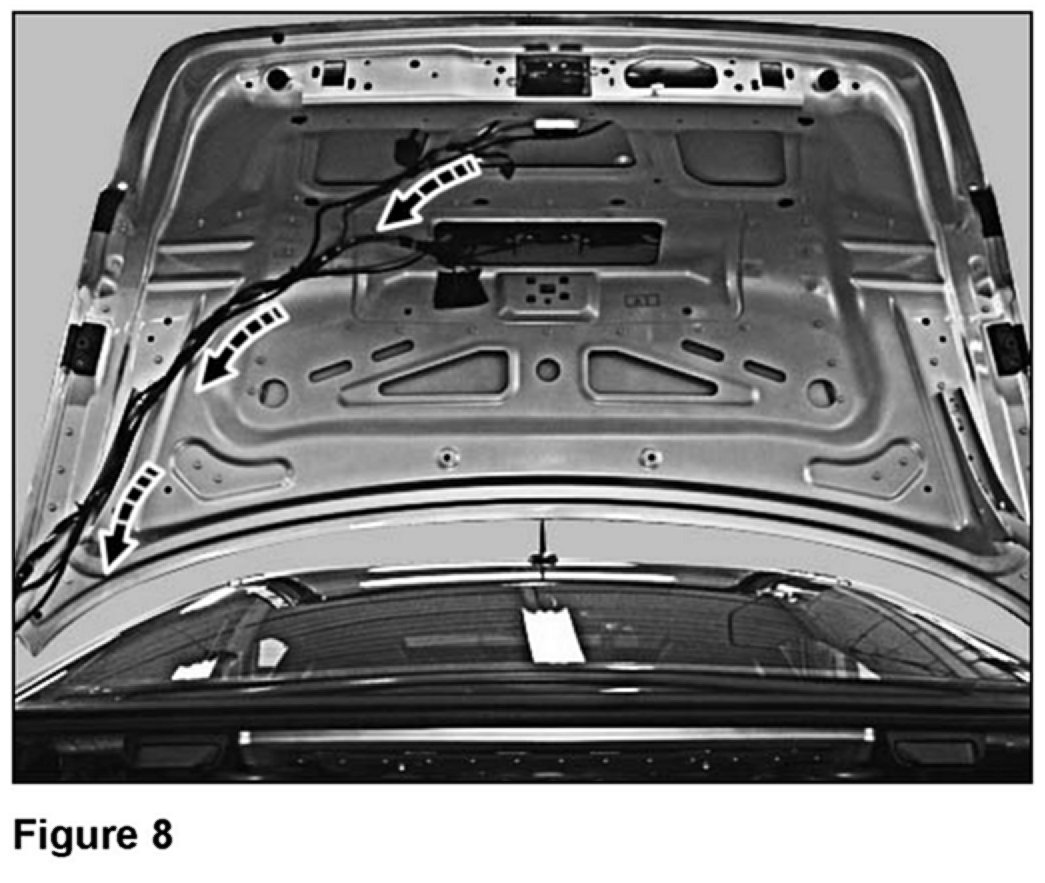

17. Route, and secure with wire ties, the new wiring harness (Figure 8) along the existing wiring harness running down the left side of the trunk lid.

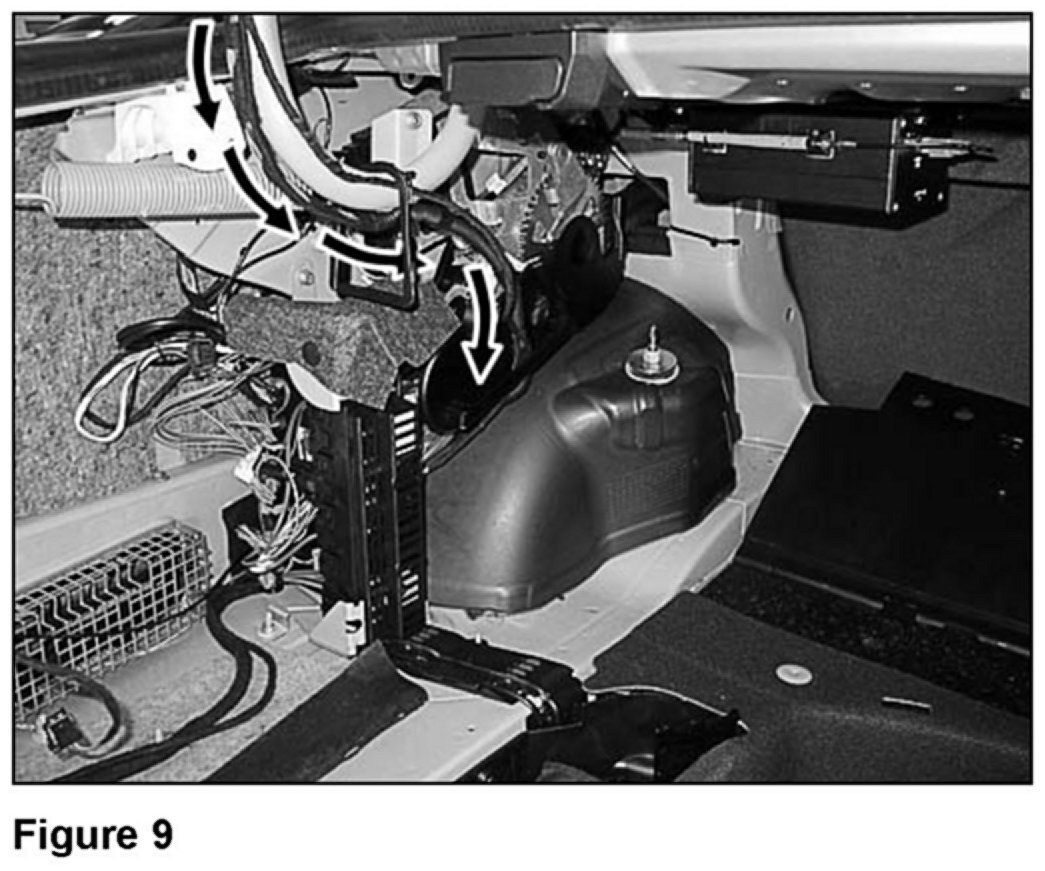

18. Continue routing, and securing with wire ties, the new wiring harness along the existing wiring harness running down the left hinge bracket for the trunk lid (Figure 9).

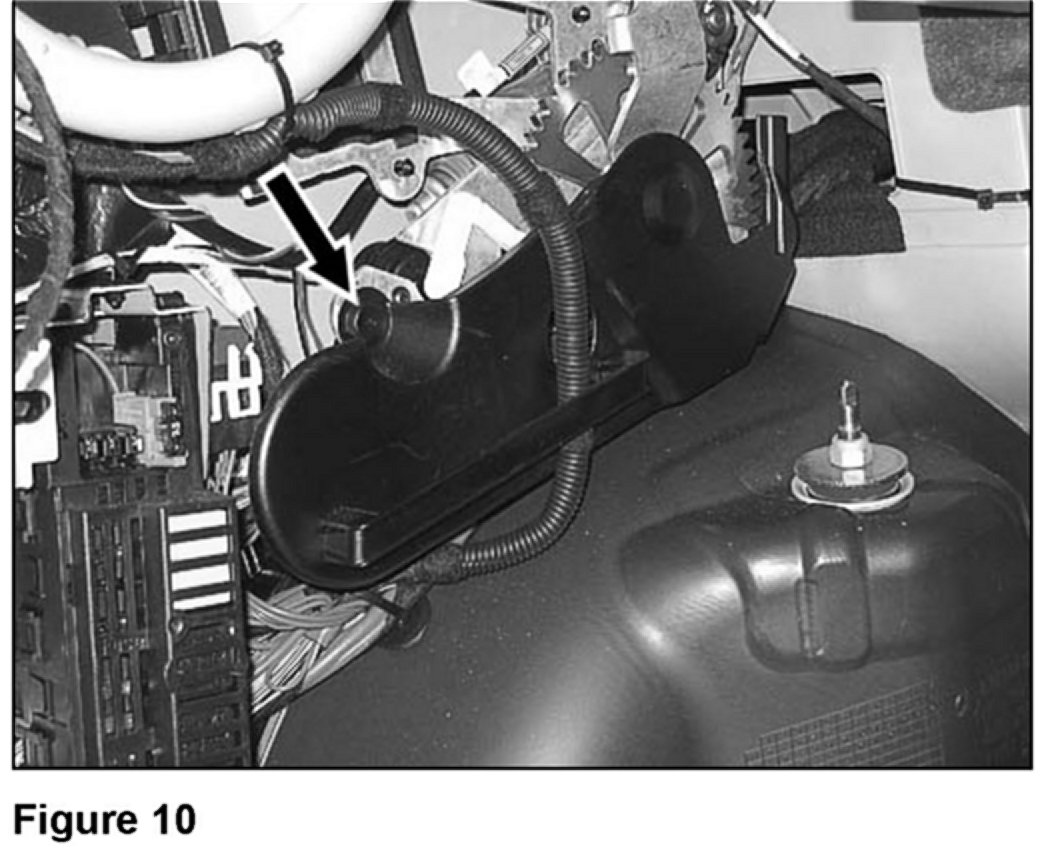

19. If the vehicle is electric trunk closer (Code 881) equipped, remove the plastic cover rear of the rear SAM control unit with fuse and relay module by removing the expansion rivet (Figure 10).

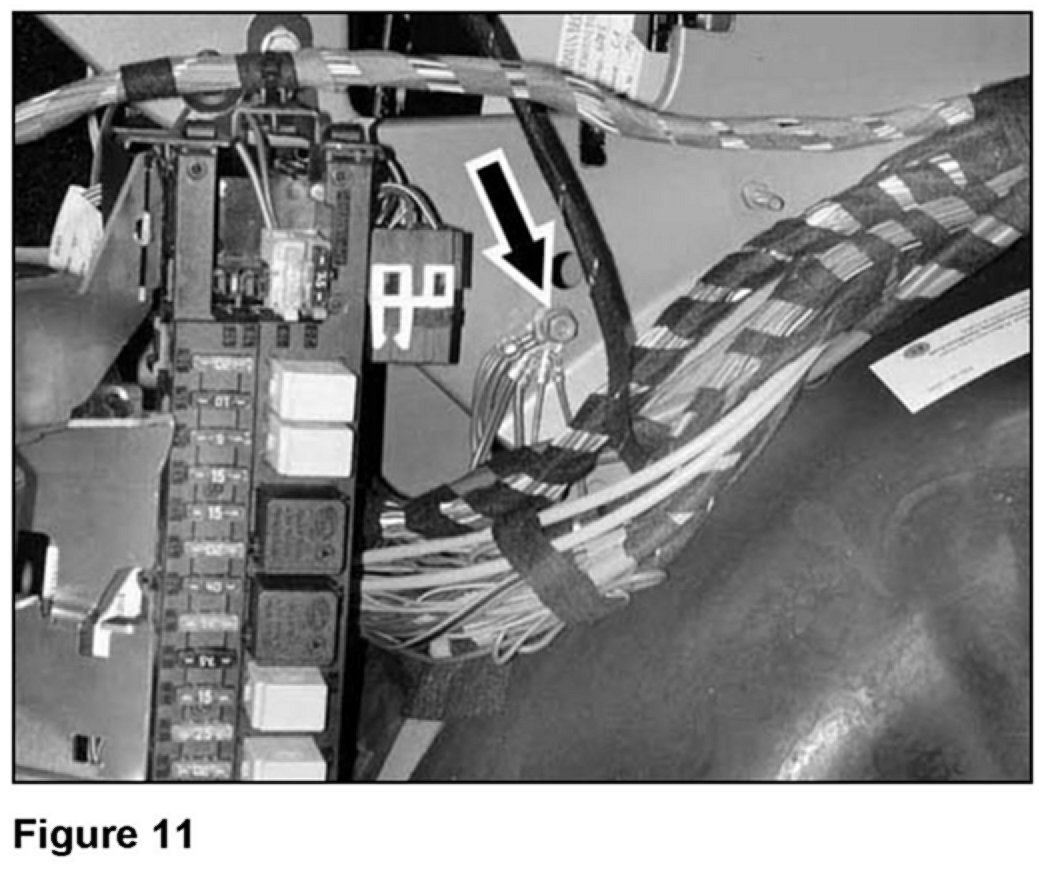

20. Connect the brown ground wire (B, Figure 3) of the new wiring harness to ground-point "W6" (Figure 11) exposed by the plastic cover removed in step 19.

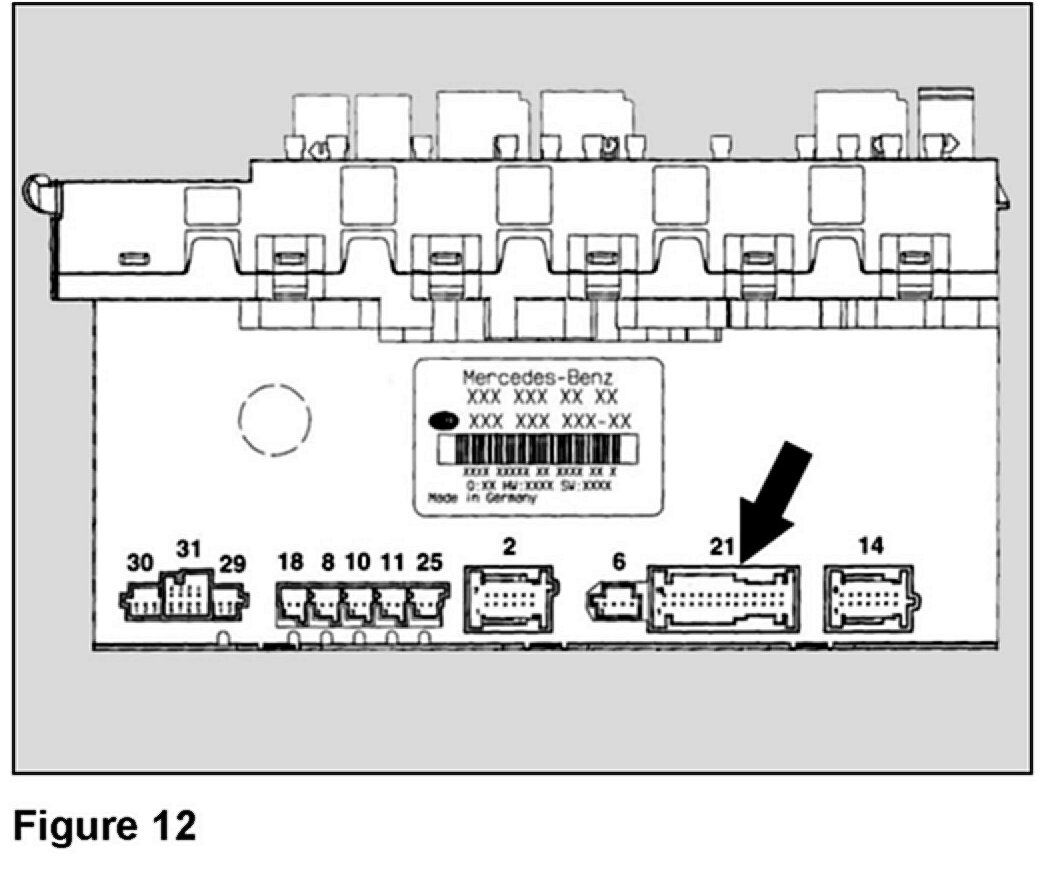

21. Remove connector "21" (Figure 12) from the rear SAM control unit with fuse and relay module.
22. Remove the housing from connector 21.

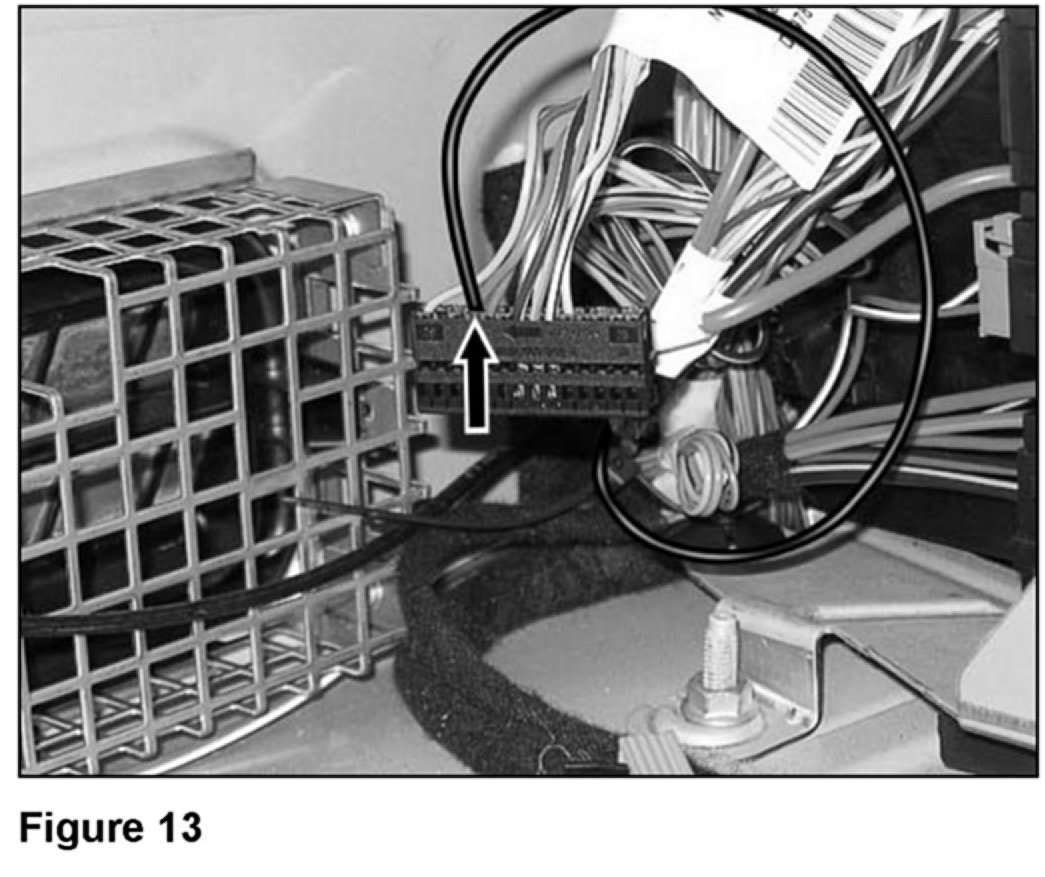

23. Connect the black wire (C, Figure 3) of the new wiring harness to pin "4" of connector 21 (Figure 13).
24. Reinstall the housing on connector 21.
25. Reconnect connector 21 to the rear SAM control unit with fuse and relay module.
C. Function Testing and Final Assembly
1. Verify proper trunk operation per the following checklist:

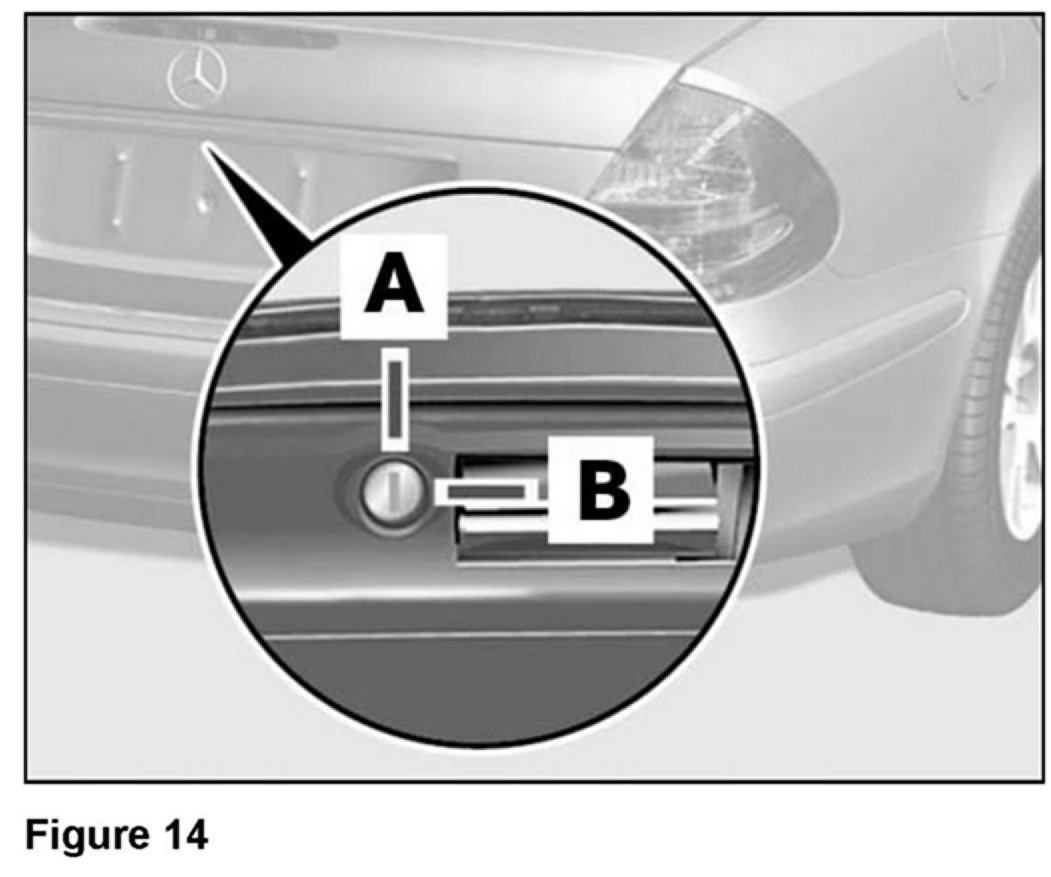

^ With the trunk lid lock tumbler in the locked position (A, Figure 14), verify the trunk will not open when:
> Actuating the switch on the driver's side door panel
> Pressing the trunk lid button on the license plate recess
> Pressing the trunk button on the SmartKey
^ With the trunk lid lock tumbler in the neutral position (B, Figure 14), verify the trunk will open when:
> Actuating the switch on the driver's side door panel
> Pressing the trunk lid button on the license plate recess
> Pressing the trunk button on the SmartKey
^ With the trunk locked or unlocked, verify the trunk will open when:
> Pressing the trunk lid emergency release switch
2. Check the DTC memory of all installed components and components in the trunk. Identify and investigate any present DTCs. Correct the source of the DTCs. Clear the DTC memory.
Note:
Powering up the newly installed system prior to version coding will set errors. Ignore these errors during the initial DTC check. If the DTCs return after clearing, a configuration error is present. Locate and correct the error.
3. Confirm no new DTCs are present in components in the trunk.
4. Reinstall the plastic cover (Figure 10) rear of the rear SAM control unit with fuse and relay module.
5. Reinstall the trunk interior paneling on the left side.
^ See WIS document AR68.30-P-4800T, Remove/install side paneling in trunk"
6. Reinstall the paneling on the trunk lid exterior.
^ See WIS document AR88.50-P-5080TA, Remove/install outer paneling on trunk lid"
7. Reinstall the trunk lid paneling on the trunk lid interior.
^ See WIS document AR68.30-P-8150T, Remove/install trunk lid trim"
8. Reinstall the paneling from the left side hinge bracket for the trunk lid.
^ See WIS document AR88.50-P-5120T, Remove/install hinge lever for trunk lid"

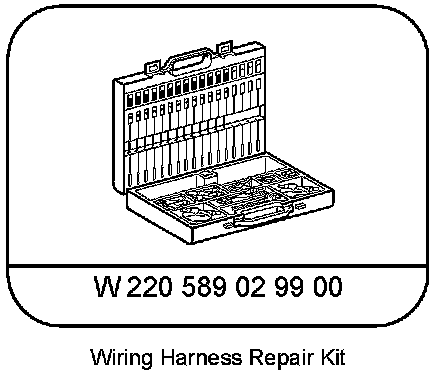

D. Special Tools

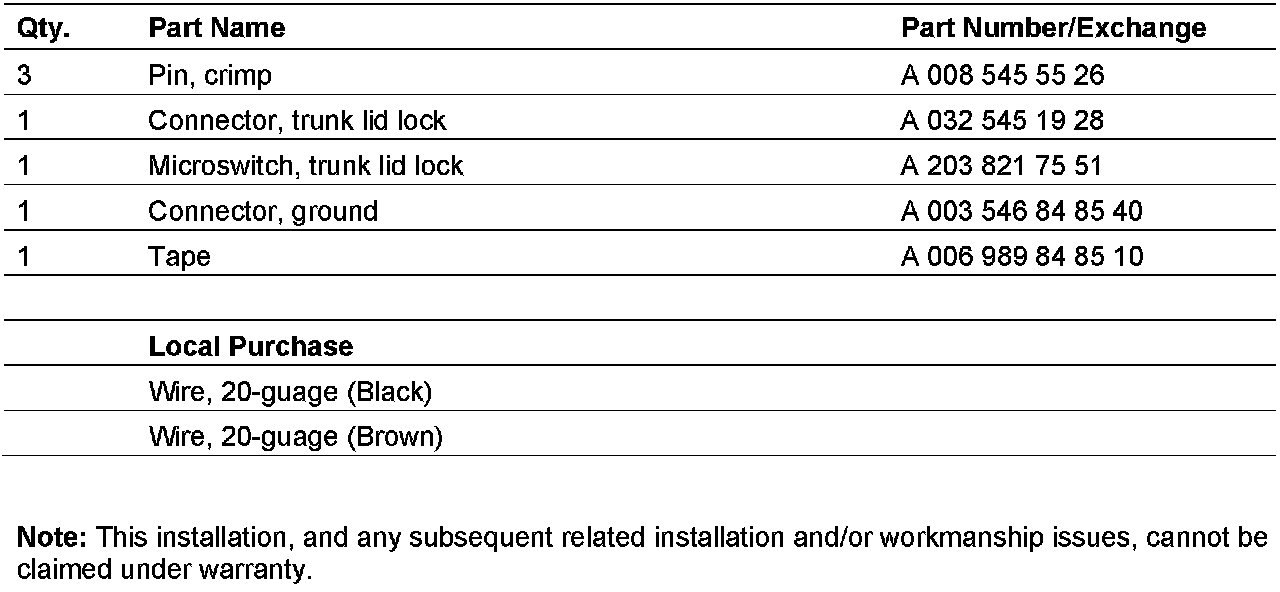

E. Parts Information
