AR72.10-P-0500TG Remove/Install Front Door



AR72.10-P-0500TG Remove/Install Front Door
- with CODE (Z04) Light armoring

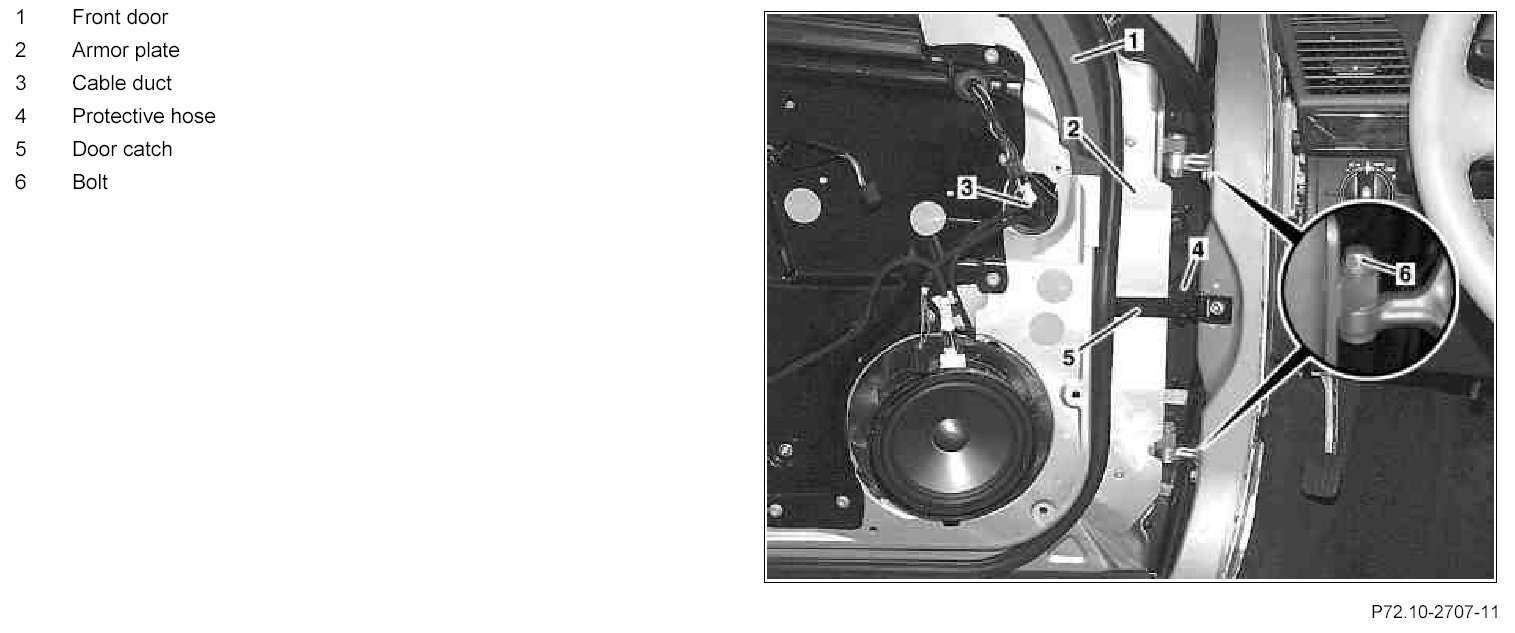

Component Identification:

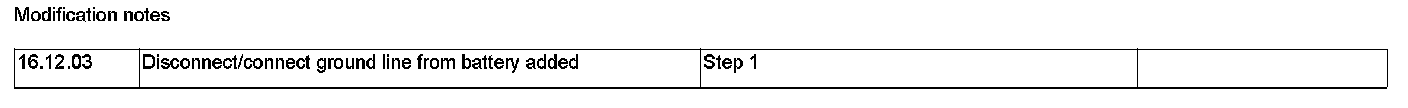

Modification Notes:

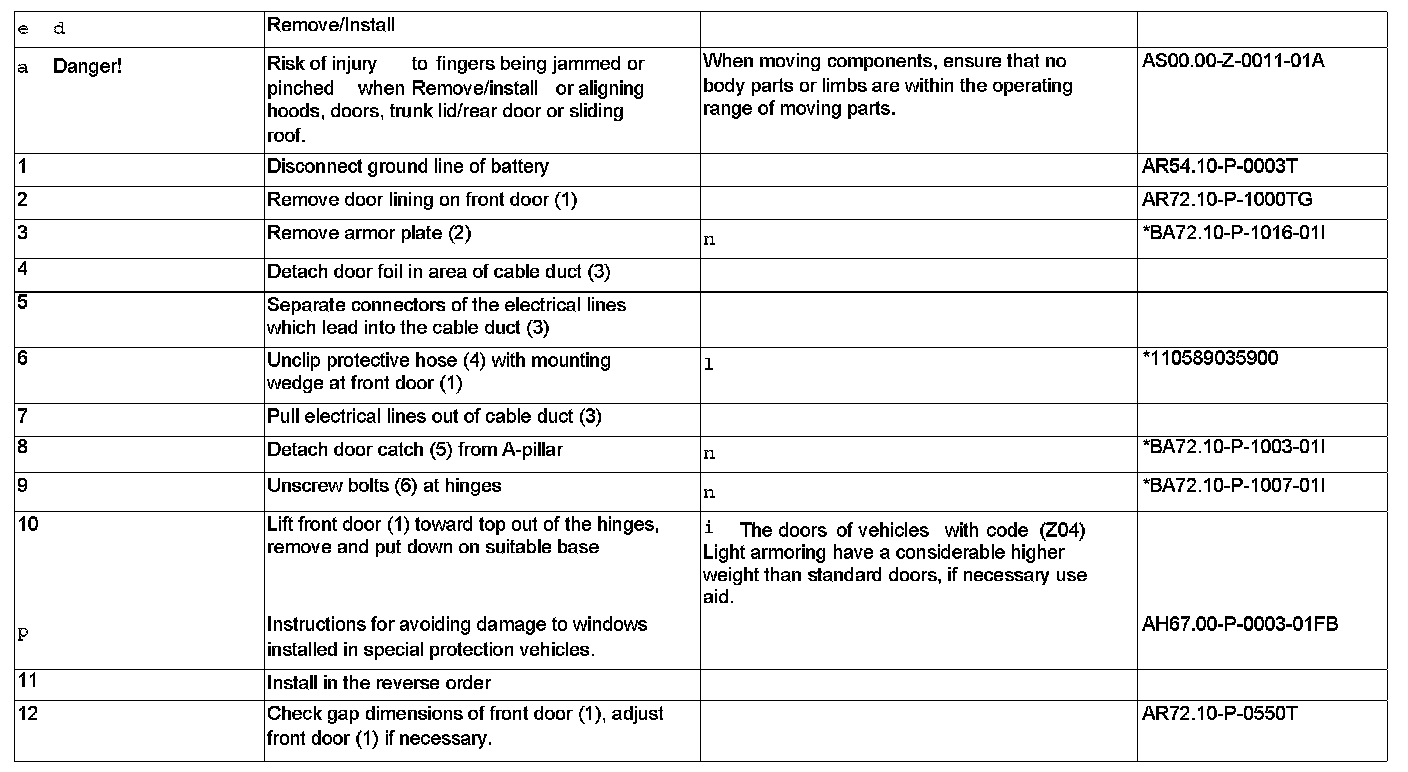

Steps 1 - 12:

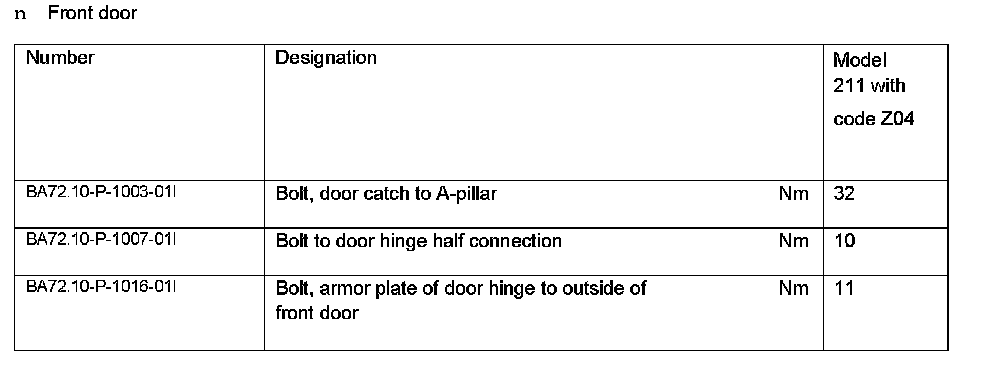

Front Door:

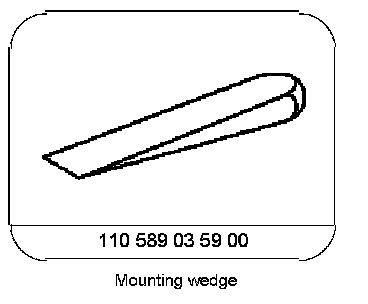

Special Tools:
