E 500 (211.070) V8-5.0L (113.967)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>
Service and Repair
>>
Removal and Replacement
>>

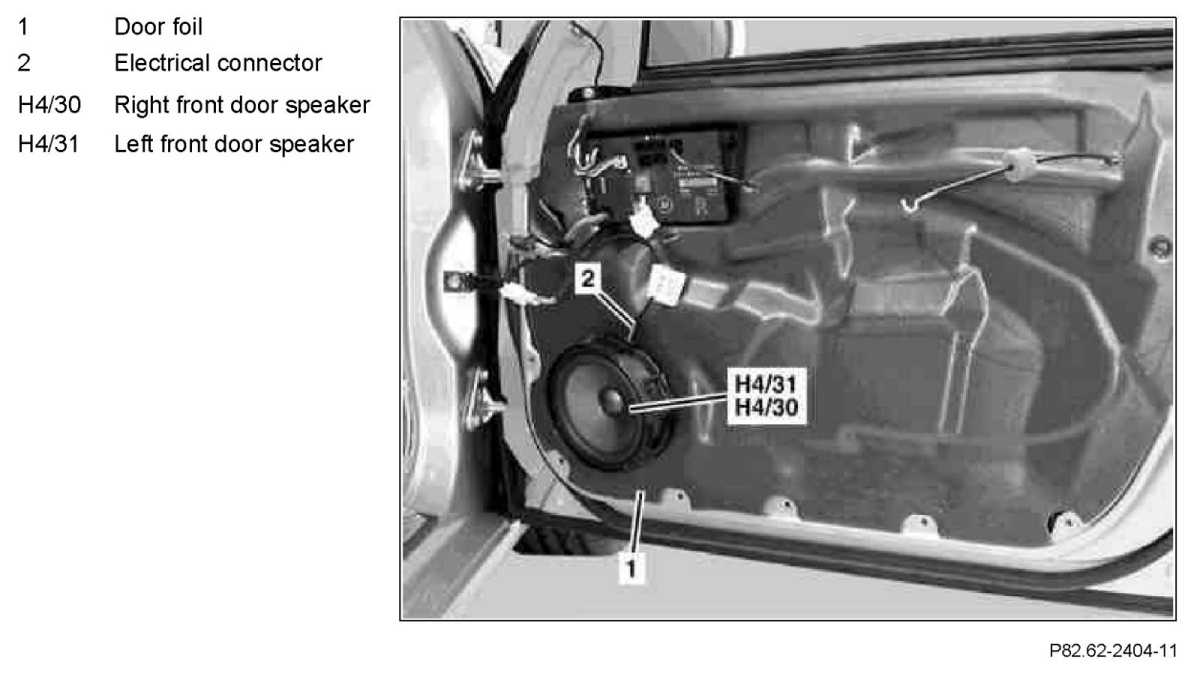

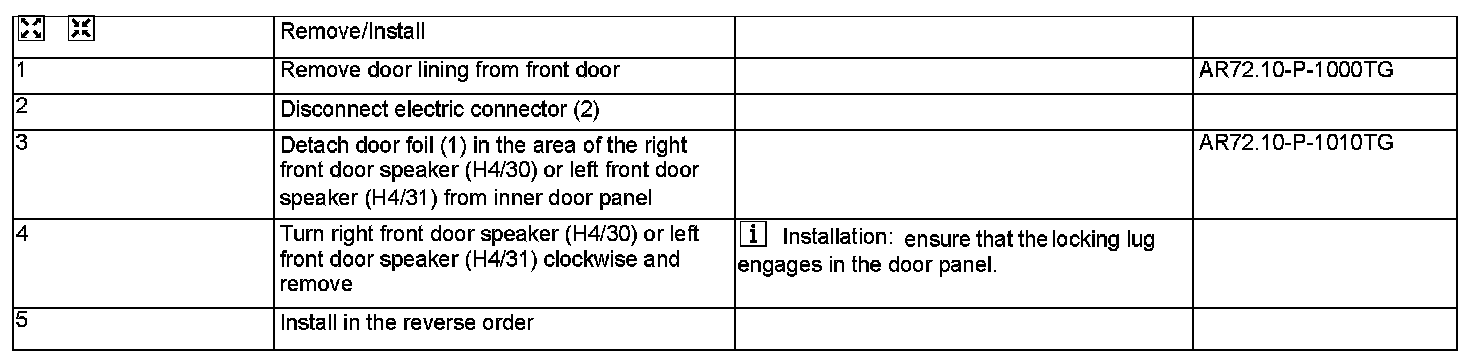

AR82.62-P-7845TG Remove/Install Loudspeakers In Front Doors
AR82.62-P-7845TG Remove/Install Loudspeakers In Front Doors
AR82.62-P-7845TG Remove/Install Loudspeakers In Front Doors
- wih CODE (Z04) Light armoring
