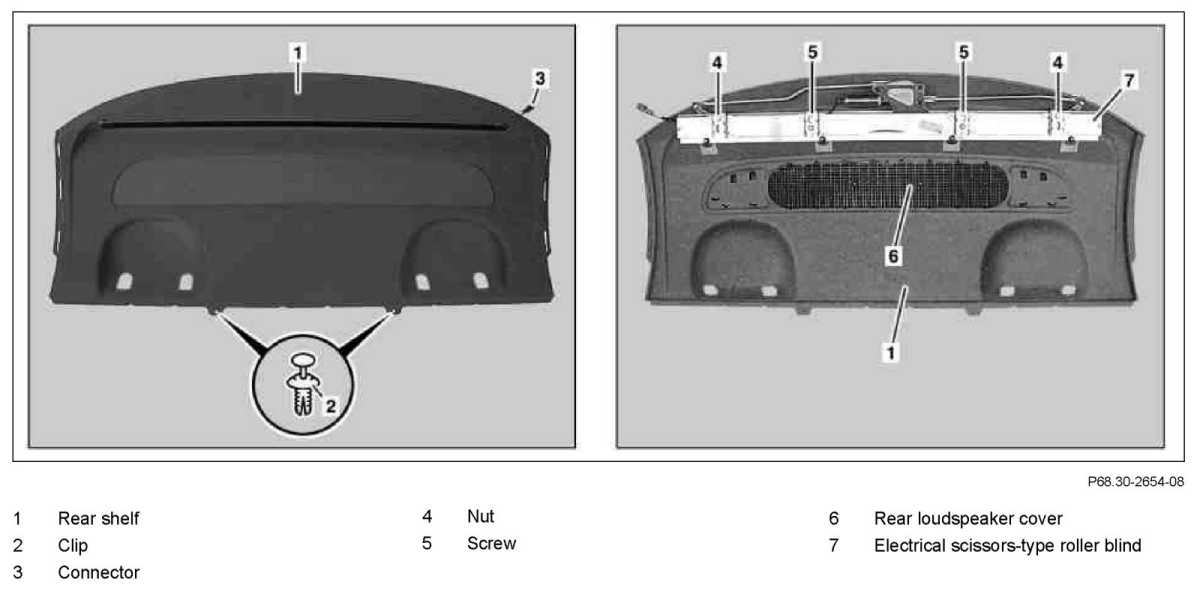

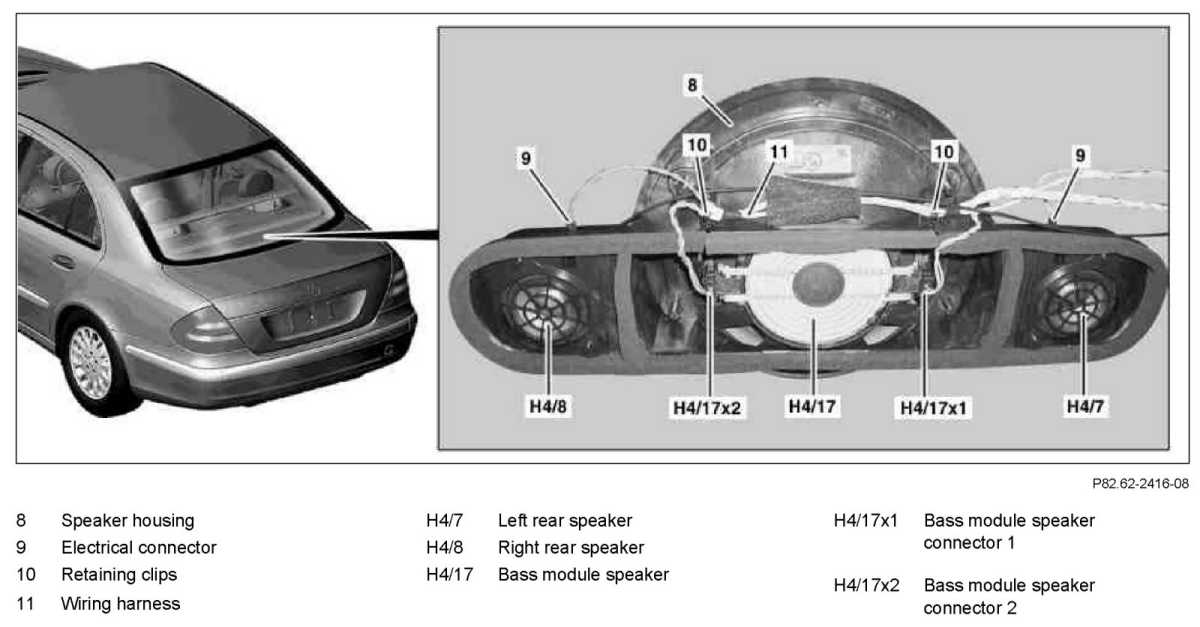

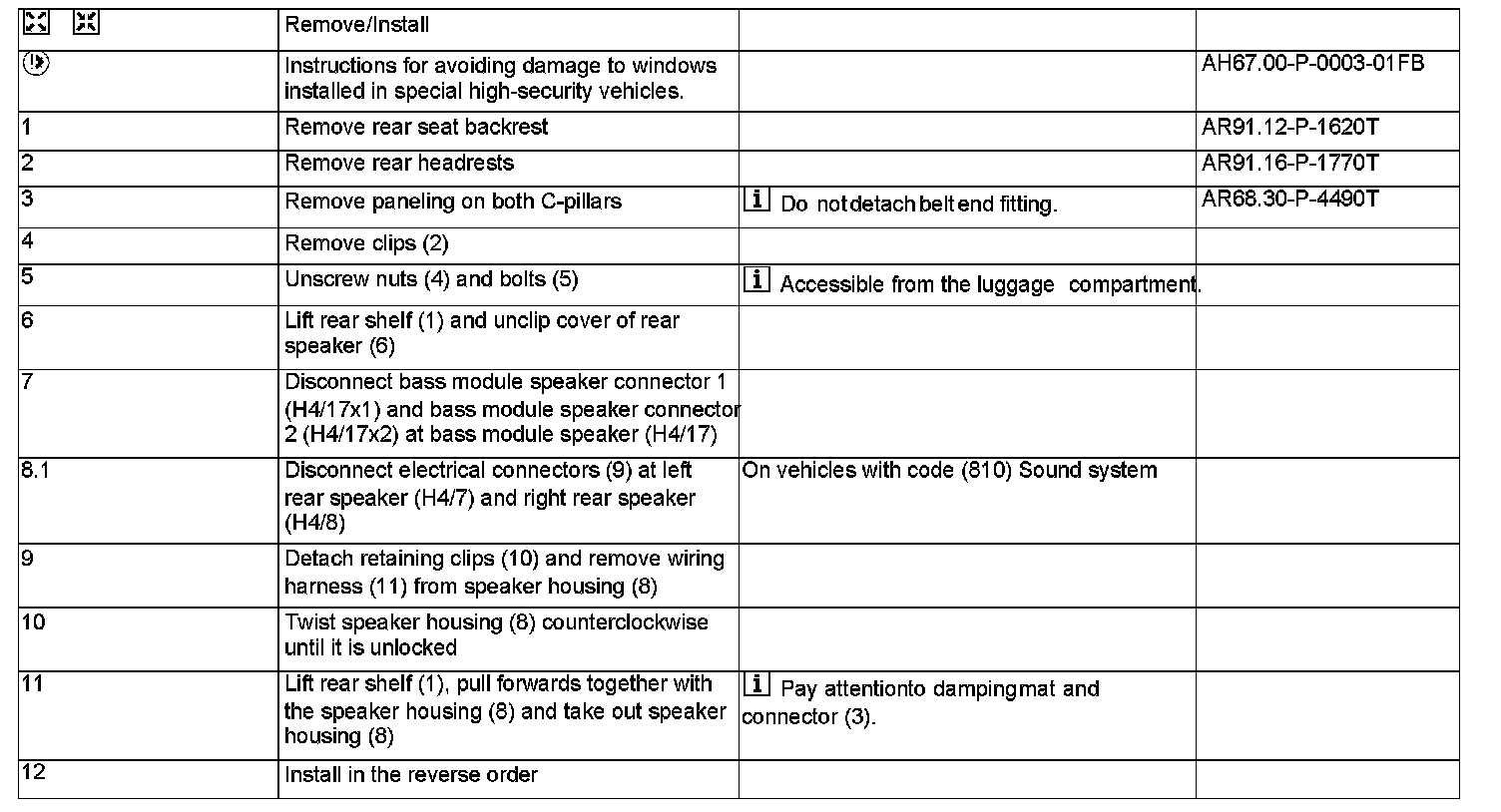

AR82.62-P-7836TG Remove/Install Loudspeakers In Rear Shelf
AR82.62-P-7836TG Remove/Install Loudspeakers In Rear Shelf
AR82.62-P-7836TG Remove/Install Loudspeakers In Rear Shelf
- wih CODE (Z04) Light armoring
