AN82.25-P-1000-05T Conduct Start Up of Taxi Functions
AN82.25-P-1000-05T Conduct Start Up Of Taxi Functions

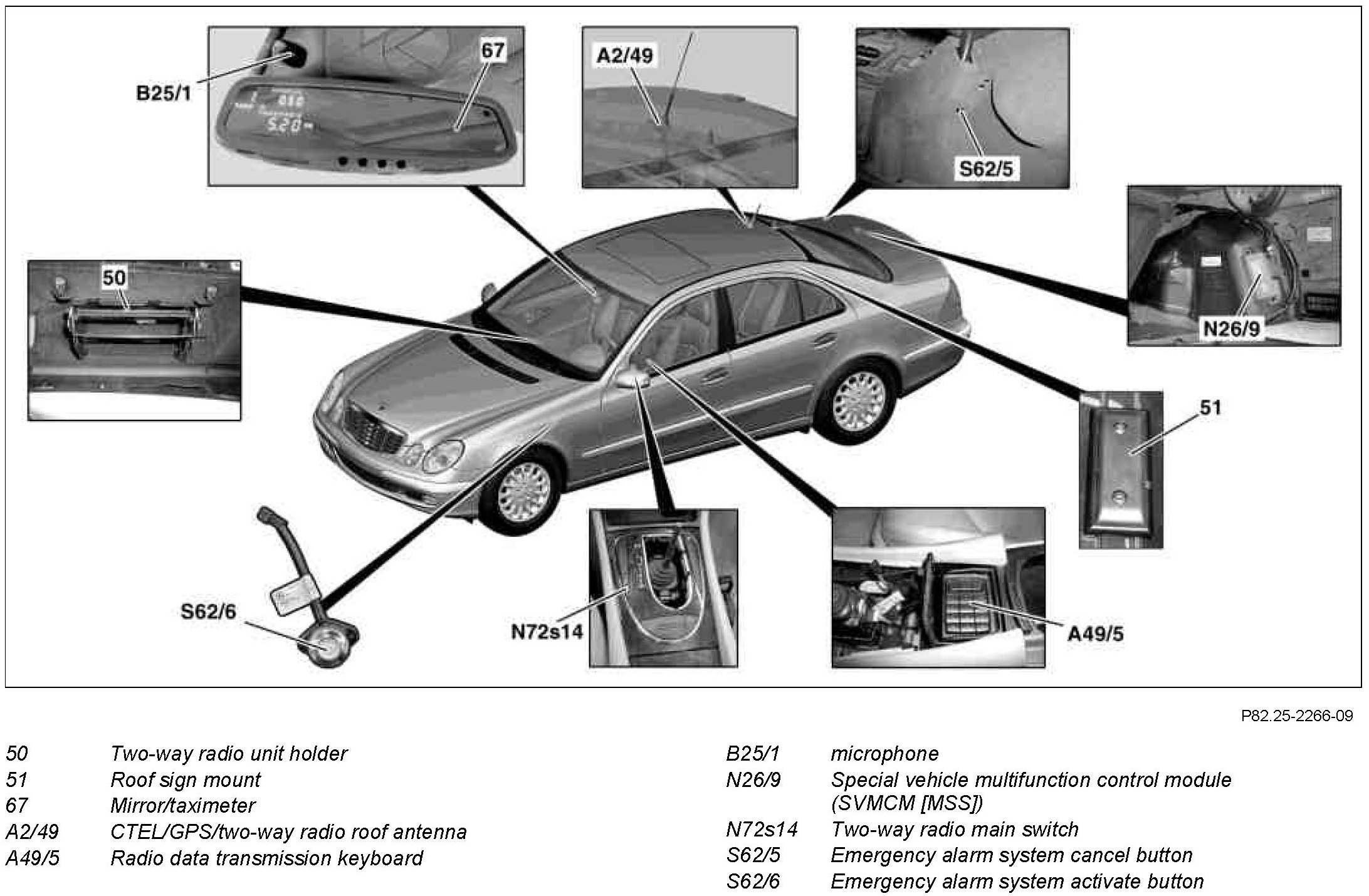

Component Identification:
The functions of a taxi are explained in the operator's manual for taxis and taximeters.
The appropriate specialist knowledge of taxi functions is a prerequisite for the correct programming of taxi functions.
After retrofitting all the taxi components in model 211 the individual taxi functions must be activated with Star Diagnosis.
For this purpose, the following steps should be carried out in the diagnosis modules.

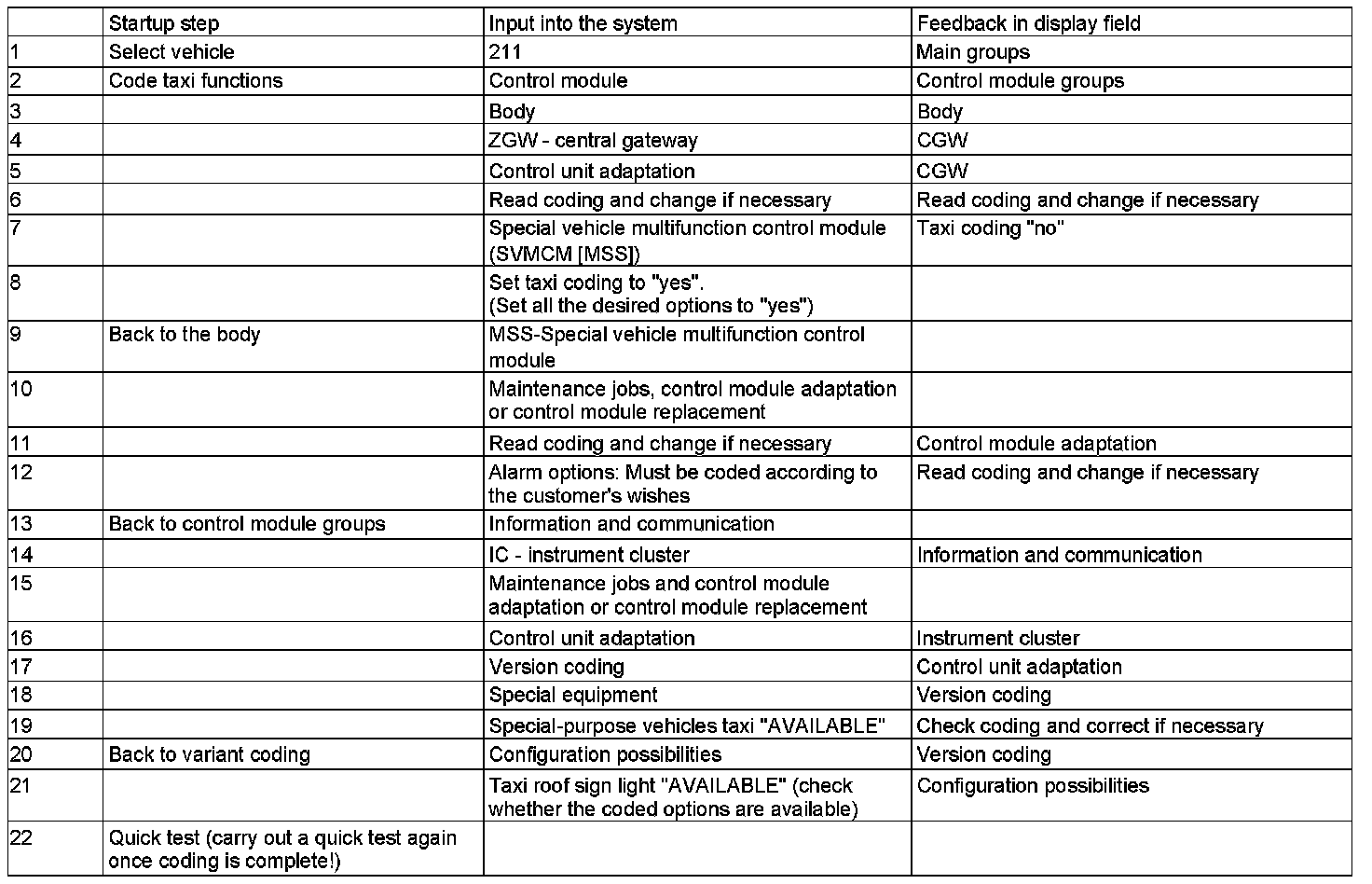

Steps 1 - 22:
