AN82.25-P-1000-03T Install Special Vehicle Multifunction Control Module (MSS)

AN82.25-P-1000-03T Install special vehicle multifunction control module (MSS)

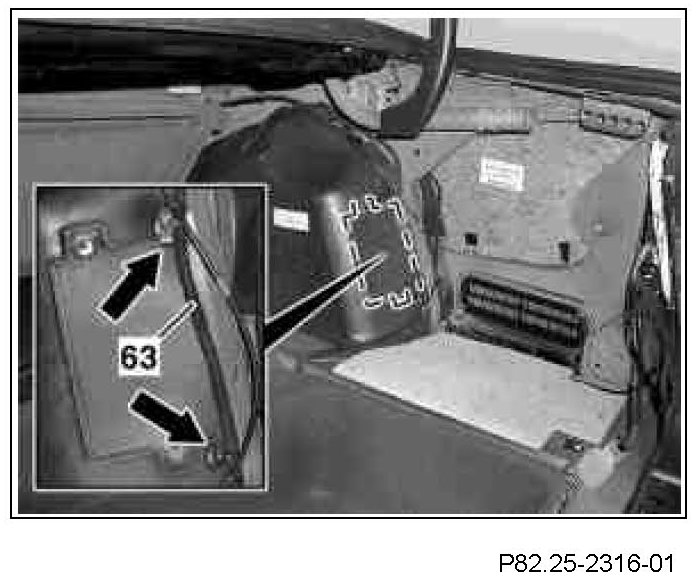

1 Detach production wiring harness (63) from the bracket (see Figure cutout) and put to one side.
2 Work on the perforation in the right wheelhouse in the luggage compartment as per the Figure.

Protect production wiring harness (63) against damage.

3 Clip production wiring harness (63) again into existing bracket.

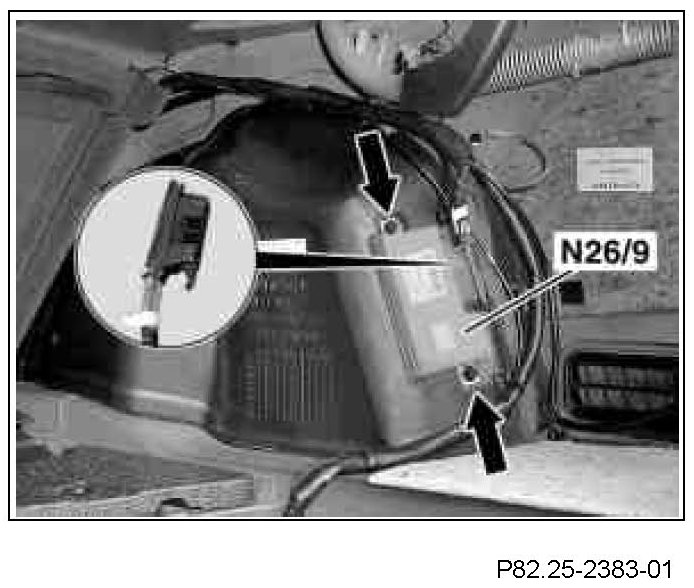

Mount special vehicle multifunction control module (MSS) (N26/9) on existing studs and secure with M6 nuts supplied (see arrows).

5 Connect 33-pin connection coupling from wiring harness for taxi frame floor system to special vehicle multifunction control module (MSS) (N26/9).
