AN54.61-P-1000-01T Install Taximeter Wiring Harness

AN54.61-P-1000-01T Install Taximeter Wiring Harness
- MODEL 211.004 /006 /016 /061 /065 /070 1#

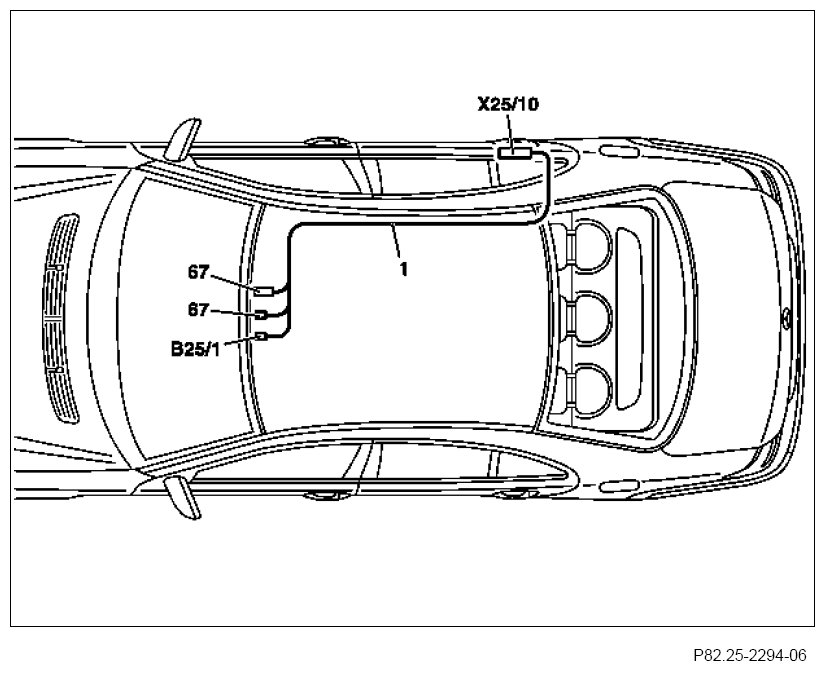

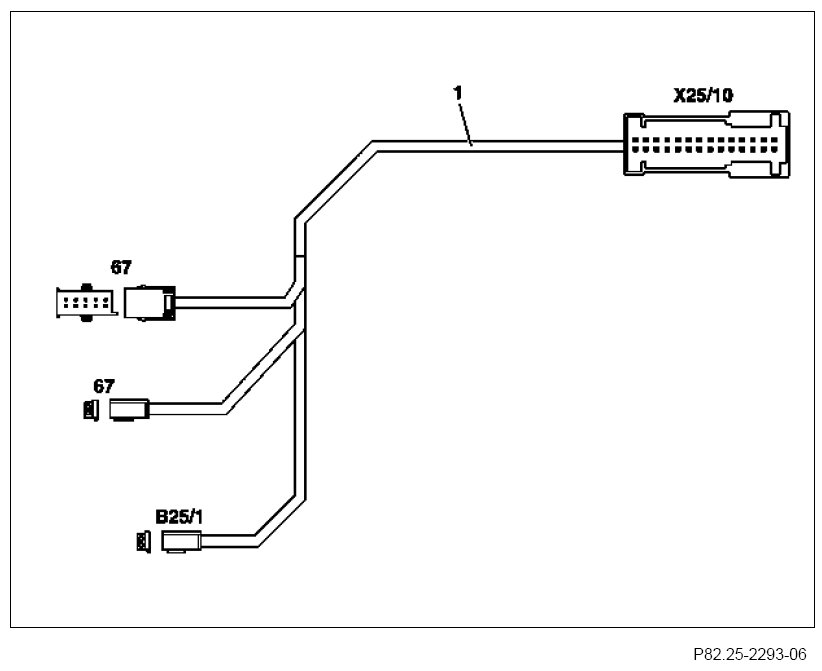

1 Mirror taximeter and microphone wiring harness
67 Mirror taximeter
B25/1 Microphone
X25/10 Right overhead control panel and FFS [RBA] connector

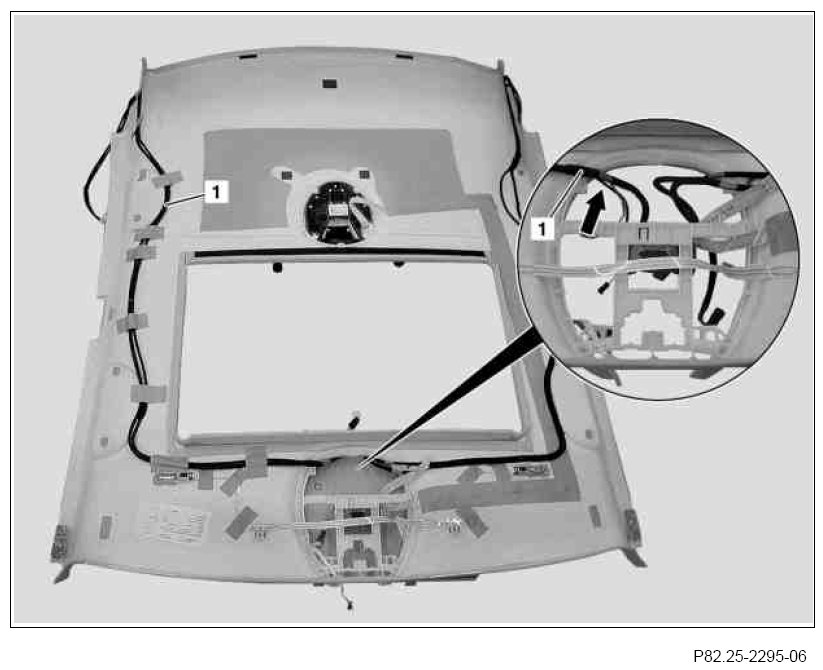

1 Install mirror taximeter/microphone wiring harness (1) on the right-hand side of the roof lining as shown in the diagram.
When routing the mirror taximeter/ microphone wiring harness (1) the green marking (see arrow) must be aligned at the same height as the overhead control panel frame.

2 Secure mirror taximeter/microphone wiring harness (1) to roof lining with specified adhesive tape only.
Always ensure that wiring harnesses are routed so that they do not rattle and do not chafe against other components.

3 Install roof lining.

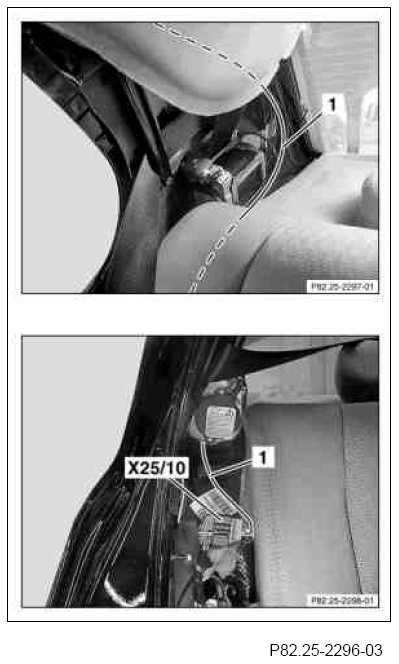

4 Route mirror taximeter/microphone wiring harness (1) at vehicle's own wiring harness along right C-pillar to coupling of right overhead control panel and frame floor system [RBA] connector (X25/10) of taxi frame floor system wiring harness and secure in place.
5 Connect the connector of mirror taximeter/microphone wiring harness (1) to right overhead control panel and frame floor system [RBA] connector (X25/10) with coupling of taxi frame floor system wiring harness.
6 Tie back excessive lengths of both wiring harnesses and secure to vehicle's own wiring harness.
