Procedures

BT40.15-P-0080-01A Valve body gasket modified.
- with CODE (475) Tire pressure monitor (Beru)

Tire Pressure Monitor:

Component Identification:

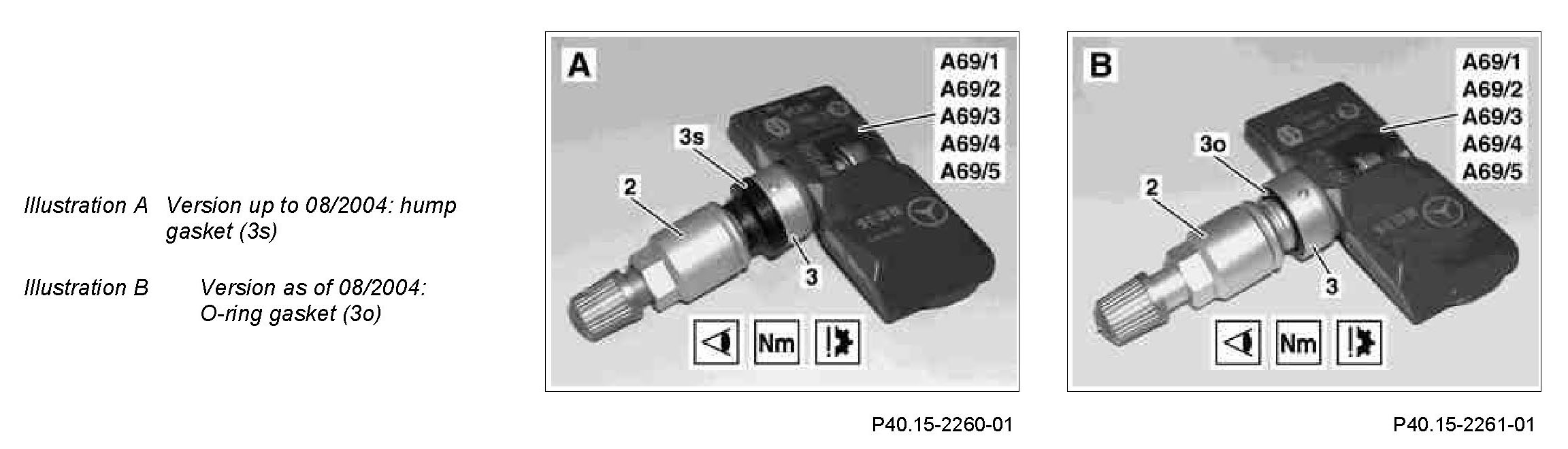

The gasket on the valve body (3) of the TPM wheel sensor (A69/1 to A69/5) has been modified. As of 08/2004 an O-ring (3o) replaces the hump gasket (3s).

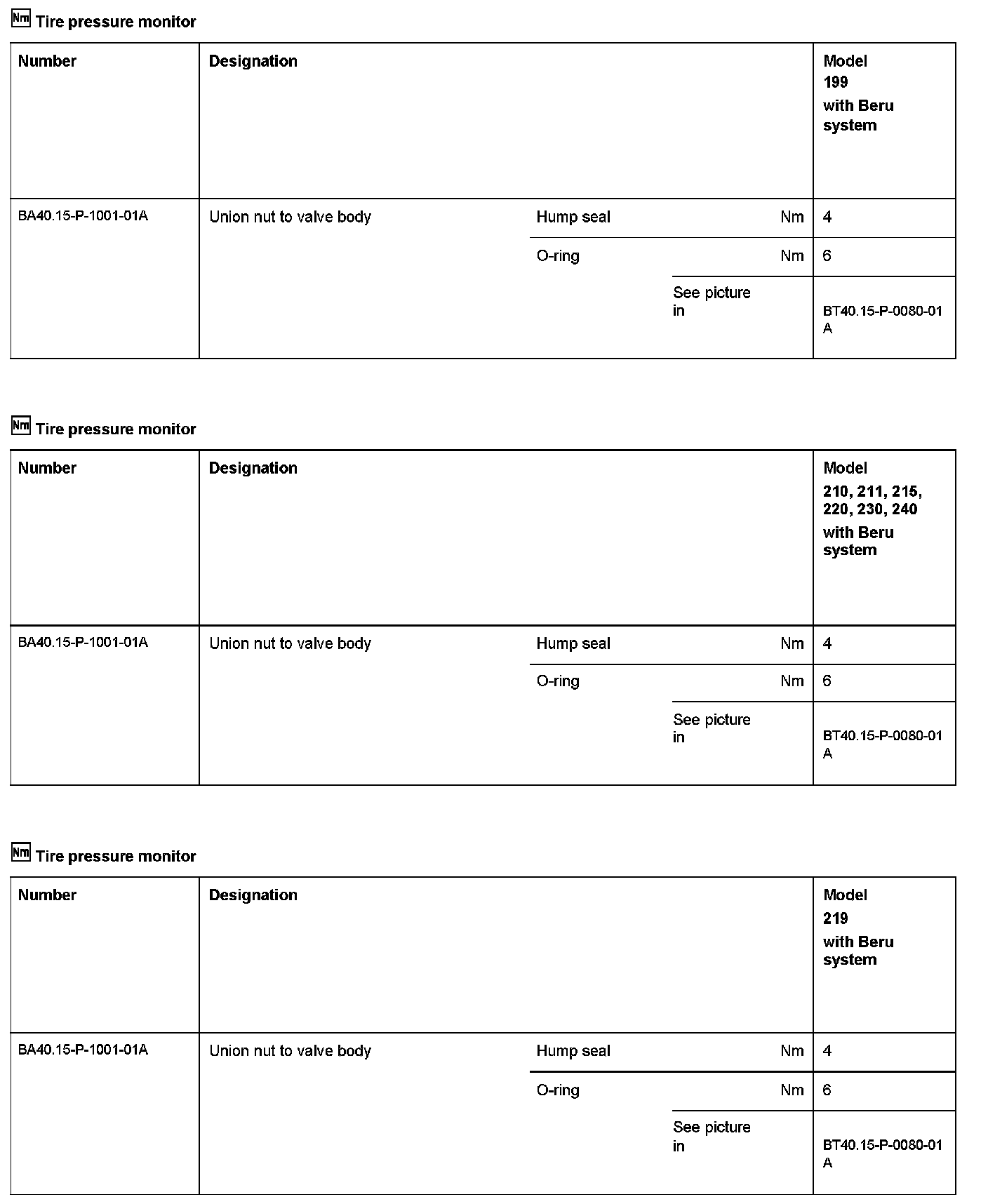

Observe tightening torques for different gasket versions A union nut (2) which is tightened incorrectly leads to wheel leaks or damage to the valve body (3) or TPM wheel sensor (A69/1 to A69/5).

On disk wheels model 211, 215, 220 and 230 (all to 12/2002) may only valve bodies (3) with hump gasket (3s) may be fitted otherwise the wheel will leak.
