AR82.10-P-2400T Remove/Install Daylight Sensor

Remove/Install Daylight Sensor







1 Disconnect ground cable of battery

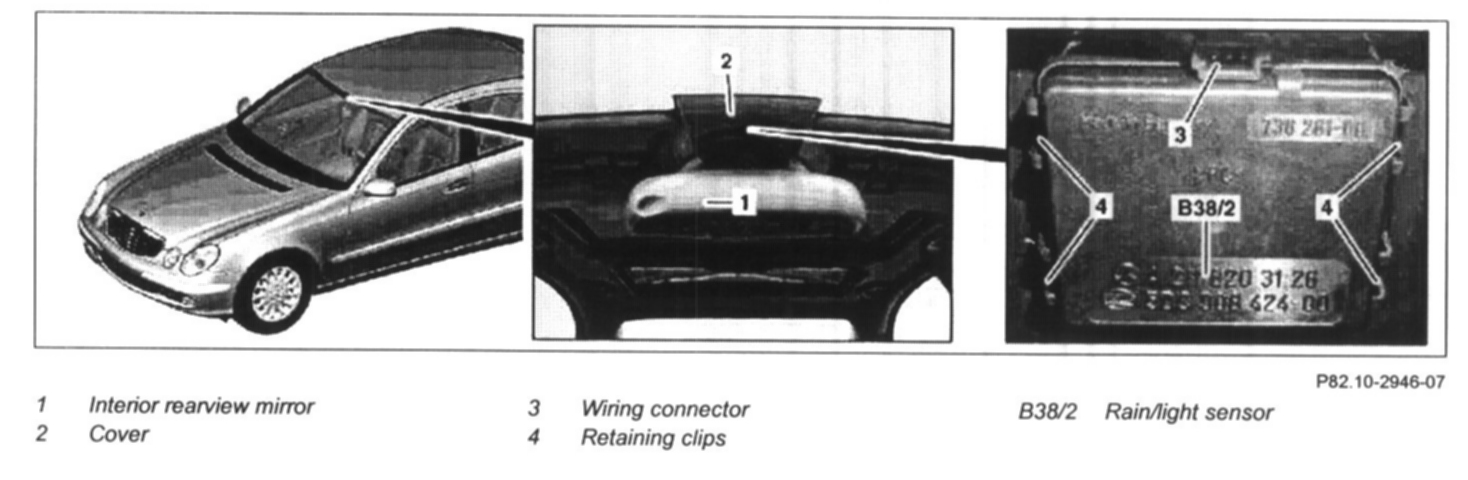

2 Unclip covering (2) in front of inside rearview mirror (1)
3 Disconnect line on electrical connector (3)

CAUTION: Carefully disconnect the electrical line, the flat cable may be damaged.

4 Unlock retaining damps (4) at left and right

CAUTION: Carefully unlock retaining clamps (4), the retaining clamps (4) may be broken.

5 Remove rain/light sensor (B38/2)

CAUTION: The lens of the rain/light sensor (B38/2) is bonded to the windshield and may not be removed as otherwise the lens may be damaged.

6 Install in the reverse order
7 Perform function check
