Throttle Body: Service and Repair
AR09.20-P-1320TA Removing/Installing the Mixing Chamber
- except CODE (474) prticulate filter

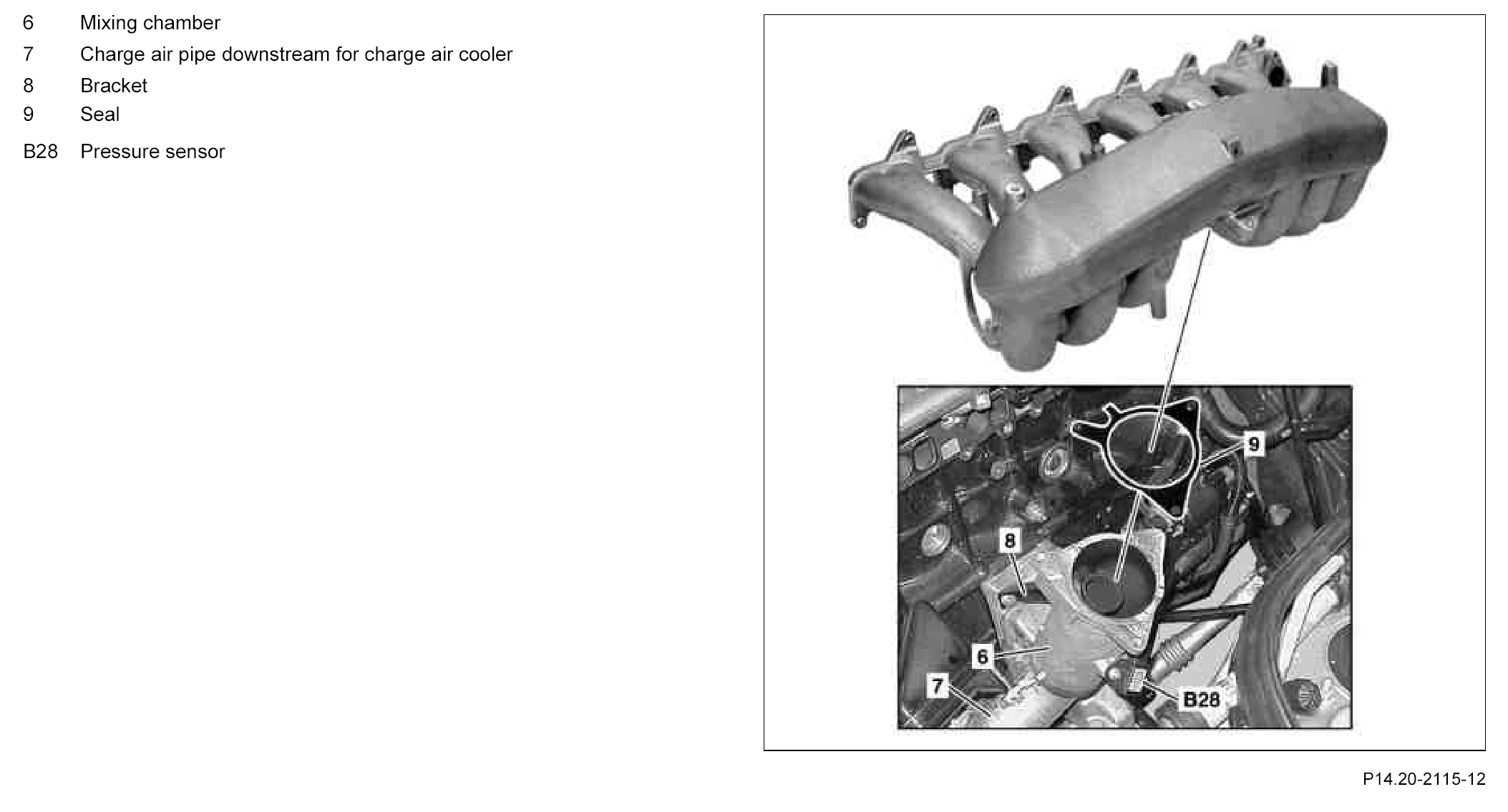

Component Identification:

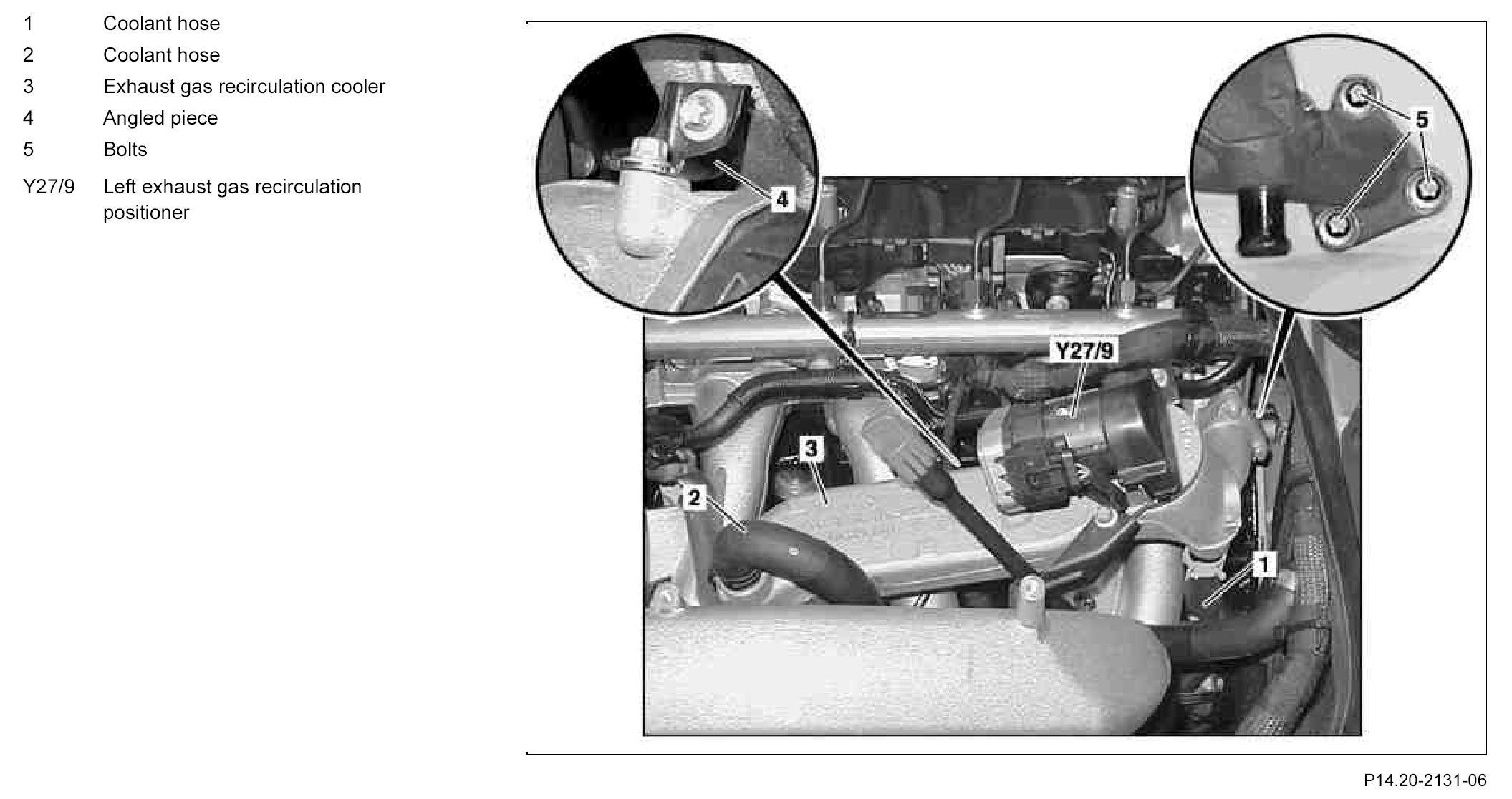

Component Identification:

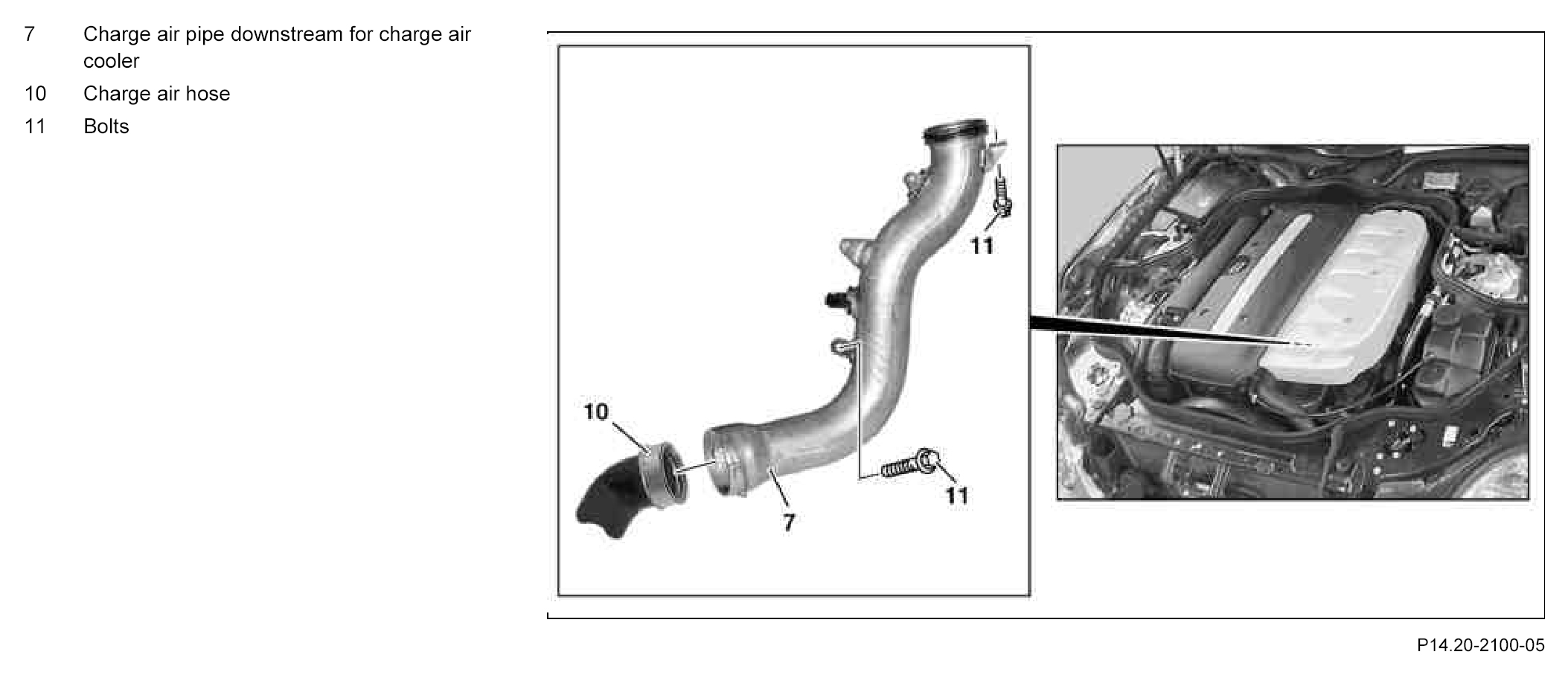

Component Identification:

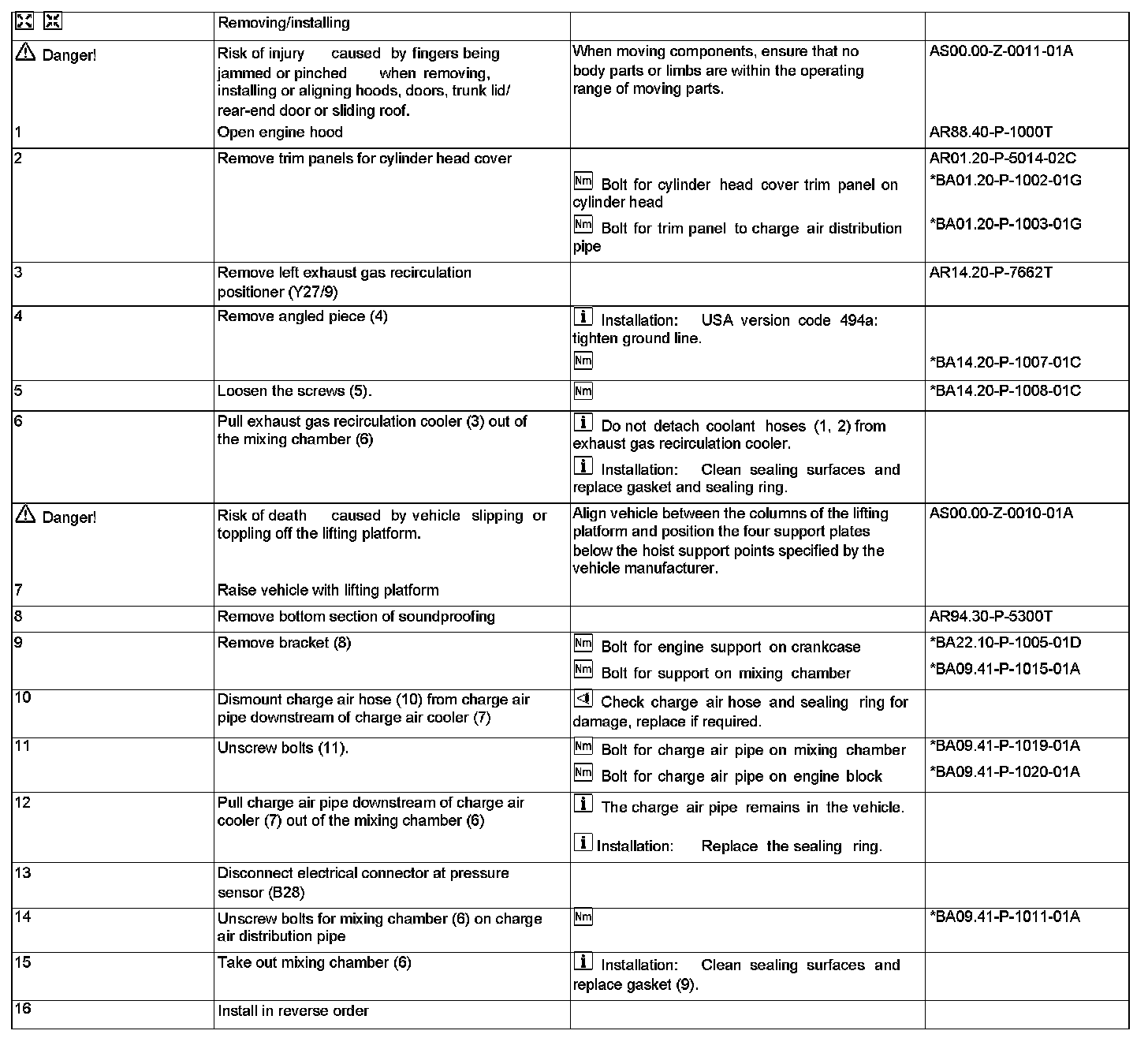

Steps 1 - 16:

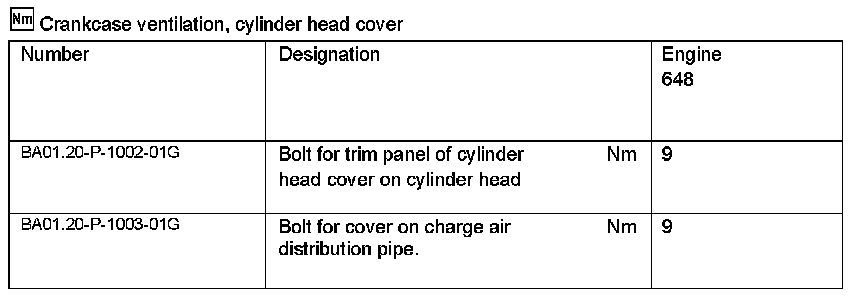

Crankcase Ventilation, Cylinder Head Cover:
Exhaust Gas Recirculation:

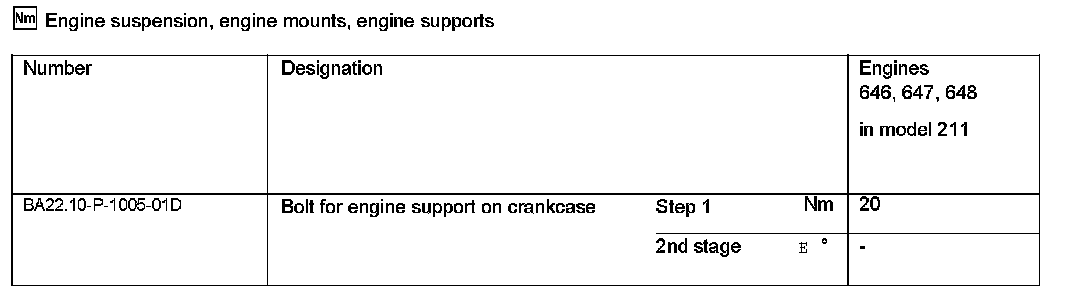

Engine Suspension, Engine Mounts, Engine Supports:

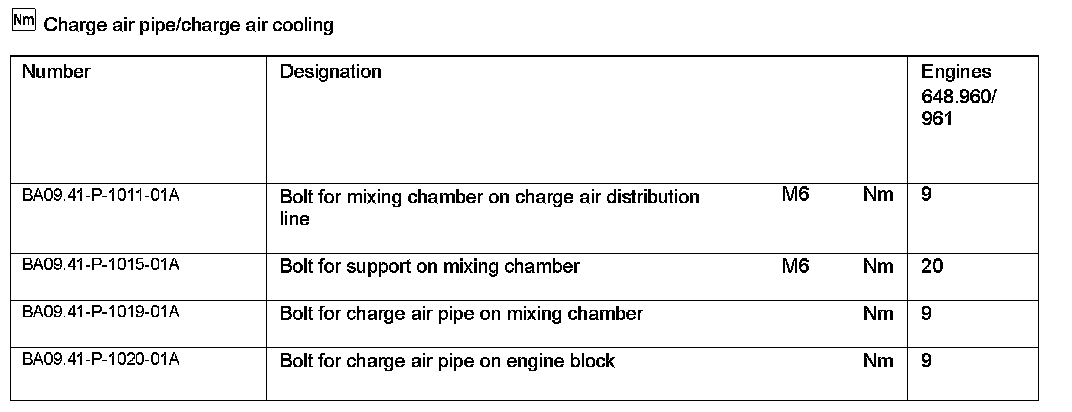

Charge Air Pipe/Charge Air Cooling:
