Wiring Diagram Common Rail Diesel Injection (CDI) PE07.16-U-2101DD

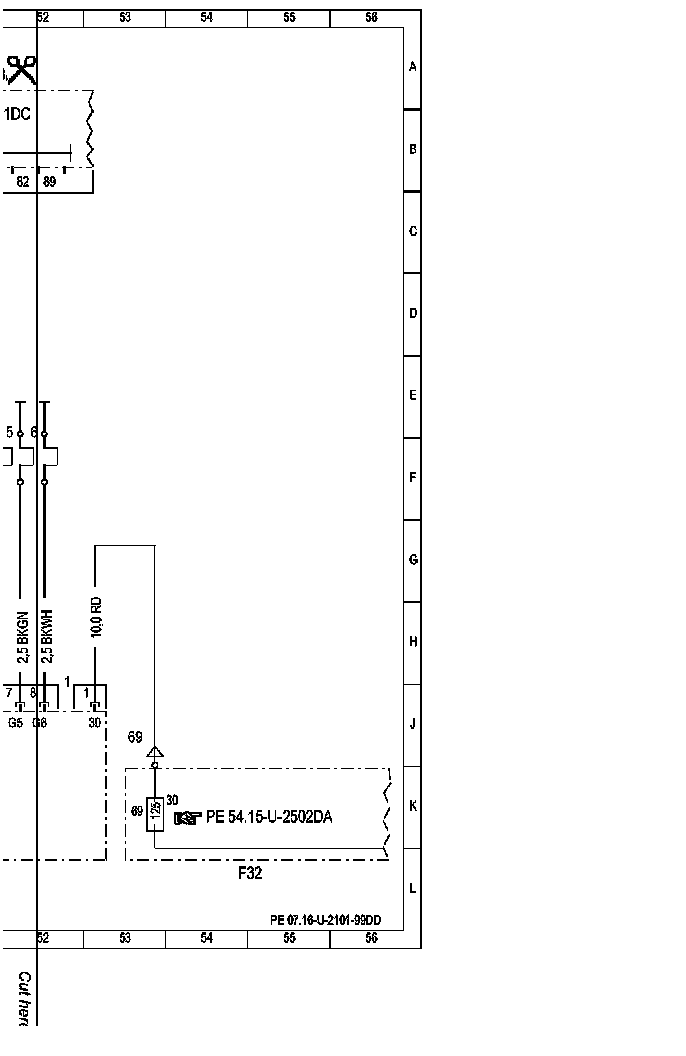

Wiring Diagram Common Rail Diesel Injection (CDI) Control Module pe07.16-u-2101-99dd

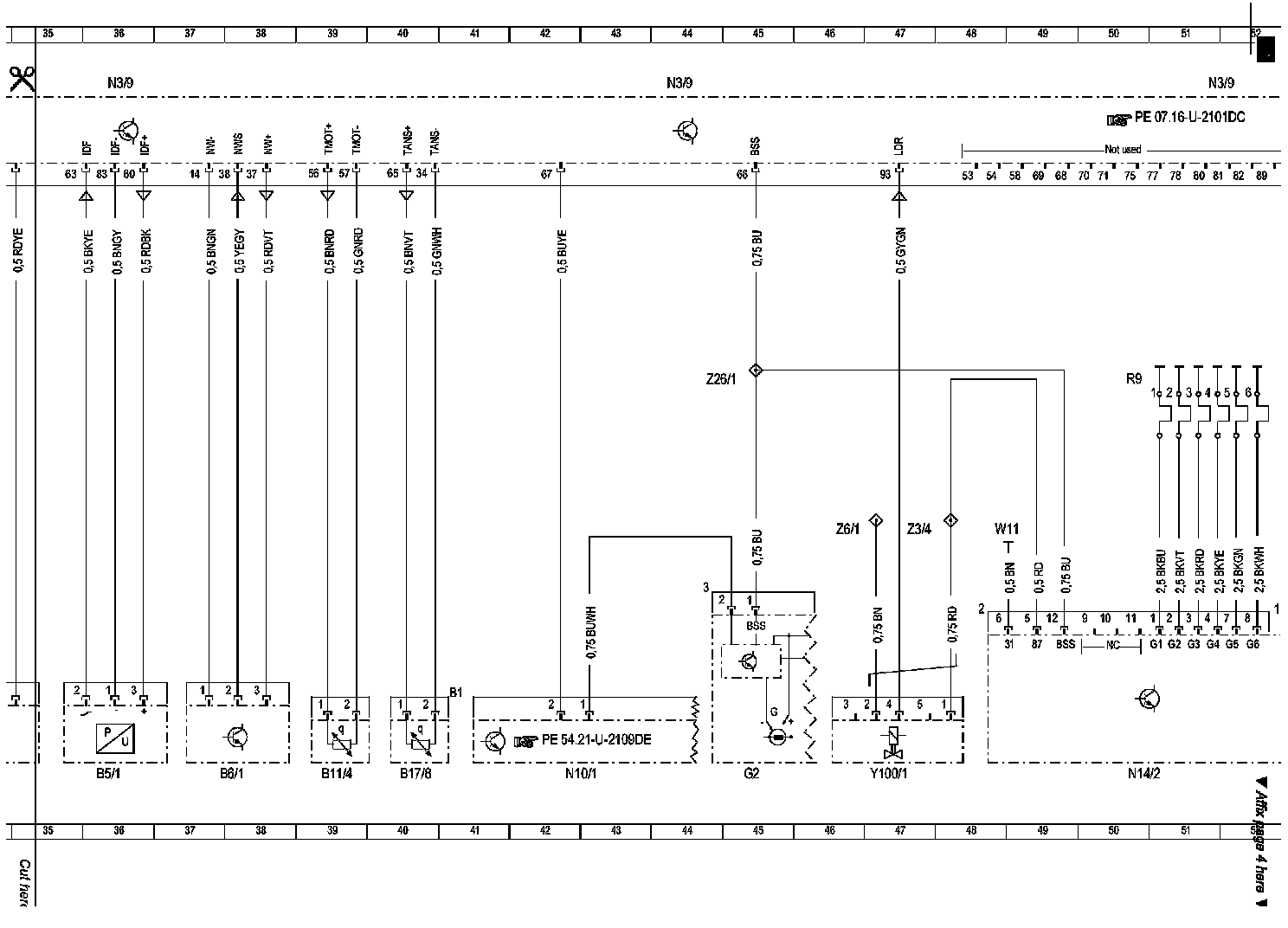

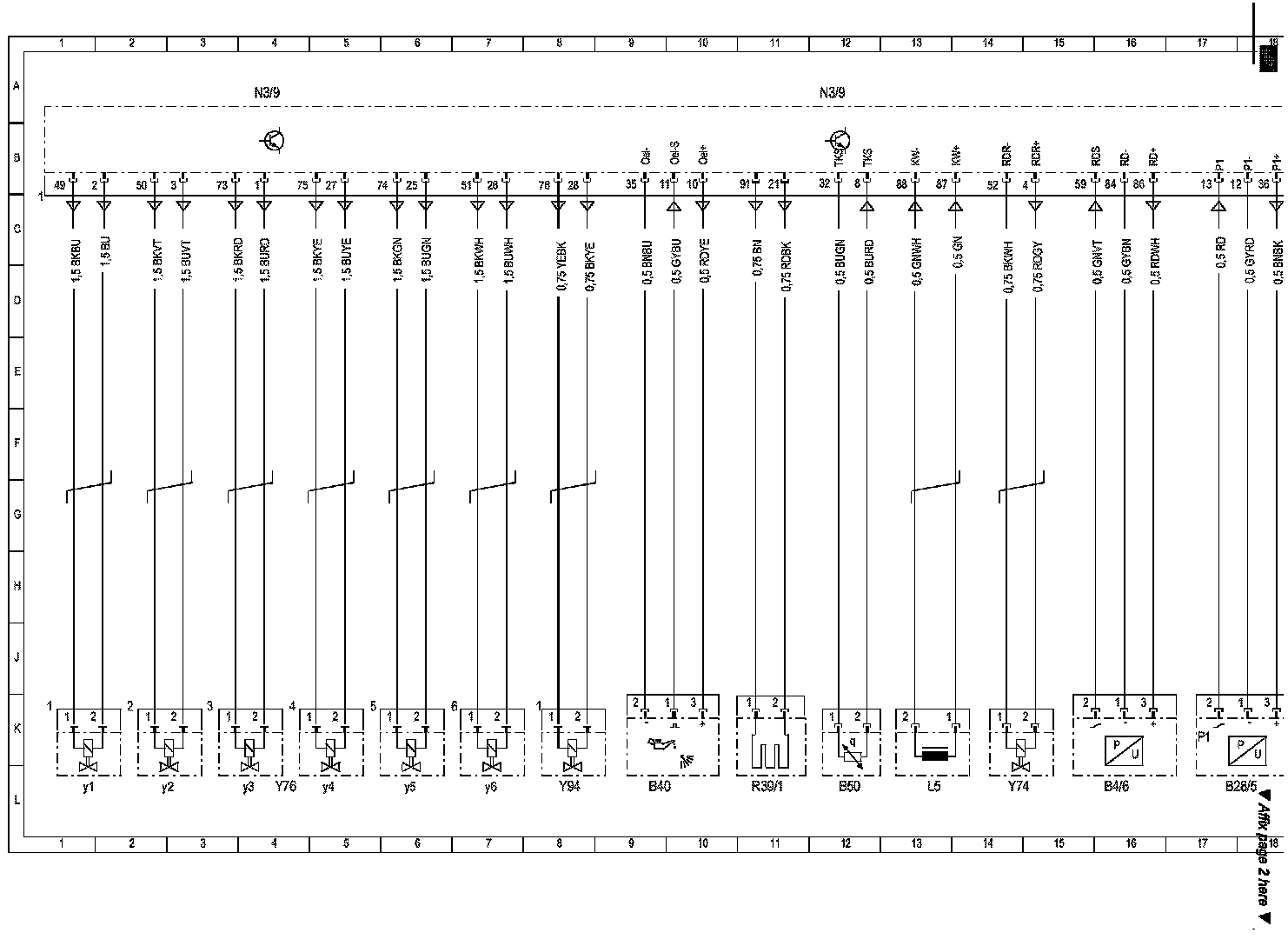

Wiring Diagram (Part 1):

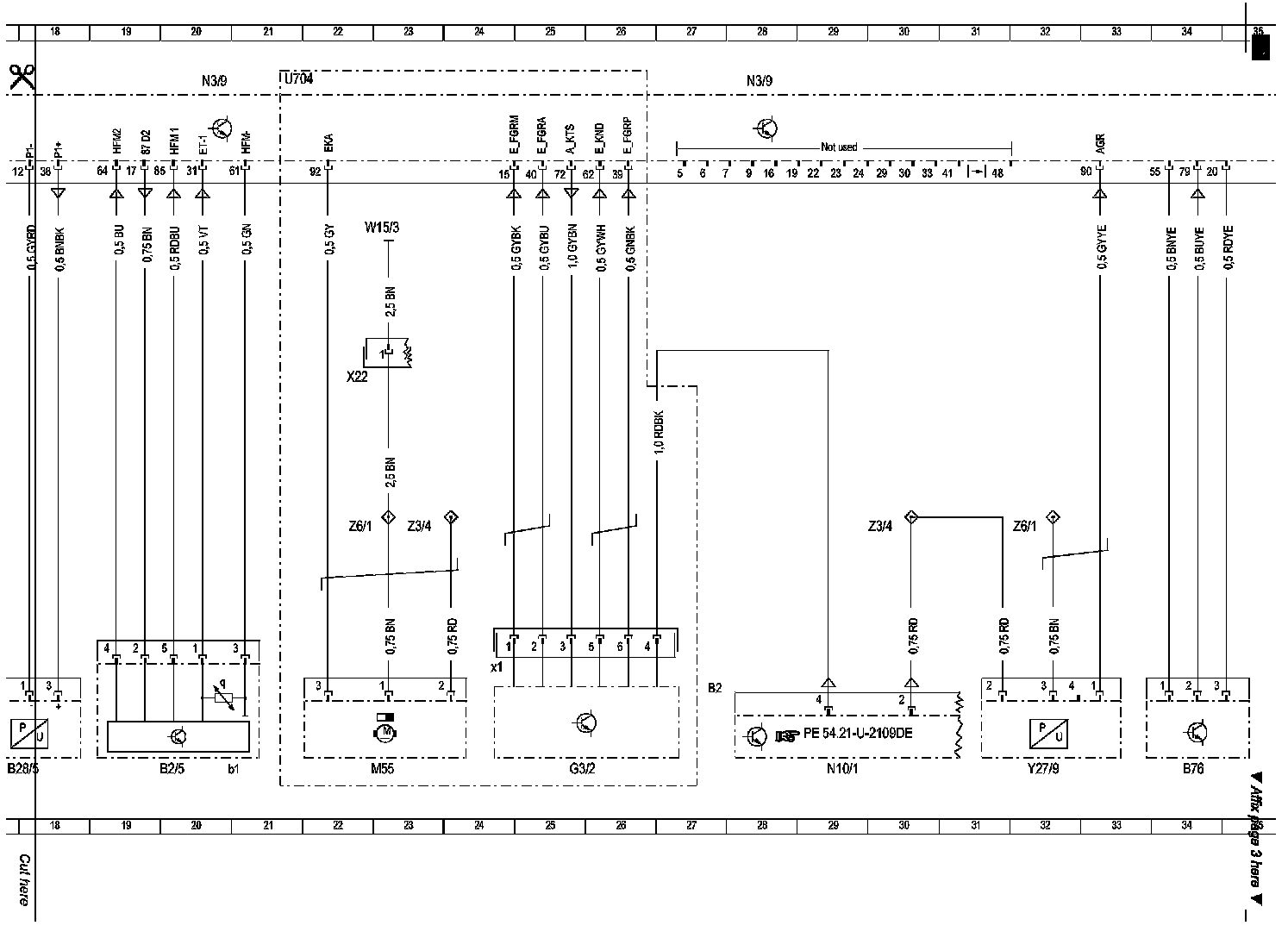

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

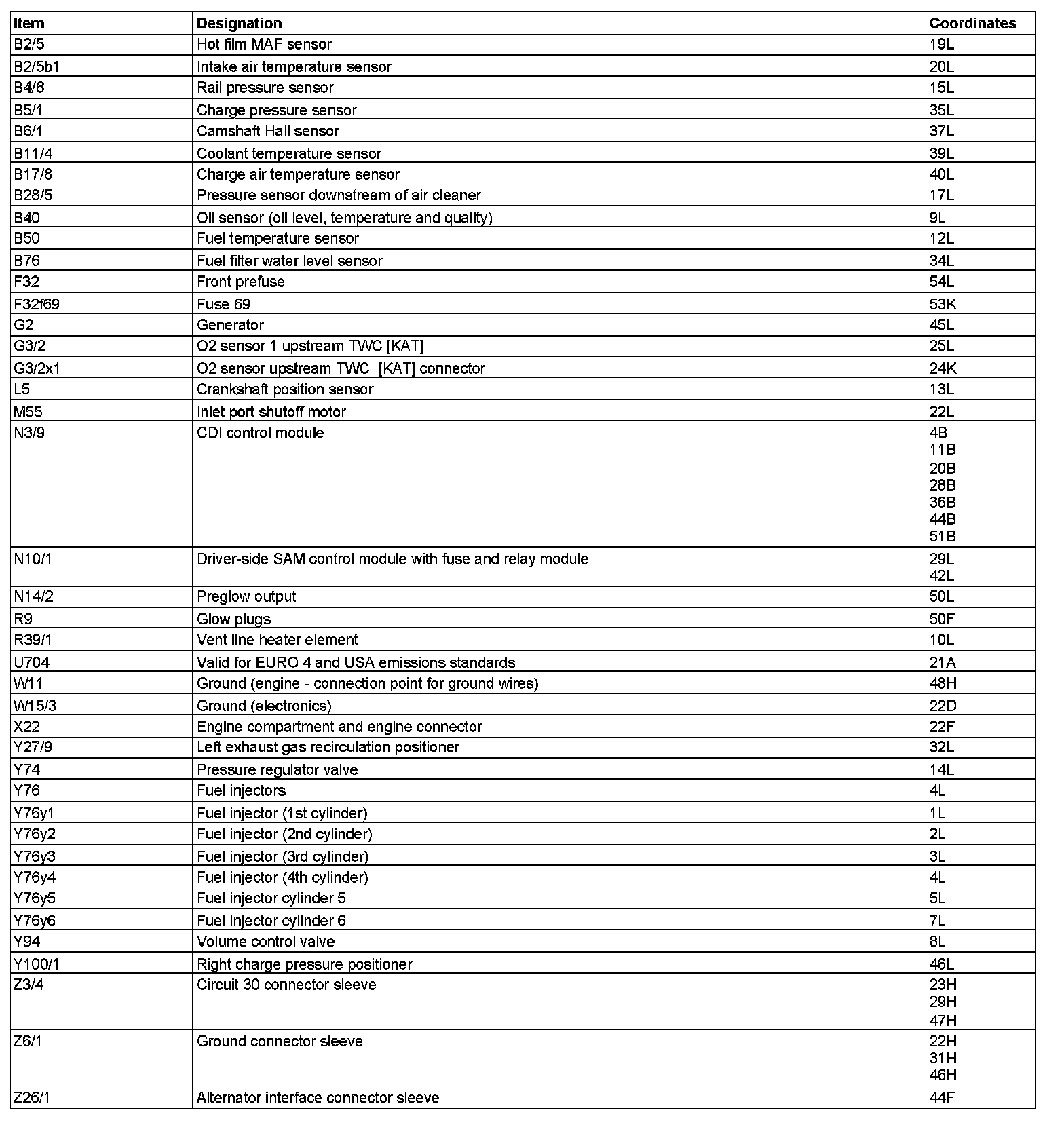

Component Description/Coordinates, B2/5 To Z26/1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
