GF40.15-P-3603T TPM System Activation Button, Location/Task



GF40.15-P-3603T TPM system activation button, location/task
- 211 up to 31.5.05
- with CODE (475) Tire pressure monitor
- except CODE (494) USA version
- except CODE (498) Japan version
- 211 up to 30.6.05
- with CODE (475) Tire pressure monitor
- with CODE (494) USA version
- with CODE (498) Japan version

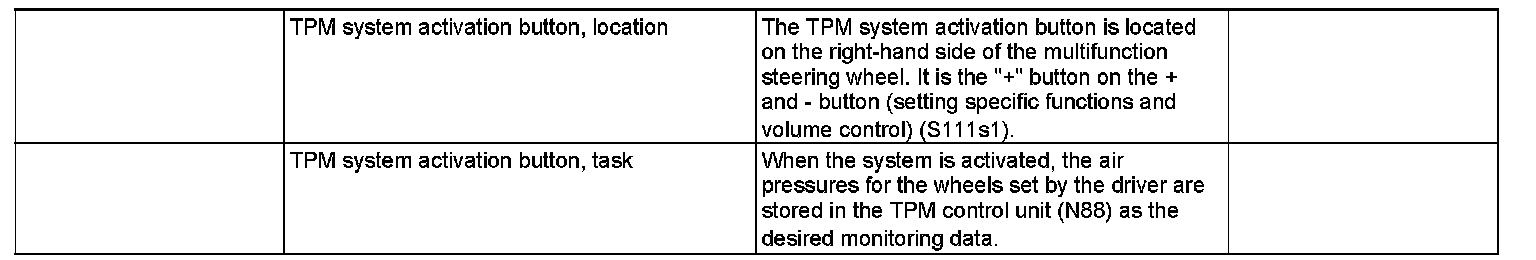

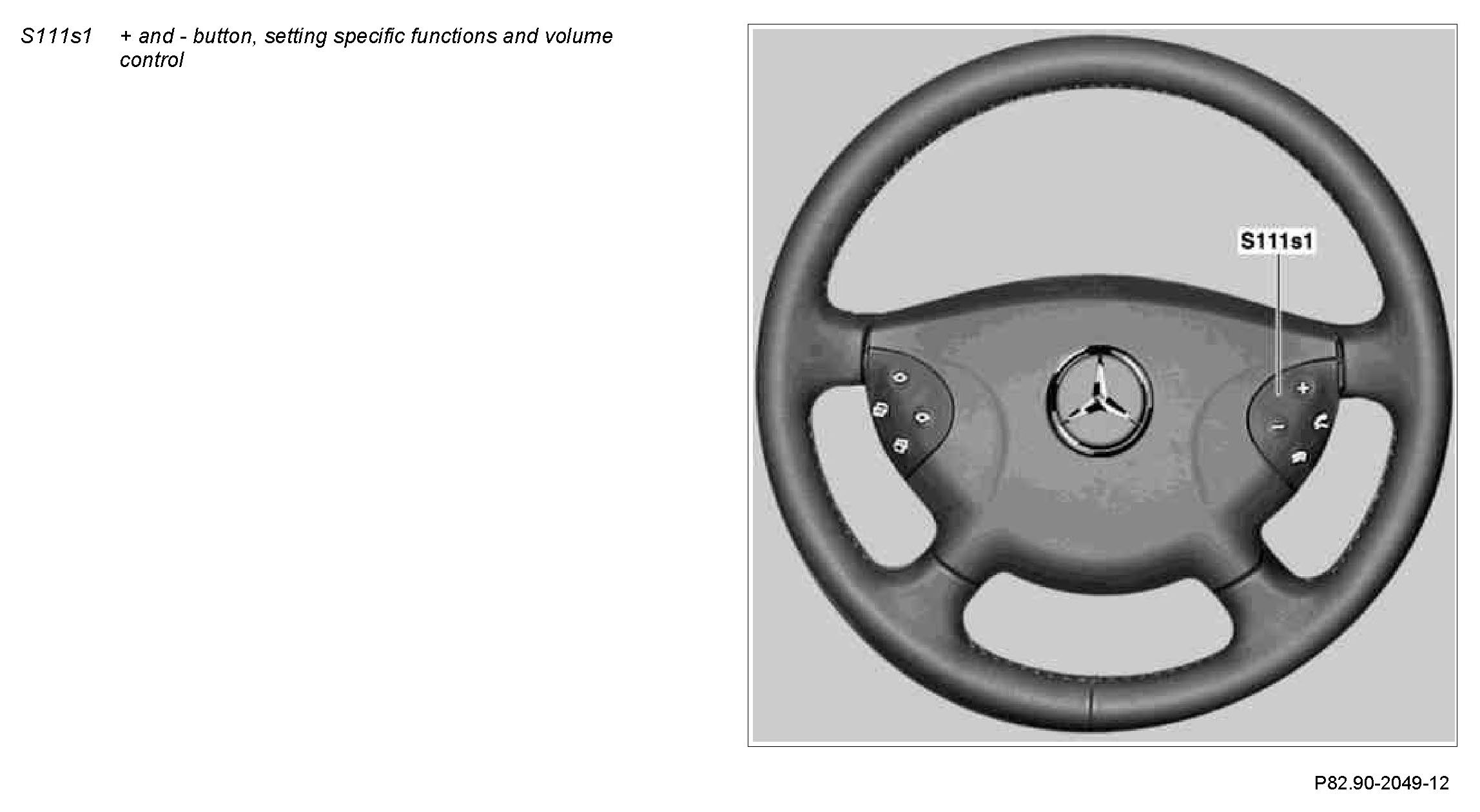

Component Identification:
