Home >> Mercedes Benz >> 2005 >> E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961) >> Repair and Diagnosis >> Lighting and Horns >> Vanity Lamp >> Service and Repair

Vanity Lamp: Service and Repair

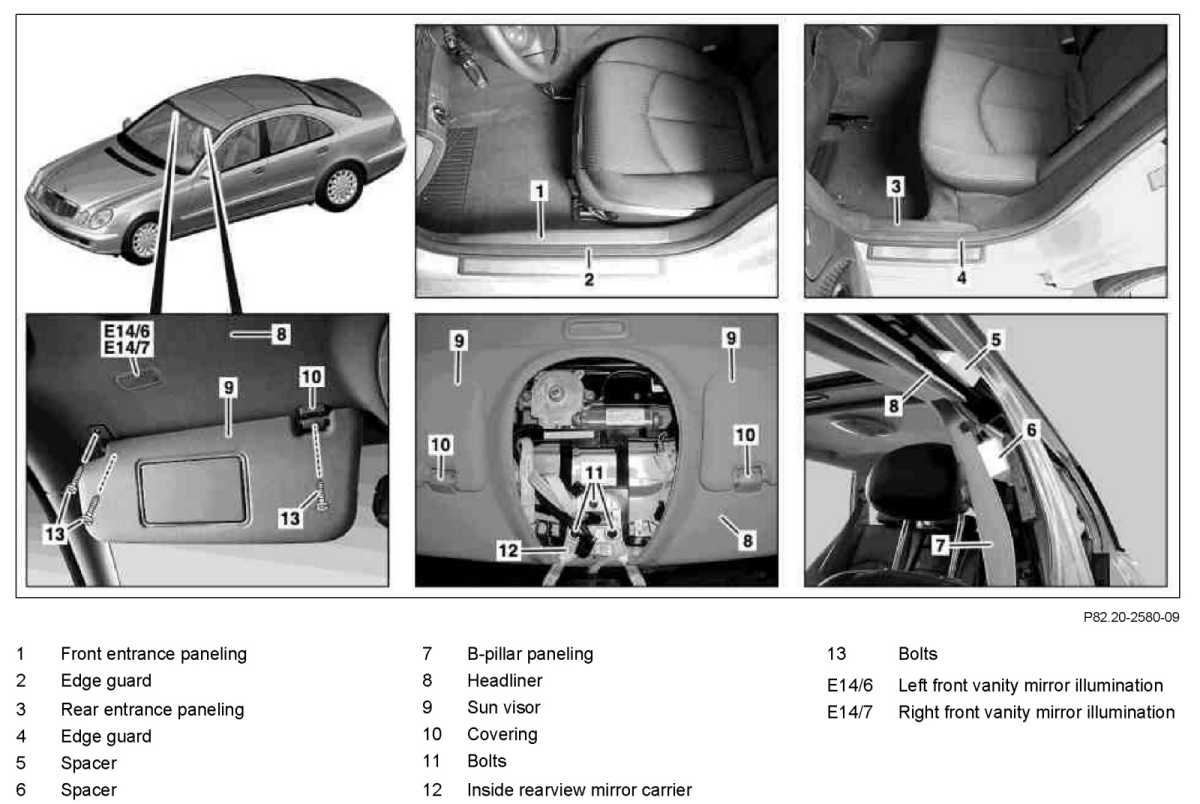

AR82.20-P-5582T Remove/Install Lamp For Vanity Mirror
- with CODE (543) Sun visors with illuminated mirror

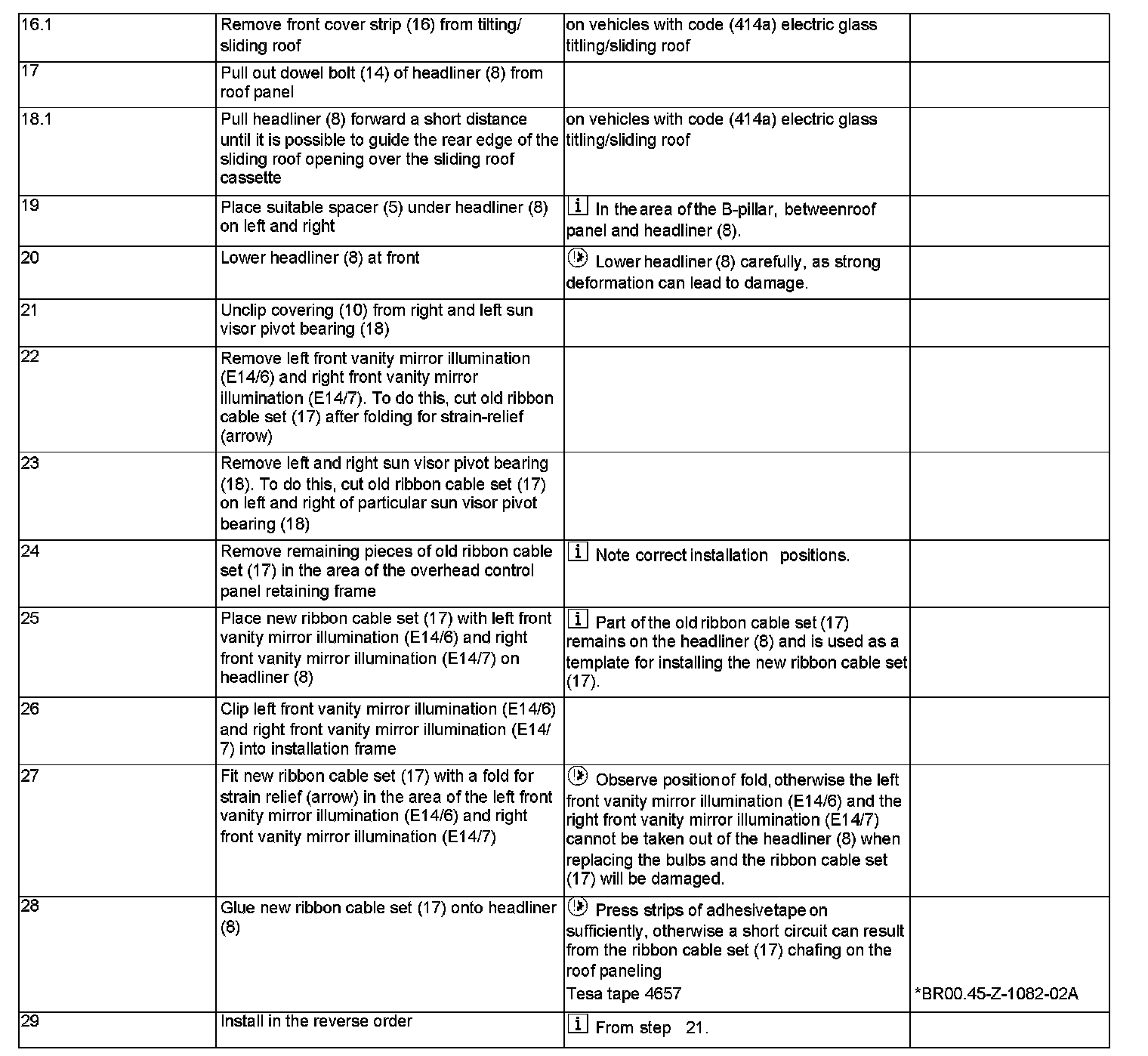

Part 1:

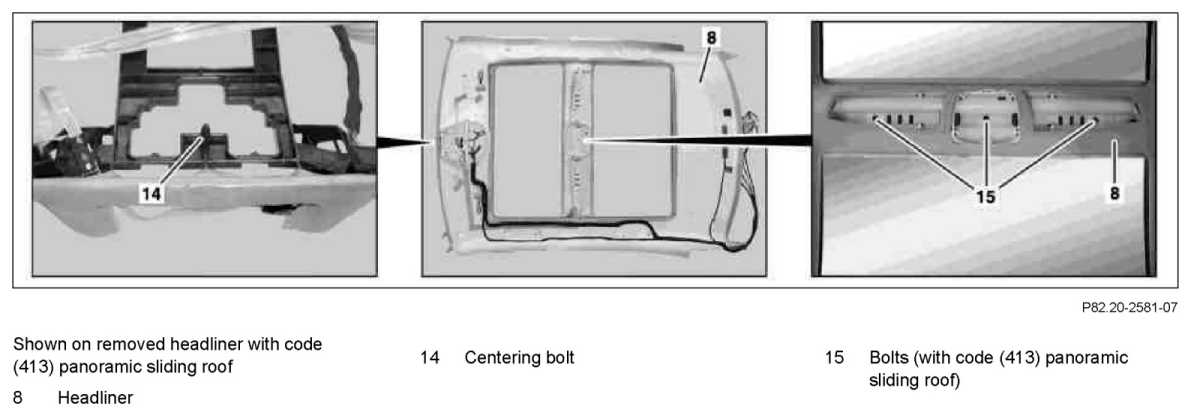

Part 2:
