AR05.10-P-7800T Remove/Install Chain Tensioner



AR05.10-P-7800T Remove/install chain tensioner

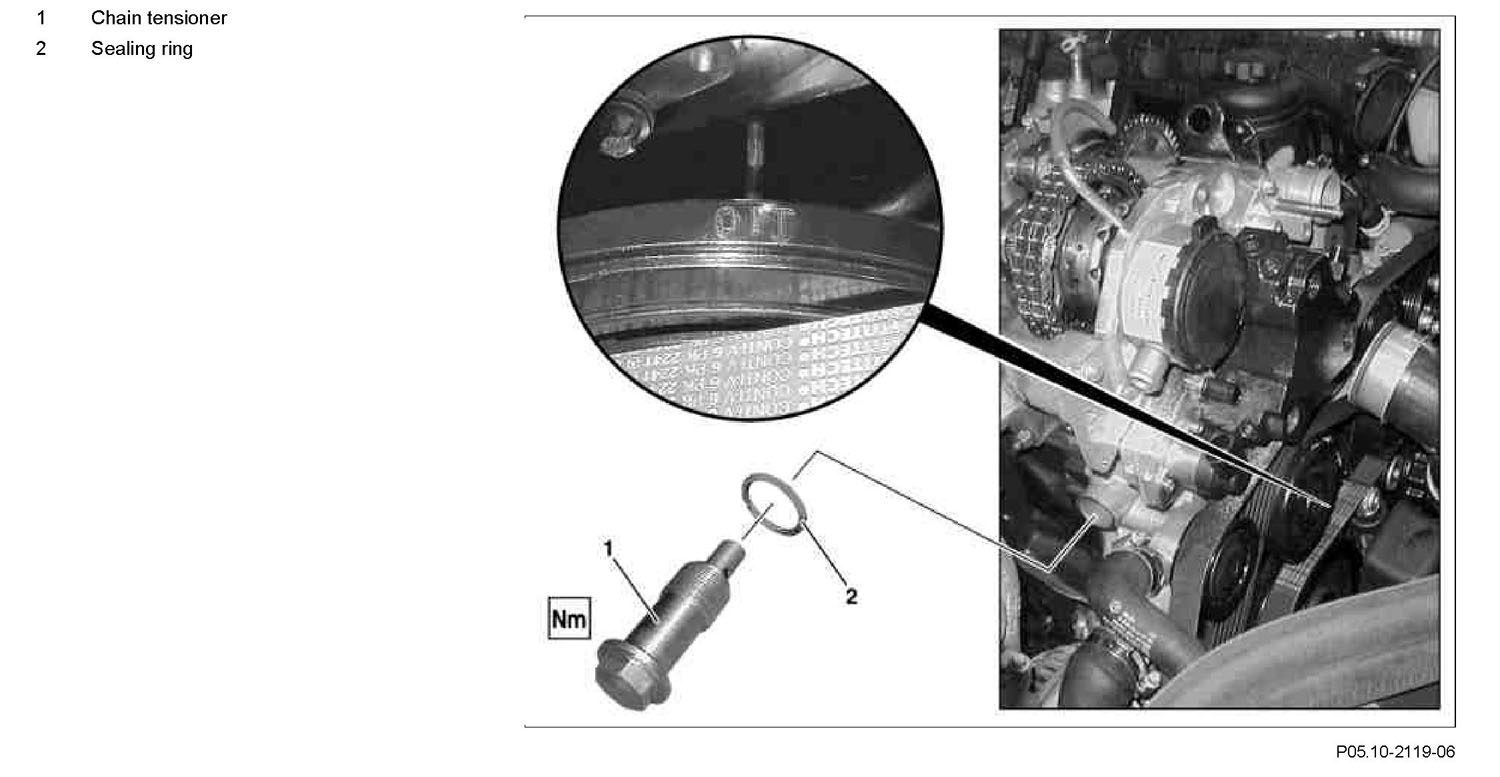

Component Identification:

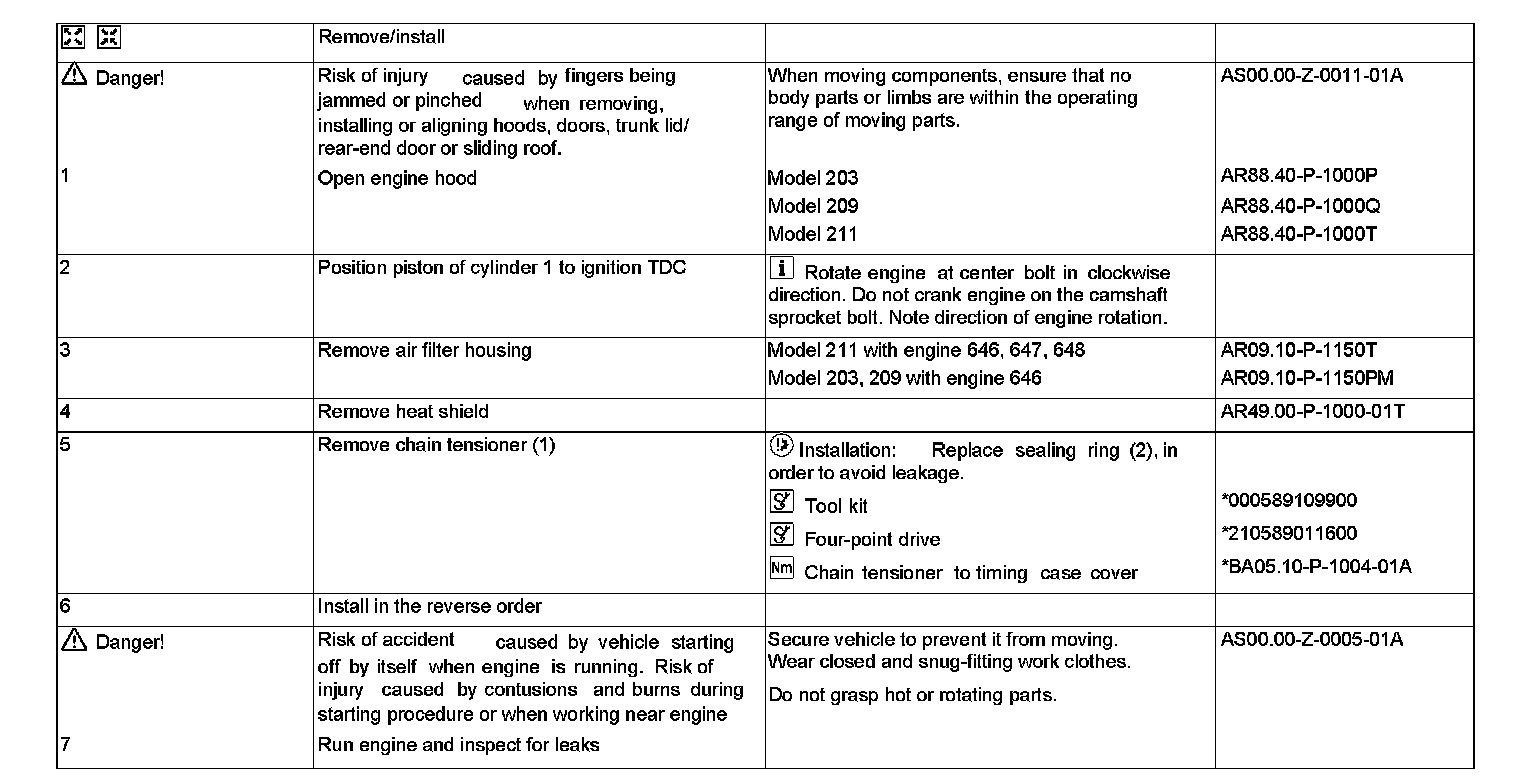

Steps 1-7:




Timing Chain, Chain Tensioner:




Special Tools:
