AP42.10-P-4258R Inspect Condition of Brake Disks
AP42.10-P-4258R Inspect Condition of Brake Disks
AP42.10-P-4258R Inspect condition of brake disks

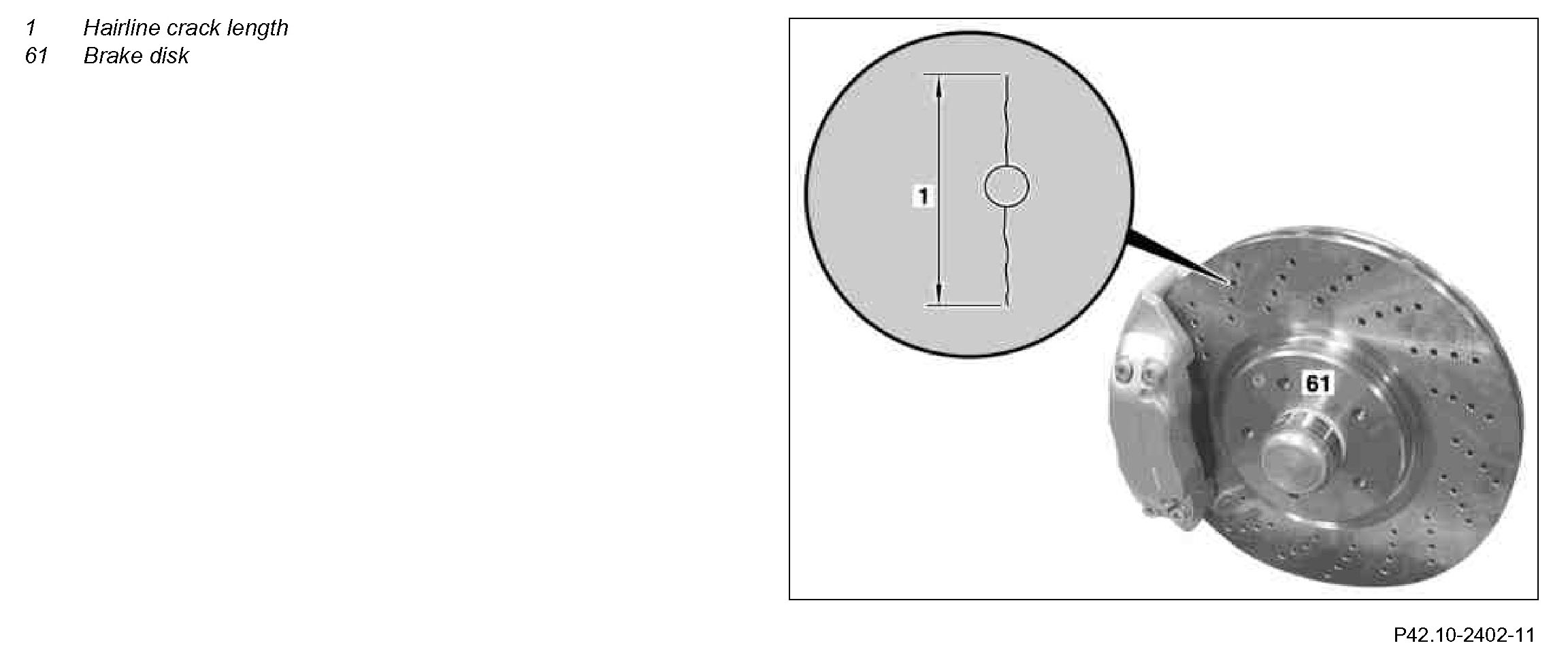

Component Identification:

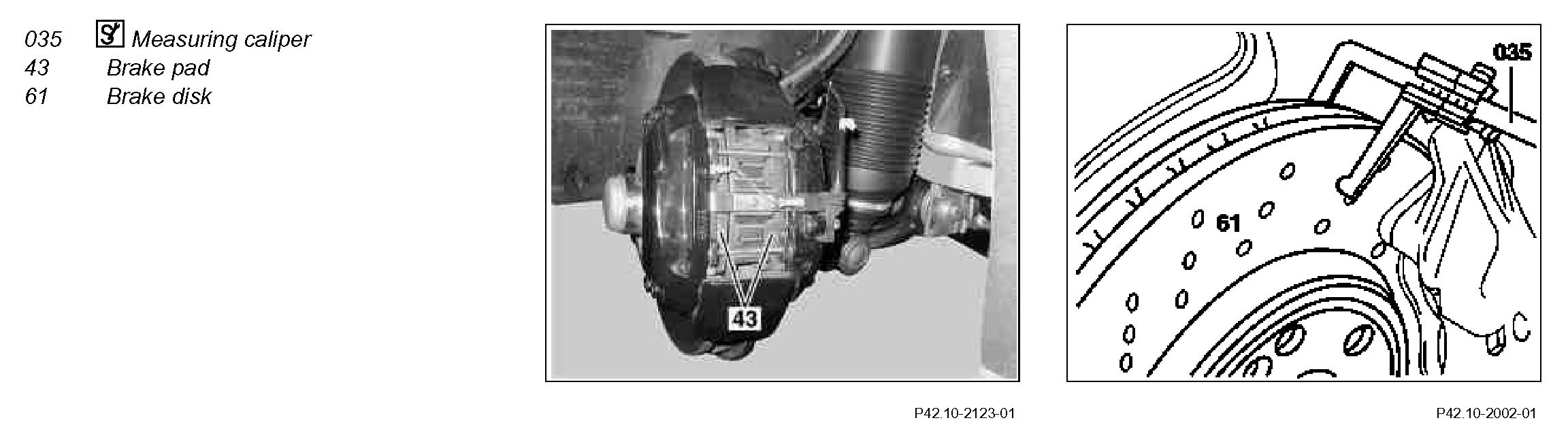

Component Identification:

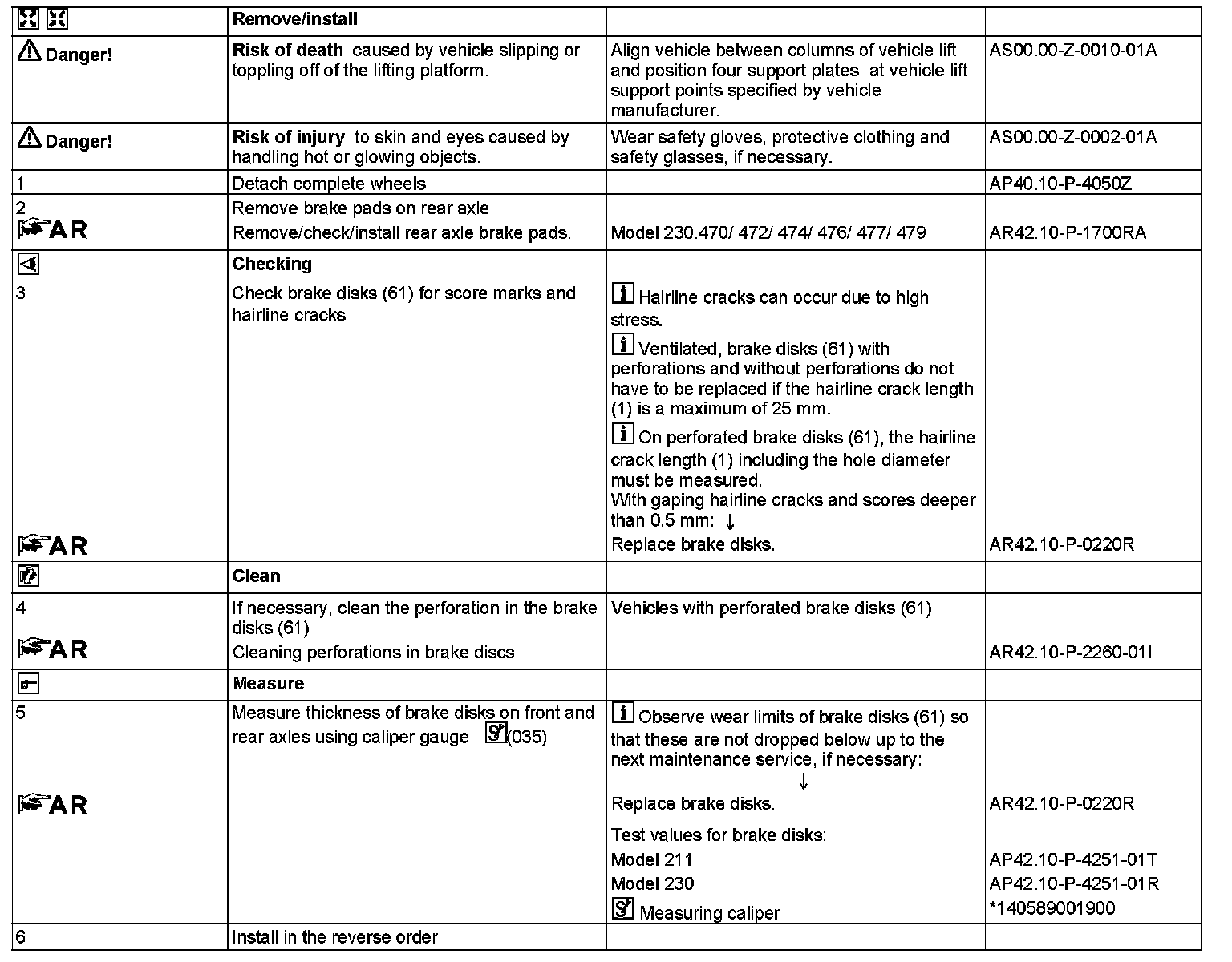

Steps 1-6:

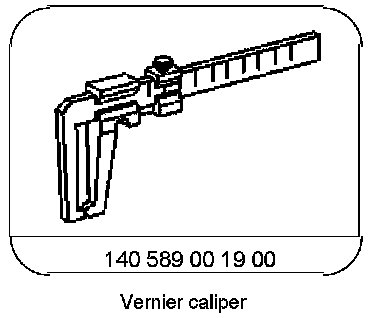

Special Tools:
