AP42.10-P-4251R Check Lining Thickness of Brake Pads and Condition of Brake

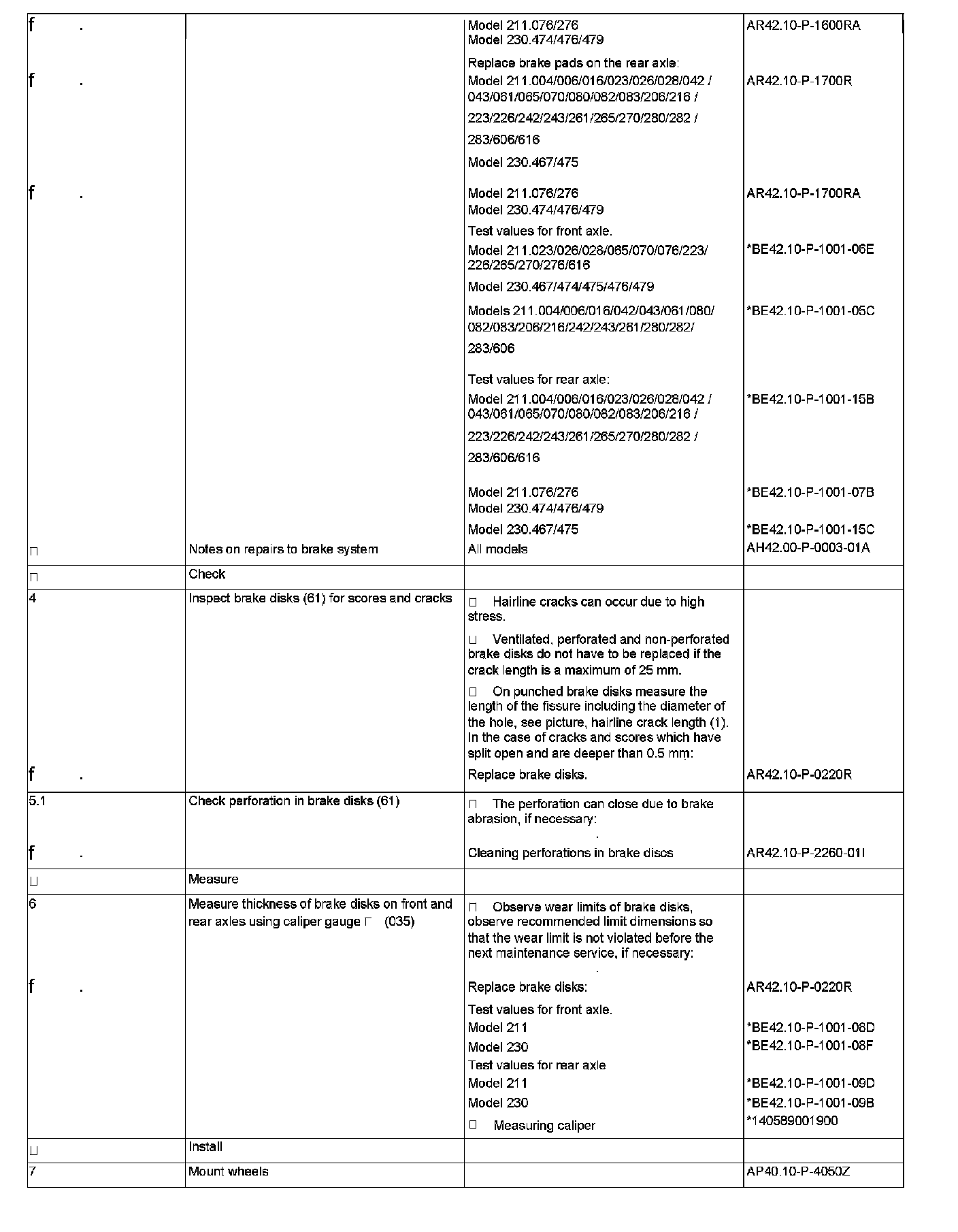

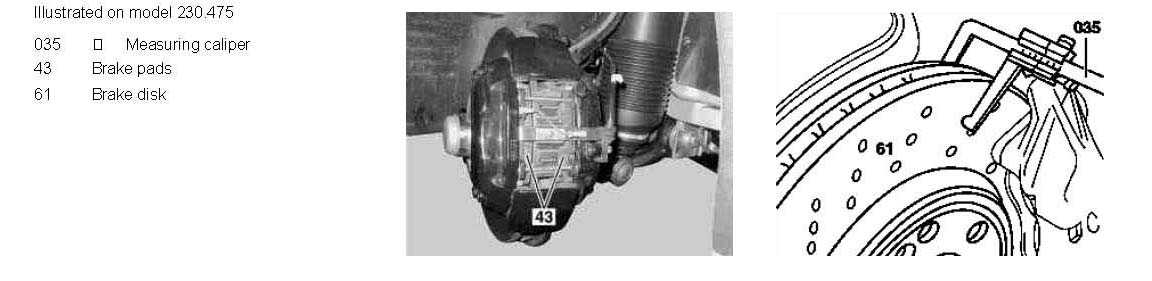

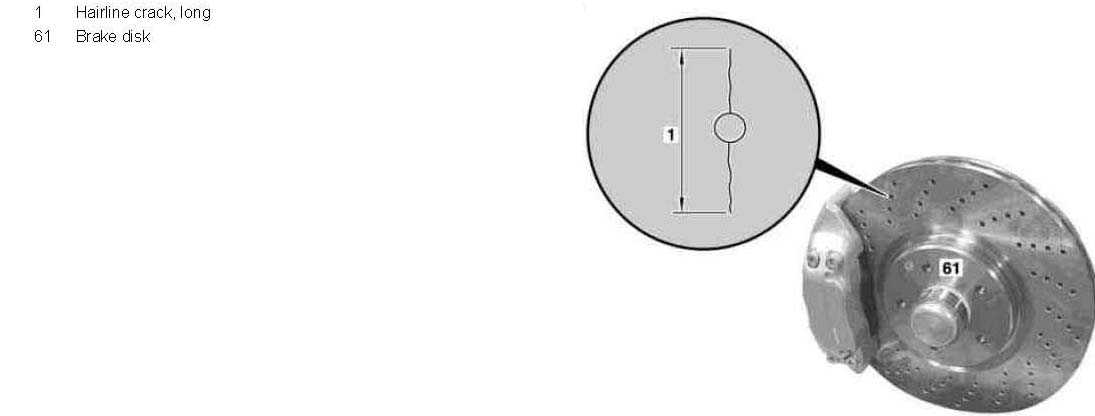

Check lining thickness of brake pads and condition of brake

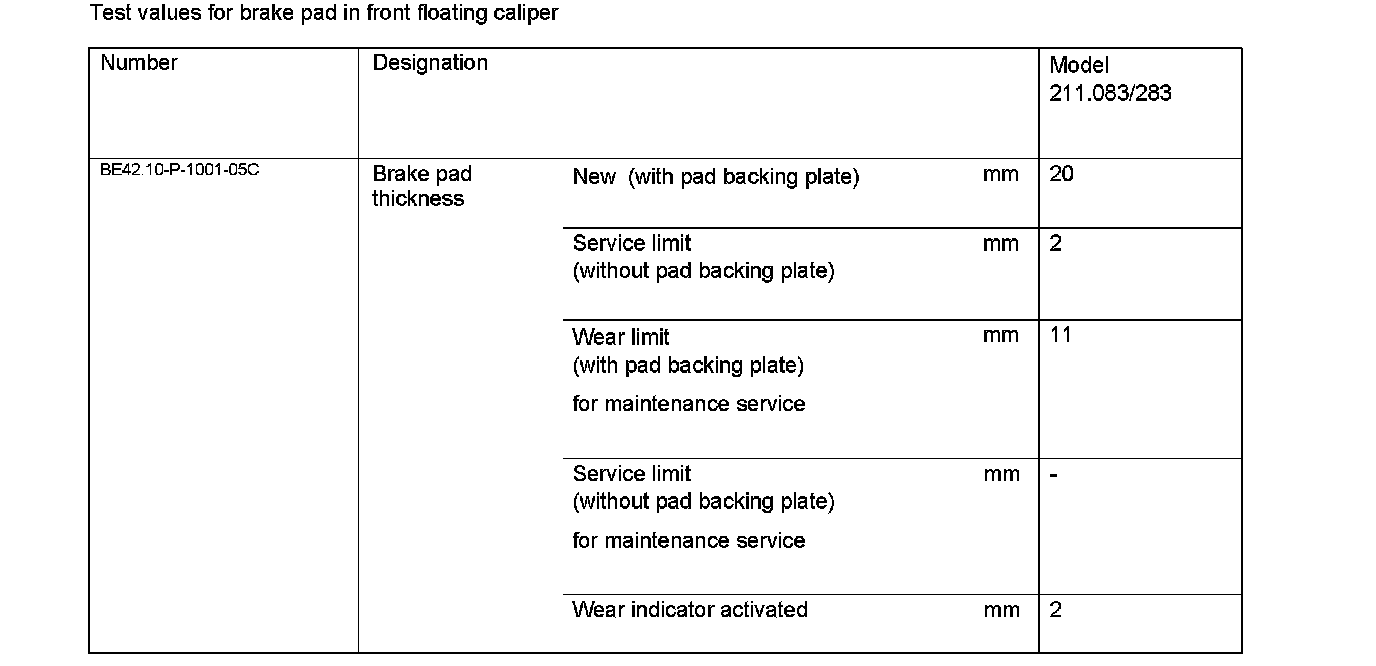

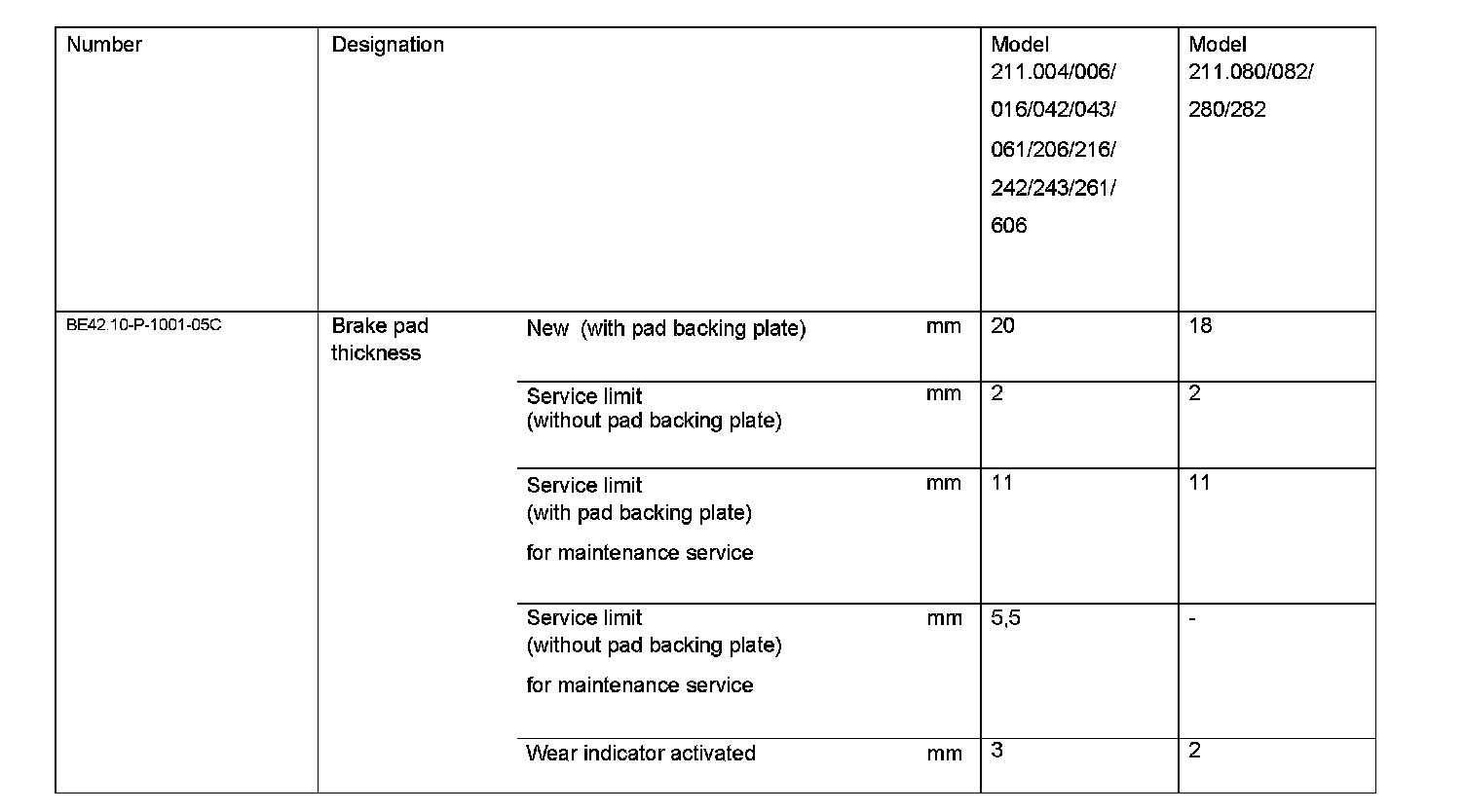

Test values for brake pad in front floating caliper:

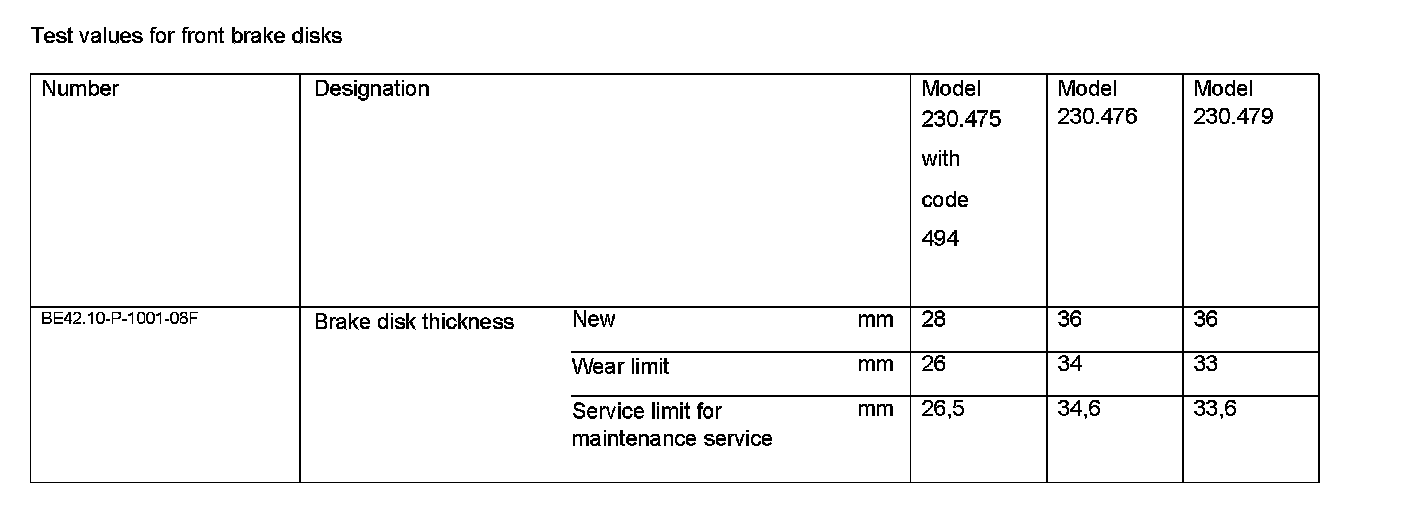

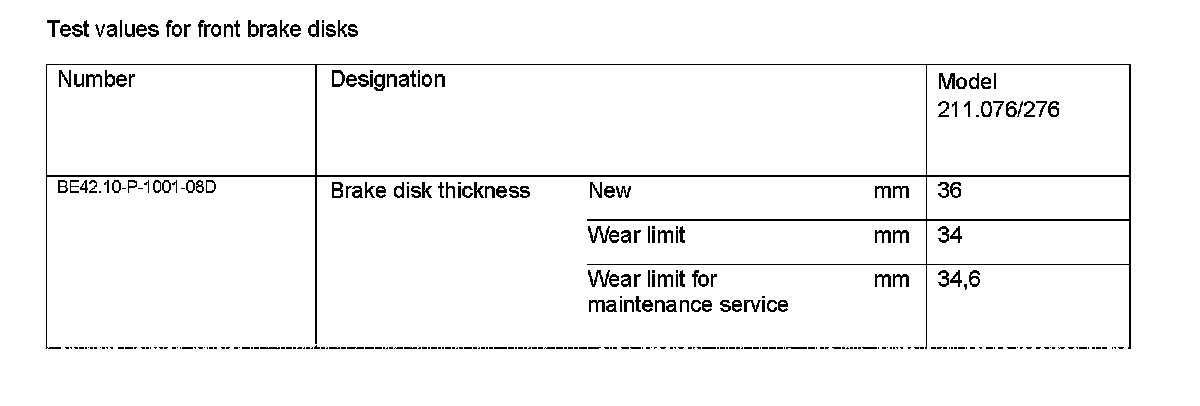

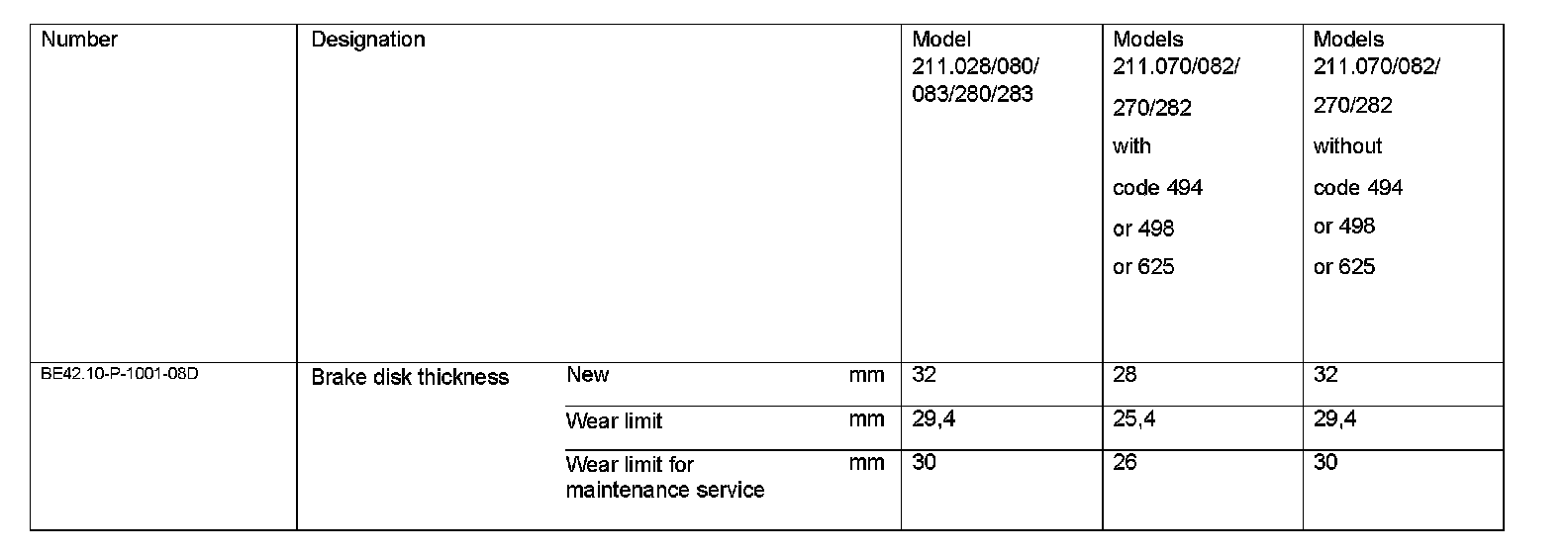

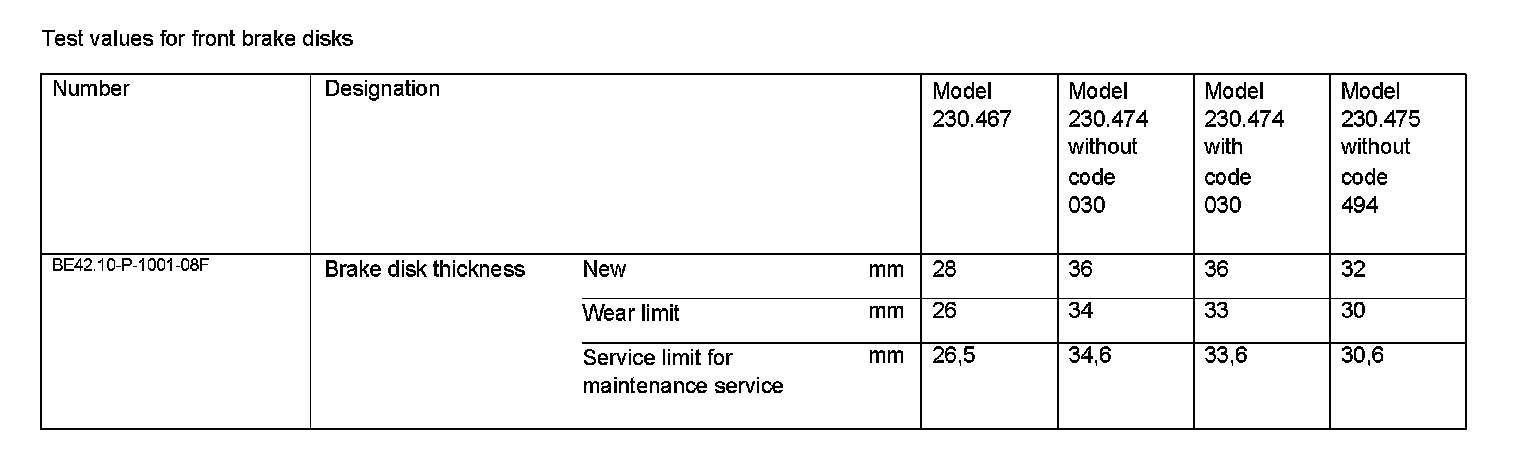

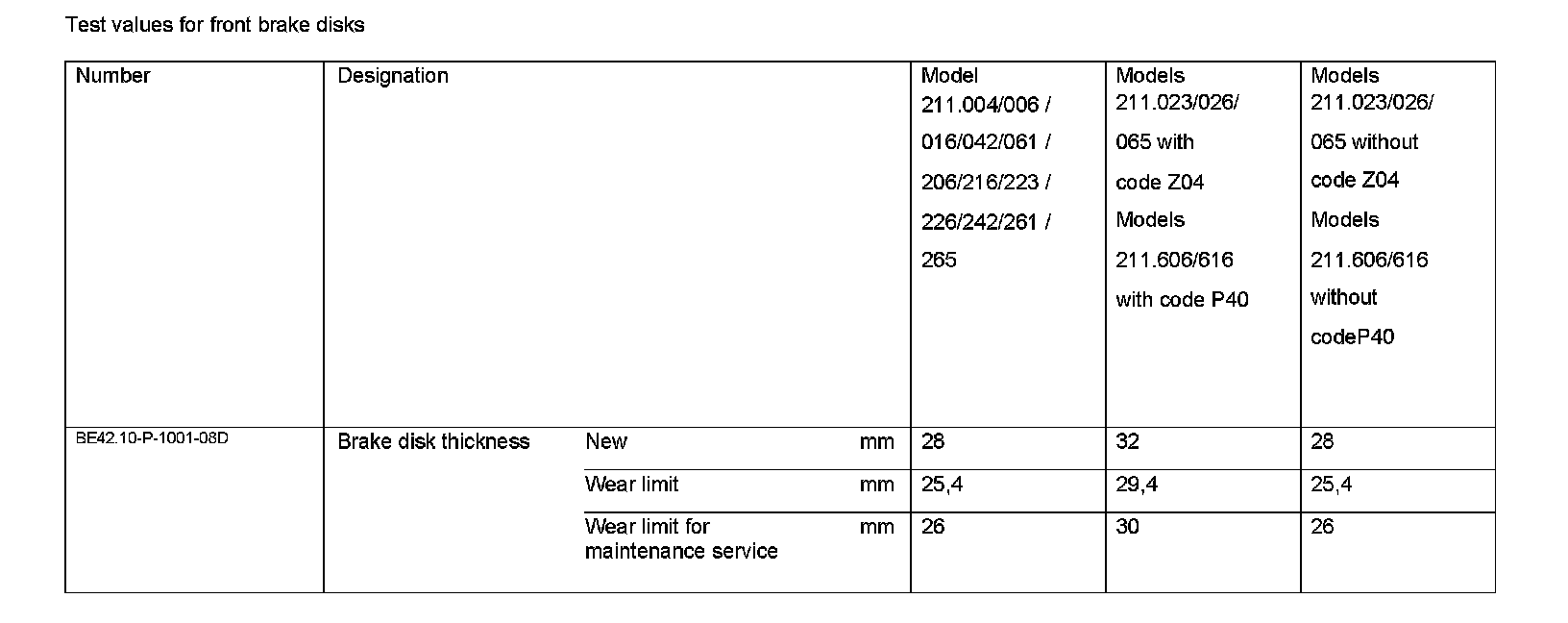

Test values for front brake disks:
